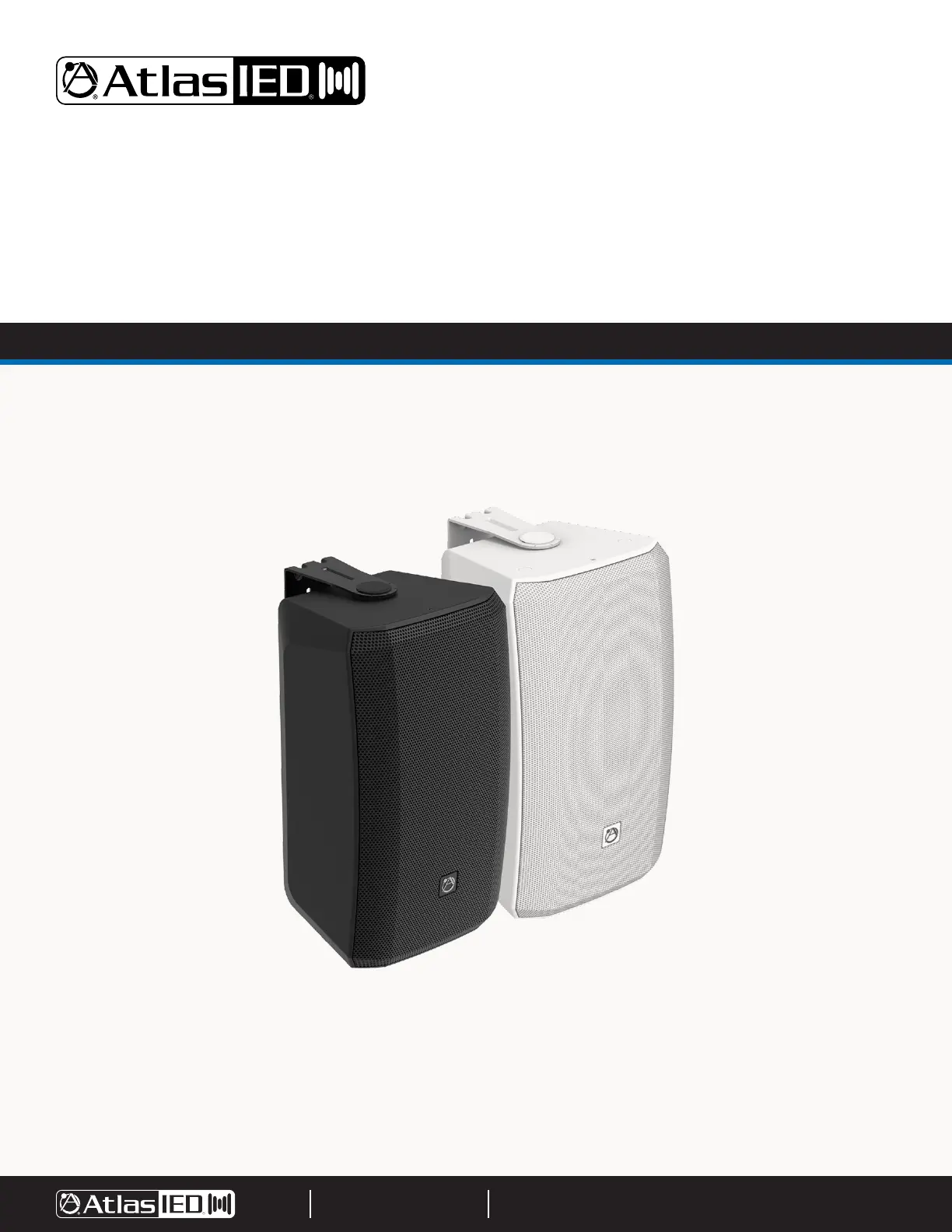

INSTALLATION GUIDE
YOKE MOUNT / C-BRACKET
AS Series
INSTALLATION GUIDE
YOKE MOUNT / C-BRACKET
AS Series
INSTALLATION SAFETY NOTICE
1. Fixing Responsibility: Users are responsible for securely xing the
hardware to the intended mounting surface to ensure safe operation. The
xings utilized must be capable of supporting the weight of the product.
Refer to the product specication pages for the appropriate weight limits.
Additionally, consult the relevant construction codes in your region for
guidance on suitable hardware xing methods.
2. Secondary Security Measures: Certain regional construction codes may
mandate the utilization of a secondary method for securing loudspeakers
to surfaces to ensure a backup support system. It is recommended to
attach a secondary support line from the product to a secure point on the
wall. Refer to the relevant construction codes in your region for specic
requirements.
3. Accountability: AtlasIED will not be held liable for any damages resulting
from incorrect installation procedures.
Please adhere to these safety guidelines to ensure the safe and proper
installation of your product. If you have any questions or concerns, feel free
to contact us for assistance.
SUMMARY OF STEPS
1. Feed wire through bracket.
2. Attach bracket to mounting surface.
3. Feed wire through weatherproof Back Plate.
4. Connect cable to Euroblock connector.
5. Set wattage tap.
6. Remove loudspeaker endcaps then engage loudspeaker with
mounting bracket.
7. Partially tighten screws to ensure safe connection.
8. Adjust angle for each access to the back plate.
9. Connect Euroblock connector to loudspeaker.
10. Connect weatherproof Back Plates.
11. Adjust angle of loudspeaker to desired location.
12. Tighten screws to securely lock loudspeaker in place.
13. Place endcaps onto C-bracket sides.
14. Ensure “service loop” in place to prevent water damage.
15. Rotate logo badge for horizontal or vertical loudspeaker orientation.
