WMA Cabinets
Wall Mounted Cbinets Series
5
1
3
4
All fastening and anchoring
methods to be specified by site
engineers/inspectors as required.
Concrete Wall
Installation
Wood Stud
Installation
Use x 2" sleeve type
concrete anchor bolts for
concrete walls or x 2"
toggle bolts in concrete
block wallapplications.
(1 bolt required per keyhole)
Use x 2" lag bolts and washers.
(1 bolt required per keyhole)
Use #10 sheetmetal screws and washers.
(2 screws required per keyhole)
(
Steel stud installation not tested b
y
UL
)
Steel Stud
Installation
16.00"mm
All Heights
17.00"mm (WMA10)
20.00"mm (WMA12)
24.00"mm (WMA16)
Mounting Hole Locations
16.00
All Heights
20.00"mm (WMA24)
30.00"mm (WMA35)
20.00"mm (WMA24)
30.00"mm (WMA35)
"mm
12"mm
12"mm

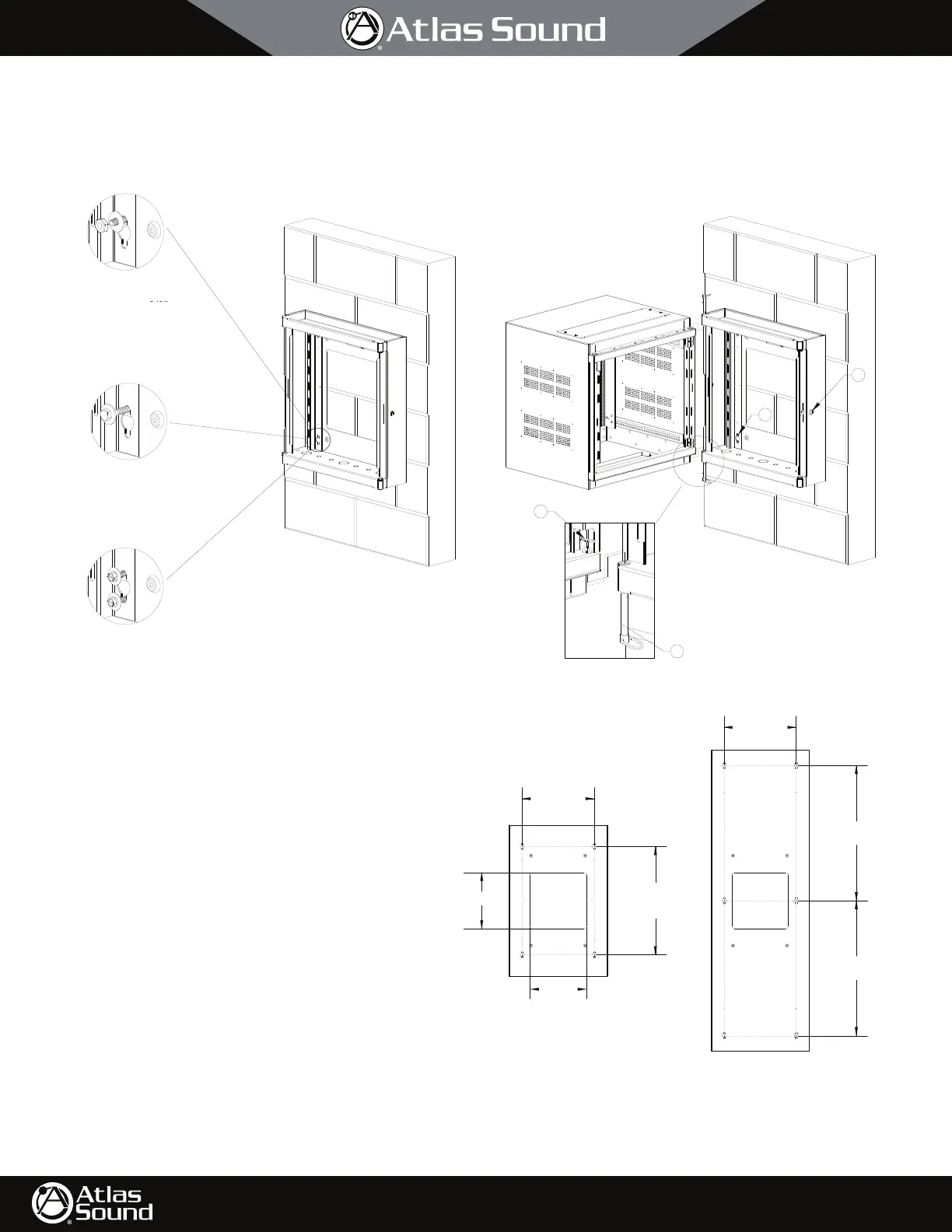

Figure 1 Figure 2
Installation Instructions
1. Anchor backbox to wall through the reinforced areas shown above
(Figure 1).
2. If the wall is uneven, shims may need to be positioned between the
backbox and the wall to get the backbox level.
3. Determine the hinge side of the center section.
4. Install the hinge pins on the top and bottom of the side you wish to
be hinged (Figure 2).
5. Open the center section and install the hair pins to prevent the hinge
pins from being removed (Figure 2).
6. Leave adequate service loops in all wiring in case future change-over
is required.
3⁄ "8
3⁄ "8
5
⁄ "16
2/2
AtlasSound.com
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
©2012 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS004389 RevA 5/12
WMA Cabinets
Wall Mounted Cbinets Series
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Model Weight Capacity
WMA10-23 200 lbs
WMA12-23 200 lbs
WMA16-23 200 lbs
WMA24-23 300 lbs
WMA35-23 300 lbs
3
3
4
CHANGE-OVER INSTRUCTIONS
1. Open cabinet and remove the hair pins.
2. Close cabinet and leave in the locked position.
3. Remove the top hinge pin and re-install on the opposite side, Repeat
this step on the bottom hinge pin (Figure 3).
4. Open cabinet, remove lock assembly and re-install on opposite side
(Figure 3).
5. Re-install hair pins.
Figure 3
