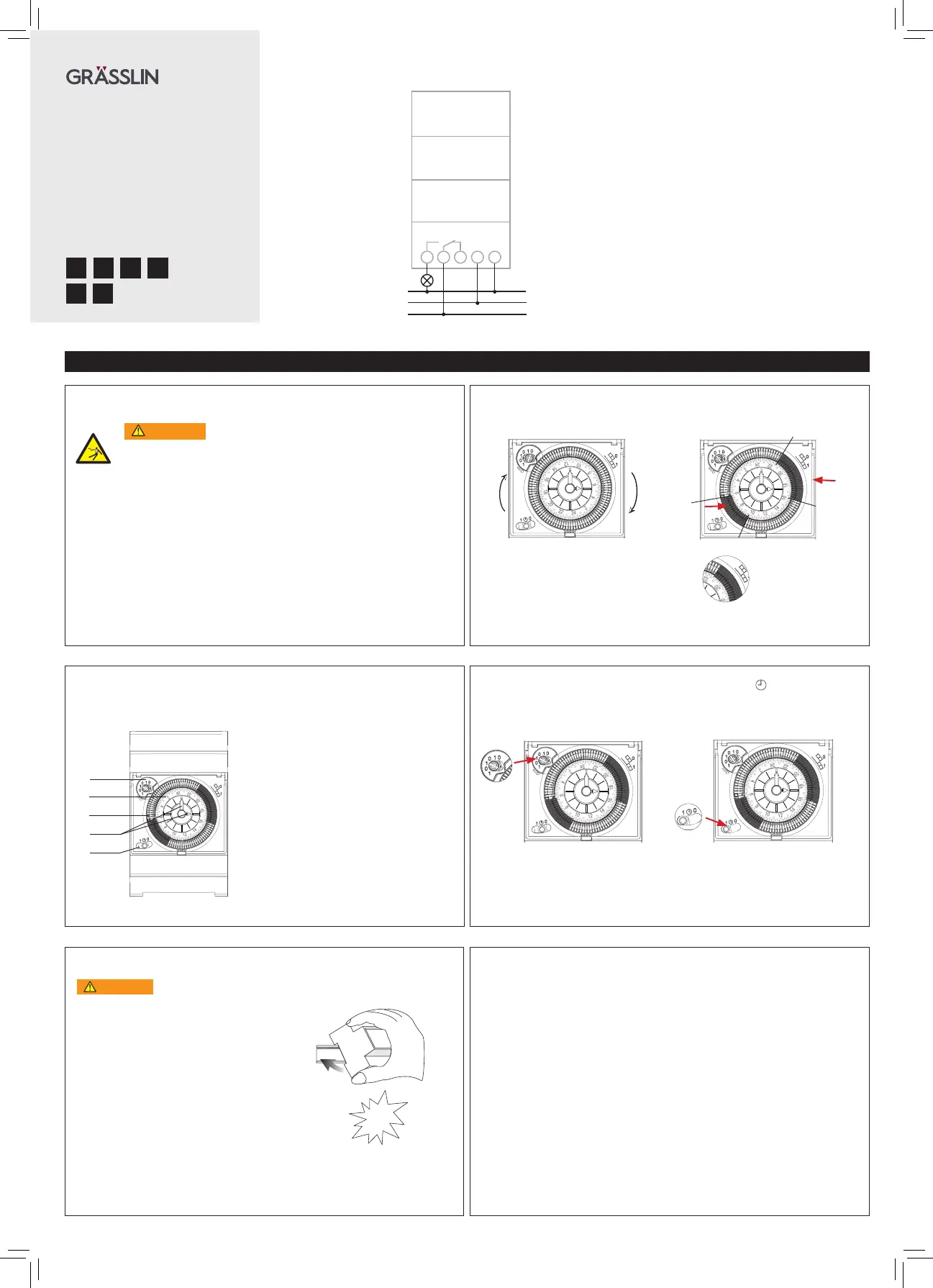

talento 111 SK 01.28.1001.1
talento 211 SK 02.28.1001.1
Service address/Hotline
Service address
Grässlin
Zeitschalttechnik GmbH
Leopoldstraße 1
78112 St. Georgen
GERMANY
Tel. +49 7724 933-0
Fax +49 7724 933-240
service@graesslin.de
Hotline
Tel. + 49 7724 933-500
support@graesslin.de
www.graesslin.de
ENGLISH
307643
1
C1
2 3 L N
N
L
L
Basic safety instructions
Designated use
The time switch can be used for lighting, ventilation, fountains,
advertising hoardings etc.
Only for use in closed, dry rooms
Installation on DIN top hat rail
The switching of any external wire is permitted, switching of SELV is not
permitted.
Disposal
Dispose of device in environmentally sound manner
Danger of death through electric shock or fire!
Installation should only be carried out by a qualified electrician!
WARNING
e.g. 6:15–9:45; 16:15–21:15 ON
Set time Set switching times
Description
 Switching pre-selection/manual
setting
Program timing disc
Switching segments (1 = 15 mins)
Hand for setting time (hours and
minutes) can be adjusted anti-
clockwise and clockwise; turn
minute hand firmly to left
Three way switch:
Permanent ON – AUTO –
Permanent OFF
in advance 3:00 ON (= 1)
Set manual operation/
switching pre-selection
Set 1 – 0 permanent
switching
1 = Permanent ON
0 = Permanent OFF
9:45
6:15
16:15
21:15
(1 = 15 min)
= 1
1
! Do not turn at the switching disc!
Set the times only with the clock
hand!
Connection/installation
Warning, danger of death through electric
shock!
Must be installed by qualified electrician!
Disconnect power source!
Cover or shield any adjacent live com-
ponents.
Ensure device cannot be switched on!
Check power supply is connected!
Earth and bypass!
for talento 211 SK only
Quarz movement only starts in a few
minutes after power is switched on.
Full power reserve is achieved after approx.
5 days.
WARNING
talento 111 SK talento 211 SK
Operating voltage: 230 V~, +10 %/-15 % 50 Hz 110–230 V~, 50–60 Hz
Power consumption: max. 1 VA max. 1 VA
Contact: two-way switch two-way switch
Switching capacity: 16 A, 250 V~, cos ϕ = 1 16 A, 250 V~, cos ϕ = 1
8 A, 250 V~, cos ϕ = 0,6 8 A, 250 V~, cos ϕ = 0,6
Switching capacity min.: 24 V/100 mA AC 24 V/100 mA AC
Incandescent lamp load:1100 W 1100 W
LED lamps: < 2 W: 20 W < 2 W: 20 W
> 2 W: 180 W > 2 W: 180 W
Perm. ambient temperature: –20 °C –20 °C
Protection class: II in acc. with EN 60730-1 for II in acc. with EN 60730-1 for
designated installation designated installation
Protection rating: IP 20 in accordance with EN 60529 IP 20 in acc. with EN 60529
Time accuracy: synchronised with mains ≤ ±1 s/s day at +20 °C
Power reserve: – – R 3 d (230 V), R 1,5 d (110 V)
Pollution degree: 2 2
Rated impulse voltage: 4 kV 4 kV
Type: 1 BRTU 1 BSTU
Technical Data
click
TH 35-7,5
(DIN EN 60715)
