ATOLL ELECTRONIQUE
OWNER’S MANUAL ~ HEADPHONES AMP
ATOLL ELECTRONIQUE
HD100 - HD120
Page 5Page 4
(2)
Headphones outputs (jack 6,35 mm): the connection of one or two headphones
commutates the relay and thus cut the sound on the level of the preamp outputs.
(3)
Led indicator color: orange=SLEEP; green=Switch on; red=Mute.
Trigger cable must be a Male to Male stereo jack
plug Ø 3,5 mm (1/8”).
Inputs leds indicators:
11) Line 1 input (analog).
12) Line 2 input (analog).
13) Optical input (digital).
14) Coaxial input (digital).
15) USB-B (digital) and Bluetooth®
(blue LED HD120) input.
16) Volume setup knob.
17) Headphones outputs
(2)
.
18) Sources selectors knobs.
19) ON/SLEEP indicator led
(3)
.
20) ON/SLEEP (preheating) key.
DETAIL OF FUNCTIONS
CONNECTING
Your Integrated can be used with our global ATOLL remote control (optional). Your Remote
Control is fully equipped with 2 Lithium 3V batteries CR2025.
(1)
Direct Access keys:
– CD key = Line 1.
– Tuner key = Line 2.
– Tape key = OPT (Optical input).
– AUX key = COAX (Coaxial input).
– USB key = (USB input).
(2)
Display: allows switching ON/SLEEP all indicators leds of the front panel. They’ll
always get on after a ON/SLEEP or Switch On the appliance.
(3)
MUTE: MUTE key of the remote cuts Headphones outputs and also the Preamp.
outputs of the Appliance. To remove from MUTE, use the MUTE key again or with the
volume
+
key.
REMOTE CONTROL
BLUETOOTH FOR HD120 ONLY (KEY MODE)
Your appliance allows the reception of audio signals sent since any devices having a
Bluetooth® transmitter (Smartphone, tablet, computer…).
First time association:
• Activate the Bluetooth® connectivity of your emitter device.
• Select your appliance on the list of possible receiver (named ATOLL HD120).
• With key of the remote or with keys SEL
+
/ (18) of the front panel, select the
Bluetooth input of your HD120 (led 15 lighting in blue).
The whole audio signals which will be read on your device source will then be transmitted
towards your HD120. Your emitter device will remain associated until you switch off your
HD120 but p1-he will remain visible for your emitter.
Association of another emitter:
• Once associated to an emitter, you’ll need to switch completely your HD120 off in
order to make it visible from another emitter.
The quality of reception of the signal can be dependent on the power of the Bluetooth®
emitter and the distance between the 2 devices. Avoid being up to more than 5 meters of
your HD120 for a correct reception without any risks of signal cuts.
Volume
Bluetooth®
+
Sources selection
+
Display
(2)
USB-B
Mute
(3)
ON/SLEEP (preheating)
Direct sources access
(1)
Non-
functional
keys

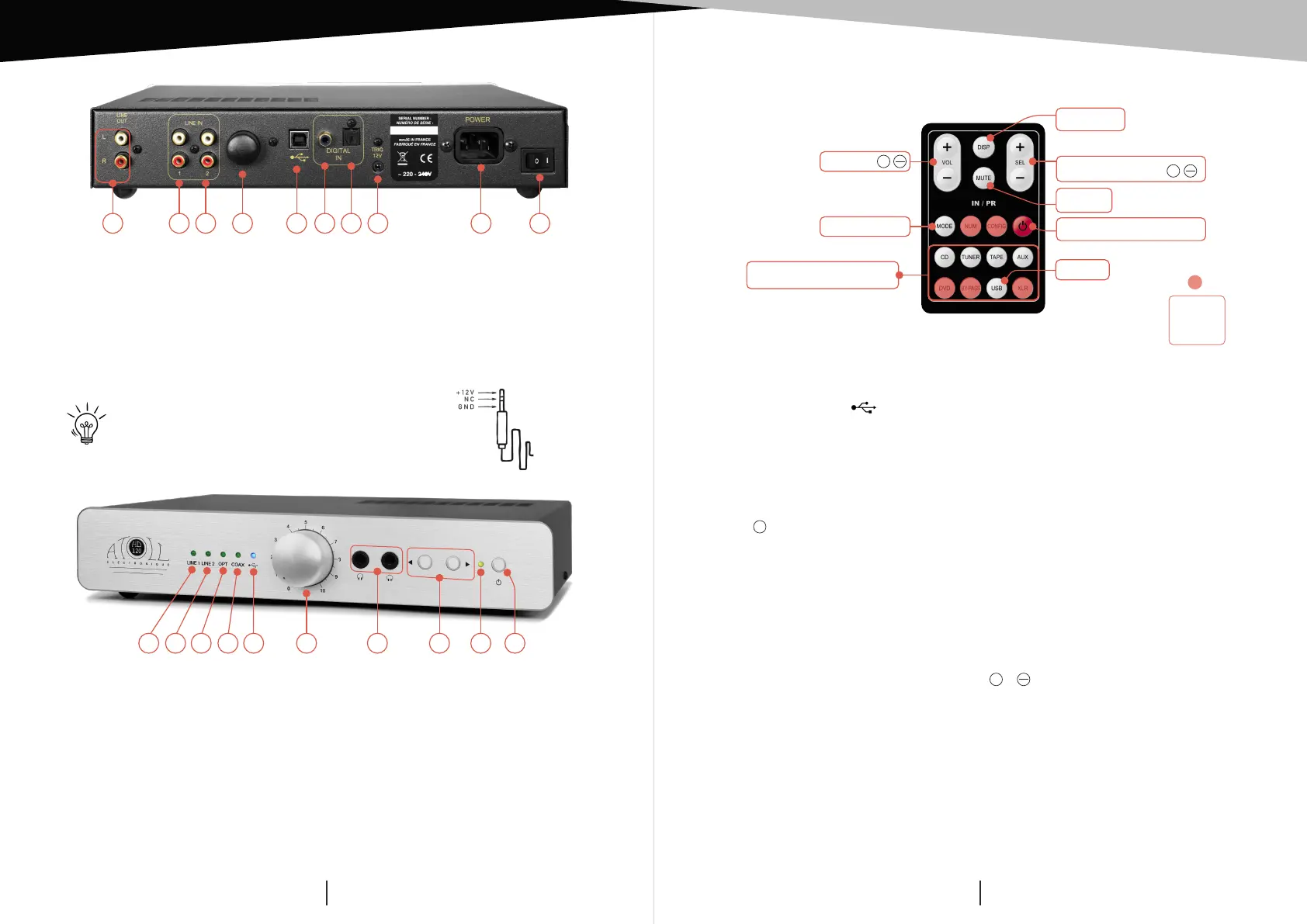

1 2 3 4 5 6 7 8 9 10
Jack
Ø 3,5 mm
16 17 18 1911 12 13 14 15 20
1) Analog outputs (Left & Right).
2) Line 1 input.
3) Line 2 input.
4) Bluetooth receiver (not on HD100).
5) USB Input (B type).
6) Coaxial input.
7) Optical input.
8) Trigger output
(1)
.
9) Mains socket.
10) ON/OFF power switch.
(1)
Trigger output: this appliance is equipped with a Trigger that allows the switch
ON/OFF of any amplifier equipped with the same kind of Trigger inputs (ATOLL’s
amplifiers).
