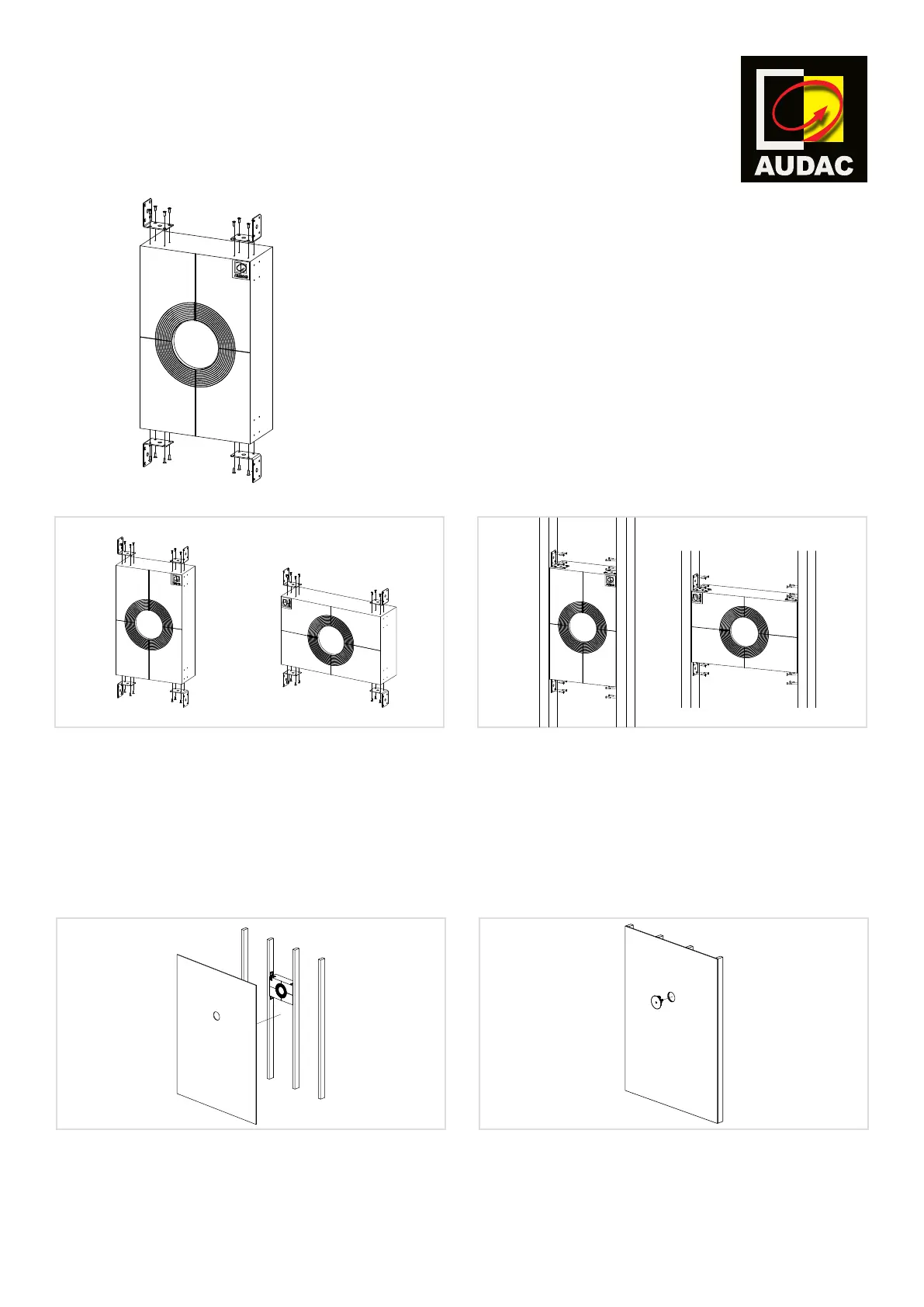

INSTALLATION MANUAL

WMM630 WOODEN IN-CEILING/WALL SPEAKER BACK BOX

STEP 1 STEP 2

Install the included L-shaped mounting brackets onto

the back-box. Depending on the installation direction

(horizontal or vertical) and the width between the

supporting beams, the L-shaped brackets can be

mounted in two dierent directions. The mounting

holes for the L-brackets are partially pre-drilled. Use

the included fasteners for assembling the L-brackets.

Install the back box on the provided wall or ceiling

location in between the supporting beams. Make sure

the structure can support the weight of the back box

and the speaker to be installed into it. Depending on

the structural material the appropriate fasteners shall

be used.

STEP 3

Adjust the cut-out for the installed speaker according

to the required diameter (if necessary). Various

cut-outs for dierent diameters are marked on the

back-box for easy cutting. Provide the connection

cable into the back-box by drilling a hole and pulling

the cable through it. Make sure the hole is properly

sealed afterwards.

STEP 4

Finish the structure by placing finishing board

(plasterboard, wood, ... ) in front of it. Afterwards,

connect, insert and install the speaker into the

provided location.

The WEEE marking indicates that this product

should not be disposed with regular household

waste at the end of its product life. This regulation

is created to protect both the environment and

human health.

This product is developed and manufactured with

high quality materials and components which can

be recycled and/or reused. Please dispose of this

product at your local collection point or recycling

center for electrical and electronic waste. Do this

to make sure that the product is recycled in an

environmental friendly way, and help to protect

the environment in which we all live.

INSTALLATION MANUAL

WMM630 WOODEN IN-CEILING/WALL SPEAKER BACK BOX

•

IF THERE IS ANY DAMAGE TO THE CARTON BOX

OR THE UNIT ITSELF, INFORM YOUR VENDOR

IMMEDIATELY.

•

ALWAYS FOLLOW THE LOCAL REGULATIONS AND

REQUIREMENTS REGARDING INSTALLATION,

SUSPENSION AND CONNECTION OF THIS

LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED

IN THIS DOCUMENT.

• THE INSTALLATION OF THIS LOUDSPEAKER SHALL

BE DONE BY QUALIFIED PERSONNEL ONLY.

•

ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE

REFERENCE. NEVER THROW THEM AWAY

• ALWAYS HANDLE THIS UNIT WITH CARE

• CLEAN ONLY WITH DRY CLOTH

•

HEED ALL WARNINGS AND FOLLOW ALL

INSTRUCTIONS

•

NEVER EXPOSE THIS EQUIPMENT TO RAIN,

MOISTURE, ANY DRIPPING OR SPLASHING LIQUID.

•

DO NOT INSTALL THIS UNIT NEAR ANY HEAT

SOURCES SUCH AS RADIATOR S OR OTHER

APPARATUS THAT PRODUCE HEAT

•

DO NOT PLACE THIS UNIT IN ENVIRONMENTS

WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR

VIBRATION

• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY.

DO NOT USE IT OUTDOORS

•

ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED

BY THE MANUFACTURER.

•

ONLY INSTALL THE SPEAKER IN LOCATIONS THAT

CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE

SPEAKER. IGNORING THIS CAN BRING THE SPEAKER

DOWN.

•

DO NOT USE ANY OTHER METHOD THAN SPECIFIED

TO MOUNT THE SPEAKER. IF EXTREME FORCE IS

APPLIED TO THE SPEAKER, IT COULD FALL DOWN

•

ATTACH A SAFETY WIRE TO THE SPEAKER WHEN

IT IS MOUNTED HIGH UP. ONLY USE INDUSTRY-

ACCEPTED RIGGING TOOLS AND METHODS

• CAREFULLY CHECK THE UNIT’S CONDITION AFTER

UNPACKING.

PRECAUTIONS

This product contains no user serviceable parts.

Refer all servicing to qualied service personnel. Do

not perform any servicing (unless you are qualied

to do so.)

CAUTION - SERVICING

This product conforms to all the essential

requirements and further relevant specications

described in following directives: 2011/65/EU

(RoHS2) and 1907/2006 (REACH)

EC DECLARATION OF CONFORMITY

WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE)
