Detroit 1000X DSP

Please read the manual before using the product

USER´S

MANUAL

Detroit 1000X DSP

Speciﬁcations

Model

No.

Detroit 1000X DSP

Type

1pc column + 1pc 12'' subwoofer

Frequency Response (-6dB)

45 Hz - 20 kHz

Max. SPL (1m, free space)

125 dB

Power Output (RMS)

400W+200W

Impedance

4Ohms

Transducer HF

8pcs * 3" driver, 20mm voice coil

Transducer LF

12" subwoofer, 2.5" voice coil

Ampli er ﬁ

Class-D ampli er ﬁ

DSP Module DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ,

Live

Protection

Short circuit overheating, over-current

Controls

Power On / Off switch, main level, DSP modes switch

Indicators

Power, signal

Audio Input / Output

3 * Combo XLR/Jack input, 1 * L/R Jack input, 1 * Aux input, 1 * XLR

output

Power Input / Output

Powercon

Power Supply

230V 50/60 Hz

Enclosure

ABS/PP Plastic

Dispersion (H * V)

120° * 16°

Detroit 1000X DSP USER´S

MANUAL

1 2

Please read and keep all safety and use instructions. Important Safety Instructions

Refer to the user manual for more information about your Detroit 1000X DSP

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufactu-

rer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produces heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding-type plug

has two blades and a third grounding prong. The wider blade or third prong is

provided for your safety. If the provided plug does not fit in your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where it exits from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

13. Unplug this apparatus during lightning storms or when unused for long periods of

time.

14. Refer all servicing to qualified personnel. Servicing is required when the apparatus

has been damaged in any way such as power-supply cord or plug is damaged,

liquid has been spilled or objects have falleninto the apparatus, the apparatus has

been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS:

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

This symbol on the product means there is uninsulated, dangerous voltage

within the product enclosure that may present a risk of electrical shock.

This symbol on the product means there are important operating and

maintenance instructions in this guide.

Contains small parts which may be a choking hazard. Not suitable for

children under age 3.

This product contains magnetic material. Consult your physician on whether

this might affect your implantable medical device.

1. CH1/CH2/CH3/CH4 VOL:

Four Channels Volume Control.

2. Master VOL:

Master Volume Control.

3. Treble VOL:

Treble Volume Control.

4. Bass VOL:

Bass Volume Control.

5. Effect VOL:

E ect Volume Control.

6. Mode Switch:

Swipe to switch modes: Microphone, Guitar,

Line.

7. CH1/CH2/CH3 XLR Input:

Balanced XLR input for getting signals from

mixers or preampliﬁers.

8. CH4 L/R Jack Input:

Balanced L / R Jack input for getting signals

from mixers or preampliﬁers.

9. CH4 Aux Input:

Balanced Aux input for getting signals from

mixers or preampliﬁers.

10. Indicator Light:

Power / Signal.

11. Bluetooth Button:

Press once to connect a Bluetooth device or

disconnect a paired Bluetooth device.

12. TWS Button:

Press once to connect a TWS device or

disconnect a paired TWS device.

13. DSP Preset:

There are three preset mode: Monitor / DJ /

Live.

14. Phase Switch:

Allows user to reverse phase 180°

15. Line Out:

Balanced XLR connectors connected in parallel

to the inputs to connect subwoofer.

16. AC Input:

Please Use AC input cable from the original

manufacturer only.

17. Power Switch:

Turns unit on or o .

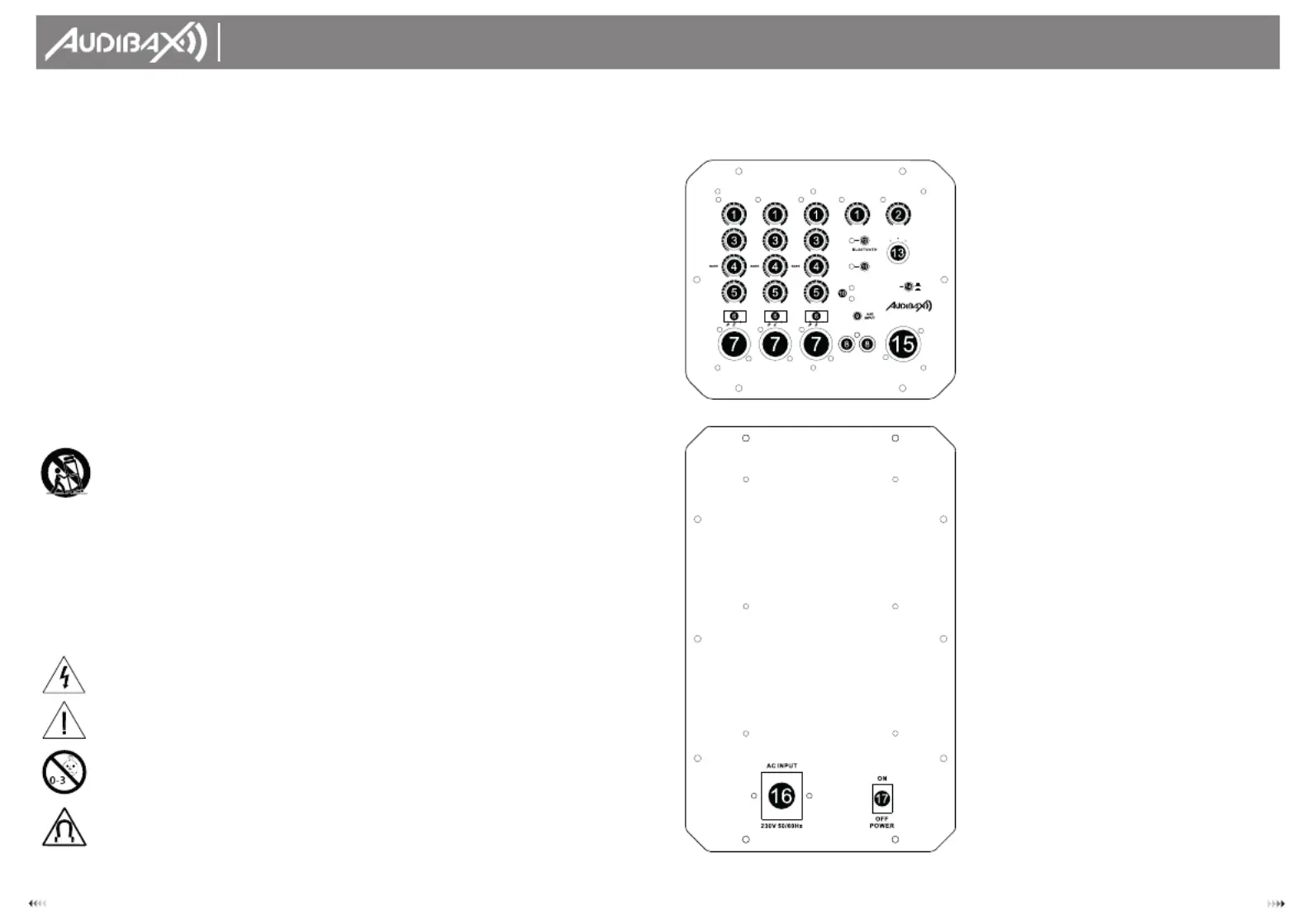

System Setup

Connections and Controls

CH CH21CH3 LINE OUTCH4

Line Line Line

1 3

1. MONITOR

2. DJ

3. LIVE

DSP Preset

T W S

PHASE

SIGNAL

POWER

0°

180°

M IN M AX

M A S T E R

CLIP CLIP CLIP CLIP CLIP

TR EB LE TR EB LETR EB LE

E F F E C T E F F E C TE F F EC T

V O L V O L V O L V OL

M IN M AX

CH 1

M IN M AX

CH2

M IN M AX

CH3

M IN M AX

CH4

Detroit 1000X DSP
