Side 1/8
GAIN GAIN
CHANNEL 3 CHANNEL 4
IN
OUT
IN
OUT
GAIN
CHANNEL 1CHANNEL 2
IN
OUT
GAIN
IN
OUT
NORMAL
BRIDGED
CHANNEL 1 & 2 BRIDGED CHANNEL 3 & 4 BRIDGED
220-240v~
100-120v~
CH3&4
CH1CH3
CH4CH2
CH1&2
SERIAL No.
~50/60Hz
350W
plus
channel 1 channel 2 channel 3 channel 4
0dB 0dB 0dB 0dB-3 -3 -3 -3-6 -6 -6 -6-12 -12 -12 -12-18 -18 -18 -18
plus
4-channel power amplifier
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
1. SERVICING
Do not attempt to service this product
yourself as opening covers or panels may
expose you to dangerous voltages or
other hazards. Refer all servicing to
qualified personnel.
Where replacement parts are required be
sure the service technician has used
replacements supplied by the
manufacturer or have the same
characteristics as the original part. Use of
unsuitable parts could cause fire, electric
shock or other hazards and may void any
warranty or guarantee.
The technician must perform any safety
checks to test the performance of the
product upon completion of any repairs.
2. PRECAUTIONS
WARNING - To reduce the risk of electric
shock do not remove any panels or
covers. There are no user serviceable
parts in this product.
WARNING - To reduce the risk of electric
shock, do not expose this product to rain
or moisture.
READ ALL INSTRUCTIONS before
attempting to install or use the product.
RETAIN INSTRUCTIONS for future
reference.
WATER AND MOISTURE - The product
should be kept away from water, for
example sinks, bath tubs, wet areas and
the like.
OBJECT OR LIQUID ENTRY - Do not
insert any object or liquid into the
openings in the product as this may cause
electric shock or malfunction.
HEAT - The product should be kept away
from any heat sources such as radiators,
stoves or fires.
MOVING/TRANSPORTING THE
PRODUCT - All product should be
packed in its original packaging for moving
from location to location.
OVERLOADING - Never overload mains
outlets, extension cables or multi-way plug
extensions as this may cause fire or
electric shock.
POWER CORD PROTECTION - Power
supply cords must be routed away from
areas where they are likely to be walked
on or squashed by furniture. Also pay
attention to the placement of extension
leads or multi-way extension leads.
LIGHTNING - For added protection of the
product during lightning storms or
extended periods of non use, unplug your
whole system from the mains outlet and
disconnect your antenna. This will protect
your system from damage due to lightning
strikes and power surges.

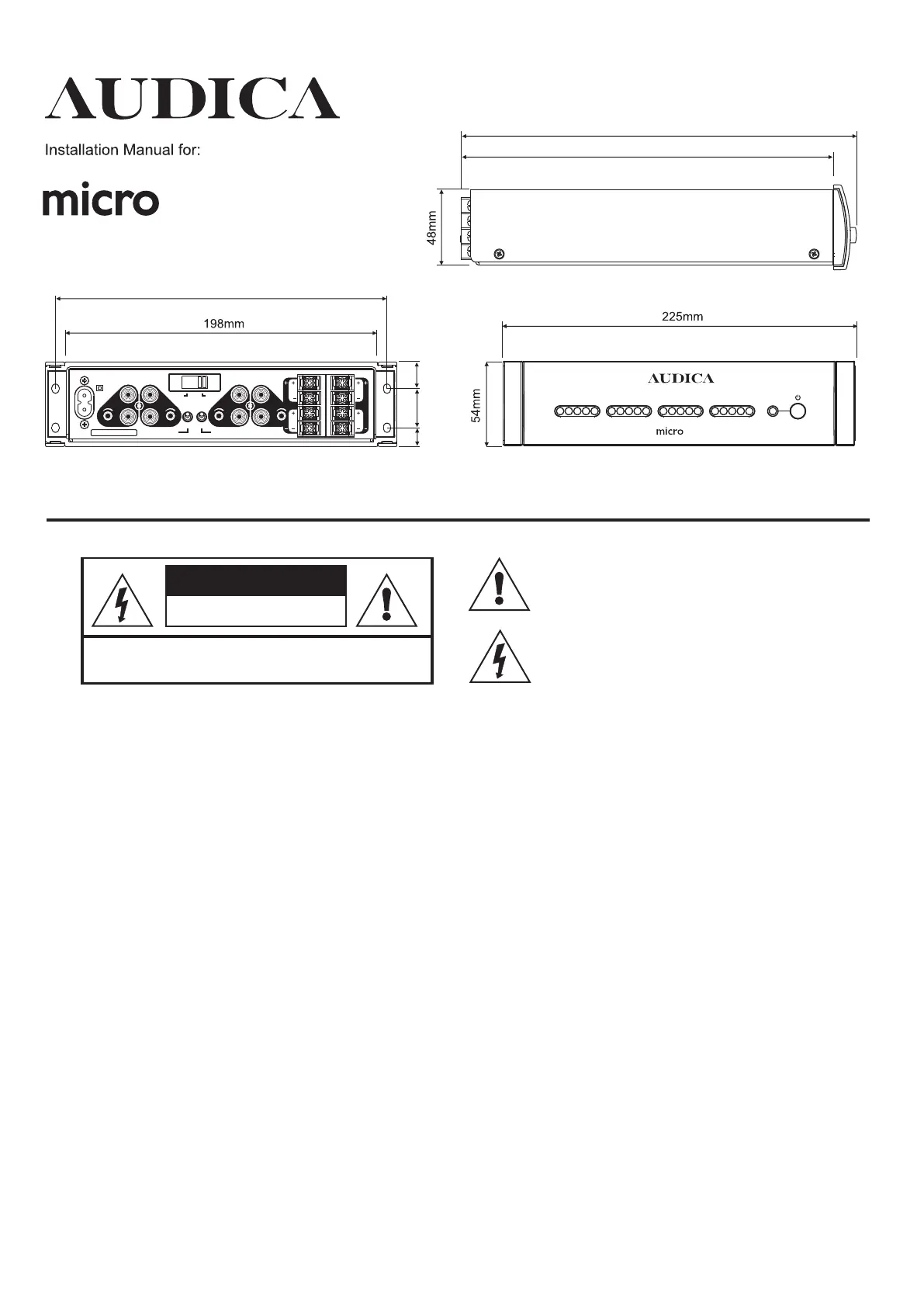

CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
NO USER-REMOVEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within this unit.
250mm
236mm
212mm (To Fixing Centres)
25mm
12mm
17mm
(To Fixing Centres)
plus
channel 1 channel 2 channel 3 channel 4
0dB 0dB 0dB 0dB-3 -3 -3 -3-6 -6 -6 -6-12 -12 -12 -12-18 -18 -18 -18
a) Mains power input
b) Channel 1 gain control. Turn anti-
clockwise to reduce gain and clockwise
to increase gain
c) Channel 1 line level phono input and
paralleled output
d) Channel 2 line level phono input and
paralleled output
e) Channel 2 gain control. Turn anti-
clockwise to reduce gain and clockwise
to increase gain
f) Channel 1 + 2 mode switch. In the
"normal" position, channels 1 and 2
operate as independent channels with a
4 Ohm minimum load capability. In the
"bridged" position channels 1 and 2
operate as a single high output channel
with an 8 Ohm minimum load capability.
See wiring diagram for connection
details.
a - Channel 1 output level meter. The
red 0dB indicator lights when the limiter
function starts to operate.
b - Channel 2 output level meter. The
red 0dB indicator lights when the limiter
function starts to operate.
g) Mains voltage switch. Ensure that this
switch is set to the correct mains voltage
for your region – failure to do so will
result in damage to the unit and
invalidate the warranty.
h) Channel 3 + 4 mode switch. In the
"normal" position, channels 3 and 4
operate as independent channels with a
4 Ohm minimum load capability. In the
"bridged" position channels 3 and 4
operate as a single high output channel
with an 8 Ohm minimum load capability.
See wiring diagram for connection
details.
i) Channel 3 gain control. Turn anti-
clockwise to reduce gain and clockwise
to increase gain
j) Channel 3 line level phono input and
paralleled output
k) Channel 4 line level phono input and
paralleled output
c - Channel 3 output level meter. The
red 0dB indicator lights when the limiter
function starts to operate.
d - Channel 4 output level meter. The
red 0dB indicator lights when the limiter
function starts to operate.
l) Channel 4 gain control. Turn anti-
clockwise to reduce gain and clockwise
to increase gain
m) Loudspeaker output terminals for
channel 1
n) Loudspeaker output terminals for
channel 2
o) Loudspeaker output terminals for
channel 4
p) Loudspeaker output terminals for
channel 3
e - Power on indicator. This will light
constant blue when the power is on.
f - Power on/off button. This is a true
mechanical power switch (not a
standby mode). Its position is
“remembered" even during mains
power failure.
GAIN GAIN
CHANNEL 3 CHANNEL 4
IN
OUT
IN
OUT
GAIN
CHANNEL 1CHANNEL 2
IN
OUT
GAIN
IN
OUT
NORMAL
BRIDGED
CHANNEL 1 & 2 BRIDGED CHANNEL 3 & 4 BRIDGED
220-240v~
100-120v~
CH3&4
CH1CH3
CH4
CH2
CH1&2
SERIAL No.
~50/60Hz
350W
defhijkl
m
n
p
o
g
abc
