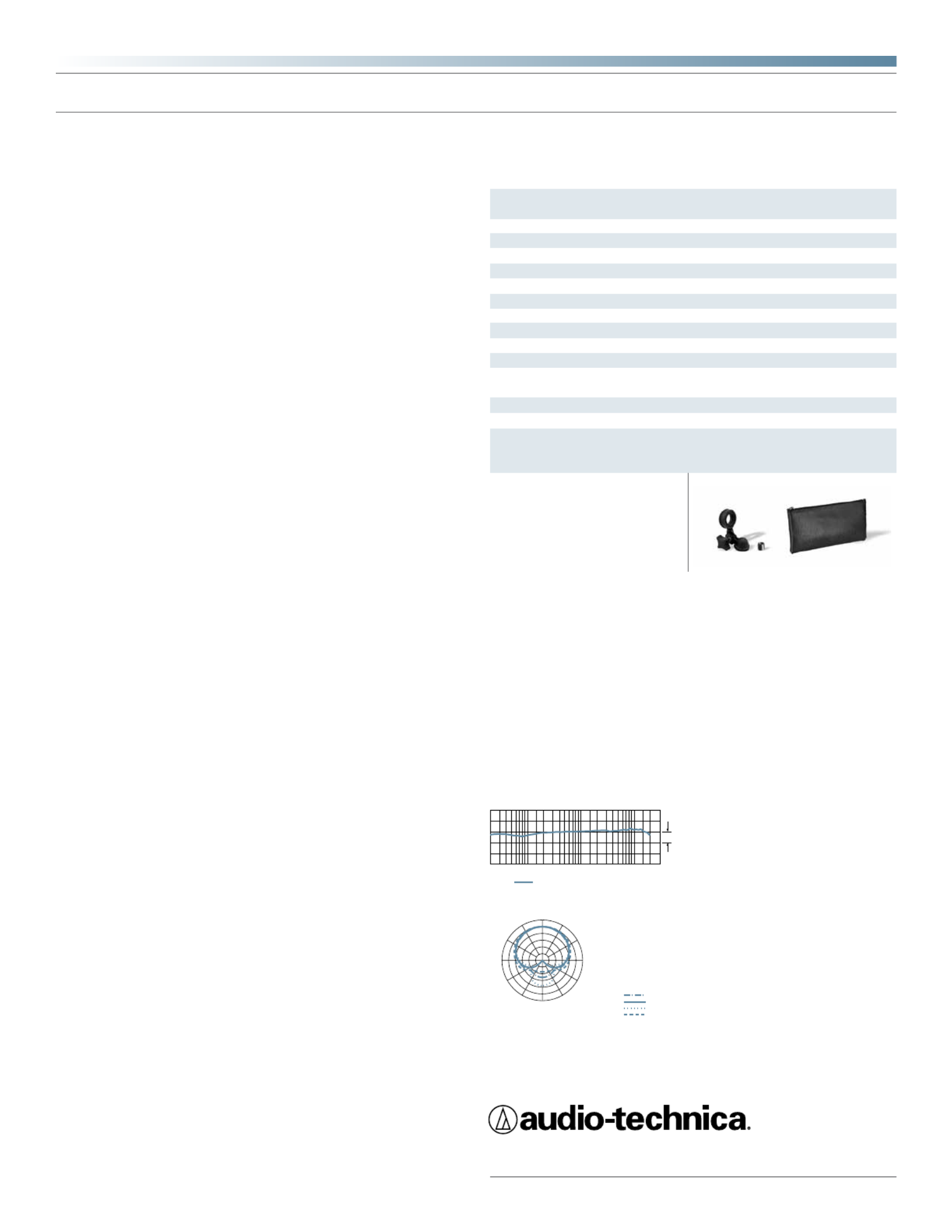

Side 1/2

20 series studio microphones

AT2020

Cardioid Condenser Side-Address Microphone

Features

• Designed for project/home-studio applications

• High SPL handling and wide dynamic range provide unmatched

versatility

• Custom-engineered low-mass diaphragm provides extended

frequency response and superior transient response

• Cardioid polar pattern reduces pickup of sounds from the sides

and rear, improving isolation of desired sound source

• Rugged design and construction for reliable performance

• Pivoting, threaded stand mount attaches securely for easy and

precise placement of the microphone

Description

The AT2020 is a side-address xed-charge condenser microphone with a

cardioid polar pattern. It is designed for project/home studio applications.

The microphone requires 48V phantom power for operation.

The cardioid polar pattern of the microphone is more sensitive to sound

originating directly in front of the element, making it useful in controlling

feedback, reducing pickup of unwanted sounds and providing isolation

between performers.

The output of the microphone is a 3-pin XLRM-type connector.

The microphone is enclosed in a rugged housing. The included stand mount

permits mounting on any microphone stand with 5/8"-27 threads. A soft

protective pouch is also included.

Operation and Maintenance

The AT2020 requires 48V phantom power for operation.

Output is low impedance (Lo-Z) balanced. The signal appears across Pins

2 and 3; Pin 1 is ground (shield). Output phase is “Pin 2 hot”— positive

acoustic pressure produces positive voltage at Pin 2.

To avoid phase cancellation and poor sound, all mic cables must be wired

consistently: Pin 1-to-Pin 1, etc.

An Audio-Technica emblem is on the front of the microphone. Position

this side of the microphone toward the sound source.

In use, secure the cable to the mic stand or boom, leaving a slack loop

at the mic. This will ensure the most effective shock isolation and reduce

the possibility of accidentally pulling the microphone out of its mount.

Avoid leaving the microphone in the open sun or in areas where

temperatures exceed 110° F (43° C) for extended periods. Extremely high

humidity should also be avoided.

Architect’s and Engineer’s Specications

The microphone shall be a side-address xed-charge condenser. It shall

have a cardioid polar pattern with a uniform 120° angle of acceptance

and a frequency response of 20 Hz to 20,000 Hz. The microphone shall

operate from an external 48V DC phantom power source. It shall be

capable of handling sound input levels up to 144 dB with a dynamic range

of 124 dB. Nominal open-circuit output voltage shall be 14.1 mV at 1V, 1

Pascal. Output shall be low impedance balanced (100 ohms).

The output of the microphone shall be a 3-pin XLRM-type connector.

The microphone shall be 162.0 mm (6.38") long and have a maximum body

diameter of 52.0 mm (2.05"). Weight shall be 345 grams (12.1 oz). The

microphone shall include a stand mount and a soft protective pouch.

The Audio-Technica AT2020 is specied.

AT2020

Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224

Audio-Technica Limited, Old Lane, Leeds LS11 8AG England

Specications

LEGEND

200 Hz

1 kHz

5 kHz

8 kHzSCALE IS 5 DECIBELS PER DIVISION

240˚

180˚

210˚

270˚

300˚

330˚ 0˚

150˚

120˚

90˚

30˚

60˚

12" or more on axisLEGEND

Frequency in Hertz

Response in dB

10 dB

100

50 200 10k5k1k500 2k 20k

frequency response: 20 –20,000 Hz

polar pattern

Fixed-charge back plate, permanently

polarized condenser

Cardioid

20-20,000 Hz

–37 dB (14.1 mV) re 1V at 1 Pa

100 ohms

144 dB SPL, 1 kHz at 1% T.H.D.

20 dB SPL

124 dB, 1 kHz at Max SPL

74 dB, 1 kHz at 1 Pa

48V DC, 2 mA typical

345 g (12.1 oz)

162.0 mm (6.38") long,

52.0 mm (2.05") maximum body diameter

Integral 3-pin XLRM-type

Stand mount for 5/8"-27 threaded stands;

5/8"-27 to 3/8"-16 threaded adapter; soft

protective pouch

Element

Polar pattern

Frequency response

Open circuit sensitivity

Impedance

Maximum input sound level

Noise1

Dynamic range (typical)

Signal-to-noise ratio1

Phantom power requirements

Weight

Dimensions

Output connector

Audio-Technica case style

Accessories furnished

In the interest of standards development, A.T.U.S.

offers full details on its test methods to other industry

professionals on request.

1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL

1 Typical, A-weighted, using Audio Precision System One.

Specications are subject to change without notice.

465

Produkt Specifikationer

Mærke:	Audio-Technica
Kategori:	Mikrofon
Model:	AT2020 USB
Type:	Scene/optræden mikrofon
Vægt:	374 g
Produktfarve:	Sort
Strømforsyningstype:	DC
Dimensioner (BxDxH):	52 x 52 x 162 mm
Forbindelsesteknologi:	Ledningsført
Strømkilde:	DC
Mac kompabilitet:	Ja
Kompatible operativsystemer:	Windows, Macintosh\n
Driftsspænding:	5 V
Mikrofon frekvens:	20 - 16000 Hz
Stik:	USB
USB-drevet:	Ja
Mikrofon driftstilstand:	cardioid-condenser
Polar mønster lyd:	Kardioid
Dybde (efter britisk standard):	2.05 "
Højde (efter britisk standard):	2.05 "
Bredde (efter britisk standard):	6.38 "
Minimum systemkrav:	- Mac OS X\n- USB 1.0/2.0\n- 64 MB RAM\n- Win XP Home Edition/XP Pro
