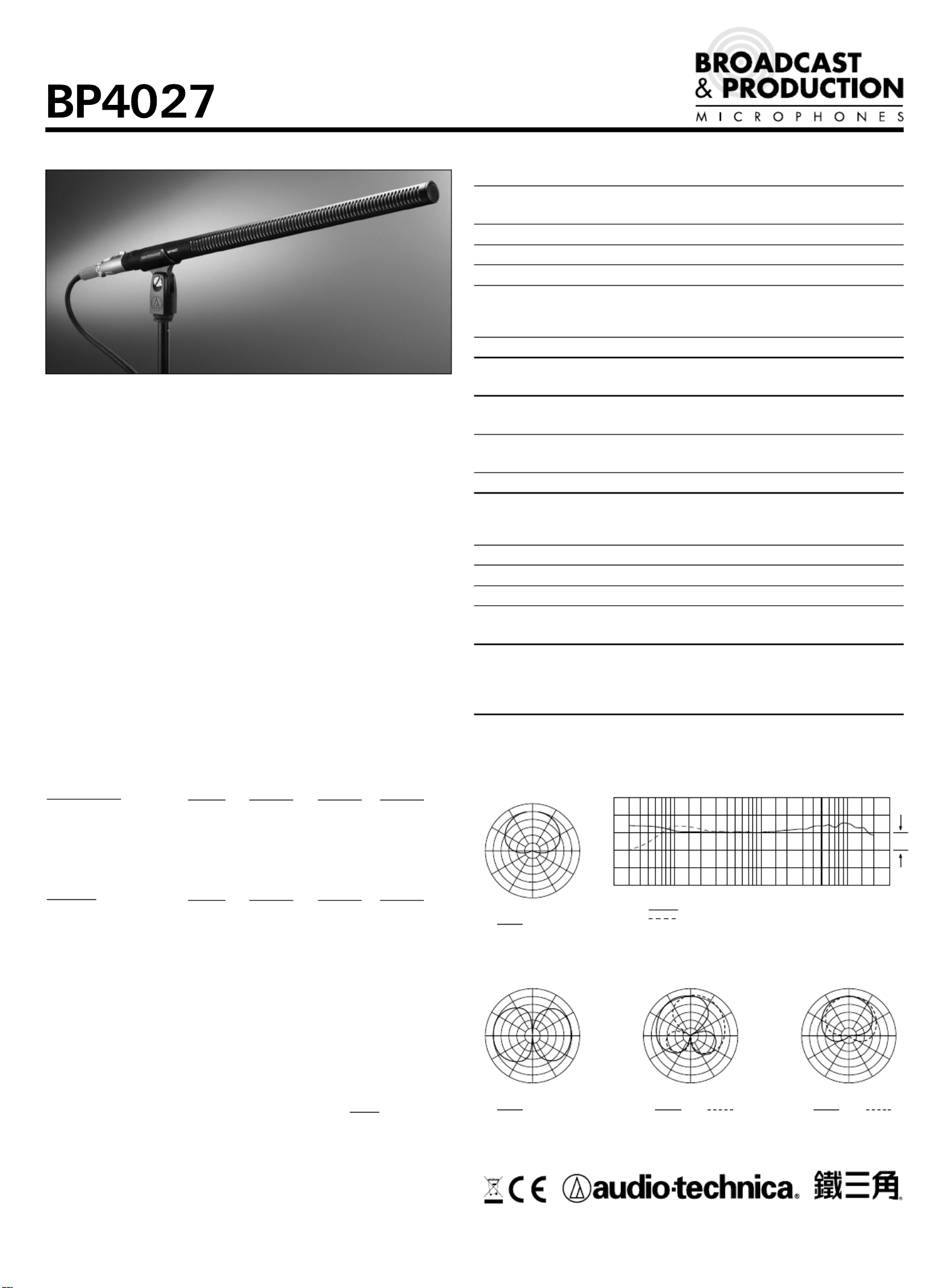

STEREO SHOTGUN MICROPHONE
- Designed for broadcasters, videographers and sound recordists.
- Compact, lightweight design is perfect for camera-mount use.
- Independent line-cardioid and gure-of-eight condenser elements.
- Switchable low-frequency roll-o.
- Switch selection of non-matrixed M-S mode and two internally-matrixed
left/right stereo modes.
MID-SIDE OPERATION: In M-S mode, the BP4027 provides independent
Mid and Side signals. This allows the width of the stereo image to be
adjusted in post production or in the eld with a matrix mixer.
MATRIXED STEREO: The BP4027 oers two internally-matrixed modes
which provide traditional “left-right” stereo without the need for external
mixers. To accommodate varying acoustic environments, the user may
select between a “wide” pattern (LR-W) with increased ambient pickup,
and a “narrow” pattern (LR-N) which oers more rejection and less
ambience. Output phase is “Pin 2 hot.”
For correct left-right stereo orientation, position the microphone so the
word “UP” is on top, with the switches on the bottom. In all modes,
locating the BP4027 nearer the sound source enhances the apparent
width of the stereo image, while decreasing room ambience. Moving
away from the sound source will result in a narrower stereo image and
more “room sound.”
M-S Output Connector Pin 1 Pin 2 Pin 3
Mid XLR3M-Gray Ground Mid + Mid –
XLR5M Mic Connector: Pin 1 Pin 2 Pin 3
Side XLR3M-Red Ground Side + Side –
XLR5M Mic Connector: Pin 1 Pin 4 Pin 5
Matrix Output Connector Pin 1 Pin 2 Pin 3
Left XLR3M-Gray Ground L + L –
XLR5M Mic Connector: Pin 1 Pin 2 Pin 3
Right XLR3M-Red Ground R + R –
XLR5M Mic Connector: Pin 1 Pin 4 Pin 5
The BP4027 requires 11V to 52V DC phantom power on Pins 2 and 3
both XLR3M connectors. Wiring must be balanced throughout, and all
mic cables in the system must be wired consistently: Pin 1-to-Pin 1, etc. If
connecting to unbalanced inputs, good-quality balanced line transformers
must be used.
The microphone is RoHS compliant–free from all substances specied in
the EU directive on hazardous substances.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 43° C for extended periods. Extremely high humidity
should also be avoided.
FORM No. ATGC-L0114-07-E
Machida • Tokyo • Japan
SPECIFICATIONS
ELEMENT Fixed-charge back plate
permanently polarized condenser
POLAR PATTERN Line-cardioid and gure-of-eight
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
(Mid / Side / LR Stereo)
-30 dB (31.6 mV) re 1V at 1 Pa
-34 dB (19.9 mV) re 1V at 1 Pa
-36 dB (15.8 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL
(Mid / Side / LR Stereo)
123 dB / 127 dB / 126 dB SPL,
1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
(Mid / Side / LR Stereo)
101 dB / 101 dB / 102 dB,
1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
(Mid / Side / LR Stereo)
72 dB / 68 dB / 70 dB,
1 kHz at 1 Pa
PHANTOM POWER REQUIRMENTS 11 - 52V DC, 4 mA typical at 48V
SWITCHES M-S, LR Stereo-Wide (LR-W),
LR Stereo-Narrow (LR-N);
Flat, roll-o
WEIGHT (less cable and accessories) 142 g
DIMENSIONS 380.0 mm long,
21.0 mm diameter
OUTPUT CONNECTOR Integral XLR5M-type
CABLE Dual 0.61 m shielded,
two-conductor, terminated in
two XLR3M-type connector
ACCESSORIES FURNISHED AT8405a stand clamp for ⅝"-27
threaded stands;
AT8135 foam windscreen;
⅝"-27 to ⅜"-16
threaded adapter;
protective carrying case
Specications are subject to change without notice.
1 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
Mid
Polar Pattern
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
10 dB
20k10k5k2k1k50020010050
Frequency Response
Frequency in Hertz
LEGEND 12” or more on axis
Response in dB
Roll-o
1 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
Side
Polar Pattern
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
1 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
1 kHz
LR Stereo-Wide (LR-W)
Polar Pattern
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
1 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
1 kHz
LR Stereo-Narrow (LR-N)
Polar Pattern
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
