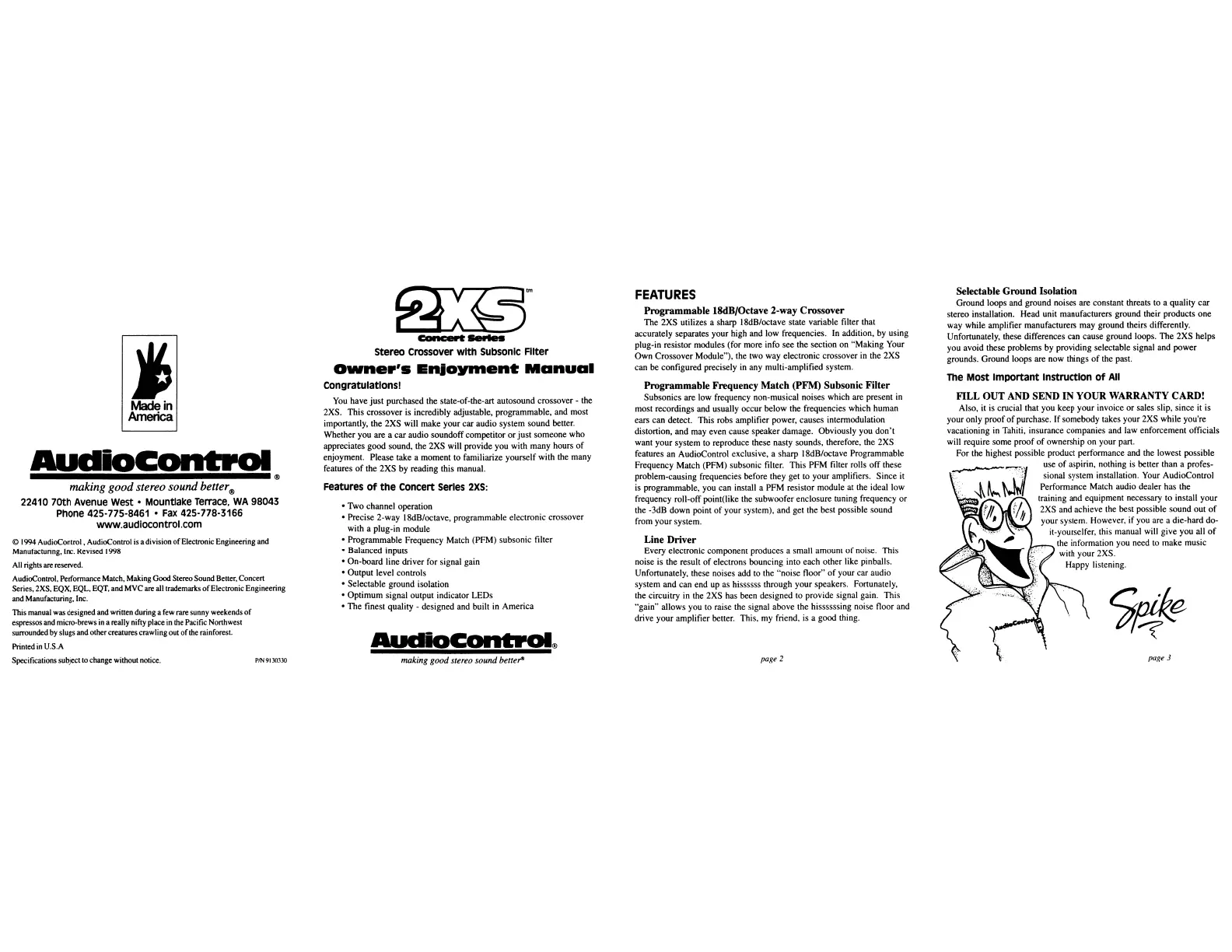

Side 1/6
Selectable Ground Isolation
Ground loops and ground noises are constant threats
to
a quality car
stereo insraJlation. Head unit manufacturers ground their products one
way while amplifier manufacturers may ground theirs differently.
Unfortunately, these differences can cause ground loops. The 2XS helps
you avoid these problems by providing selectable signal and power
grounds. Ground loops are now things
of
the past.
The
Most
Important
Instruction
of
All
FlLL OUT
AND
SEND
IN
YOUR WARRANTY CARD!
Also.
it
is
crucial that you keep your invoice or sales slip. since it
is
your only proof
of
purchase. If somebody takes your 2XS while you're
vacationing
in
Tahiti. insurance companies and law enforcement officials
will require some proof
of
ownership on your part.
For the highest possible product perfonnance and the lowest possible
use
of
aspirin. nothing
is
bener than a profes-
sional system installation. Your AudioControl
Performance Match audio dealer has the
training and equipment necessary to install your
2XS and achieve the best possible sound out
of
your system. However. if you are a die-hard do-
it-yourselfer. this manual will give you all
of
the information you need to make music
wilh your 2XS.
Happy listening.
FEATURES
Programmable ISdB/Octave 2-way Crossover
The 2XS utilizes a sharp 18dB/octave state variable filter that
accurately separates your high and low frequencies.
In
addition,
by
using
plug-in resistor modules (for more info see the section on "Making Your
Own Crossover Module"). the two way electronic crossover
in
the 2XS
can
be
configured precisely
in
any multi-amplified system.
Programmable Frequency Match (PFM) Subsonic Filter
Subsonics are low frequency non-musical noises which arc present
in
most recordings and usually occur below the frequencies which human
cars can
detect
This robs amplifier power, causes intennodulation
distortion, and
may
even cause speaker damage. Obviously you
don't
want your system to reproduce these nasty sounds, therefore. the 2XS
features an AudioControl
ex.c1usive.
a sharp I
SdB/OClave
Programmable
Frequency Match (PFM) subsonic filter. This PFM filter rolls off these
problem-causing frequencies before they get to your amplifiers. Since
it
is
programmable, you can install a PFM resistor module
at
the ideal low
frequency roll-off point(like the subwoofer enclosure luning frequency or
the -3dB down point
of
your syslem), and get the best possible sound
from your system.
page 2
Line Driver
Every electronic component produces a small amount
of
noise. This
noise is the result
of
electrons bouncing into each other like pinballs.
Unfortunately. these noises add to the "noise floor"
of
your car audio
system and can end up as hissssss through your speakers. Fonunately.
the circuitry
in
the 2XS has been designed to provide signal gain. This
"gain" allows you to raise the signal above the hissssssing noise floor and
drive your amplifier beuer. This.
my
friend. is a good thing.
making good stereo sound
bette"
• Two channel operation
• Precise 2-way IBdB/octave, programmable electronic crossover
with a plug-in module
• Programmable Frequency Match (PFM) subsonic filter
• Balanced inputs
• On-board line driver for signal gain
• Output level controls
• Selectable ground isolation
• Optimum signal omput indicator LEOs
• The finest quality - designed and built
in
America
You
have just purchased the stale·of·me·art autosound crossover - the
2XS. This crossover
is
incredibly adjustable, programmable, and most
importantly. the 2XS will make your car audio system sound better.
Whether you are a
car
audio soundoff competitor or just someone who
appreciates good sound. the 2XS will provide you with many hours
of
enjoyment Please take a moment
to
familiarize yourself with the many
features
of
the 2XS by reading this manual.
~~cj~
_
......
Stereo Crossover
with
Subsonic
Filter
Owne.-
.....
Oynlent
Manual
Congratulatlonsl
Features
of
the
Concert Series
2XS:
PIN91JOJJO
j
Made
in
America
making good stereo sound better
~
22410 70th Avenue west • Mountlake Terrace,
WA
98043
PhOne
425·775·8461 •
Fax
425-778-3166
www.audiocontrol.com
e
1994
AudioConlrol, AudioConlrOl
is
adivision ofElectronic Engineering
and
Manufacturing,
Inc.
Revised
1998
All rights
are
reserved.
AudioConuol. Performance Match. Making
Good
Sl~
Sound Belter. Concert
Series.
2XS.
EQX.
EQL.
EQT.
and MVC are alllrademarksofElectronicEngineering
and
Manufacturing,
Inc.
This manual
was
designed
and
written during a few rare sunny weekends
of
espressos
and
micro-brews
in
a really nifty place
in
Ihe
Pacific Northwest
surrounded
by
slugs
and
othercreatures crawling out of
the
rainforest
Printed
in
U.s.A
Specifications subject 10 change without notice.
