User Guide

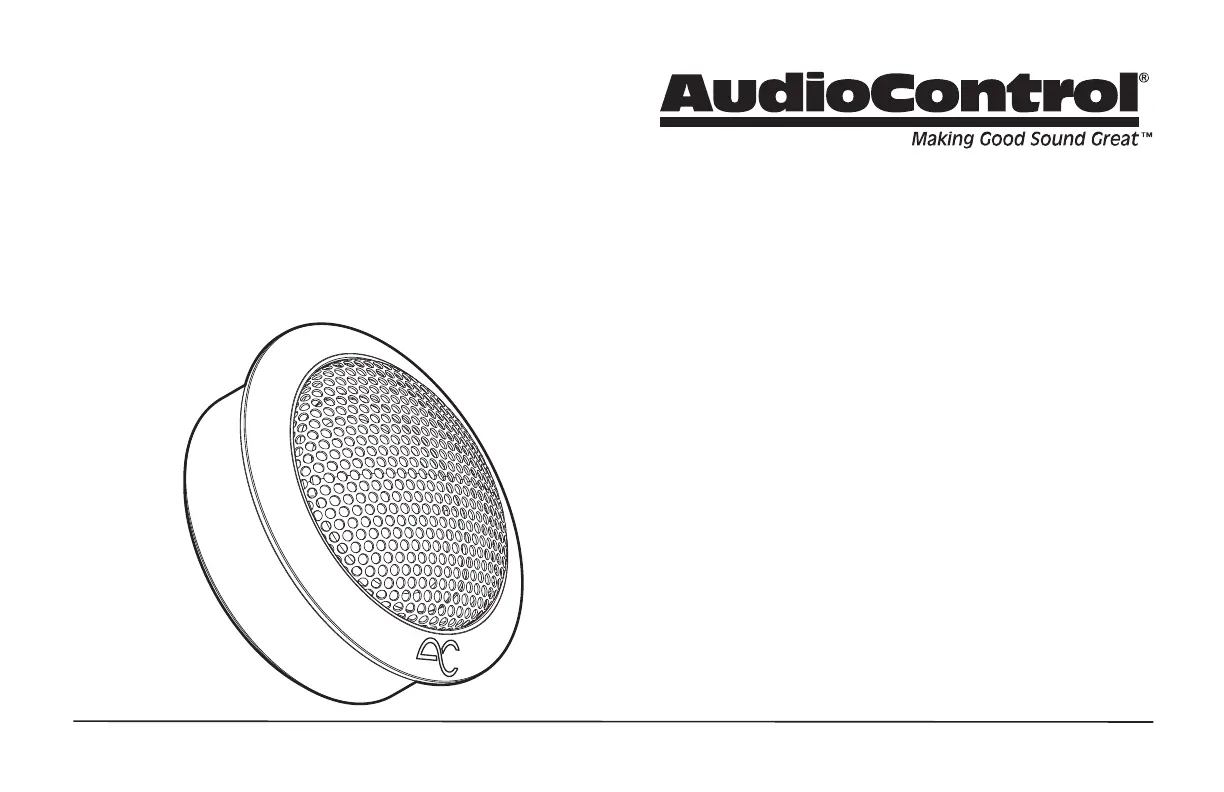

HIGH-FIDELITY TWEETERS

PNW-1

FEATURES

• High delity silk dome diaphragm

• Precision aluminum housing

• Embedded sonic damping pad

• Neodymium magnet

• Detachable assembly for OE applications

• Rear dampened hybrid silk dome tweeter for extended frequency response

• Includes multiple mounting accessories

• Umbrella not included

User Guide

PNW-1

Tweeter Installation

Wow! Look how far we have come, you made it to page 2! For those brave

enough to tackle the installation on their own, proceed to the next steps. For

those feeling out of their comfort zone, don't be threatened, help is available.

Our suggestion is that you seek out a qualied AudioControl dealer. They

have the skill set and experience to get your new PNW-1 installed properly.

• Blue wire = positive (+).

• Black wire = negative (-).

High-Pass Crossover

Tweeter

U-Bracket

PNW-adapter

Screws

and

Washers

Flush mount

First, remove the factory grille or panel to gain access to the factory driver.

Next, remove the factory driver and disconnect the necessary wiring. Before

installing the new tweeter, decide whether your system will be wired as

passive or active. With a Passive system, the included High-Pass Crossover will

be required. With an Active system, we recommend not using the included in-

line crossover, but using the crossover in your digital signal processor instead.

When setting up your DSP, ensure your crossover is set so that the PNW-1 will

play frequencies above 3000Hz. After the driver has been wired, mount the

speaker where you removed the factory driver using the factory hardware.

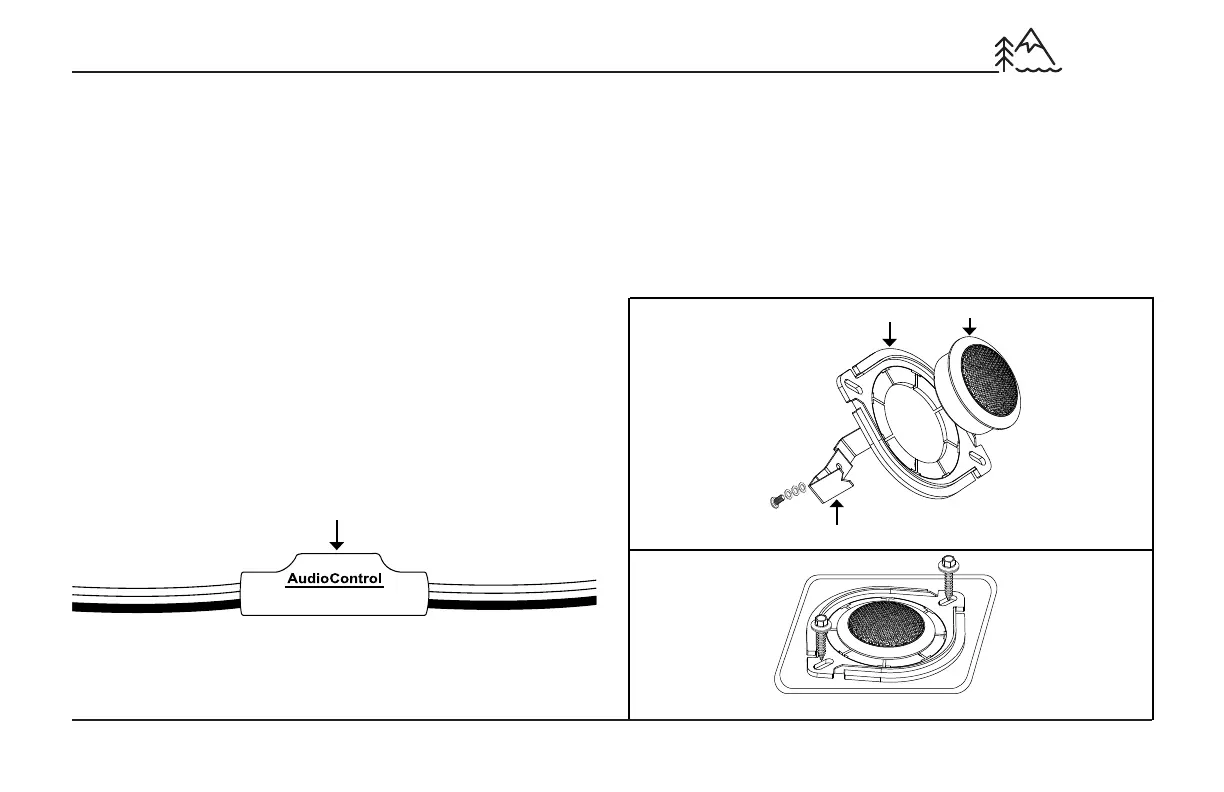

Fig 1

Fig 2

Dash mount

1. Insert the tweeter into the PNW-adapter (Fig 1)

Place the U-bracket on the back side of the tweeter and adapter. (Fig 1)

Use the supplied screw and washers to secure the U-bracket. (Fig 1)

2. Mount assembly using factory hardware. (Fig 2)
