Tweeters MUST have high pass lters!
Tweeters are designed only to play high frequencies and will be damaged if they are driven with too much power at low frequencies. A high pass lter is the device we use to
prevent this damage.
We have included a simple high pass lter with your Audiofrog tweeters. Depending on your system design, you may or may not need to install them.
1. If you are replacing the tweeters in your factory system and will continue to use the factory-supplied amplier (which may be a separate amplier or it may be the amplier
included in the radio), your factory tweeters will probably have a similar device mounted to its magnet or housing. When you install your new Audiofrog tweeter, be sure to install

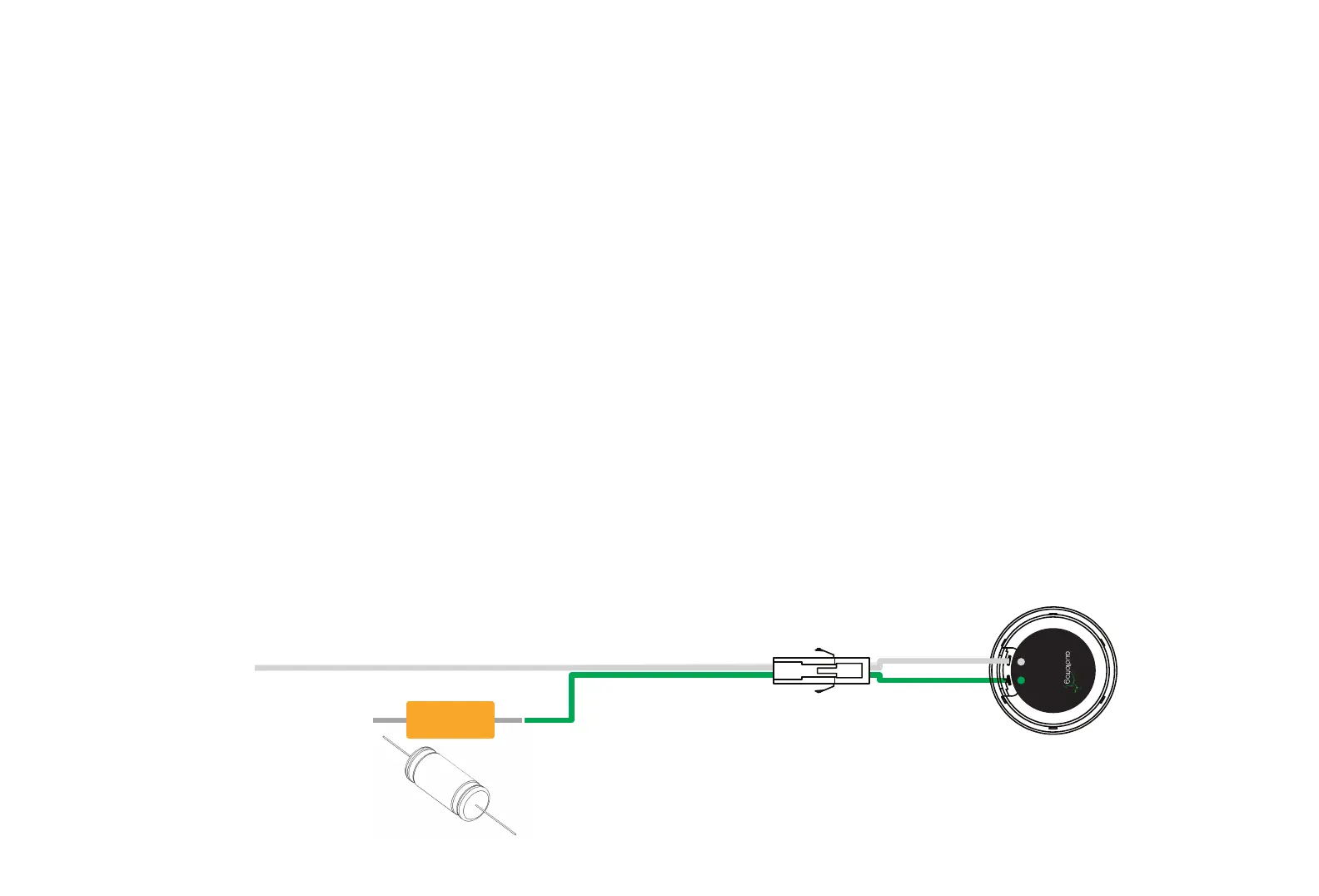

the included capacitor. See the diagram below.
2. If you are installing an amplier and a separate passive crossover (i.e. GS610C or GS410C), then you do not need to install the lter we have included with your tweeters.
3. If you are installing an amplier that includes an active crossover for your tweeter (i.e. a 4-channel amplier that will drive your midrange speakers and your tweeters each on a
single channel) set the amplier’s crossover according to the included instructions for your tweeter. If you will be using a 12dB/octave crossover instead of a 24dB/octave
crossover, raise the crossover frequency by 1kHz above the 24dB/oct recommendation.
4. If you are installing an amplier and a digital signal processor (DSP) and the DSP will provide the crossover, set the slope to 24dB/oct and the frequency according to the
instructions included with your tweeter.
If #3 or #4 best describes your system design, consider using a tweeter protection circuit to prevent your tweeter from being damaged by erroneous settings or a failed
component. Consider a pair of Audiofrog TP50v2 tweeter protectors. These will protect your tweeter from too much power at low frequencies but will not adversely aect their
performance when used with an active crossover in an amplier or a DSP.
To Amplier -
To Amplier +
Installaon Steps and Precauons:
Nominal Impedance
Frequency Response (-3dB)
Power Handling (RMS)*
Power Handling (Peak)*
Recommended Power (RMS)*
Recommended High Pass Filter
Free Air Resonance (Fs)
*With Recommended High Pass FIlter
Specificaons and Recommendaons:
Dimensions:
Fitment Informaon:
Limited Warranty (USA): Audiofrog GB Series products sold in the USA through authorized
Audiofrog dealers are warranted to the original purchaser against defects in materials and
workmanship for one year aer the date of original purchase. They are warranted for an addional
two years if they are installed by an authorized Audiofrog dealer. Please save your receipt. A valid
receipt from an authorized Audiofrog dealer is required for warranty service. If you purchased your
GB Series products outside the USA, please consult your local distributor for warranty terms and
condions.
Audiofrog and the Audiofrog logo are trademarks of Audiofrog, Inc, registered in the United States
and/or other countries. Audiofrog et le logo sant des marques est une marque commerciale de
Audiofrog, Inc déposée aux Étas-Unis et/ou dans d’autres pays.
Audiofrog, Inc. 419 S. Mission Dr. San Gabriel, CA 91776 +1 (707) 600-FROG
www.audiofrog.com
GB10OE-0005
4Ω
1.8kHz - 24kHz
100W
300W
12W - 100W
2500Hz, 24dB/Oct
1500Hz
Removal of OE tweeter:
• Unlock the 3 tabs by pulling them away from
the BRZ tweeter and pull the tweeter out.
Installaon of Audiofrog OE tweeter:
• Press the Audiofrog tweeter directly into the
frame and it will snap into place.
Verified Fit:
• All Subaru BRZ models aer 2014 with dash mids and
tweeters.
Unverified but May Fit:
• Toyota GR85 aer 2014 with dash mids and tweeters.
Please check your car’s tweeter locaon and housing
dimensions to confirm that the GB10OE-0005 will fit.
25.28 mm
9.1 mm
41 mm
32.1 mm
38 mm
