www.avsl.com 122.417 User Manual UK

HDMI to Scart Converter

Item ref: 2.417 12 UK

User Manual

A simple USB powered unit that converts high-denition HDMI video signals for use with older TV's and displays with an

analogue Scart interface. Simple to install and operate, this handy little device is ideal for use with Blu-Ray players,

games consoles, Sky HD boxes, laptops and more.

Technical Specifications and Features

Input

HDMI (up to v1.3 @ 60fps)

Output

Scart (PAL/NTSC)

Max. band width

300MHz

Max. baud rate

10.2Gbps

Max. cable length

HDMI Input <= 7m; Scart output <=8m

Max, working current

600mA

Operating temperature range

-10° to 55°C

Power: input

DC/5V 1A

Dimensions

88.5 x 57.5 x 25mm

Weight

60g

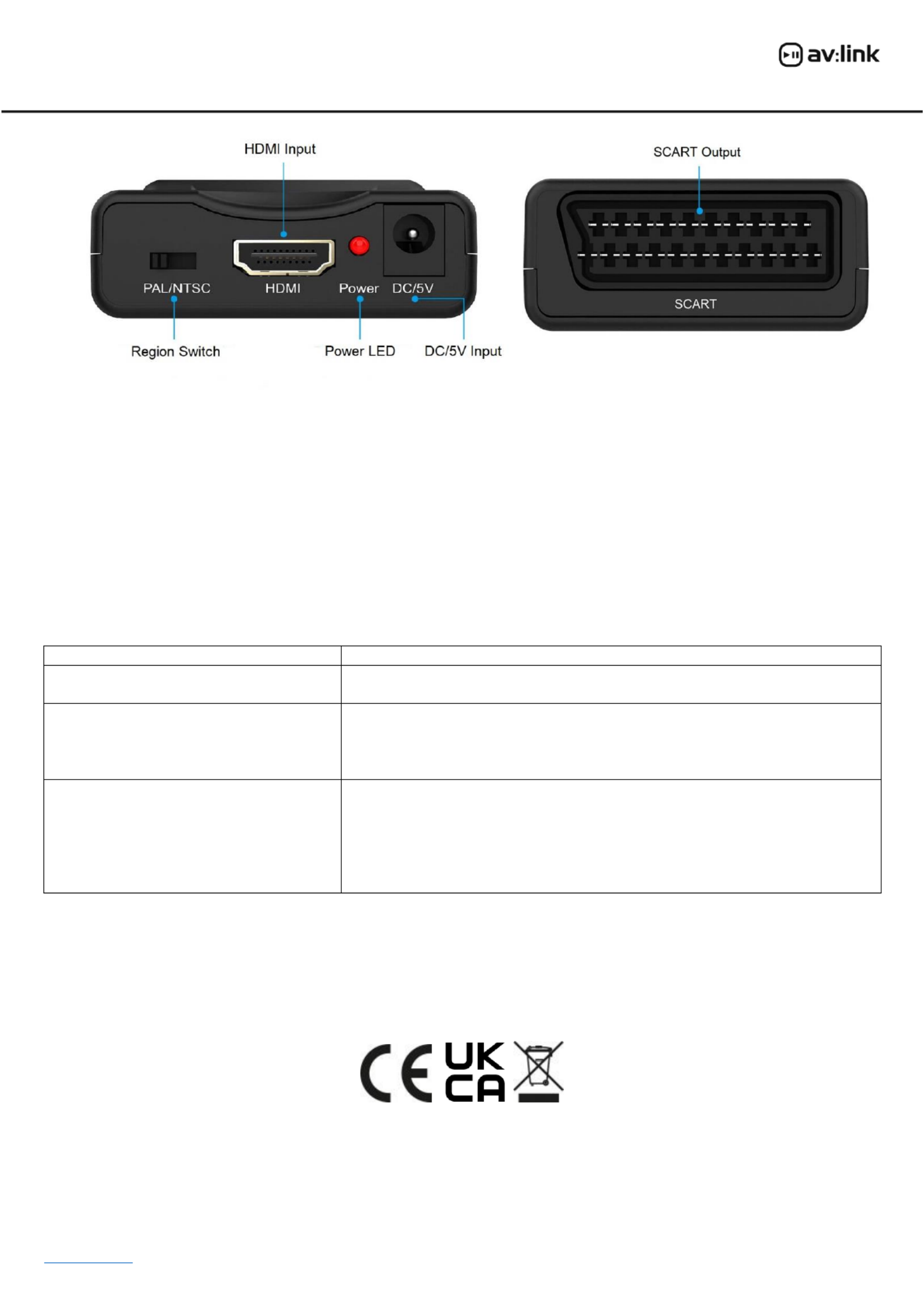

Connection Instructions

• Using a HDMI lead of the required length, connect one end to the input port of the converter and the other to

the output port on your source device (max length 7m ).

• Then Using a Scart lead of the required length, connect one end to the output port of the convert and the er

other to the input port of your splay device (max length 8m di ).

www.avsl.com 122.417 User Manual UK

• Using the USB power lead supplied connect the /5V jack to the correct port on the converter and the USB end DV

to a compatible 1A power supply and switch on.

• The red Power LED should now illuminate to indicate the converter is receiving sufficient wer to function po

correctly.

• Finally select the required region using the switch on e converter, PAL for UK and EU and NTSC for US content. th

In The Box

1. HDMI to Scart Conver ter

2. USB Power Lead (DV5V 1A)

3. User guide

Troubleshooting

Problem

Solution

Power LED illuminate doesn’t

Ensure the USB power lead is correctly connected to the converter and that

a suitable 1A power supply is used and switched on.

No sound or poor sound quality

1. Ensure both the Scart and HDMI leads are correctly fitted to the

converter and both your source and display device s.

2. Ensure all leads use re of sufficient condition and quality.d a

3. Ensure the volume of the display device is not turned down or muted.

No images or poor image quality

1. Ensure the source device is switched on and the Scart lead is connected

correctly.

2. Ensure all leads use re of sufficient condition and quality. d a

3. Ensure the resolution of the display device is compatible with the

selected resolution on the converter and reduce if necessar y.

Warning

• For reasons of electrical safety this device must never be immersed in water, exposed to damp conditions or excessive

force.

• Please do not use this device if you find that it is damaged in any way.

• Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at

the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.

Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland.
