Technical Specifications
1

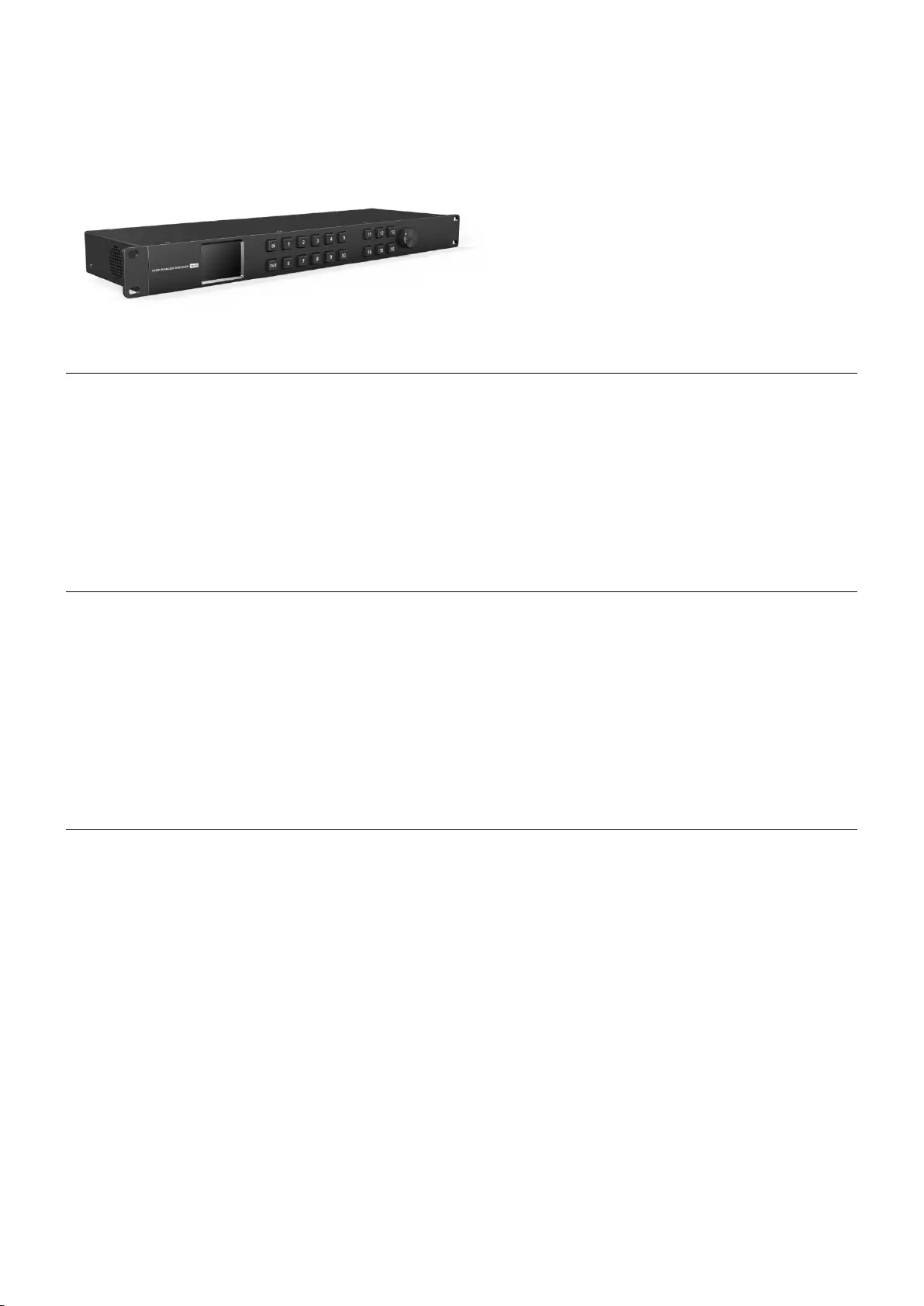

Compact 1RU 16×16 3G-SDI Seamless Matrix Switcher
This device is the perfect solution for a large broadcast project. The compact SDI routing switcher features 16 inputs
and 16 outputs, redundant power connections and an elegant machined metal front panel with 2.2 inch LCD for routing
label display. Routing can be performed by direct button selection and the spin knob controller. The 3G-SDI seamless
matrix switcher supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 270Mbit/s
and 3Gbit/s. Built-in frame synchronizer support simultaneous input of signal of different resolution frame rates, which
can realize seamless switching without black screen. It can conveniently controlled by front panel button, PC software
via LAN/RS-422.
Connections
Standards
SDI Input Format Support
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
720p 30/29.97/25/24/23.98
625i 50
525i 59.94
SDI Output Format Support
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.84/50
720P60/59.94/50/30/29.97/25/24
625I50
480I60/59.94
SDI Auto Switching
Automatically detects SD, HD and
3G-SDI
SDI Compliance
SMPTE 372M, SMPTE 259M,
SMPTE 292M, SMPTE 296M,
SMPTE 424M, SMPTE 425M
SDI Color Space and Precision
YUV 4:2:2 10bit/12bit
SDI Video Input
16×SD/HD/3G-SDI(75Ω BNC)
SDI Video Output
16×SD/HD/3G-SDI(75Ω BNC)
Updates and Configuration
LAN(RJ45)
Control
Front panel button,
PC software via LAN/RS-422
Technical Specifications
2

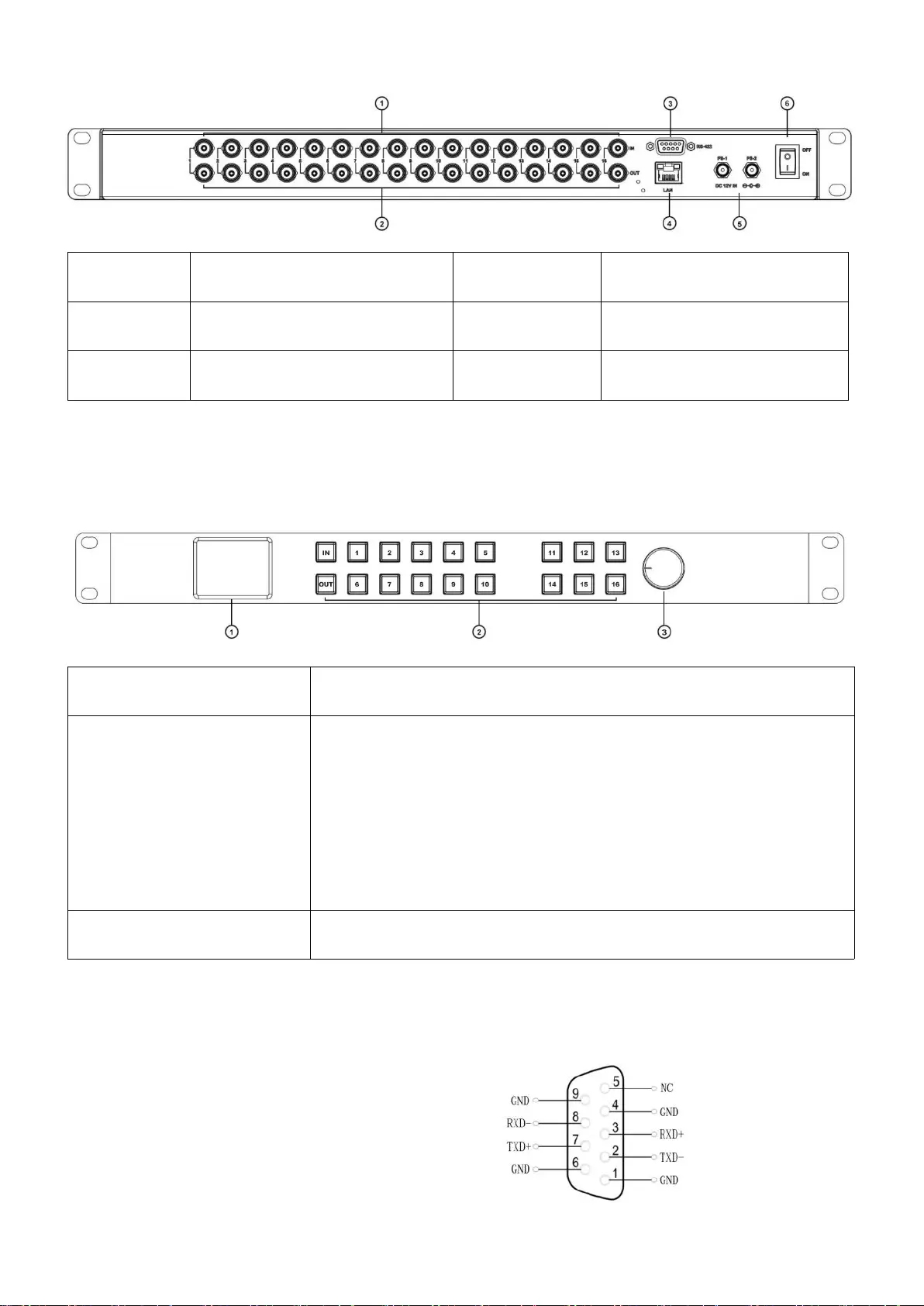

Interfaces
① Inputs
SDI inputs 1-16
② Outputs
SDI outputs 1-16
③ RS-422
PC software control
④ LAN
PC software control and update
⑤ Power
Dual power connectors PS-1 & PS-2,
for power redundancy
⑥ Power Switch
To turn on or off the device
Front Panel Control
① 2.2 Inch LCD Display
Show Device status and menu control
② IN/OUT Buttons
and Channel Buttons
Input or output channel from 1 to 16 channel
- Switching an input to an output.
press buttons “IN, 1, OUT, 2” to switch input 1 signal to output 2.
- Switching an input to multiple outputs.
Press buttons “IN, 1, OUT, 2, 4, 5” to switch input 1 signal to output 2, 4, 5.
Note
- The OUT button indicator will automatically close after 8s. When it is off, you
only need to press the OUT button again to continue the unperformed switch.
③ Knob
Controls the menu.
Turn anticlockwise=menu Up , Turn clockwise=menu down, Press down = Enter
PC Control RS-422 Interface Define
Please download the PC control software from website.
