ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0265

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Installation Steps

Turn off the power at fuse or circuit box

Mounting Strap (A)

Mounting Screw (B)

Green Grounding

Screw (C)

Wire Nut (D)

Canopy (I)

Loop Lock (K)

Chain (L)

Hex Nut (E)

Washer (F)

Threaded Pipe(G)

Top Loop (H)

Collar (J)

1. Attach the threaded pipe to the mounting strap, and then secure it

with a washer and a hex nut.

2. Attach mounting strap to outlet box using two mounting screws.

3. Secure the top loop to the threaded pipe.

4. Install a bulb (not included). Check relamping label at socket area

or packaging for maximum allowed wattage.

5. Place the glass shade into the metal cover carefully, and then attach

the assembly to the fixture using two bolt nuts.

6. Connect the chain:

- Determine length of needed chain to achieve desired fixture

height. (To remove excess chain section, use pliers to bend link

open.)

- Weave the fixture wires and fixture grounding wire through the

chain, collar and canopy.

7. Connect one end of the chain to the loop using a loop lock.

8. Connect the other end of the chain to the top loop using the other

loop lock.

9. Thread the fixture wires and fixture grounding wire through the top loop, threaded pipe and mounting strap.

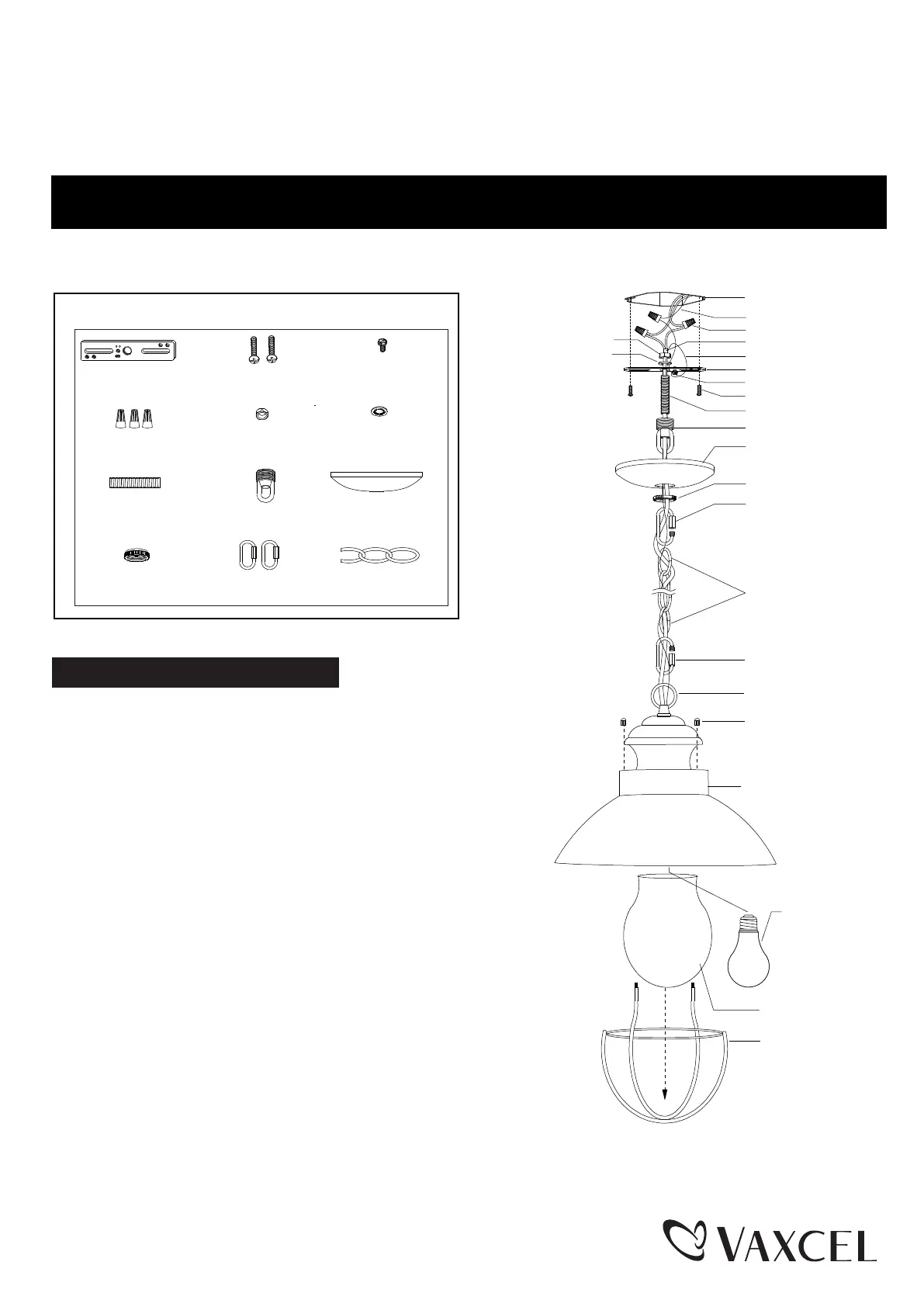

Loop Lock (K)

Fixture

Glass Shade

Metal Cover

Bolt Nut

Loop

Outlet Box

House Grounding Wire

Wire Nut (D)

Fixture Wire

Fixture Grounding Wire

Mounting Strap (A)

Green Grounding Screw (C)

Mounting Screw (B)

Threaded Pipe (G)

Canopy (I)

Hex Nut (E)

Washer (F)

Collar (J)

Chain (L)

Bulb Type A Max.100W

(not included)

Hardware Package (Included):
