MXNET 10G SDVoE

Quick Start Guide

The MXNet 10G SDVoE

Ecosystem

QUICK START GUIDE

Overview

The MXNet 10G SDVoE

Ecosystem is an AV-over-IP platform of products developed and designed by

AVPro Edge. This system is an ultra-low latency HDMI 2.0, 4K 60Hz 4:4:4 video, multichannel audio, and

control signal distribution system over 10G Ethernet infrastructure, based on SDVoE

standards and

Semtech

ASIC technologies. Crystal-clear 4K video is provided along with versatile AV and control signal

distribution applications.

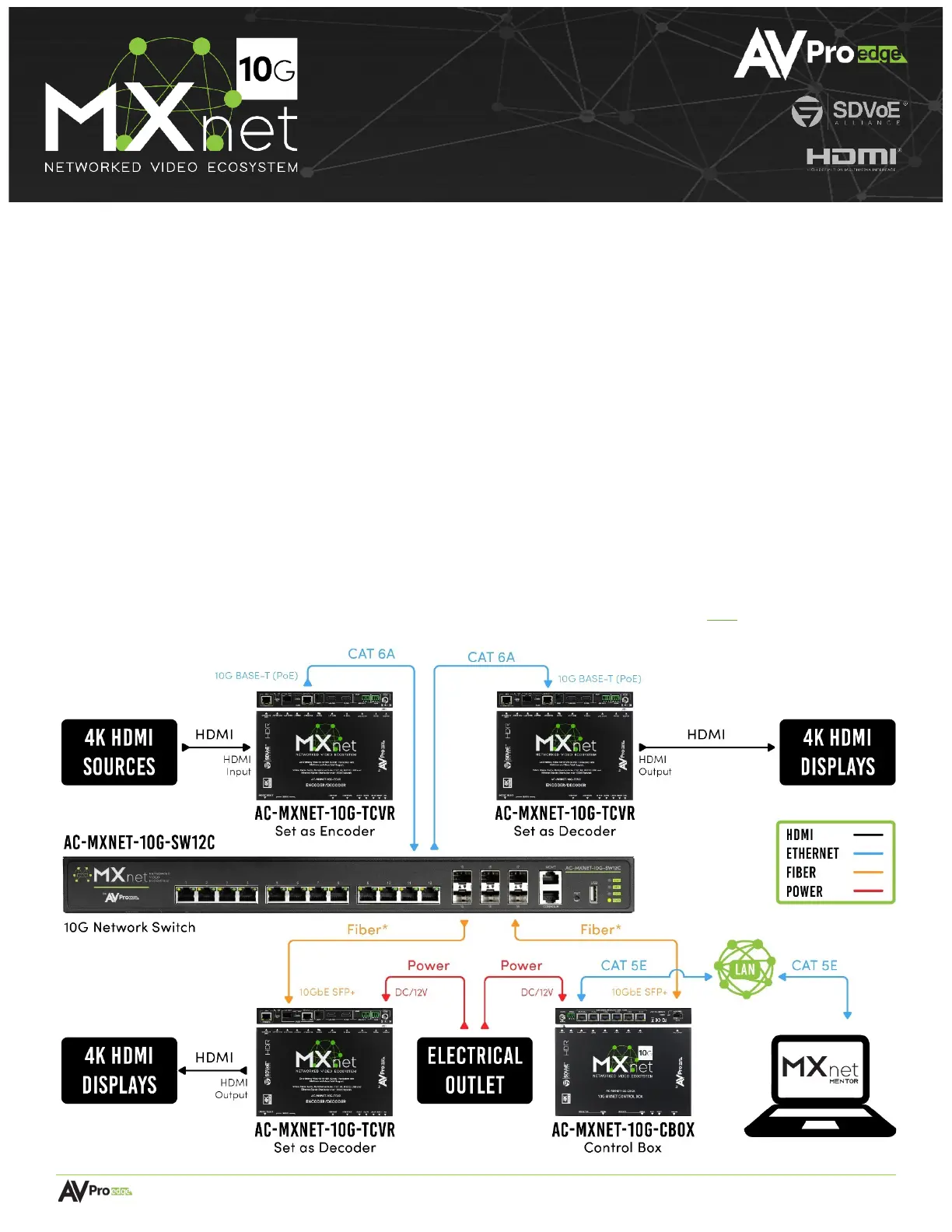

The diagram below shows the basic application with the AC-MXNET-10G-SW12C managed switch, AC-

MXNET-10G-TCVR transceivers, and AC-MXNET-10G-CBOX control box. The cable connections can be

Category cable, optical fiber, or a combination of both, as shown below.

If using a third-party network switch with MXNet, please first review our Knowledge Base article here.

Page 2 of 8

MXNET 10G SDVoE

Quick Start Guide

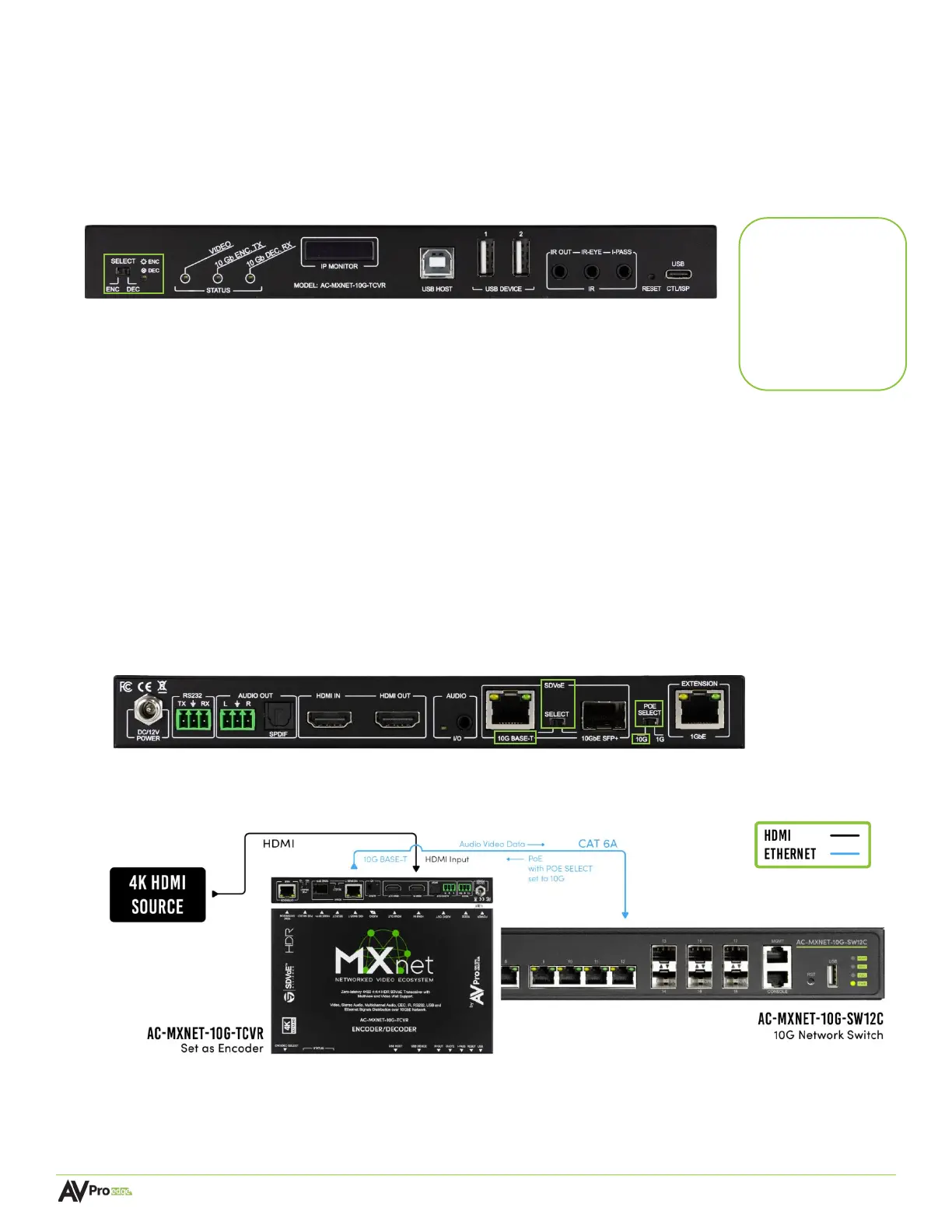

1. Select the Transceiver Mode

The encoder and decoder (transmitter/receiver) are combined into one chassis with a simple toggle

switch to select application functionality. By default, the transceiver is set to decoder mode.

Flip the ENC/DEC SELECT toggle switch to set the transceiver to encoder or decoder mode.

AC-MXNET-10G-TCVR

(Front Panel)

To the right of the toggle switch is a blue LED that indicates the selected mode:

LED is on = Encoder mode

LED is off = Decoder mode

2. Select the Transceiver Port Type

10GbE copper and fiber ports on each transceiver allow flexibility to utilize the cabling that best fits

the specific installation.

For Category Cable Connections

Flip the SDVoE SELECT toggle switch to the 10G BASE-T setting, then flip the POE SELECT toggle

switch to the 10G setting.

AC-MXNET-10G-TCVR

(Rear Panel)

Connect the SDVoE 10G BASE-T port on the transceiver to a 10G Copper PoE port on the network

switch.

Connect the power supply to the network switch. By using this method, no additional cabling is

required to power the transceiver as it will be powered by the network switch via PoE (Power-over-

Ethernet).

The

AC-MXNET-10G-TCVR

is shown, but the

same steps apply

to all transceivers:

AC-MXNET-10G-TCVR-AVDM

AC-MXNET-10G-TCVR-USBX

AC-MXNET-10G-TCVR-PRO
