Side 1/2
Version 1 | 16-11-2017
Distributed by Aspectra BV - www.aspectra.nl
Product information

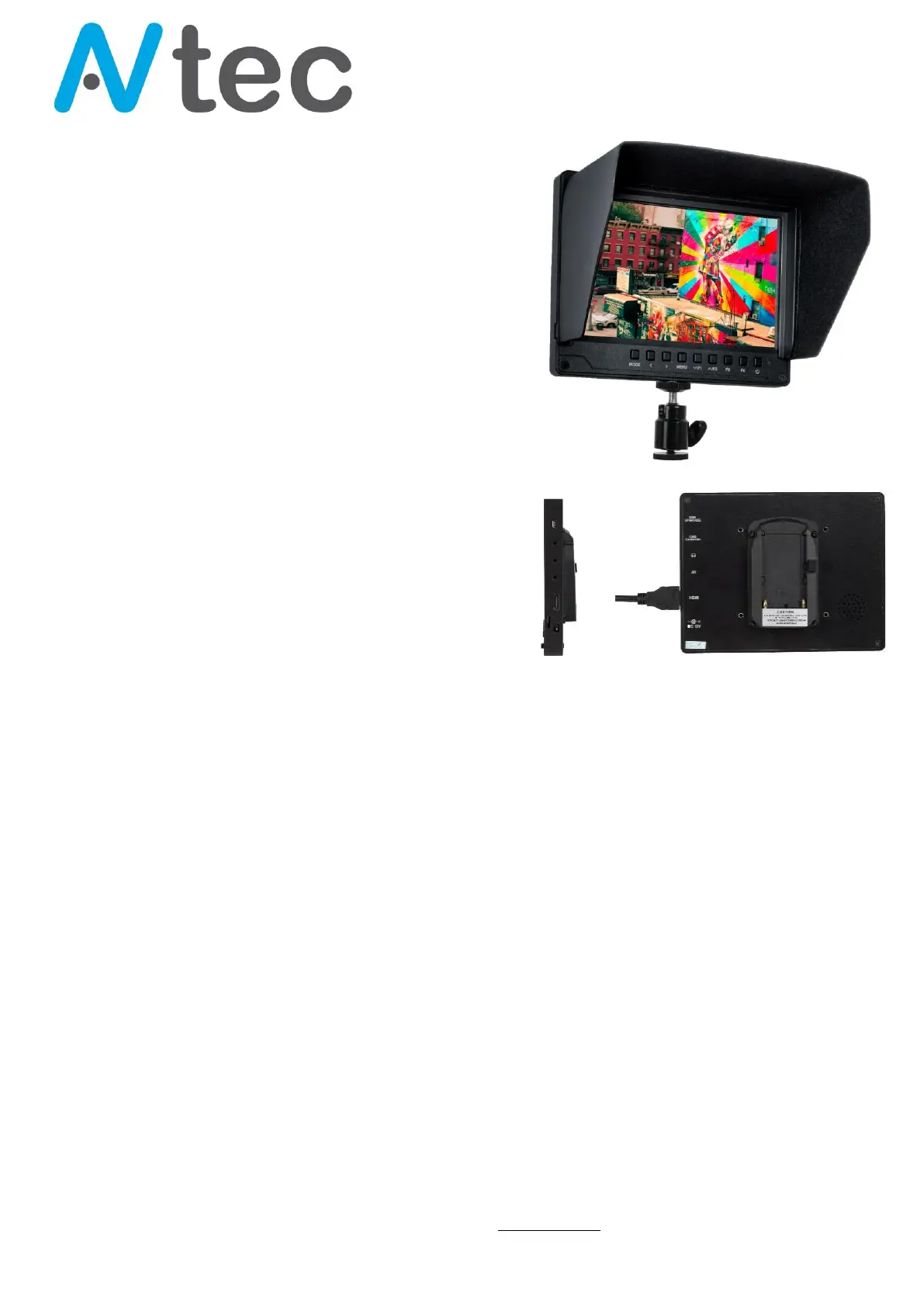

The AVtec XFM070 Full HD on-camera monitor has a
7” IPS LCD panel in an aluminum housing.
This product will provide you with a powerful,
portable and dependable image reference that can be
used in a variety of settings.
It is a great tool for focusing, composing, and viewing
images/video clips directly from your digital
camera/video camera. It has advanced integrated
digital signal processing circuits and a IPS LED Panel
which makes it high brightness with low power
consumption, stable performance and low radiation. It
is conveniently sized for easy transportation, and it is
perfect for difficult shooting situations.
This monitor only weighs 550 grams and can be
mounted on your camera via the hot shoe attachment
on the supplied ball head. The unit can be powered by
both a battery (NP-F, BP-U & LP-E6) and DC adapter.
Connect it directly to any DSLR or HD/4K video
camera through HDMI and monitor your shots in
1920x1080 resolution. It supports both NTSC and PAL
compatible signals. With brightness levels of 400
cd/m2, a 1200:1 contrast ratio and 160° vertical and
horizontal viewing angles, it’s a great tool for
professional videographers.
Productname: AVtec XFM070
SKU: AVT-XFM070
EAN/UCC: 8718591671999
Ultra Thin 7” Full HD Monitor – XFM070
Product Highlights
• Ultra Thin 7” IPS LCD Panel in aluminum housing
• 1920x1080 HD screen, PAL/NTSC color system
• Supports 4K UHD HDMI input
• Built-in speaker & integrated jack port for headphones
• Firmware upgradable through USB
• Supports a variety of battery types (NP-F/ LP-E6/ BP-U)
• Four assignable function buttons
• Focus Assist, Center Marker, Safe Frames,
Check Field
• Image Freeze, Image Flip & Pixel-to-Pixel
• Histogram, Exposure (Zebras) & False Colors
• Analog stereo L/R, Embedded Audio Display
• Image Zoom function, Image Nine Grid and
Anamorphic Mode
• Brightness, Contrast, Tint, Saturation and Color
Temperature adjust
Professional Features
Analyze focus, exposure, and other characteristics
with Histogram, False Color, Exposure (Zebras),
Focus Assist, Pixel-to-Pixel, and altogether over a
dozen features. Assign often-used menu functions
to one of the four function buttons on the front
panel for quick and easy access.
The focus and exposure-assist features mentioned
above are only some of the image control features
available on the monitor. The entire set of
professional functions consists of the following;
Histogram, False Colors, Exposure (Zebras), Focus
Assist, Center Marker, Safe Frames, Check Field,
Camera Mode, Aspect Ratio, Image Flip, Pixel-to-
Pixel, Image Freeze, Image zoom, Anamorphic,
Peaking Color, Embedded audio, Nine grid, Ratio
marker, Marker color, Mark width and Modified
marker.
The monitor also features an on-screen multilingual
menu where you can adjust brightness, contrast,
tint, saturation etc., to fine-tune your display. The
default aspect ratio is 16:9 but you can easily
switch to 4:3, Panorama or Automatic in the menu.
Version 1 | 16-11-2017
Distributed by Aspectra BV - www.aspectra.nl
Product information
Technical Specifications
Panel Size
IPS LCD 7.0 inch
Panel Type
IPS LCD
Resolution
1920x1080
Backlight
LED
Dot Pitch
0.07875(W) x 0.07875 (H) mm
Aspect Ratio
16:9
Brightness
400cd/m2
Contrast Ratio
1200:1
Viewing Angle
80°/80°(Left/Right) 80°/80°(Up/Down)
Input Signal
Video / Audio / HDMI
Video Color
System
NTSC 3.58 / PAL 4.43
HDMI Support
Format
480i /480p /576i /576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25 /
24/24sF /23.98/23.98sF)
Headphone
Output
Stereo 3.5mm
Input Voltage
DC:7.4~35V
Power
Consumption
≦8W
Unit Size
(LxWxH)
180 x 140 x 17 mm
7.09 x 5.51 x 0.67 inch
Unit Weight
550 g / 1.21 lbs. (incl. F970 bracket)
Installation
Method
1/4 inch bracket screw hole, can be
easily connected to the hot shoe
mount, tripod fixed installation
Working
Temperature
-20°C～55°C / -4°F～131°F
Storage
Temperature
-30°C～65°C / -22°F～149°F
Packaging Information
Box Dimensions (LxWxH): 22 x 19.5 x 8 cm
8.66 x 7.68 x 3.15 inch
Package Weight: 1357 grams / 2.99 lbs.
Many Accessories Included!
The monitor comes with three interchangeable
battery brackets for Canon LP-E6, Sony NP-F &
BP-U batteries. The brackets are connected to the
monitor with 4 screws so they are safely secured
for any kind of circumstances.
In case you prefer using an AC/DC adapter, the
monitor comes with a power adapter supplied with
4 interchangeable plugs for international use in
the US, UK, Europe, and Australia / New Zealand.
The monitor has a foldable sun hood to protect
against glare from any bothersome light source,
including sunlight. It comes together with the sun
hood attachment that simply clips on the monitor
housing.
The XFM070 incorporates a 1/4"-20 threaded
mounting hole and includes a ball head accessory
that allows you to mount the monitor directly to
your camera's hot/cold shoe. Also included is a
HDMI cable suitable for using the AVtec XFM070
with a wide range of camcorders and cameras
Included in the package
1x AVtec XFM070
1x Detachable sun hood attachment &
foldable sun hood
1x AC/DC adapter with EU, UK, US & AU plugs
3x Battery bracket (for NP-F, BP-U & LP-E6 batteries)
1x Ball head with ¼ camera screw
1x HDMI cable
1x Owner´s Manual
