LUBRICATION
The rod on which the product holder slides, which is underneath the slicer, should be
lubricated weekly with several drops of oil. Machine without oiler. Lift up the machine and
oil the rod directly. After the lubrication have the carriage sliding 4 or 5 times.
Use oil SHELL ONDINA 15 or ESSO MARCOL 82.
Occasionally, the slice thickness plate slide rod should be coated lightly with lubricant.
Turn the slice thickness control fully counterclockwise when lubricating this slide rod
and then turn it fully clockwise when finished.
DO NOT lubricate the rod on which the last slice device slides.
It must be kept clean but not lubricated. The motor has sealed bearings and requires no
lubrication maintenance.
WEAR ADJUSTMENT
After several years of operation and many sharpenings of the blade it may become
necessary to have the slice thickness plate adjusted closer to the blade.
INSTALLATION
MAINTENANCE
SLICER
INSTALLATION
UNPACKING
Immediately after unpacking the slicer, check it for possible shipping damage. If this
machine is found to be damaged after unpacking, save the packing material and contact
the carrier within 15 days of delivery.
Prior to installation, test the elettrical service to assure that it agrees with the
specifications on the machine data plate 1 .
ELECTRICAL
WARNING: THIS MACHINE IS PROVIDED WITH THIS PLUG MUST BE
CONNECTED TO PROPERLY GROUNDING PLUG, GROUNDED OUTLET. IF THE
RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN
ELECTRICIAN.
CLEANING
This machine must be thoroughly cleaned and sanitized after installation and before
being put into service.
SAFETY
SAFETY DEVICES INCORPORATED IN THIS SLICER MUST BE IN THEIR CORRECT
OPERATING POSITIONS ANYTIME THE SLICER IS IN USE.
The blade cover 5 must be in position over the knife and secured by tightening
the hand knob.
The Iast slice device 4 must be used when slicing it keep your hands away from
the blade.
When the slicer is not running, the slicer thickness control 2 must be set on zero
(fuIly clockwise) to prevent the blade edge from being exposed. Always UNPLUG the
power cord before cleaning or moving the slicer.
GB
AX-S9 Ultra
AX-S10 Ultra
AX-S12 Ultra
AX-SD12 Ultra
Filename: Man_AX_S_Serie_Ultra_GB.PMD 03/02/15

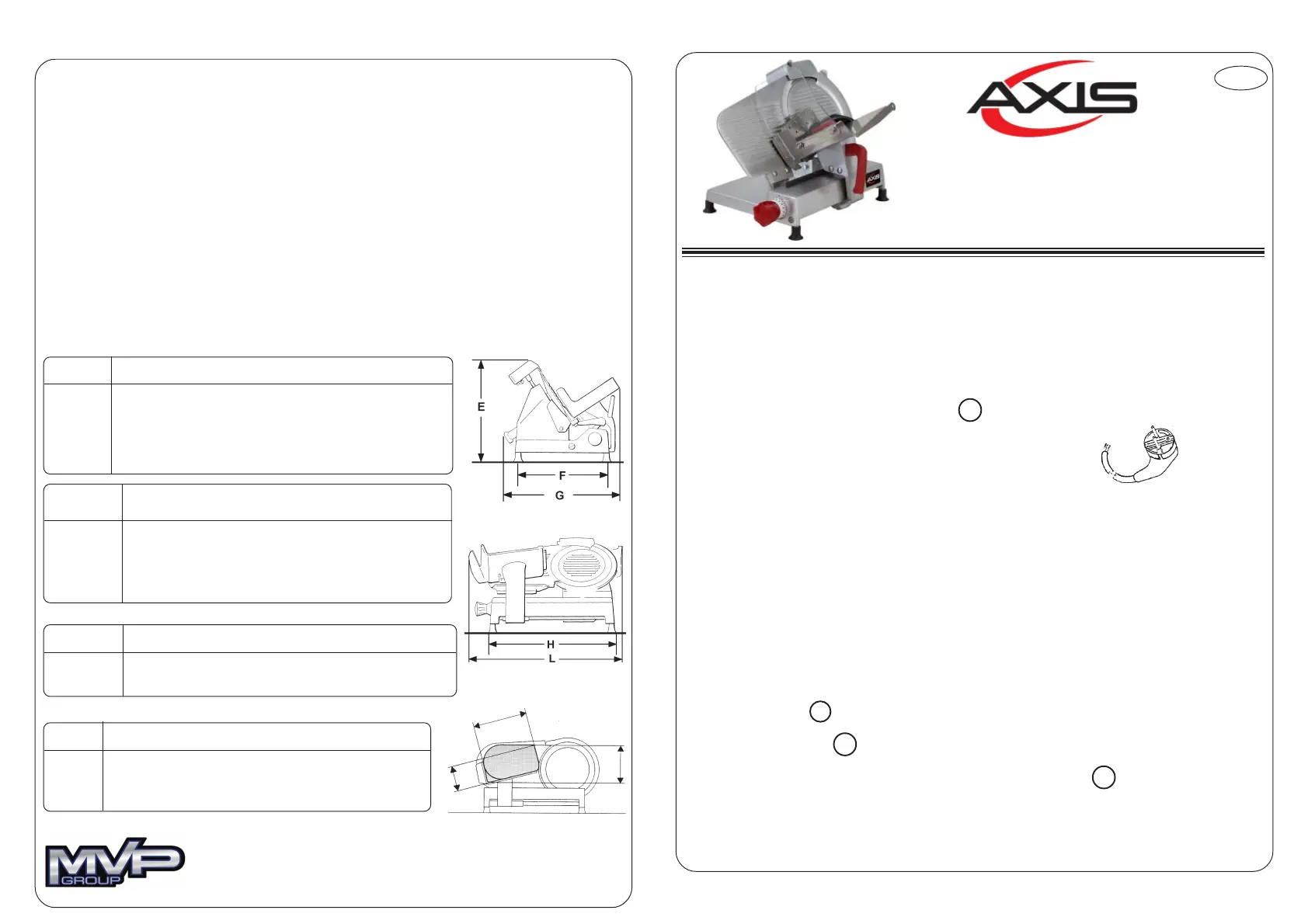

Dimension mm
Slicing capacity mm
B
A
C
Motor Data AX-S9Ultra AX-S10Ultra AX-S12Ultra AX-SD12Ultra
Volts 115
Hz 60
Ph 1
Amp 1,5 1,5 2,5 2,5
N/min 1750
AX-S9Ultra AX-S10Ultra AX-S12Ultra AX-SD12Ultra
E 330 360 390 470
F 280 280 320 365
G 410 410 450 500
H 360 360 420 455
L 590 590 600 630
AX-S9Ultra AX-S10Ultra AX-S12Ultra AX-SD12Ultra
A 140 140 150 200
B 190 190 220 270
C 170 170 210 235
Weight AX-S9Ultra AX-S10Ultra AX-S12Ultra AX-SD12Ultra
Net kg 12 13 18 24
Brut kg 15 16 22 29
5659 Royalmount Avenue
Montreal, Qc, Canada H4P 2P9
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax.: 514.342.3854 / Toll Free: 877.453.8832
3560 NW 56th Street
Fort Lauderdale, FL 33309
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax.: 786.661.4100
RETURN

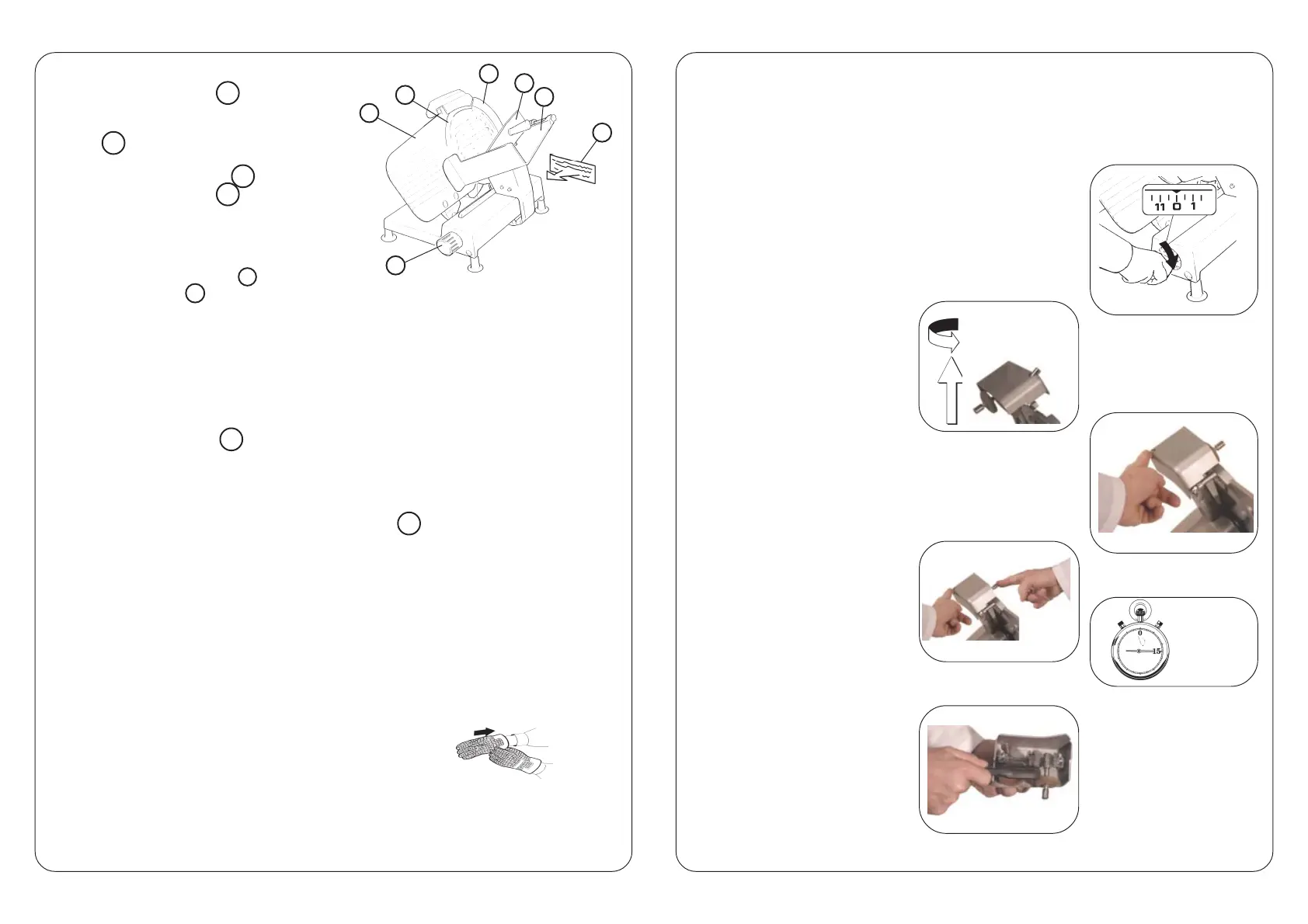

SLICING
PuII the product holder 3 toward you until
it stops and place the product to be sliced on
the product holder tray. Set the last slice
device 4 against the product and stwich on
the slicer by pressing the on-off stwich.
Adjust the slice thickness 7 by turning the
slice thickness control 2 .
The numbers on the slice thickness control
do not indicate actual measurements but
may be used for reference to duplicate slice
thickness.
Using the Iast slice device 4 handle push
CLEANING
This machine must be thoroughly cleaned after each day’s operation or anytime it will
not be used for an extended period of time.
WARNING: UNPLUG MACHINE POWER CORD AND TURN THE INDEX KNOB FULLY
CLOCKWISE BEFORE CLEANING THE SLICER.
Remove the slice deflector by removing its thumb screw.
Turnover product holder 3 . Pull the carriage up to its limit stop and rotate towards the
outside, by having the plate either removed or turned over, makes easier the cleaning of
remote spots otherwise difficult to be reached.
Using a mild soap and hot water solution and a clean cloth, wipe all surfaces of the slicer.
Thoroughly rinse it with another clean cloth and fresh water.
Remove the blade cover by removing the hand knob 5 .
With the hand knob removed, grasp the edge of the blade cover and carefully lift it straight
off the blade.
WARNING: THE SLICER BLADE IS VERY SHARP USE EXTREME CAUTION WHEN
WORKING NEAR THE BLADE.
CAREFULLY wash both sides of the blade with the slice thickness control turned fully
clockwise. Wash the blade by wiping outward from the center. ALWAYS rinse the blade
thorougthly using fresh water and a clean cloth. Never use steel pads it clean the blade.
Wash and thoroughly rinse the removed components prior to reassembling them. DO
NOT wash any slicer components in a dishwasher.
Make sure that the machine off.
Clean the blade removing any
greasy residue.
Rotate the slice thickness control
to zero to make sure that the blade
is covered by the slice thickness
plate.
ATTENTION: During the shar-
pening operations, pay
attention to an accidental
contact with the blade.
Slip off completely the sharpener
and spin it 180 degrees.
Sharpening: Press the
sharpening wheel for about 10-15
seconds, then press
simultaneously also the grinding
stone for two seconds.
Contemporaneously loosen the
two grindstones.
Lift and rotate 180 degrees the
sharpener and reallocate it into
its initial position.
Cleaning of the grinding wheels
For an adequate sharpening the
grinding wheel must always be
clean. Remove dirt and grease with
alcohol and using a brush.
MAINTENANCE
ATTENTION
Use protection gloves
ELECTRICAL SAFETY
When the slicer is running the eventual removal of the blade cover
, or the default of
electric power, causes the stop of the machine.
SHARPENING OPERATION
Your slicer blade will provide long service in normal deli, food store, or commercial
kitchen use.
However, in high volume applications where it is a practice to sharpen the blade frequently
or even daily, the blade will be expended in a shorter time.
the product holder 3 back and forth to slice. Always turn off the slicer and turn the
slice thickness control clockwise to zero when not slicing.
For a correct sharpening of the
blade follow these instructions:
1
2
3
4
5
6
1
5
7
2
4
6
3
STOP
180°
