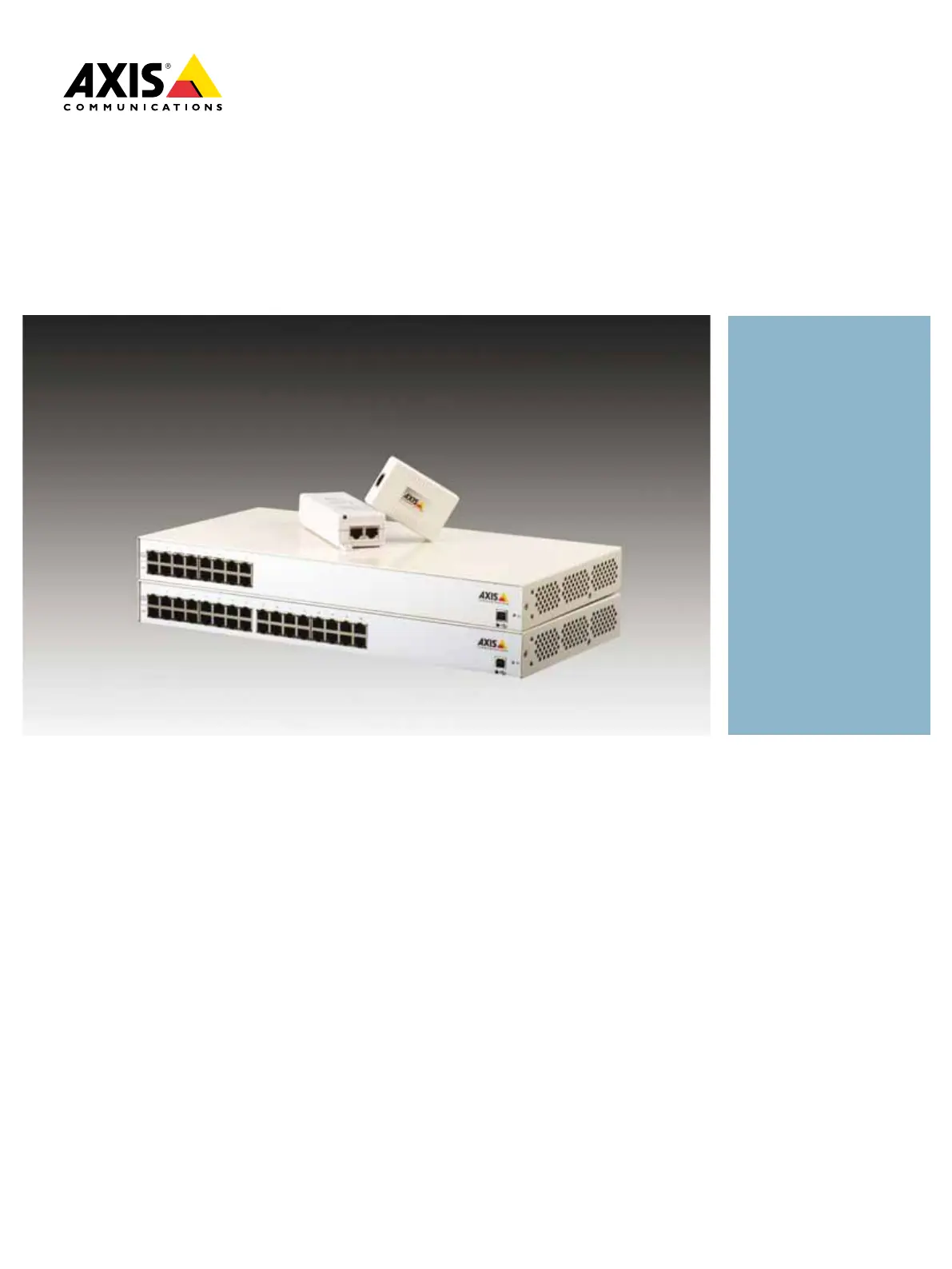

DATASHEET

Axis PoE midspans provide power (max. 15.4 W per port)

over Ethernet cables to network video products with

built-in PoE support. For a network video product without

built-in PoE support, a PoE splitter must be used to

separate power and data coming over the network cable.

The PoE products enable network cameras and video

encoders to be installed in areas where traditional power

cabling and outlets are unavailable or dicult to install.

Installations are made easier and costs are reduced.

Power over Ethernet (PoE) oers an easy, fast and cost-eective solution for supplying power to

network video products without the need to install power outlets and electrical cabling. Simply

connect the Axis PoE midspans and PoE splitters to the network, and the network video products are

supplied with power.

Axis Power over Ethernet midspans & splitters

Network video without the need for power outlets.

Axis PoE midspans and PoE splitters are IEEE 802.3af

compliant, which ensures compatibility with most of Axis

products that have built-in support for PoE.

For network cameras such as PTZ (pan/tilt/zoom) and PTZ

dome cameras that require higher power than what PoE

products can provide, High PoE midspans and splitters are

available. See Axis High Power over Ethernet midspan and

splitters datasheet.

> Reduced

installation costs

> IEEE 802.3af

compliance

Axis High PoE products are

available for Axis PTZ and PTZ

dome cameras. See separate

datasheet.

Technical Specications – Axis Power over Ethernet midspans

Technical Specications – Power over Ethernet splitters

www.axis.com

in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right

to introduce modications without notice.

48258/EN/R2/1210

Midspans

Models AXIS T8120 Midspan 15 W 1-port

AXIS Power over Ethernet Midspan 8 port

AXIS Power over Ethernet Midspan 16 port

Function Data and power are fed to a network video product through an

Ethernet cable; use together with a PoE splitter for a network

video product without built-in PoE support

Data rate AXIS T8120: 10/100/1000 Mbps

8- and 16-port midspans: 10/100/1000 Mbps

Data & Power

Connectors Shielded RJ–45, EIA 568A and 568B

Network cables Shielded category 5 (or higher) Ethernet

Wiring AXIS T8120: Mode B; data provided over pairs 1/2 and 3/6,

power over spare pairs 4/5 (+) and 7/8 (-)

8- and 16-port midspans: Mode A; data and power provided

over pairs 1/2 (+) and 3/6 (-)

Output power 48 V DC (max. 15.4 W/port)

Input power AXIS T8120:

AC input voltage: 100 - 240 V AC (50/60 Hz)

AC frequency: 47 - 63 Hz

AC input current: 0.5 A maximal

8- and 16-port midspans:

AC input voltage range: 90 - 264 V AC

AC Input frequency: 47 - 63 Hz

AC input current: 4.5 A (RMS) max. for 90 V AC, 2.25 A (RMS)

max. for 240 V AC

Installation and

management

Plug-and-play installation; midspans automatically detect all

devices with support for PoE and supply inline power

Local LED management display

Port

auto-sensing

Standard IEEE 802.3af auto-sensing

Pre-standard backward compatibility algorithm

(AXIS T8120 Midspan 15 W 1-port only)

General

Display and

indicators

All port interfaces are located on the front panel for easy access

and real-time network monitoring

System: AC power, Channel indicator - power and fault

For more information, see www.axis.com/techsup

Compliance IEEE 802.3 standard (when no inline power is supplied) and

IEEE 802.3af, DTE Power via Media Dependent Interface (MDI)

Mounting AXIS T8120: Wall or shelf mounting

8- and 16-port midspans: Prepared for 19”, 1U rack installation

Approvals AXIS T8120: FCC Part 15 Class B with FTP cabling

EN55022 (CISPR 22) Class B with FTP cabling

Safety: cUL/UL, TUV, CE

8- and 16-port midspans: TUV EN 60950

FCC Class B, EN55022 Class B, EN61000-4-2. EN61000-4-3,

EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11,

EN61000-3-2 Class A

Safety: cUL/UL, TUV, CE

Operating

conditions

0 °C to 40 °C (32 °F to 104 °F)

Humidity 10 - 90% RH (non-condensing)

Dimensions

(HxWxD) and

weight

AXIS T8120:

33 x 53 x 140 mm (1.3” x 2.1” x 5.5”)

450 g (1 lb.)

8- and 16-port midspans:

44.5 x 228 x 438 mm (1.75” x 8.98” x 17.26”)

4.08 kg (9 lb.)

Splitters

Models AXIS PoE Active Splitter 5V AF (only supported by 1-port

Midspan)

For a complete list of supported products, please refer to

www.axis.com/products/pol/poe/

Function Separate data and power coming over a network cable for a

network video product without built-in PoE support

Data & Power

Connectors Data & power in: Shielded RJ-45

Data out: Shielded RJ-45; Power out: DC barrel connector,

cable adapter for supported network video products

Output current 5 V unit: 2 A at 5 V DC

Input power 48 V nominal

Installation Plug-and-play installation between midspan and network video

product

General

Operating

conditions

0 °C to 40 °C (32 °F to 104 °F)

Humidity 10 - 90% RH (non-condensing)

Approvals EMC and Immunity:

FCC Part 15 subpart B Class A, EN 55022 (CISPR 22) Class A,

EN 55024 (CISPR 24)

Dimensions

(HxWxD) and

weight (without

DC cable and

package)

5 V unit: 25 x 55 x 81 mm (1” x 2.2” x 3.2”),

100 g (0.22 lb.)

More information is available at www.axis.com
