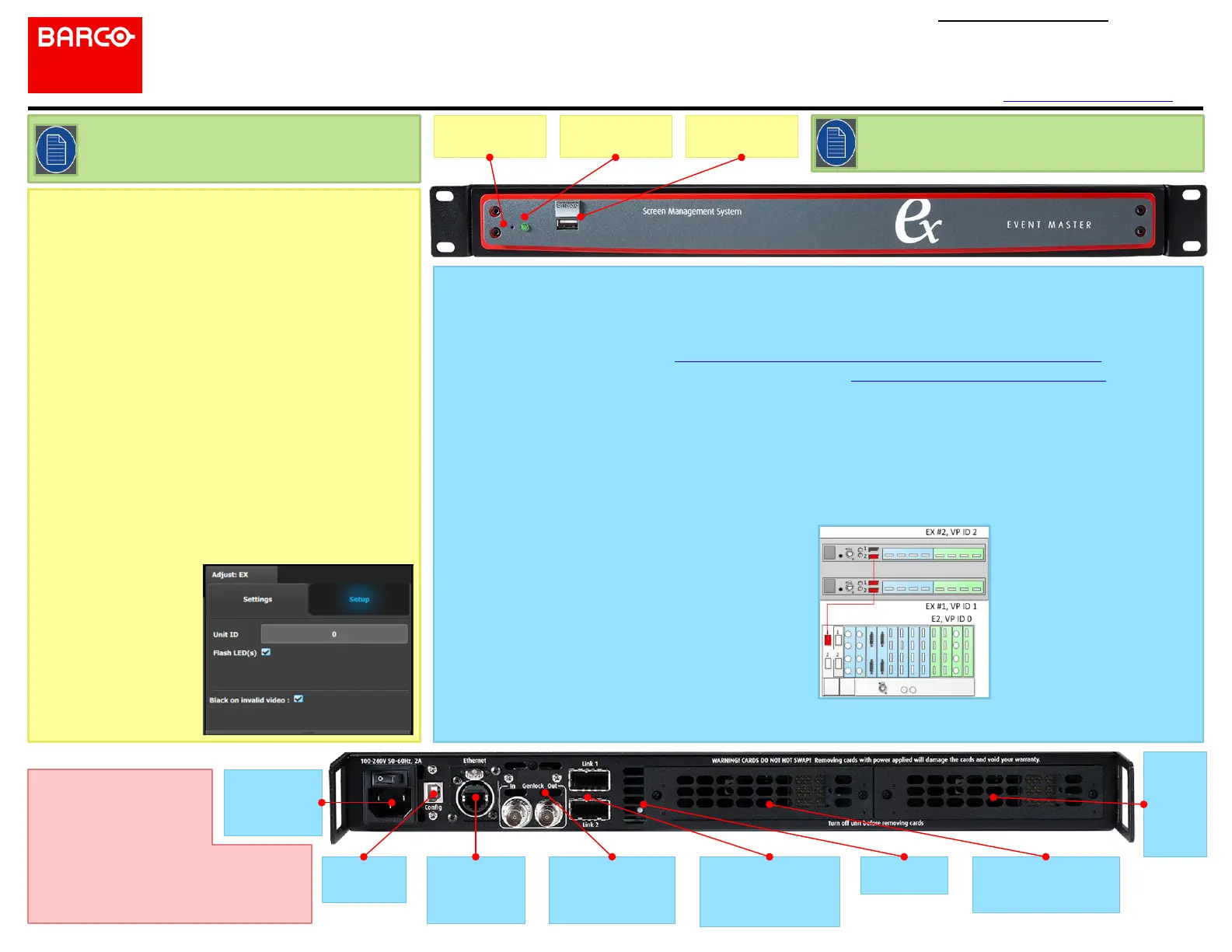

Event Master EX Screen Management System: –

Expansion Box

Quick Start Guide

Status LED USB 2.0 Port

Quick Setup and Operations

1. Connect all sources, displays, and peripherals to the EX extension

box according to your event’s requirements.

2. Power up the EX and all peripherals.

3. Set up the computer on which you will run the Event Master

control software for a static IP address of 192.168.0.200.

The network ID must be 192.168.0. You may assign the host ID

yourself, but avoid the default static IP address, which is

192.168.0.185.

If you plug the USB thumb drive into the EX expansion box, the

system creates a "whoareyouEX.txt" ﬁle that contains the IP

address and the Unit ID.

4. Connect the EX unit via an Ethernet cable to a computer on which

the Event Master control software is installed.

5. Use the front-panel LED to verify that the EX is running correctly.

On power up, the LED may be in one of four states:

•Solid red The operating system is running.–

•Quickly blinking red 3 fast blinks indicates overheating.–

•Steadily blinking red 1 blink per second indicates PCIe errors.–

•Solid green The main code is running; the system is ready.–

Identify EX Units

1. Select the EX unit (in the

Selection area or the

Diagram area).

2. Go to the Adjust tab in the

Conﬁguration area.

3. Select the Setup

sub-tab and check the

Flash LED(s) box.

The front and rear status

LEDs of the selected EX

unit will blink.

Factory Reset

If necessary, press the

recessed reset switch and hold

it for ﬁve seconds to restore the

Refer to the Event Master devices User’s guide

(R5905948) for detailed system speciﬁcations,

descriptions and operation instructions.

Status LED

Link Connections

An Event Master unit can link with other Event Master units. Depending on the linking conﬁguration, linked units share inputs, and they

expand the number of outputs. For more information on linking, see Section 6.17 "Conﬁguration Menu > Linking” in the Event Master

Devices User's Guide, or see the instructional videos on the Barco Folsom IP YouTube site.

For links to other quick-start guides and the , see the Technical Downloads tab for each product on Event Master Devices User's Guide

the Barco Presentation switchers page at: https://www.barco.com/en/Products/Image-processing/Presentation-switchers

1. Check the cable orientation for keying. The cable ﬁts in only one

orientation.

2. Fully insert the cable into the connector on the Link Card.

3. If the cable resists full insertion, do not force it; pull the cable out,

check its orientation, and reinsert it.

4. Make sure that the latch is properly engaged.

5. Always use the release when removing the cable.

Improper insertion or removal of Link cables can damage the

connectors and is not covered under the product warranty.

•To link two daisy-chained EX units to an E2, connect the Link

cables from the E2 to the EXes as follows:

E2 VP ID 0, Link Card slot 1, Link 1 >> EX VP ID 1, Link 2

EX VP ID 1, Link 1 >> EX VP ID 2, Link 2

2. Make sure that the E2 and the EX unit (or units) have diﬀerent IP

addresses.

The E2 default IP address is 192.168.0.175, and the EX default

IP address is 192.168.0.185. If more than one EX is linked, be

sure to change the IP addresses on additional units.

For links to instructional videos, see the Barco Folsom IP YouTube site at: .https://www.youtube.com/user/BarcoFolsomIP

If you press the reset switch and release it after

fewer than ﬁve seconds, the unit toggles between

Static IP mode ( ) and DHCP LED blinks 2 times

mode ( ).LED blinks 3 times

+1 (866) 374-7878

+32 (56) 36 8019

40088 22726

+603-78803362

www.barco.com/en/support

Example: Linking an EX (or a Pair of EX Units) to an E2

Each E2 is equipped with two link cards, always located in slots 1

and 2. Link cards are identiﬁed by a yellow stripe at the top.

Each EX has two Link sockets.

Be sure that you properly align the Link cable connectors prior to

insertion. Connectors should insert easily with almost no

resistance, until the lock is about to engage. Be sure that the lock

engages fully to ensure proper contact. Make sure that you use the

locking mechanism and then push each cable until it locks in place.

•To link an EX to an E2, connect the Link cables from the E2 to

the EX as follows:

E2 VP ID 0, Link Card slot 1, Link 1 >> EX VP ID 1, Link 2

3. Connect all devices to network

Ethernet.

4. Start the Event Master Toolset

version 4.0 or higher.

5. Drop the E2 in the GUI.

The EX unit cabled to the E2

appears as a grayed-out box

below the E2 unit in the Diagram

area. In the grayed-out EX box a

blue button allows you to add the

EX to the system as a slave.

6. Click the blue add button to add

the EX unit.

If you are adding two daisy-chained EX units, you must add the ﬁrst

EX in the chain before the second EX in the chain is displayed,

then repeat Step 4 to add the second EX in the chain.

Linking

EX extension box to factory

settings.

Cards are hot-swappable.not

The EX expansion box ships without input or output

cards. Cards must be installed before you set up and

operate the unit.

P/N 26-1502004-00 Rev 02

Programming Menu

P1: Select thumbnails for Inputs & Stills Press , or –Refresh All

select the thumbnails to represent Inputs and Stills. Either capture a

live thumbnail or select an image ﬁle.

P2: Create Source Files Under the Input tab create any additional –

source ﬁles (optional). Select the Adjust tab and perform any

additional adjustments and press . Repeat for all Inputs/Save

Sources and save.

P3: Drop Inputs to Aux Destinations Under the Input tab select an –

Input and drop it to an Aux Destination. Select the Adjust tab and

perform any additional adjustments. Repeat for all Inputs and save.

P4: Presets Select Screen(s) and under Adjust and Preset tabs –

create a new preset or manage existing ones. Repeat to create

multiple Presets.

Conﬁguration Menu

C1: Discovery - The Event Master control software automatically

discovers the devices connected to the network and lists them on

the left hand side of the conﬁguration screen.

C2: Connect - Click on the device that you want to connect, drag it

in the middle area, and the software establishes communication

with the unit. You can also connect to the EX by typing the IP

address manually.

C3: System Parameters - Select the desired Native Rate, Genlock

Mode, and Preset Conﬂict Mode.

C4: Add Inputs - Select and deﬁne input connectors as Inputs.

C5: Add Outputs - Select and deﬁne output connectors as Outputs.

C6: Add Aux Destinations - Select the corresponding output

connector(s) from the same card and add them to AUX

Destinations.

C7: For any Input, Output, or AUX Destination, select the Adjust tab

and perform any necessary adjustments.

C1: Discover

C2: Connect

C5: Add

Outputs

C4: Add

Inputs

C3: System Parameters

(Native Rate, Genlock Mode, and

Preset Conﬂict Mode)

P1: Select thumbnails for

Inputs & capture Still stores

P3: Drop

Inputs/Stills

into AUX

Destinations

P4: Create

Presets

Settings Menu

S1: The Dashboard provides card status and other diagnostic information.

S2: Tools allow users to perform Backup and Restore operations or to download the latest software from the Barco Web site.

P2: Create

Sources

from

Inputs

Barco Technical Support:

USA:

EMEA:

China:

APAC:

Support:

+1 (866) 374-7878

+32 (56) 36 8019

40088 22726

+603-78803362

www.barco.com/en/support

C6: Add AUX

Destinations

Event Master EX Screen Management System: –

Expansion Box

Quick Start Guide
