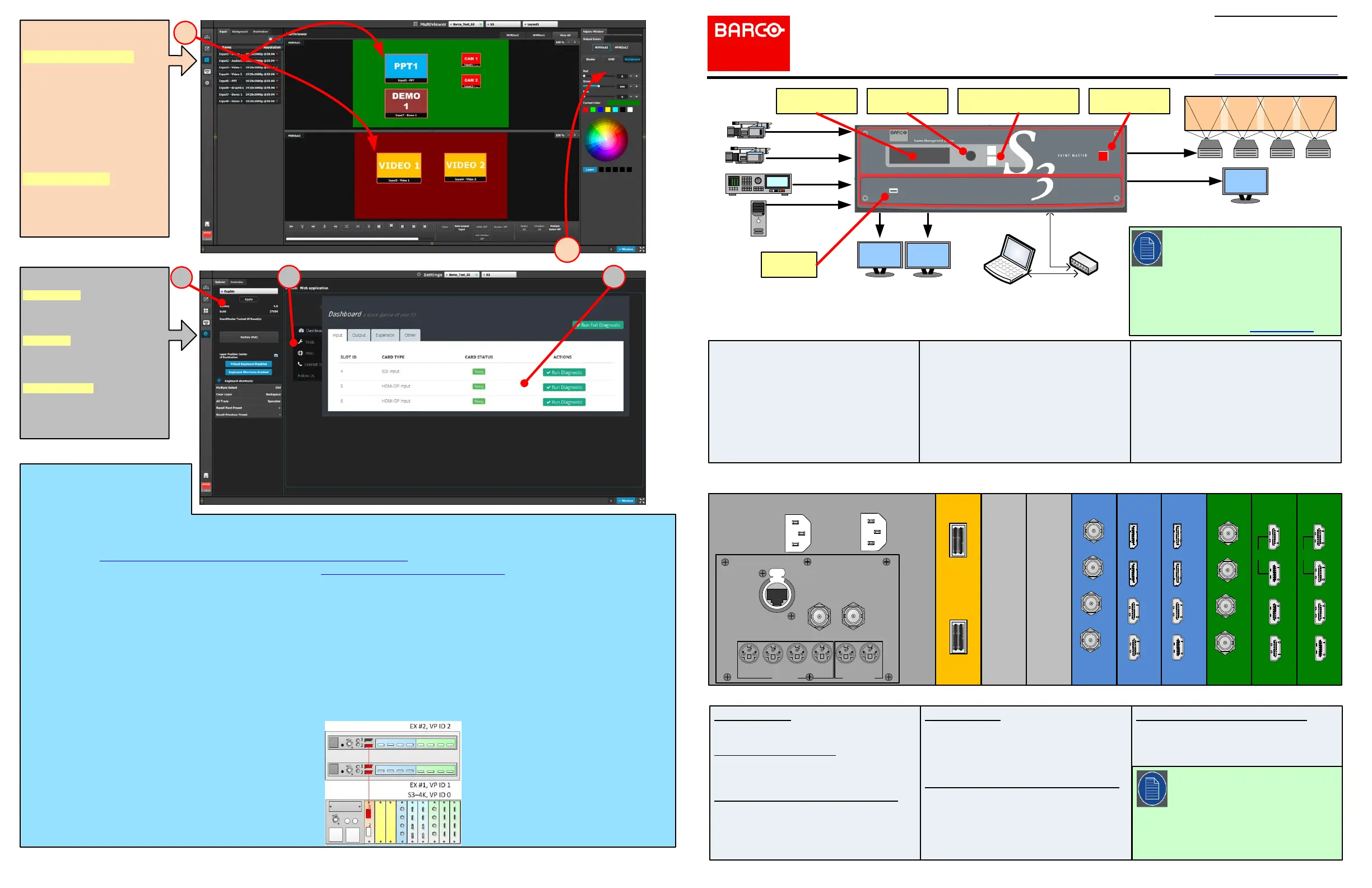

Event Master

S3 4K Screen Management System – –

Quick Start Guide

Input Cards Output Cards

Link Card MVR

Ethernet switch

PC with Event Master

Control Software

MVR

P/N 26-1401004-00 Rev 02

SDISDISDI SDI

Display

Port

Display

Port

HDMIHDMI

Display

Port

Display

Port

HDMIHDMI

SDISDISDI SDI

HDMIHDMIHDMIHDMI

CXPCXP

23 4 56 87 9

VPU Cards

Dual Redundant Power Supplies

Genlock

In Loop

Ethernet

1 2 3 4 1 2

S3D In S3D Out

SEL

ESC

PWR

Expansion0

Expansion1

Input2

Input3

Expansion

Slot ID Card Status Actions

S1 S2 S3

1. Check the cable orientation for keying. The cable ﬁts in only one orientation.

2. Fully insert the cable into the connector on the Link Card.

3. If the cable resists full insertion, do not force it; pull the cable out, check its

orientation, and reinsert it.

4. Make sure that the latch is properly engaged.

5. Always use the release when removing the cable.

Improper insertion or removal of Link cables can damage the

connectors and is not covered under the product warranty.

SETTINGS MENU

S1: Options - On the Options tab

click on the boxes to select system

wide user preferences such as

Layer positioning.

S2: Tools - Allows users to

perform Backup and Restore

operations or download the latest

software from the Barco website

S3: Dashboard - Provides status

information regarding the cards

and other system diagnostic

information.

Refer to the Event Master devices User’s

guide (R5905948) for detailed system

speciﬁcations, descriptions and operation

instructions.

Any item contained in this document may

change without notice.

For the latest version of the Event Master

devices User’s guide – (R5905948) and the S3 4K

Screen Management System Quick Start –

Guide (26-1205004-00), visit .www.barco.com

System Setup

1. Ensure that the unit is physically secured in a

rack or is placed on a ﬂat surface with stable

support. If the unit is installed in a rack, it is

mandatory that the rear brackets are also

installed.

2. Connect all sources, displays, and peripherals

to the S3 4– K according to your event’s

requirements.

3. Connect AC power to the unit. If power

redundancy is desired, connect power to both

power plugs.

4. Connect to a computer that has the Event

Master control software installed, via an

Ethernet cable. A switch is optional if additional

devices will be connected.

5. Power up the S3 4K, the PC, and all monitors –

and peripherals.

6. Verify that no error messages appear on the

S3 4K front panel. –

7. After the S3 4K boots up, run the Event Master –

control software and follow the sequence of

instructions listed in this Quick Start Guide to

complete the system setup and conﬁguration.

Should the system not fully boot correctly, press

and hold the SEL and ESC buttons while

applying power to the unit. Release these

buttons when a menu appears asking to Factory

Reset the unit. Perform the Factory Reset and

the unit will boot normally.

Power Switch

USB Port

SEL and ESC ButtonsADJUST KnobDisplay

Expansion Card

- 2 High speed CXP connectors

SDI Input & Output Cards

- 4 SDI BNC connectors

- SD/HD/3G formats (6G ready)

DisplayPort/HDMI Combo Input Cards

- 2 DP and 2 HDMI locking connectors

- Displayport 1.1a speciﬁcation

- HDMI 1.4a speciﬁcation

- HDCP 1.4 & EDID 1.3

DVI Input Cards

- 2 DVI-I connectors (no analog signals)

- Single / Dual Link formats

- DVI 1.0 speciﬁcation

- HDCP 1.4 & EDID 1.3

Quad Channel DisplayPort Output Cards

- 4 full-size DP locking connectors

- Up to 4 independent signals

- DisplayPort 1.2 speciﬁcation

- HDCP will be supported in a future software

release.

HDMI Output cards (including MVR)

- 4 HDMI connectors (top 2 connectors capable of

high-speed HDMI signals up to 300 MHz)

- HDMI 1.4a speciﬁcation

- HDCP 1.4 and EDID 1.3

Notes:

- Input and Output cards each support

one 4K/UHD signal.

- This sample system shows the optional DP 1.2

Output card. The system does not ship with this

card; your conﬁguration may be diﬀerent.

- Cards are hot-swappable.not

Barco Technical Support:

USA: +1 (866) 374-7878

EMEA : 0800 90 0410

CHINA : 40088 22726

APAC: +603-78803362

www.barco.com/en/Support

Link Connections

Linking

An Event Master unit can link with other

Event Master units. Depending on the

linking conﬁguration, linked units share

inputs, and they expand the number of layers and outputs. For more information on linking, see Section 6.17 "Conﬁguration Menu > Linking in the Event Master

Devices User's Guide, or see the instructional videos on the Barco Folsom IP YouTube site.

For links to other quick-start guides and the Event Master Devices User's Guide, see the Technical Downloads tab for each product on the Barco Presentation

switchers page at: https://www.barco.com/en/Products/Image-processing/Presentation-switchers

For links to instructional videos, see the Barco Folsom IP YouTube site at: .https://www.youtube.com/user/BarcoFolsomIP

Each S3 4K is equipped with a single Link card in slot 1. The Link card is –

identiﬁed by a yellow stripe at the top.

Be sure that you properly align the Link cable connectors prior to insertion.

Connectors should insert easily with almost no resistance, until the lock is

about to engage. Be sure that the lock engages fully to ensure proper

contact. Make sure that you use the locking mechanism and then push

each cable until it locks in place.

1. Connect the Link cables provided with each unit between the Link

connectors as follows:

• S –3 4K VP ID 0, Link 1 >> EX VP ID 1, Link 2

• EX VP ID 1, Link 1 >> EX VP ID 2, Link 2

Example: Linking an S3 4K to a pair of EX units–

2. Make sure that the S3 4K and the EX units have diﬀerent IP addresses.–

The default IP address for each unit is the same; two of them must be changed.

3. Connect all devices to network Ethernet.

4. Start the Event Master Toolset version 4.0 or higher.

5. Make sure that the S3 4K and the EX units are discovered on the network –

and that they have diﬀerent Unit IDs.

If the system does not discover your device, you may manually add it. See

"How to manually add a device into the selected system" .in the user’s guide

6. Drop the S3 4K in the EM GUI.–

If the S3 4k unit is cabled to an EX unit or a pair of daisy-chained EX units, –

the EX unit appears as a grayed-out box below the S3 4K unit in the –

Diagram area. In the grayed-out EX box, a blue

button allows you to add the EX to the system

as a slave.

7. Click the blue add button to add the EX unit.

If you are adding two daisy-chained EX units,

you must add the ﬁrst EX in the chain before the

second EX in the chain is displayed, then repeat

Step 7 to add the second EX in the chain.

8. (Optional) Name each unit so that you can

identify it in your setup.

HDMIHDMIHDMIHDMI

MULTIVIEWER (MVR)

M1: Select MVR Sources - From

the dropdown menus select the

Inputs, Backgrounds, and

Destinations you want to view

and drop them into Multiviewer

Outputs. Overlapping is not

allowed. An MVR source may be

used twice. A maximum total of

63 windows can be used for

Inputs and 63 windows can be

used for Outputs.

M2: Adjust Window - Adjust the

size, position and the color

parameters associated with each

window. Repeat for all Inputs and

save.

P/N 26-1401004-00 Rev 02

C8,9C6

System Initialization

Return to Factory Default (Optional) - For a new event, back up your system if desired, then perform a complete factory reset. For a continuing (or multi-day)

event, this step is not required.

Restoring the System (Optional) - Insert a USB drive with a previous backup ﬁle into the USB Port. On the Backup and Restore Menu, press {Restore

System} and follow the prompts.

Backing up the System (Optional) - Insert a USB drive into the USB Port. On the Backup and Restore Menu, press {Backup System} to back up the system

setup and all memory registers.

Factory Reset, System Backup and Restore - Operations can be performed from the Events Master Control software or from the front panel.

C3: System Parameters

(Native Rate, Genlock Mode, and Preset Conﬂict Mode)

C8:Add Screen

Destinations

Add Layers to

Destinations

C9:Add Aux

Destinations

C6: Add

Outputs

(Turn On Test

Patterns)

C4: Add

Backgrounds

C5: Add

Inputs

P3: Create

Sources from

Inputs P6: Drop

Inputs/

Backgrounds

into Aux

Destinations

Multiviewer Menu (next page)

P2: Select

thumbnails

for Inputs

P1: Select

thumbnails

for

Backgrounds

C7: Add MVR

Outputs

P5: Drop Layers

into Screen

Destinations

Sources into

Layers

P4: Drop

Backgrounds into

Screen

Destinations

P7: Create User

Keys

P8: Create Presets

Refer to the User’s Guide for a detailed description of each step

Event Master Control Software Flowchart

C1: Discover

C2: Connect

CONFIGURATION MENU

C1: Discovery - When the Event Master control software loads, it

automatically discovers the devices connected to the network. These

devices are listed on the left hand side of the conﬁguration screen.

C2: Connect - Click on the device you want to connect and drag it in the

middle area. The software should automatically establish communication

with the unit. If connection between the PC and the S3 4K is not achieved, –

re-check the wire connection. On the Conﬁguration Menu, ensure that the

IP settings match with the S3 4K settings that are available from the front –

panel. You can also connect to the S3 4K by typing the IP address –

manually.

C3: System Parameters - Select the desired Native Rate, Genlock Mode,

and Preset Conﬂict Mode.

C4: Add Backgrounds - Select and deﬁne input connectors as a

background. Select the Adjust tab and perform any additional adjustments.

Repeat for all Backgrounds and save. Max of 4 connectors of the same

type can be assigned per background (Except for DVI & HDMI).

C5: Add Inputs - Select and deﬁne input connectors as Inputs. Select the

Adjust tab and perform any additional adjustments. Repeat for all Inputs

and save. Max. of 4 connectors of the same type can be assigned per

input.

C6: Add Outputs - Select and deﬁne output connectors as Outputs. Select

the Adjust tab and perform any necessary adjustments.

Repeat for all Outputs and save. Max. of 4 connectors of the same type

can be assigned per output.

Output Test Patterns (Optional) - Under the Adjust and Output tabs select

the test patterns on one or more outputs, to assist with external device

setup

C7: Add Multiviewer Outputs - Select connectors from the MVR slot and

deﬁne them as a MVR Output. Repeat for all Outputs and save.

C8: Add Screen Destinations - Select the corresponding output

connector(s) from the same card and add them to Screen Destinations via

drag and drop. From the Adjust tab, add the number of desired layers and

perform any necessary adjustments. Repeat for all Screen Destinations

and save.

C9: Add Aux Destinations - Select the corresponding output connector(s)

from the same card and add them to Aux Destinations. Select the Adjust

tab and perform any necessary adjustments. Repeat add all Aux Screen

Destinations and save.

PROGRAMMING MENU

P1: Select thumbnails for Backgrounds - Press , or select the Refresh All

thumbnails to represent the Backgrounds.

P2: Select thumbnails for Inputs & Stills - Press , or select the Refresh All

thumbnails to represent Inputs and Stills

P3: Create Source Files - Under the Input tab create any additional source

ﬁles (optional). Select the Adjust tab and perform any additional

adjustments and press . Repeat for all Inputs/Sources and save.Save

P4: Drop Backgrounds into Screen Destinations - Under the Background

tab select a Background and drop it to a Screen Destinations. Repeat for

all Backgrounds and save.

P5: Drop Layers & Sources - Under the Layer tab select a layer and drop

it to a Screen Destination. Select a Source under the Input tab and drop it

into the layer. Alternatively, select a source and drag it to the destination to

automatically show the layer with the selected source. Select the Adjust tab

and perform any additional adjustments. Repeat for all layers and sources

and save.

P6: Drop Inputs \ Backgrounds to Aux Destinations - Under the Input or

Background tabs select a Input \ Background and drop it to the Aux

Destinations. Select the Adjust tab and perform any additional adjustments.

Repeat for all Backgrounds and save.

P7: User Keys - Select a layer and under Adjust and User Keys tabs click

on the Enables to save. Repeat for all desired User Keys and save.

P8: Presets - Select Screen(s) and under Adjust and Preset tabs create a

new preset or manage existing ones. Repeat to create multiple Presets.

Produkt Specifikationer

Mærke:	Barco
Kategori:	Ikke kategoriseret
Model:	R9004794

Har du brug for hjælp?

Hvis du har brug for hjælp til Barco R9004794 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Barco Manualer

Barco F80 Rigging Frame Manual

6 Juli 2025

Barco Event Master Ex Manual

21 Juni 2025

Barco ICP-D Manual

20 Juni 2025

Barco QAWeb for DIN 6868‑157 Manual

17 Juni 2025

Barco E2 Gen 2 Manual

16 Juni 2025

Barco F70-W8 Manual

10 September 2024

Barco SP4K-13HC Manual

16 August 2024

Barco XDL-4K30 Manual

11 August 2024

Barco FS70-4K4 Manual

6 August 2024

Barco R9004683 Manual

6 August 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Aqua-Vu Micro Stealth 4.3 Manual

20 August 2025

OnTruss EventBoard C90I BASIC Manual

20 August 2025

Tefal Quickchef HB672B Manual

20 August 2025

Gravity XW GLOVE Manual

20 August 2025

Roland V-4CF Manual

20 August 2025

Tefal Uno M FF133D Manual

20 August 2025

LD Systems MAUI 5 GO 100 BC W Manual

20 August 2025

Moulinex Bake Partner QA523B Manual

19 August 2025

Uniprodo UNICLEAN 142B Manual

19 August 2025

Tefal Body Partner LL9503 Manual

19 August 2025
