For more Information

please call

1-800-Belden1

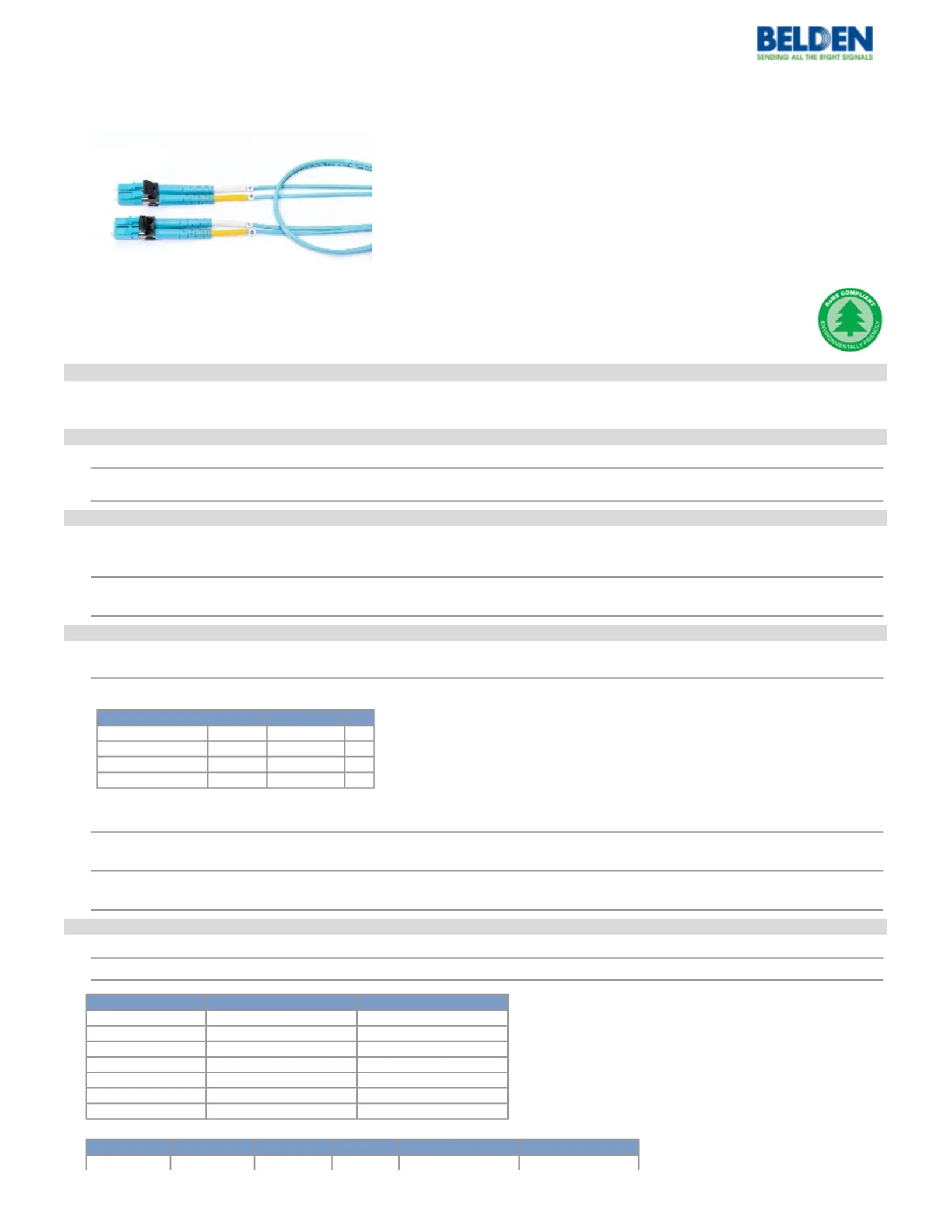

General Description:

FX PATCH CORD, OM3, LC DUPLEX - LC DUPLEX, 1 M, OFNR, DUPLEX ZIP 2.0 MM, A-TO-B, AQUA

JACKET

Usage (Overall)

Suitable Applications: Data Centers, Main Equipment Rooms,Telecommunications Rooms and Work Area

Related Parts: FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and

Cassettes. Workstation Oultlets

Multi Conductor

Physical Characteristics

Overall Cabling

Overall Cabling Fillers: Refer to cable Technical Specifications

Overall Diameter

Overall Nominal Diameter: 0.078 x 0.156 in.

Physical Characteristics (Connectivity)

Fiber Type

Fiber Type: 50 Micron (OM3)

Materials

Materials:

Description Type Material Color

Connectors for both ends LC-DUPLEX Plastic Aqua

Boots for both ends Rubber Aqua

Ferrules for both ends 1.25mm Zirconia-Ceramic

Jacket 2.0 mm Zip OFNR Aqua

Wiring Scheme

Wiring Scheme: TIA/EIA 568-C.3

Weight

Weight: 0.112 lbs.

Packaging

Packaging: Individually packaged in a clear plastic bag.

Mechanical Characteristics (Connectivity)

Storage Temperature Range: -40°C To +75°C

Operating Temperature Range: -40°C To +75°C

Environmental/Mechanical Characteristics:

Test (Method) TIA 568-D.3 Belden

Thermal Cycling (FOTP-3) n/a -40 to 75°C cycling for 7 days

Temperature Life (FOTP-4) 60°C for 4 days 85°C for 7 days

Humidity (FOTP-5) 90-95% at 40°C for 4 days 95% @ 75°C for 7 days

Durability (FOTP-21) 500 cycles 6 x 200 cycles (3 Elevations)

Cable Retention (FOTP-6) 5.0 kg @ 0 deg. 1.94 kg @90 deg.

Flex (FOTP-1) 0.5 kg @ 90° to -90° for 100 cycles 0.9 kg @ 90° to -90° for 100 cycles

Twist (FOTP-36) 1.5 kg for 10 cycles 1.5 kg for 10 cycles

Overall Length Tolerances:

Range Range RangeTolerance Tolerance Tolerance

Sx & Dx Patchcord Sx & Dx Patchcord MPO Trunk MPO Trunk Multi-Fiber Cable Assembly Multi-Fiber Cable Assembly

Page 1 of 2 07-31-2017

Detailed Specifications & Technical Data

ENGLISH MEASUREMENT VERSION

FP3LDLD001M Cable Assemblies - FP - FX PATCH CORD

0 to 2 meters 0 to 2 meters 0 to 2 meters+0.2 / -0 meter +0.2 / -0 meter +0.2 / -0 meter

2.1 to 5.0 meters 2.1 to 5.0 meters 2.1 to 5.0 meters+0.3 / -0 meter +0.3 / -0 meter +0.3 / -0 meter

5.1 to 40 meters 5.1 to 20 meters 5.1 to 20 meters+0.4 / -0 meter +0.4 / -0 meter +0.4 / -0 meter

Over 40.1 meters Over 20.1 meters Over 20.1 meters+ 1.0% / -0% + 1.0% / -0% + 1.3 / -0 meter

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL Rating: Riser

EU Directive 2002/95/EC (RoHS): Yes

EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2006

MII Order #39 (China RoHS): EUP 50

Telecommunications Standards: TIA 568.C.3

Safety Listing: ACA, Bi-national Standard Listed

Suitability

Suitability - Indoor: Yes

Transmission Characteristics (Connectivity)

Optical Connector Performance:

Description OM1 (62.5 µm) OM2 (50 µm) OM3 (50 µm) OM4 (50 µm)

OS2 (Singlemode)

UPC

OS2 (Singlemode)

APC

Maximum IL (dB) SingleFiber Connector

LC - SC - ST

0.25 dB 0.25 dB 0.25 dB 0.15 dB 0.35 dB 0.35 dB

Typical RL (dB) SingleFiber connector

LC - SC - ST

-30 dB -30 dB -30 dB -30 dB -55 dB -65 dB

Maximum IL (dB) MultiFiber Connector

MPO

0.5 dB 0.5 dB 0.2 dB0.35 dB - 0.75 dB

Typical RL (dB) MultiFiber Connector

MPO

-30 dB -30 dB -30 dB -30 dB -60 dB-

Electrical Characteristics (Overall)

Notes (Overall)

Product Family

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc

FP3LDLD001M 1 EA 0.044 KG FXPC OM3 LC_DX LC_DX 1M

Revision Number: 0 Revision Date: 03-17-2014

Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to

change without notice, and the listing of such information and specifications does not ensure product availability.

Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for

any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether

in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.

All sales of Belden products are subject to Belden's standard terms and conditions of sale.

Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the compliance date may be in stock at Belden facilities

and in our Distributor’s inventory. The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is

correct to the best of Belden’s knowledge, information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide for the

safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification.

Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the

product.

Page 2 of 2 07-31-2017

Detailed Specifications & Technical Data

ENGLISH MEASUREMENT VERSION

FP3LDLD001M Cable Assemblies - FP - FX PATCH CORD
