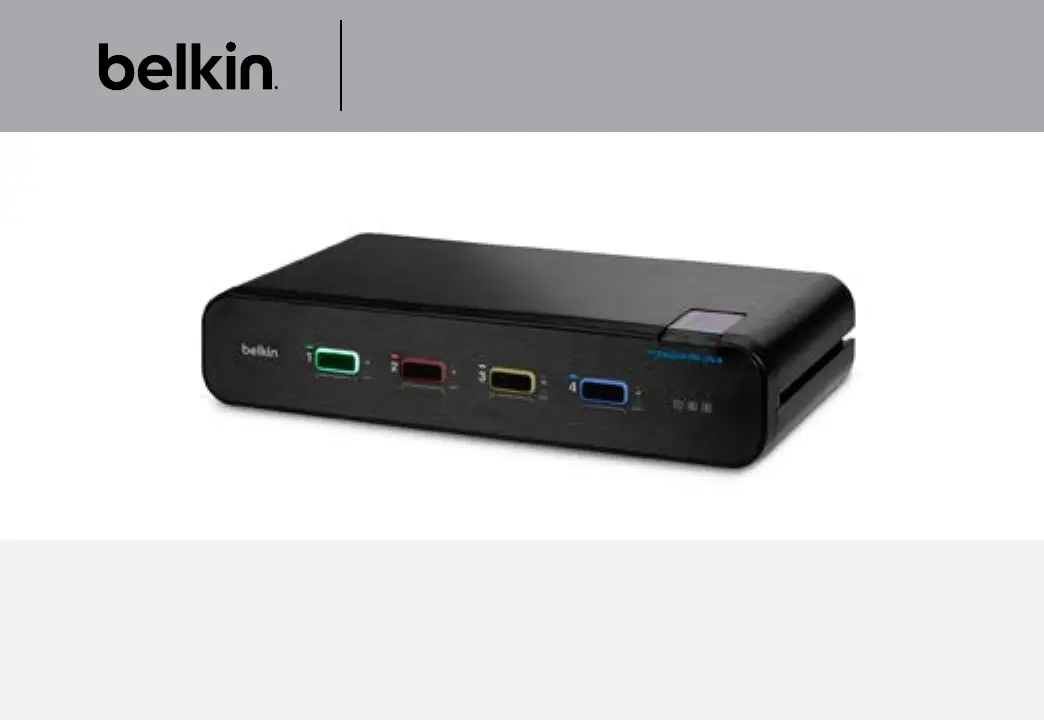

Universal 2nd Gen Secure

DP/HDMI to DP/HDMI KVM Switch

User Manual

F1DN102KVM-UNN4 – Universal Secure 2-Port KVM, PP 4.0

F1DN102KVM-UN-4 – Universal Secure 2-Port KVM with CAC, PP 4.0

F1DN104KVM-UNN4 – Universal Secure 4-Port KVM, PP 4.0

F1DN104KVM-UN-4 – Universal Secure 4-Port KVM with CAC, PP 4.0

F1DN202KVM-UNN4 – Universal Secure 2-Port Dual-Head KVM, PP 4.0

F1DN202KVM-UN-4 – Universal Secure 2-Port Dual-Head KVM with CAC, PP 4.0

F1DN204KVM-UNN4 – Universal Secure 4-Port Dual-Head KVM, PP 4.0

F1DN204KVM-UN-4 – Universal Secure 4-Port Dual-Head KVM with CAC, PP 4.0

Document Number -

LNKPG-00674 Rev. B00

This Belkin product is compliant with the

latest NIAP Protection Profile PSD v4.0,

which exceeds Protection Profile PSS v3.0.

Belkin

Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch

TABLE OF CONTENTS

SECTIONS

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents ..............................................................1

Safety Precautions.............................................................2

User Guidance & Precautions ..................................................3

Overview ..................................................................4

Security Features ..............................................................4

Tamper Evident Labels ........................................................5

Other Features ................................................................6

Equipment Requirements ......................................................8

System Requirements..........................................................9

Unit Display Diagrams ........................................................10

Specifications.................................................................15

Installation ................................................................17

Pre-Configuration ............................................................17

Connection and Installation ...................................................18

Color Coding the Channel Buttons ............................................20

Operating the KVM Switch .................................................21

Common access Card (CaC) Configuration and Operation....................22

Troubleshooting ..........................................................23

Information...............................................................27

Table of Contents

SECTIONS

1 2 3 4 5 6 7

Produkt Specifikationer

Mærke:	Belkin
Kategori:	Ikke kategoriseret
Model:	F1DN104KVM-UNN4
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Produktfarve:	Sort
Indbygget skærm:	Ingen
HD-type:	4K Ultra HD
Antal HDMI-porte:	5
Maksimal opløsning:	3840 x 2160 pixel
DC-in-stik:	Ja
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85176200
Antal DisplayPorts:	5
USB-stik type:	USB Type-A, USB Type-B
Stativ-montering:	Ingen
Antal kontrollerede computere:	4
Tastatur porttype:	USB
Mus porttype:	USB
Video porttype:	HDMI/DisplayPort
Lydforbindelse:	Ja
Konsol porte:	DisplayPort, HDMI, USB A
Antal USB 2.0 type-A hub porte:	2
Antal konsol USB porte:	2
