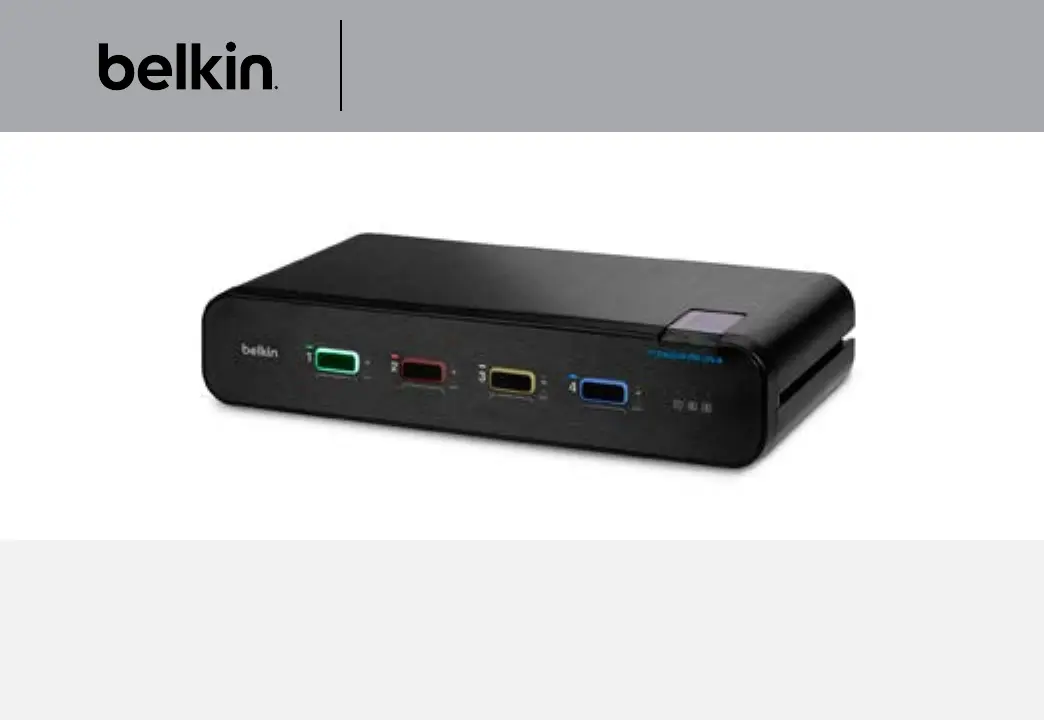

Universal 2nd Gen Secure

DP/HDMI to DP/HDMI KVM Switch

User Manual

F1DN102KVM-UNN4 – Universal Secure 2-Port KVM, PP 4.0

F1DN102KVM-UN-4 – Universal Secure 2-Port KVM with CAC, PP 4.0

F1DN104KVM-UNN4 – Universal Secure 4-Port KVM, PP 4.0

F1DN104KVM-UN-4 – Universal Secure 4-Port KVM with CAC, PP 4.0

F1DN202KVM-UNN4 – Universal Secure 2-Port Dual-Head KVM, PP 4.0

F1DN202KVM-UN-4 – Universal Secure 2-Port Dual-Head KVM with CAC, PP 4.0

F1DN204KVM-UNN4 – Universal Secure 4-Port Dual-Head KVM, PP 4.0

F1DN204KVM-UN-4 – Universal Secure 4-Port Dual-Head KVM with CAC, PP 4.0

Document Number -

LNKPG-00674 Rev. B00

This Belkin product is compliant with the

latest NIAP Protection Profile PSD v4.0,

which exceeds Protection Profile PSS v3.0.

Belkin

Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch

TABLE OF CONTENTS

SECTIONS

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents ..............................................................1

Safety Precautions.............................................................2

User Guidance & Precautions ..................................................3

Overview ..................................................................4

Security Features ..............................................................4

Tamper Evident Labels ........................................................5

Other Features ................................................................6

Equipment Requirements ......................................................8

System Requirements..........................................................9

Unit Display Diagrams ........................................................10

Specifications.................................................................15

Installation ................................................................17

Pre-Configuration ............................................................17

Connection and Installation ...................................................18

Color Coding the Channel Buttons ............................................20

Operating the KVM Switch .................................................21

Common access Card (CaC) Configuration and Operation....................22

Troubleshooting ..........................................................23

Information...............................................................27

Table of Contents

SECTIONS

1 2 3 4 5 6 7

Produkt Specifikationer

Mærke:	Belkin
Kategori:	Ikke kategoriseret
Model:	F1DN204KVM-UN-4
Bredde:	317.5 mm
Dybde:	162.6 mm
Højde:	91.4 mm
Vægt:	2200 g
Brugervejledning:	Ja
Produktfarve:	Sort
HD-type:	4K Ultra HD
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved opbevaring (H-H):	0 - 80 %
Antal HDMI-porte:	2
Driftstemperatur (T-T):	0 - 40 °C
Maksimal opløsning:	3840 x 2160 pixel
Husmateriale:	Aluminium, Metal
Kabler inkluderet:	Vekselstrøm
Strømkilde:	Vekselstrøm
Certificering:	FCC Class B UL CE RoHS ICES RCM
DC-in-stik:	Ja
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176200
Indgangsstrøm:	2.5 A
HDMI-version:	2.0
DisplayPort-version:	1.2
Antal DisplayPorts:	2
Ekstern strømadapter:	Ja
USB-stik type:	USB Type-B
Stativ-montering:	Ja
Antal kontrollerede computere:	4
Tastatur porttype:	USB
Mus porttype:	USB
Video porttype:	HDMI/DisplayPort
Lydforbindelse:	Ja
Konsol porte:	3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A
Video båndbredde:	60 Hz
