Thank you for choosing Berner.

Berner International has been saving energy and creating healthy, comfortable environments for our customers

for over 60 years. Berner oers unmatched quality, performance, and dependability—not to mention our service.

At Berner, we stand behind our products.

TABLE OF CONTENTS

I. UNCRATING............................................................................................................................................................ ........................................................ 2

II. GENERAL MOUNTING INSTRUCTIONS ................................................................................................................................. ................................... 4

III. WALL MOUNTING ...................................................................................................................................................................................................... 4

IV. SUSPENDED MOUNTING ....................................................................................................................................... ................................................... 5

V. ELECTRICAL CONNECTIONS ..................................................................................................................................................................................... 5

VI. FIELD CONNECTIONS ................................................................................................................................................................................................ 6

VII. OPERATING INSTRUCTIONS (Berner AIR™, Intelliswitch™, BACnet / Modbus) .............................................................................................. 7

INTELLISWITCH™ QUICK START OPERATION .................................................................................................................................................... 12

VIII. MAINTENANCE AND CLEANING ............................................................................................................................................................................ 8

IX. SERVICE ............................................................................................................................................................... ........................................................ 9

X. TROUBLESHOOTING ................................................................................................................................................................................................. 14

XI. APPENDIX

A. INTERCONNECT OPERATION (daisy chain) .................................................................................................................................................. 15

B. REMOTE MOUNTED TOUCHSCREEN or TABLET............................................................................................................................................15

C. BUILDING MANAGEMENT SYSTEM (BMS) INTEGRATION (BACnet or Modbus) ................................................................................. 15

XII.WARRANTY ................................................................................................................................................ ............................................................... 16

Installation & Maintenance Instructions

II-220F

January, 2025

©Copyright, 2025 Berner International

READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING AIR CURTAIN

IMPORTANT INSTRUCTIONS

Architectural Elite 8 & 10

Air Curtain Series

#AE08 & AE10

www.Berner.com

WHEN THE DOORS ARE OPEN

™

save energy & create healthy, comfortable environments

BERNER.COM

Connect with

BERNER AIR

SET UP

CONTROL

TROUBLESHOOT

Indoor Only

-2-

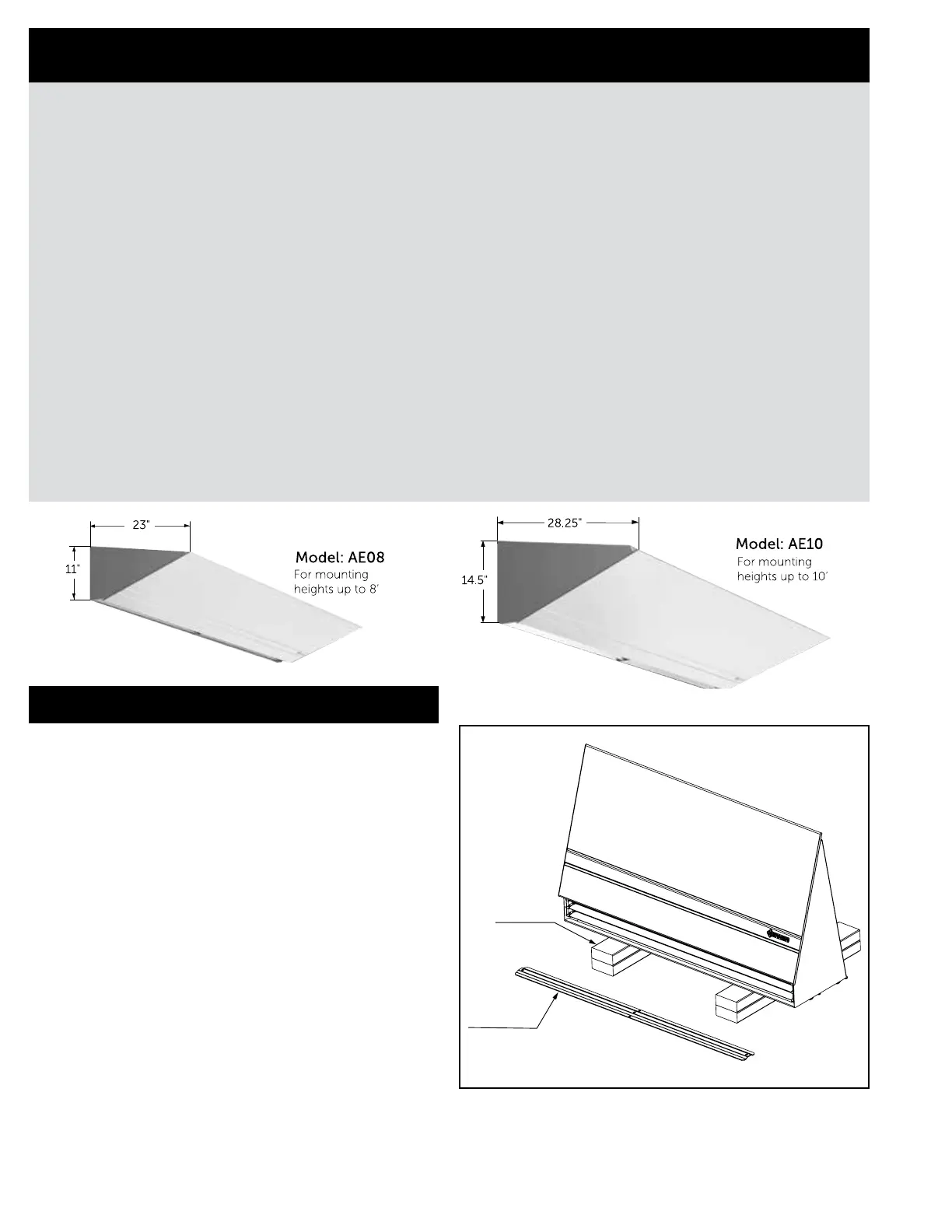

Carefully examine the carton(s) for damage. If the carton is damaged,

immediately notify the shipping company. Do not delay in ling a

claim. If the air curtain(s) were shipped on wooden skids, remove

protective wood and banding straps securing the carton(s) to the skid.

Open the carton(s) and remove all protective packaging.

Locate the unattached wall mounting bracket. See Figure 1.

For units over 120", there are two unattached wall mounting brackets in

the carton.

NOTE: if the unit was ordered with a decorative rear cover, the air

curtain will arrive with the cover already installed, and the wall

mounting brackets will not be included in the shipment.

Contact Berner, if they are required, for no charge.

Immediately verify that the electrical rating nameplate located on the

cover matches the electrical power supply available. Retain the shipping

carton(s) until the air curtain(s) are installed and properly operating.

ACCESSORIES: If the air curtain(s) were ordered with optional electrical

accessories, the accessories will be found in the carton containing the

air curtain packed in a red bag (marked “additional parts inside”) or in a

separate carton(s) accompanying the air curtain(s).

Check all of the cartons/skids for accessories before discarding.

Figure 1 - Uncrating

A. Read all instructions before installing or using this air curtain.

B. Use this unit only in the manner intended by the manufacturer and described in this manual. Any other use not recommended by the

manufacturer may cause re, electric shock, or injury to persons. If you have any questions, contact the manufacturer.

C. Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from

being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device,

such as a tag, to the service panel.

D. Installation work and electrical wiring must be done by qualied person(s) in accordance with all applicable national and local codes

having jurisdiction, including re-rated construction. See page 5, ELECTRICAL CONNECTIONS (NEC Code ANSI/NFPA No. 70).

E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

F. To reduce the risk of re, do not store or use gasoline or other ammable vapors and liquids in the vicinity of the air curtain.

G. This air curtain is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture,

pillows, bedding, papers, clothes, etc. and curtains at least 1 inch from the top, back, front, sides and at least 6 feet from the discharge

of the air curtain.

H. Extreme caution is necessary when any air curtain is used by or near children or invalids, and whenever the heater is left operating

unattended.

I. Do not operate any air curtain after it malfunctions. Disconnect power at the service panel and have the air curtain inspected by a

reputable electrician before reusing.

J. To disconnect the air curtain, turn controls to "o", and turn o power to the air curtain circuit at main disconnect panel.

K. Do not insert or allow foreign objects to enter any ventilation or discharge opening as this may cause an electric shock or re, or

damage the air curtain.

L. To prevent a possible re, do not block the air intake or discharge of the air curtain in any manner.

M. The air curtain has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or ammable vapors or liquids

are used or stored.

N. This heater may include an audible or visual alarm to warn that parts of the heater are getting excessively hot. If the alarm sounds

(or illuminates), immediately turn the heater o and inspect for any objects on or adjacent to the heater that may have blocked the airow

or otherwise caused high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM SOUNDING (OR ILLUMINATING).

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

I. UNCRATING

PACKING

WALL

MOUNTING

BRACKETS
