DA11AU QUICK REFERENCE GUIDE

01contact support@blustream.co.uk / support@blustream.com.au

Our DA11AU has been designed to convert unbalanced or balanced 2ch analogue

audio to Dante® digital signal. The DA11AU allows any non-Dante® audio source

such as mixing consoles, amplifiers, computers and Blustream Matrix products or

distribution products to be connected as a source within a Dante® network. The

DA11AU is a plug & play device that is powered using PoE (Power Over Ethernet)

from any PoE network switch and supports AES67 RTP audio transport.

Introduction

• Analogue audio inputs support both balanced and unbalanced audio signals

• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit

• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

• Supports AES67 RTP audio transport

• Features Class 1 802.3af PoE for powering of product from any PoE switch

DA11AU

Quick Reference Guide

FEATURES:

Connections:

1 Dante® Audio Output - RJ45 socket connets to your Dante® network.

2 Audio Input - Phoenix Connector accepts balanced or unbalanced 2 channel audio input.

Front Panel

Rear Panel

DA11AU QUICK REFERENCE GUIDE

www.blustream.co.uk

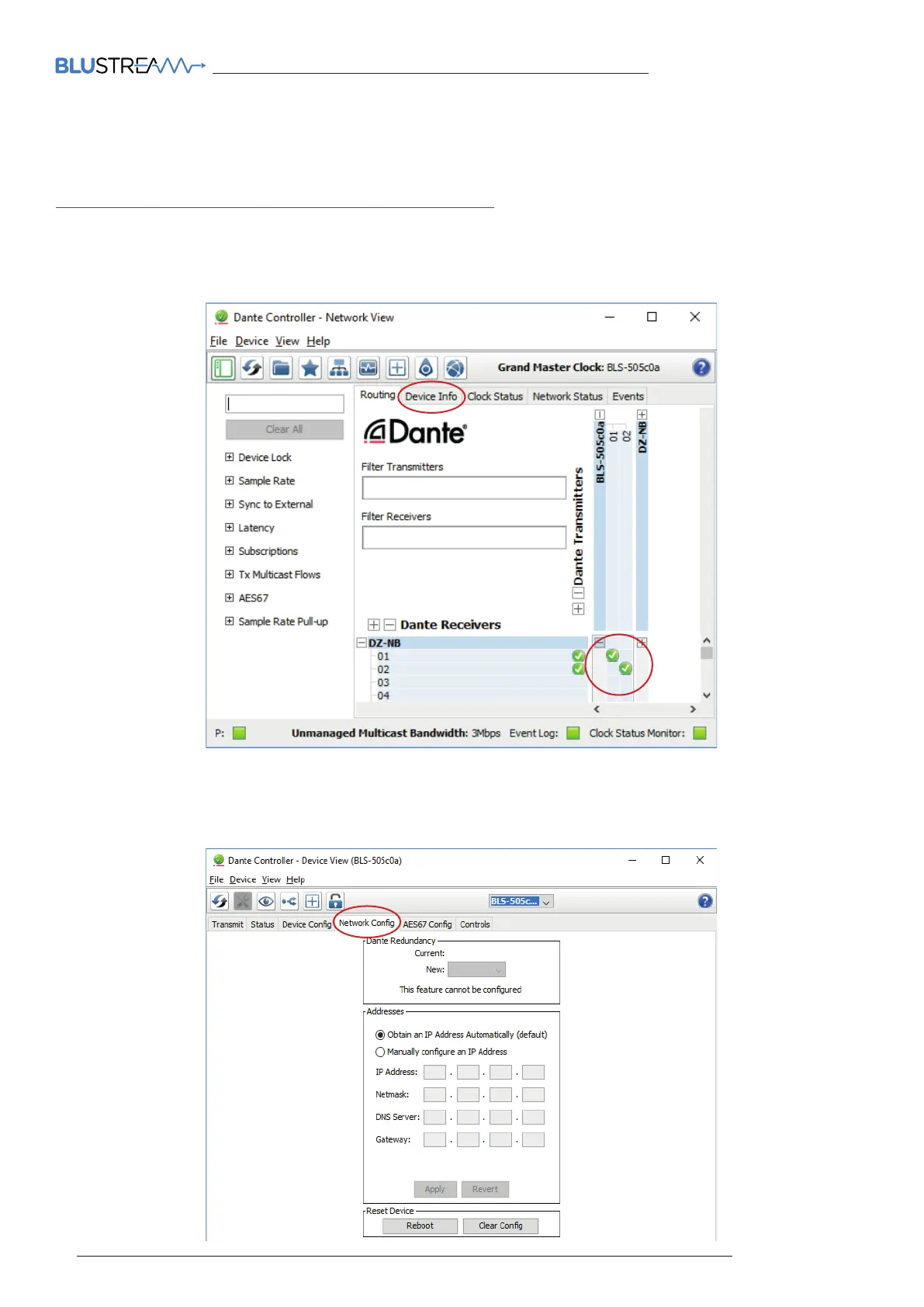

Dante Controller

Dante Controller soware is required in order to setup and configure the DA11AU as well as control your Dante

network. Audinate provide extensive training videos and documentation on their website. This can be found here:

http://www.audinate.com/products/soware/dante-controller

Upon connecting your DA11AU to a compatible network, the Dante Controller soware should automatically

discover the device. The DA11AU will appear in the Dante Controller with a name denoted with “BLS”. On the

“Routing” screen you can create audio routing between Dante transmitters and receivers in your system.

By default the DA11AU is shipped with its network settings set to obtain an IP Address automatically. This means

that if a DHCP server is present on your network, it will provide the DA11AU with an IP Address. If no DHCP server is

present then the DA11AU will receive a default IP Address in the 169.254.xxx.xxx range. To change the IP Address of

the DA11AU, you must enter the “Network Config” menu in the “Device Info” screen of the Dante Controller soware.

Produkt Specifikationer

Mærke:	Blustream
Kategori:	Audio/video konverter
Model:	DA11AU
Bredde:	120 mm
Dybde:	23 mm
Højde:	44 mm
Vægt:	200 g
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-20 - 60 °C
Driftstemperatur (T-T):	0 - 40 °C
Antal:	1
Bæredygtighedscertifikater:	RoHS
MP3 bit-rater:	44.1 - 96 Kbit/s
Formater til lydoptagelse:	MP3
Formater til lydafspilning:	MP3
