FMH15T
Flange-Mounted, 15W,
Horn Loudspeaker
© 2005 Bogen Communications, Inc.
Specifications subject to change without notice.
54-2 37-01 1B 0802
Figure 1
Figure 2
IMPORTANT
*Do not use these positions
1 0.9 0.125
2 1.8 0.25
3 3.6 0.5
4 7.5 0.9
5 15 1.8
6*7.0
7*15
8* *
TAP SET 70V WATTS 25V WATTS
Installation Instructions
The FMH 5T is designed to be mounted by its flange. shows the mounting hole1Figure 1
locations.
Components
Bogen recommends using the SGHD8 Grille with the FMHAR8 Adapter Ring for proper
mounting of the horn. The SGHD8 Grille will mount to the BBFM6 Flush-Mount Enclosure
or BBSM6 Surface-Mount Enclosure. See on other side for mounting details.Figure 3
1. Make the electrical connections . Connect the 70V or 25V “hot” lead to the(see Figure 2)
#1terminal and the system common lead to the #2 terminal. Follow this pattern on all
similar speakers to ensure proper phasing; however, the speakers will work perfectly well
if the connections are reversed.
2. Adjust the tap selector switch to the desired wattage using the chart below.
www.bogen.com
The FMH15T is warranted to be free from defects in material or workmanship from the date of sale to the original purchaser for the lifetime of
the product. Any part of the product covered by this warranty that, with normal installation and use, becomes defective will be repaired or
replaced by Bogen, at our option, provided the product is shipped insured and prepaid to: Bogen Factory Service Department, 50 Spring Street,
Ramsey, NJ 07446, USA. The product will be returned to you freight prepaid. This warranty does not extend to any of our products that have
been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any
manner whatsoever, or where the serial number or date code has been removed or defaced.
THE FOREGOING LIMITED WARRANTY IS BOGEN'S SOLE AND EXCLUSIVE WARRANTY AND THE PURCHASER'S SOLE AND
EXCLUSIVE REMEDY. BOGEN MAKES NO OTHER WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND ALL IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED TO
THE MAXIMUM EXTENT ALLOWABLE BY LAW. Bogen's liability arising out of the manufacture, sale or supplying of products or their use or
disposition, whether based upon warranty, contract, tort or otherwise, shall be limited to the price of the product. In no event shall Bogen be
liable for special, incidental or consequential damages (including, but not limited to, loss of profits, loss of data or loss of use damages) aris-
ing out of the manufacture, sale or supplying of products, even if Bogen has been advised of the possibility of such damages or losses. Some
States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
Products that are out of warranty will also be repaired by the Bogen Factory Service Department -- same address as above or call 201-934-
8500. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department. All
shipping charges in addition to parts and labor charges will be at the owner's expense. All returns require a Return Authorization number.
8/10/2004

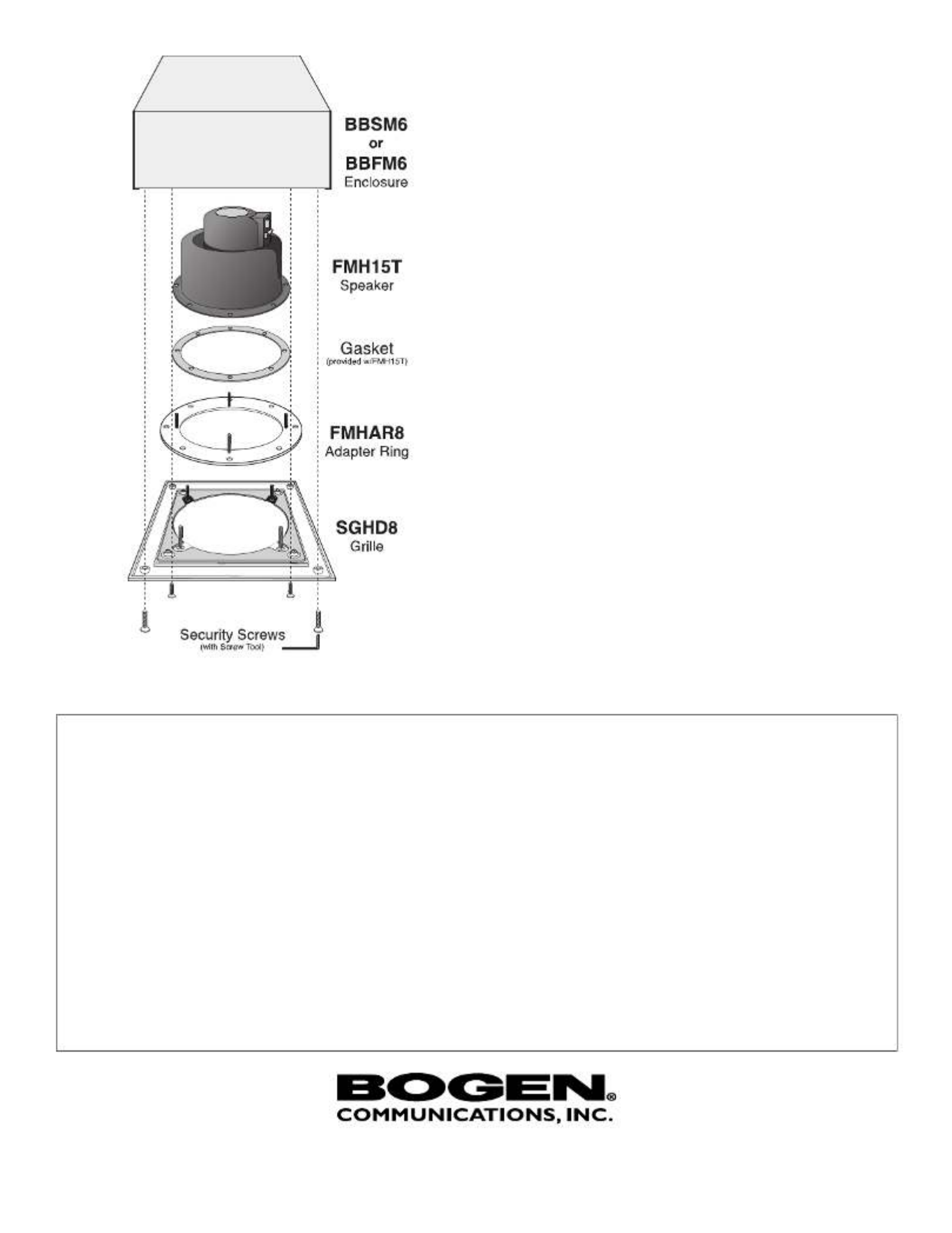

Assembly Instructions
1) Place gasket supplied with FMH 5T onto FMHAR81
Adapter Ring over the studs. Then mount FMH 5T to1
FMHAR8 Adapter Ring, sliding flange hole over adapter ring
studs and secure with nuts supplied with adapter ring.
2) Slide FMH15T/FMHAR8 assembly over studs in SGHD8
Grille and secure with nuts supplied with grille.
3) Mount BBSM6 or BBFM6 enclosure as necessary.
4) Use 4 white security screws and tool supplied with
SGHD8 Grille to mount the speaker/grille assembly onto
the enclosure.
Figure 3
Limited Warranty


Produkt Specifikationer

Mærke: Bogen
Kategori: Ikke kategoriseret
Model: FMH15T
Produktfarve: Sort
Wi-Fi: Ingen
Bluetooth: Ingen
Udgangseffekt (RMS): 15 W
Equalizer: Ingen
Husmateriale: Metal
Anbefalet brug: Universel
Frekvensområde: 600 - 14000 Hz
Forbindelsesteknologi: Ledningsført
Lyd-output kanaler: 1.0 kanaler
Højttaler, placering: Ceiling-mountable, Wall-mountable
Strømkilde type: Vekselstrøm
Effektkrav: 70V/25V
Antal drivere: 1
Sensitivitet: 104 dB
Dybde (efter britisk standard): 5.5 "
Højde (efter britisk standard): 6.875 "
Bredde (efter britisk standard): 6.875 "
