Side 1/6

Specications are subject to change.

740-00201A 230630

CSD1X2U-V2

70V, 25V, and 8Ω Speaker System

Installation and Use Guide

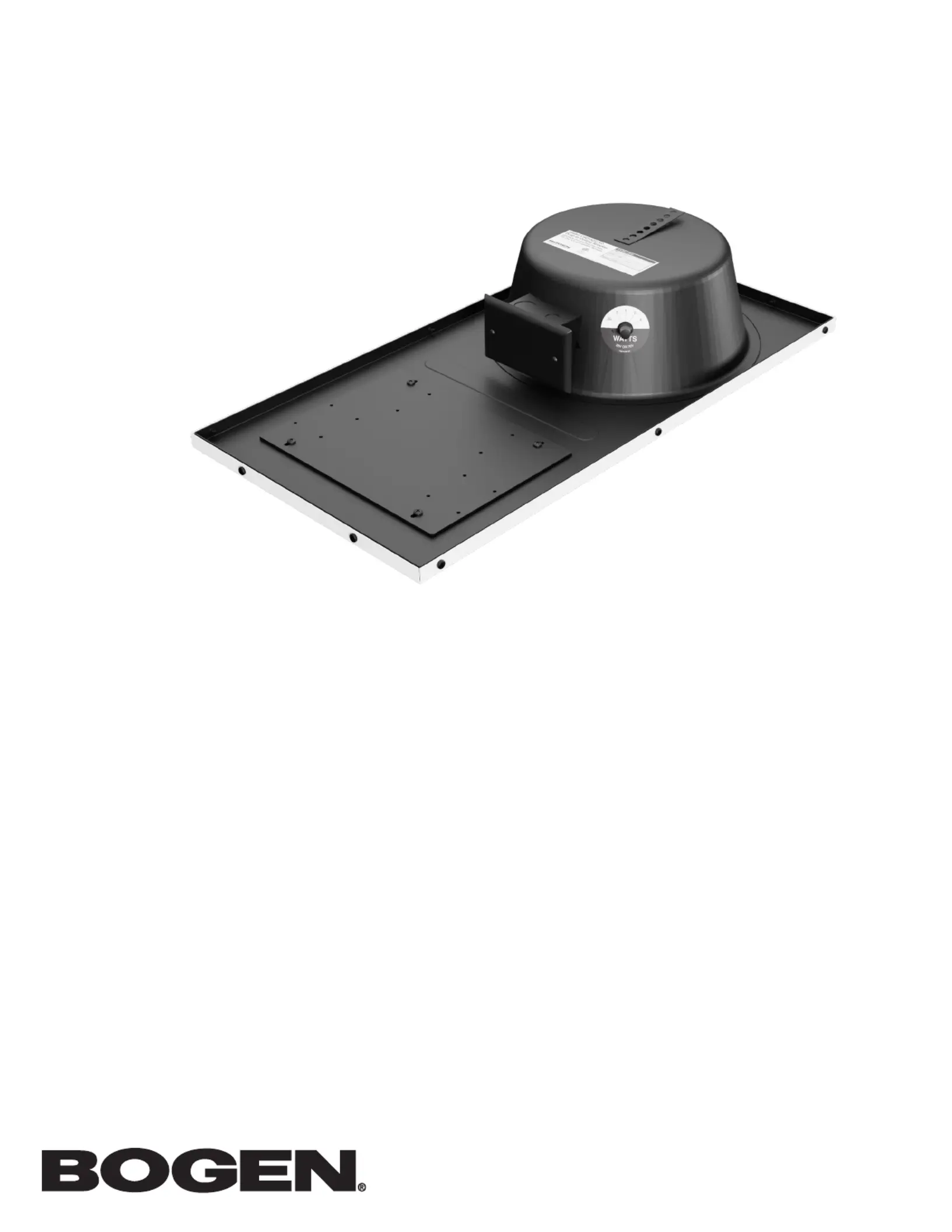

The CSD1X2U-V2 ceiling has an 8″ driver and a tap selector that allows it to be run as a ¼W to 4W speaker at 25V or

70V. It also includes a wire that bypasses the transformer and allows the speaker to operate at 8Ω. The V2 version

of the speaker includes a unique mounting plate to greatly expand its capabilities by allowing several of Bogen’s

Nyquist products to be mounted to the speaker.

Mounting Plate

The mounting plate allows for the addition of several of Bogen’s Nyquist products, including the NQ-GA10P, NQ-

GA10PV, NQ-GA20P2, NQ-GA40P3, and the NQ-GAXMR1. Through this product integration, the CSD1X2U-V2 can

operate as a Nyquist PoE enabled active loudspeaker system as well as a VoIP intercom station.

Passive Speaker Conguration

Electrical Connection

1. Remove electirical box cover, install cable clamp (if desired), and feed

interconnecting cable into the electrical box (see Figure 1).

2. See table on the right to select correct wire types.

3. Cut bare wire tip off of unused speaker leads. Secure all mechanical

connections and reinstall the electrical box cover.

4. Set tap selector switch to proper tap setting.

Note: All wiring must comply with NFPA 70.

Nyquist PoE Amplier and Speaker Conguration

Necessary components: NQ-GA10P or NQ-GA10PV.

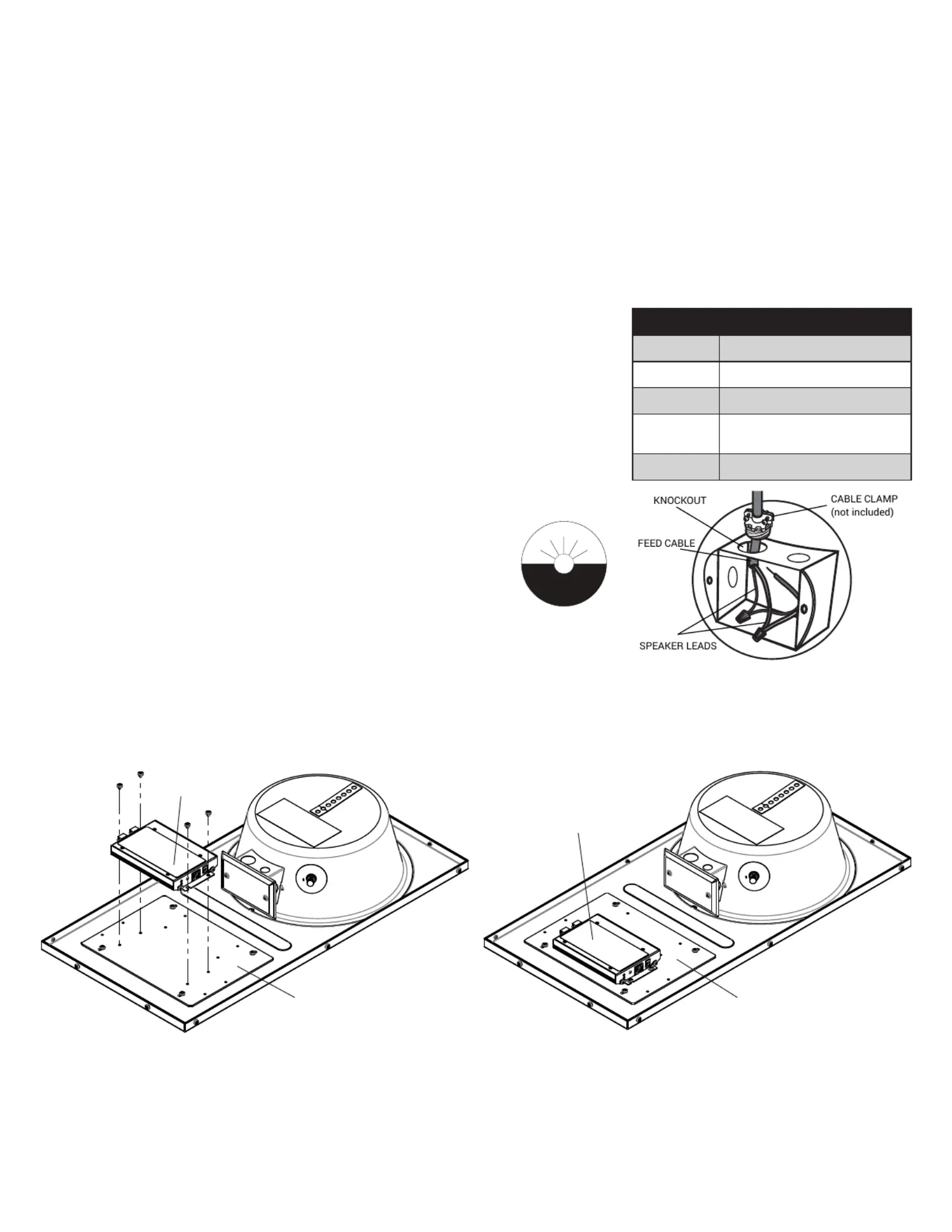

Figure 2 shows the positioning for the mounting of the VoIP Intercom Module (NQ-GA10P) onto the speaker’s

mounting plate. For a closer look at the mounting plate, refer to Figure 3.

Figure 2: Mounting Intercom Module (NQ-GA10P shown)

V2 MOUNTING PLATE

NQ-GA10P

V2 MOUNTING PLATE

NQ-GA10P

COLOR LEAD

RED 70V

YELLOW 25V

BLUE 8Ω

WHITE BLUEConnect to for 70V and

25V; disconnect for 8Ω Input

BLACK COM

Figure 1: Electrical connections.

.25

WATTS
