Side 1/5

Specications are subject to change.

740-00219A 240419

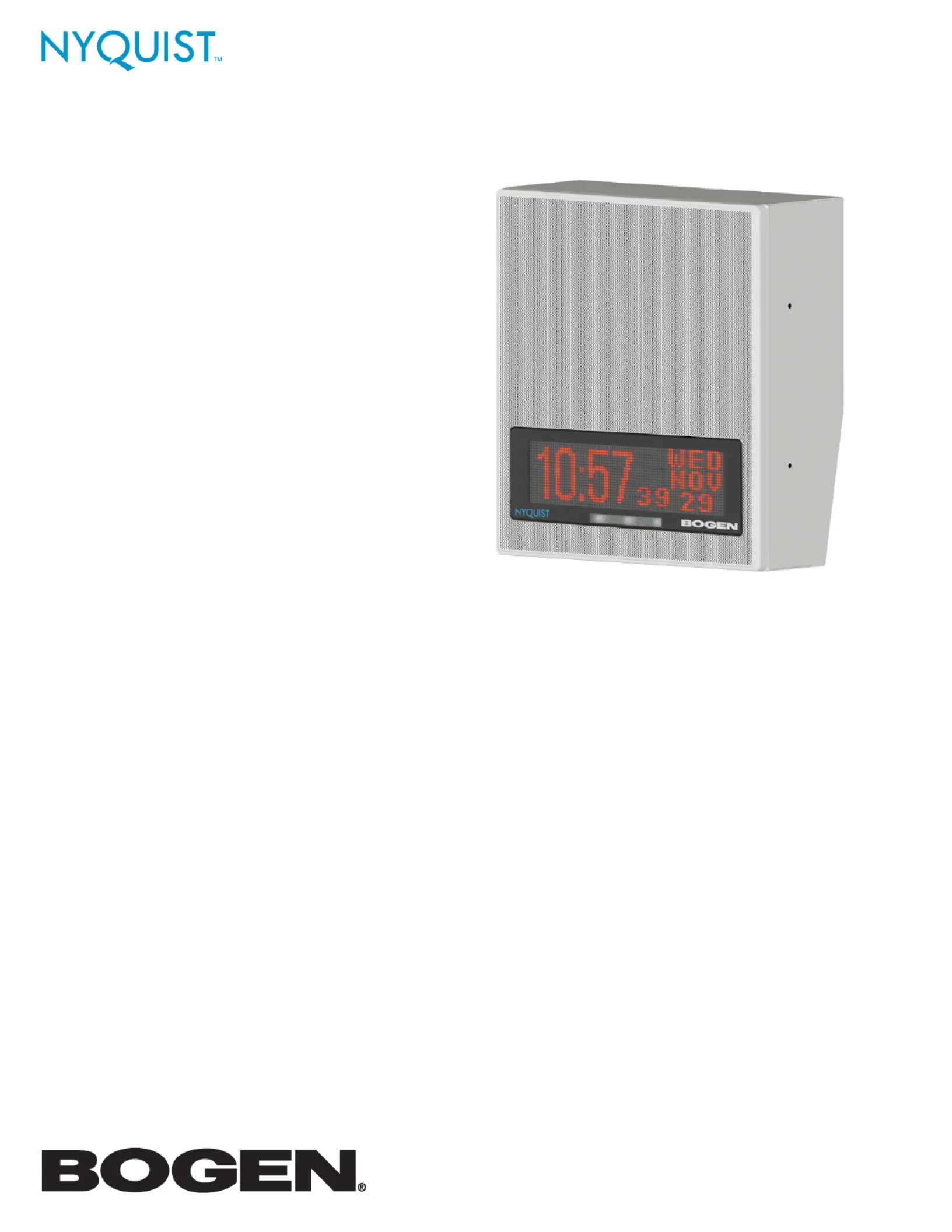

NQ-S1810WBC Nyquist VoIP

Wall Bae Combo Speaker with Integrated LED

Message Display and Flasher

Installation and Use Guide

NQ-S1810WBC

With the Nyquist Series VoIP Wall Bae Combo Speaker with LED Message Display and Flasher (WBC), there is

no need to manually set or adjust external ampliers, traditional intercom wiring, or transformer taps. Connect the

speaker via a Cat 5 or higher cable to a Power-over-Ethernet (PoE or PoE+) switch or injector and it’s ready to use.

The WBC features an integrated 10W power amplier; a CAN bus interface; a MEMS microphone for superior talk-

back audio; an integrated LED message display; an LED asher for visual announcement notications; and a Form

C SPDT-type 2A dry contact relay for controlling or overriding third-party devices like audio-visual sources.

The WBC also allows DHCP deployment for easy installation. You can let your Nyquist server automatically dis-

cover and congure your speaker, or you can manually congure it through the speaker’s web-based user interface

(web UI). The web UI also makes it easy to update rmware, set parameters for Digital Signal Processing (DSP), and

customize text on the integrated LED display. For more information about the web UI, refer to the VoIP Wall Bae

Combo Speaker with Integrated LED Message Display and Flasher Conguration Guide.

Speaker Layout

The layout of the speakers should be planned prior to installation.

Because wall bae speakers are designed to project forward, it is best to aim them all in the same direction, as

this provides for greater coverage and clarity. You can use the building’s roof pillars or other available supports for

mounting the wall baes.

In some cases, it may be necessary to mount the wall baes on opposing walls. In these cases, the speakers will

project sound in opposing directions.

Hallway

Wall bae speakers work well with rooms and hallways that are 20’ to 60’ wide.

Layout starts at one end of the hallway or room. The rst speaker should be

installed 10’ from the end of the hallway or room. The next speaker on that wall

should be installed 20’ from the rst speaker. Each additional speaker should be

installed 20’ apart from the previous one. The rst speaker on the opposing wall

should be installed 20’ from the end of the hallway or room, thereby staggering

the speakers. Each additional speaker should be installed 20’ apart from the pre-

vious one (see Figure 1).

Rooms

In most cases, an environment such as a classroom requires only a single wall bae speaker to service the entire

room. The nal placement of the speaker within the room can vary, but such common area locations as at the head

of the room or near the room entrance are typically chosen (see Figure 2).

Based on the speaker position that has been selected, you can choose between several mounting options, as de-

scribed below.

Figure 1: Hallway speaker layout.

START

SPEAKER

WALL

10'

20'

20' to 60'

HALLWAY
