Ceiling Speaker Enclosure & Tile Bridge

Models RE84 and TB8

Installation and Use Manual

UL LISTED (UUMW) Flush-Mounted Loudspeaker Installation

For Use In Return Air Ceiling Plenum Spaces

Enclosures (UL Listed) RE84

Intended for use with: TB8 (Tile Support Bridge)

•Listed by Underwriters Laboratories, Inc. Category UUMW.

Material and construction permits use where ceiling plenum is

part of the air handling system.

•Compound knockout(s) provided for listed type metallic type

ttings for

2" and

4" plenum rated cable and plenum whip ex

conduit.

•Four horseshoe tab slots provided on each enclosure to mate with

four horseshoe tabs on TB8 bridge eliminates the need for

screws.

•Two seismic tie-off tabs and four tie-o tab slots with enclosure.

RE84 Features

RE84

TB8

Specifications subject to change without notice.

54-2 08-0 A 04041 1

•Distributes the weight of a speaker, grille, and protective

enclosure onto the ceiling grid.

•Four locator tabs to prevent sliding on ceiling tile.

•Four horseshoe tabs to mate with four horseshoe tab slots on

enclosure.

TB8 Features

A Listed assembly requires that the enclosed loudspeaker is not

exposed within the air handling plenum. Wiring, and/or conduit

enclosure entry ttings, and installation must comply with local codes.

Many local codes require a separate enclosure assembly with

customer-supplied "tie-o" wire to secure the assembly to the top of

the building structure.

NOTE: All cable splices and connections to Speaker/Transformer

pigtails must be made inside of Listed enclosure.

NOTE: When the RE84 and the TB8 are installed together,

the clearance holes on the TB8 are used during installation.

However, when the TB8 is installed without the RE84, the

threaded holes on the TB8 are used during installation.

www.bogen.com

The RE84 and TB8 are warranted to be free from defects in material or workmanship

for two (2) years from the date of sale to the original purchaser. Any part of the prod-

uct covered by this warranty that, with normal installation and use, becomes defec-

tive will be repaired or replaced by Bogen, at our option, provided the product is

shipped insured and prepaid to: Bogen Factory Service Department, 50 Spring

Street, Ramsey, NJ 07446, USA. The product will be returned to you freight prepaid.

This warranty does not extend to any of our products that have been subjected to

abuse, misuse, improper storage, neglect, accident, improper installation or have

been modied or repaired or altered in any manner whatsoever, or where the serial

number or date code has been removed or defaced.

THE FOREGOING LIMITED WARRANTY IS BOGEN’S SOLE AND EXCLUSIVE

WARRANTY AND THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

BOGEN MAKES NO OTHER WARRANTIES OF ANY KIND, EITHER EXPRESS

OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FIT-

NESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND

EXCLUDED TO THE MAXIMUM EXTENT ALLOWABLE BY LAW. Bogen's liability

arising out of the manufacture, sale or supplying of products or their use or disposi-

tion, whether based upon warranty, contract, tort or otherwise, shall be limited to the

price of the product. In no event shall Bogen be liable for special, incidental or con-

sequential damages (including, but not limited to, loss of prots, loss of data or loss

of use damages) arising out of the manufacture, sale or supplying of products, even

if Bogen has been advised of the possibility of such damages or losses. Some States

do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation or exclusion may not apply to you. This warranty gives you specic

legal rights, and you may also have other rights which vary from State to State.

Products that are out of warranty will also be repaired by the Bogen Factory Service

Department -- same address as above or call 201-934-8500. The parts and labor

involved in these repairs are warranted for 90 days when repaired by the Bogen

Factory Service Department. All shipping charges in addition to parts and labor

charges will be at the owner's expense. All returns require a Return Authorization

number.

Limited Warranty

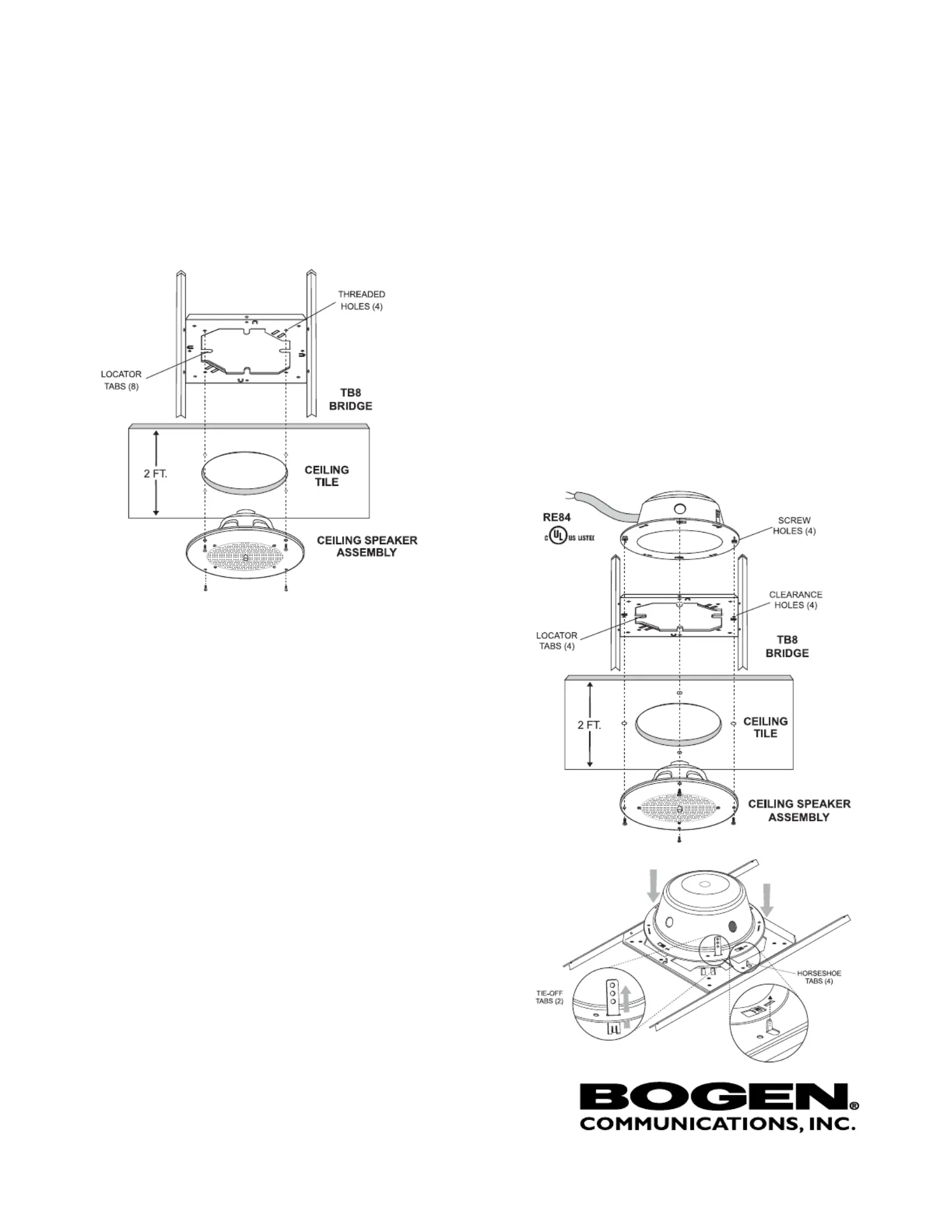

1. Place ceiling tile with the nished side facing up over a large

trash can (provides support and saves clean up time).

2. Cut hole in the center of the ceiling tile using the raw speaker

as a template.

3. Position the tile bridge on the unnished side of the ceiling tile

and bend (4) locator tabs into tile opening to prevent sliding.

4. Install Ceiling Speaker assembly using (4) 8-32 screws and

the threaded holes of the tile bridge as shown. (Screws are

provided with Ceiling Speaker assembly).

1. Place ceiling tile with the nished side facing up over a large

trash can (provides support and saves clean up time).

2. Cut hole in the center of the ceiling tile using the raw speaker

as a template.

3. Bend (4) horseshoe tabs up on tile bridge.

4. Position the tile bridge on the unnished side of the ceiling tile

and bend (4) locator tabs into tile opening to prevent sliding.

5. Slip seismic mounting tie-o tabs (2) through RE84 tie-o tab

slots until they click into place and secure customer-supplied

“tie-o” wire to tab.

6. Punch out knockout in the RE84 and install Listed metallic

enclosure entry tting to knockout to accommodate plenum

cable or plenum whip and feed cable or whip through the

knockout.

7. Install RE84 to tile bridge by orienting horseshoe tab slots (4)

over horseshoe tabs (4) of bridge.

8. With pliers, twist horseshoe tabs (4) of tile bridge 1/2 turn,

securing enclosure to bridge.

9. Screw the Ceiling Speaker assembly to the RE84 using (4)

8-32 screws provided with the Ceiling Speaker assembly,

sandwiching the TB8 and ceiling tile in between. The screws

must go through the TB8 clearance holes as shown. (Screws

anchor into the RE84).

TB8 with RE84 InstallationTB8 Installation
