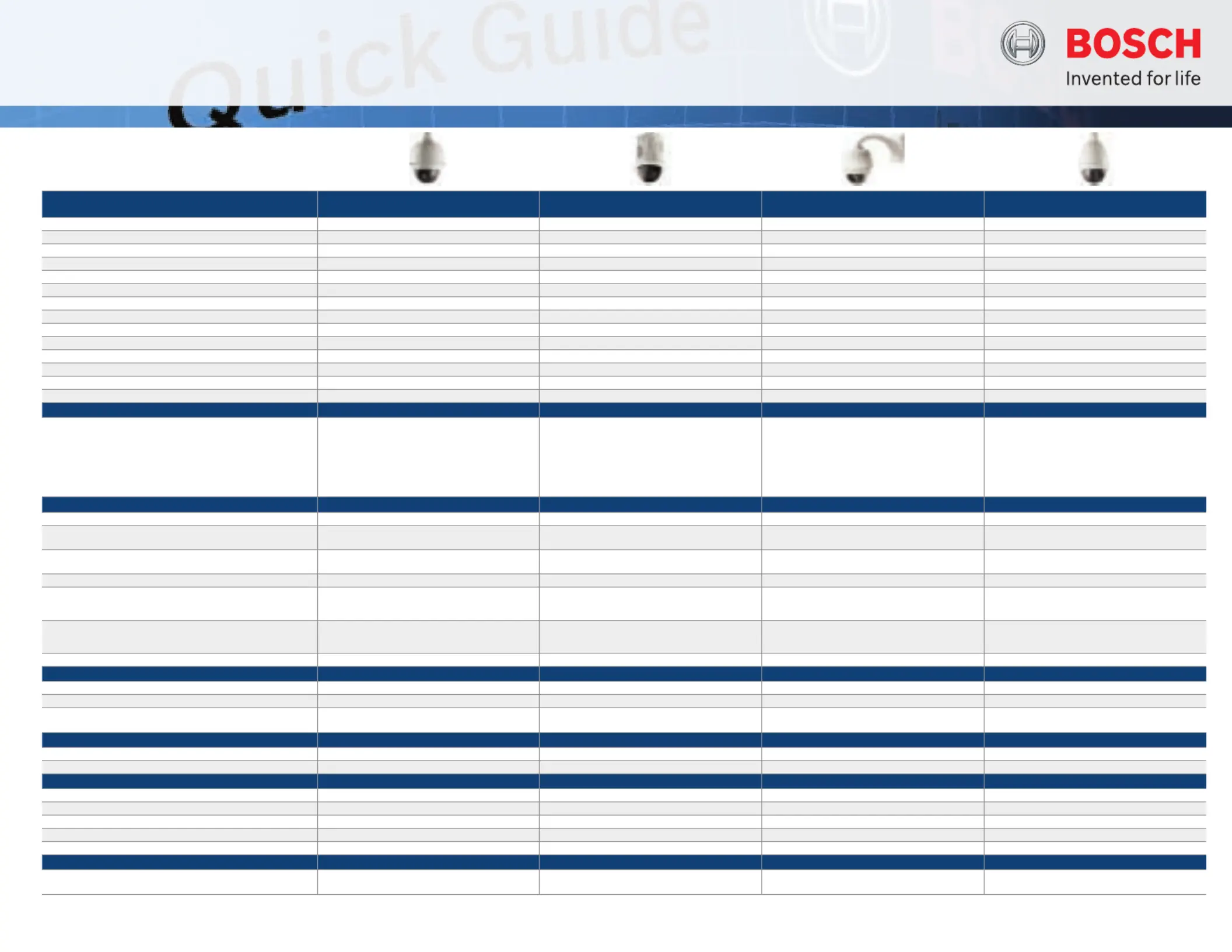

AutoDome Camera Quick Guide

All AutoDome 100, 200, 300 and 500i Series cameras

are available in In-Ceiling, Indoor Pendant and

Outdoor Pendant style housings.

Standard Features

AutoDome 100 Series

Fixed Dome Camera System

AutoDome 200 Series

PTZ Camera System

AutoDome 300 Series

Advanced PTZ Camera System

AutoDome 500i Series

Intelligent PTZ Camera System

Interchangeable CPU, Camera and Comms Modules Yes Yes Yes Yes

Operating Temperature:

Indoor Housing -10°C to 50°C (14°F to 122°F) -10°C to 50°C (14°F to 122°F) -10°C to 50°C (14°F to 122°F) -10°C to 40°C (14°F to 104°F)

EnviroDome Outdoor Housing -55°C to 50°C (67°F to 122°F) -60°C to 50°C (-76°F to 122°F) -60°C to 50°C (-76°F to 122°F) -60°C to 50°C (-76°F to 122°F)

Protocol Support N/A Bosch Biphase, RS232 & 485, Pelco "P" or "D" Bosch Biphase, RS232 & 485, Pelco "P" or "D" Bosch Biphase, RS232 & 485, Pelco "P" or "D"

Up the wire control/conﬁguration Yes, Bilinx Yes, Bilinx Yes, Bilinx Yes, Bilinx

Privacy Masking/Sector Blanking No No Yes Yes

Pre-Positions N/A 64 99 99

Guard Tour N/A 1 Preset Tour 2 Preset Tours; 2 Recorded Tours 2 Preset Tours; 2 Recorded Tours

Remote Fast Address N/A Yes Yes Yes

AutoPivot and AutoScaling N/A Yes Yes Yes

Cable Compensation No No Yes Yes

Alarm Inputs/Relay Outputs

N/A N/A 7/4 7/4

Warranty 3 Years 3 Years 3 Years 3 Years

CPUs

– Interchangeable Modules:

• Pluggable upgrade to 200, 300 or

500i Series CPU

• "Hot-Swap" camera replacement or upgrades

• Pluggable Communications Module

– Built-in Surge Suppression

– Interchangeable Modules

– Fast 360° per second pan/tilt speeds

– Advanced Troubleshooting and Diagnostics

• Diagnostic LEDs

• On-screen diagnostic displays

– Built-in Surge Suppression

Includes all of the features of the

200 Series plus:

– Superior Privacy Masking:

• 24 masks

• Up to 8 masks per scene

– Advanced alarm handling via "Rules" engine

Includes all the advanced features of the

300 Series plus:

– AutoTrack II

– Video Motion Detection

– “Virtual Masking” Technology

– Digital Image Stabilization

Cameras

Resolution 540 TVL 470 TVL up to 540 TVL up to 540 TVL

Sensitivity – Color Mode (30 IRE)

Day/Night: 0.29 lux

F1.4, 1/60 (1/50) shutter, max AGC

18x Color: 0.5 lux

F1.4, 1/60 (1/50) shutter, max AGC

26x Day/Night: 0.5 lux

F1.4, 1/60 (1/50) shutter, max AGC

36x Day/Night: 0.6 lux

F1.6, 1/60 (1/50) shutter, max AGC

Sensitivity – Night Mode (30 IRE)

Day/Night: 0.12 lux

F1.4, 1/60 (1/50) shutter, max AGC

N/A

26x Day/Night: 0.1 lux

F1.4, 1/60 (1/50) shutter, max AGC

36x Day/Night: 0.16 lux

F1.6, 1/60 (1/50) shutter, max AGC

Day/Night Yes No Yes Yes

Lens

2.7mm to 13.5mm, f/1.2

5mm to 50mm, f/1.4

4.1mm to 73.8mm, f/1.4

4.1mm to 73.8mm, f/1.4

3.5mm to 91.0mm, f/1.6

3.4mm to 122.4mm, f/1.6

4.1mm to 73.8mm, f/1.4

3.5mm to 91.0mm, f/1.6

3.4mm to 122.4mm, f/1.6

Optical Zoom

5x (Varifocal)

10x (Varifocal)

18x

18x

26x

36x

18x

26x

36x

Digital Zoom No No

12x 12x

Housings

Indoor In-Ceiling, Pendant In-Ceiling, Pendant In-Ceiling, Pendant In-Ceiling, Pendant

Outdoor Pendant Pendant Pendant Pendant

Ingress Protection

IP66/NEMA 4X (Pendant Housings)

IP54 (In-Ceiling Housings)

IP66/NEMA 4X (Pendant Housings)

IP54 (In-Ceiling Housings)

IP66/NEMA 4X (Pendant Housings)

IP54 (In-Ceiling Housings)

IP66/NEMA 4X (Pendant Housings)

IP54 (In-Ceiling Housings)

Communications

Coax/UTP Bilinx, UTP, Coax Bilinx, UTP, Coax Bilinx, UTP, Coax Bilinx, UTP, Coax

Optional Ethernet (TCP/IP) Cat5/Cat6 (UTP) Cat5/Cat6 (UTP) Cat5/Cat6 (UTP) Cat5/Cat6 (UTP)

Power Supplies/Mounts

Power Supplies:

24VAC Yes Yes Yes Yes

120V, 230VAC Yes Yes Yes Yes

Indoor Mounts Wall, Pipe, In-Ceiling Wall, Pipe, In-Ceiling Wall, Pipe, In-Ceiling Wall, Pipe, In-Ceiling

Outdoor Mounts Wall, Corner, Mast, Pipe, Flat Roof, Roof (Parapet) Wall, Corner, Mast, Pipe, Flat Roof, Roof (Parapet) Wall, Corner, Mast, Pipe, Flat Roof, Roof (Parapet) Wall, Corner, Mast, Pipe, Flat Roof, Roof (Parapet)

Fiber Optics

Optional Bi-directional Analog Fiber Transceiver

(video and control over a single ﬁber)

Yes Yes Yes Yes

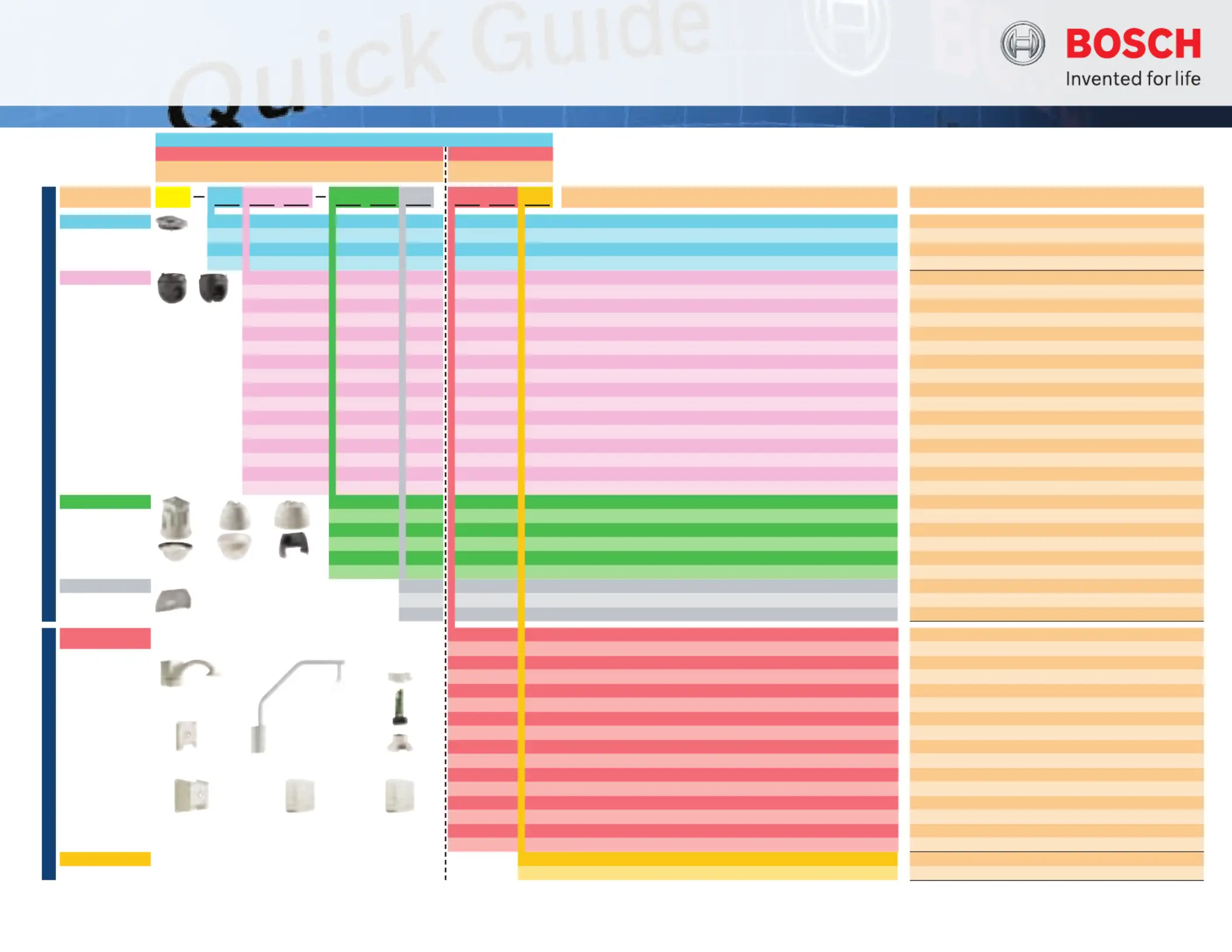

AutoDome Camera Quick Guide

VS-FP-en-16_F01U518360_02

1 100 Series Controller (CPU)

2 200 Series Controller (CPU)

3 300 Series Controller (CPU)

5 500i Series Controller (CPU)

VG4-MCPU-100

VG4-MCPU-200

VG4-MCPU-300

VG4-MCPU-500

VG4-MCAM-11

VG4-MCAM-21

VG4-MCAM-12

VG4-MCAM-22

VG4-MCAM-13

VG4-MCAM-23

VG4-MCAM-14

VG4-MCAM-24

VG4-MCAM-51

VG4-MCAM-61

VG4-MCAM-52

VG4-MCAM-62

VG4-MCAM-53

VG4-MCAM-63

VG4-MCAM-54

VG4-MCAM-64

VG4-MHSG-CC

VG4-MHSG-CT

VG4-MHSG-PC

VG4-MHSG-PT

VG4-MHSG-EC

VG4-MHSG-ET

VG4-MTRN-0 (for use with the 100 Series CPU only)

VG4-MTRN-S

VG4-MTRN-E

(no additional module required)

VG4-A-PA0

VG4-A-PA0 + LTC 9541/01 (Mast Adapter Bracket)

VG4-A-PA0 + LTC 9542/01 (Corner Adapter Bracket)

VG4-A-9230

VG4-A-9543

VG4-A-PA1

VG4-A-PA1 + LTC 9541/01 (Mast Adapter Bracket)

VG4-A-PA1 + LTC 9542/01 (Corner Adapter Bracket)

VG4-A-PSU1 + VG4-A-9230

VG4-A-PSU1 + VG4-A-9543

VG4-A-PA2

VG4-A-PA2 + LTC 9541/01 (Mast Adapter Bracket)

VG4-A-PA2 + LTC 9542/01 (Corner Adapter Bracket)

VG4-A-PSU2 + VG4-A-9230

VG4-A-PSU2 + VG4-A-9543

(no additional module required)

Add "F" to the end of the Power Supply part number

AutoDome

Modules

Cameras

Fiber Optics

CPUs

Power Supplies

& Mounts

Communications

Housings

VG4

AutoDome Kit Number

Camera Assembly Power and Mounting Kit

Family

CPU

Camera

Options

Housing

Options

Comms

Options

Power/Mounting

Options

Fiber

Option

Camera AssemblyPendant Power and Mounting Kits

Module Part #Description

1 1 18x Color PTZ Camera (PAL)

2 1 18x Color PTZ Camera (NTSC)

1 2 18x Day/Night PTZ Camera (PAL)

2 2 18x Day/Night PTZ Camera (NTSC)

1 3 26x Day/Night PTZ Camera (PAL)

2 3 26x Day/Night PTZ Camera (NTSC)

1 4 36x Day/Night PTZ Camera (PAL)

2 4 36x Day/Night PTZ Camera (NTSC)

5 1 2.7-13.5mm Color Fixed Camera (PAL)

6 1 2.7-13.5mm Color Fixed Camera (NTSC)

5 2 2.7-13.5mm Day/Night Fixed Camera (PAL)

6 2 2.7-13.5mm Day/Night Fixed Camera (NTSC)

5 3 5-50mm Color Fixed Camera (PAL)

6 3 5-50mm Color Fixed Camera (NTSC)

5 4 5-50mm Day/Night Fixed Camera (PAL)

6 4 5-50mm Day/Night Fixed Camera (NTSC)

C C In-Ceiling Housing with Clear Bubble

C T In-Ceiling Housing with Tinted Bubble

P C Indoor Pendant Housing with Clear Bubble

P T Indoor Pendant Housing with Tinted Bubble

E C Outdoor Pendant Housing with Clear Bubble

E T Outdoor Pendant Housing with Tinted Bubble

0 Fixed Communications

S Standard (Coax/UTP) Communications

E Ethernet (TCP/IP) Communications

24 VAC In-Ceiling Assembly

1

0 W 24 VAC Pendant Arm (Wall Mount)

1

0 M 24 VAC Pendant Arm (Mast Mount)

1

0 C 24 VAC Pendant Arm (Corner Mount)

1

0 R 24 VAC Pendant Roof Mount

1

0 P 24 VAC Pendant Pipe Mount

1

1 W 120 VAC Pendant Arm (Wall Mount)

1 M 120 VAC Pendant Arm (Mast Mount)

1 C 120 VAC Pendant Arm (Corner Mount)

1 R 120 VAC Pendant Roof Mount

1 P 120 VAC Pendant Pipe Mount

2 W 230 VAC Pendant Arm (Wall Mount)

2 M 230 VAC Pendant Arm (Mast Mount)

2 C 230 VAC Pendant Arm (Corner Mount)

2 R 230 VAC Pendant Roof Mount

2 P 230 VAC Pendant Pipe Mount

No Fiber

F With Fiber

2,3

1

24 VAC Kits do not include a power transformer. Customer must supply 24 VAC, 75 W transformer (VG2-A-PSU or equivalent).

2

Fiber option only available on domes equipped with Coax/UTP Communications Module.

3

Fiber Optic Module (FOM) is available for pendant-style housings only. For in-ceiling housings, an LTC 4628 may be used.

CPU

Module

PTZ

Module

Fixed

Module

In-Ceiling

Indoor

Pendant

Outdoor

Pendant

Communications Module

Corner Mount Adapter

Mast Mount Adapter

Wall Mount

Pendant Arm

Remote Power Unit

Roof Mount

Roof (Parapet)

Remote Power Unit

Pipe Mount

Pipe
