Reference Manual

Contents

Getting ready 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Top panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Rear panel (connecting your equipment) . . . . . . . . . . . . . . . . . . . . . .3

Installing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Turning the power on/o . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Phantom power settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Basic operation 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Conguring the mic settings (MIC) . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Applying a harmony eect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Editing the memories 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How the memories are structured . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Switching the pedal mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Switching between memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Creating the sound you like . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Conguring the dynamics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Conguring HARMONY, EFFECT and ECHO . . . . . . . . . . . . . . . . . . . .8

Making settings in MEMORY SETTING . . . . . . . . . . . . . . . . . . . . . . 10

Saving a memory (MEMORY WRITE) . . . . . . . . . . . . . . . . . . . . . . . . 11

Changing the order of memories (MEMORY ORDER). . . . . . . . . . 11

Initializing memories (MEMORY INITIALIZE) . . . . . . . . . . . . . . . . . 12

Useful functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

MEMORY PEDAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

About BPM TAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

MANUAL PEDAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CTL 1, 2/EXP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Connecting external pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ASSIGN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Examples of settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

EXP HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Creating a loop phrase (LOOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Getting ready to record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

MEMORY EXTENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

FACTORY RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Main specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Function block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

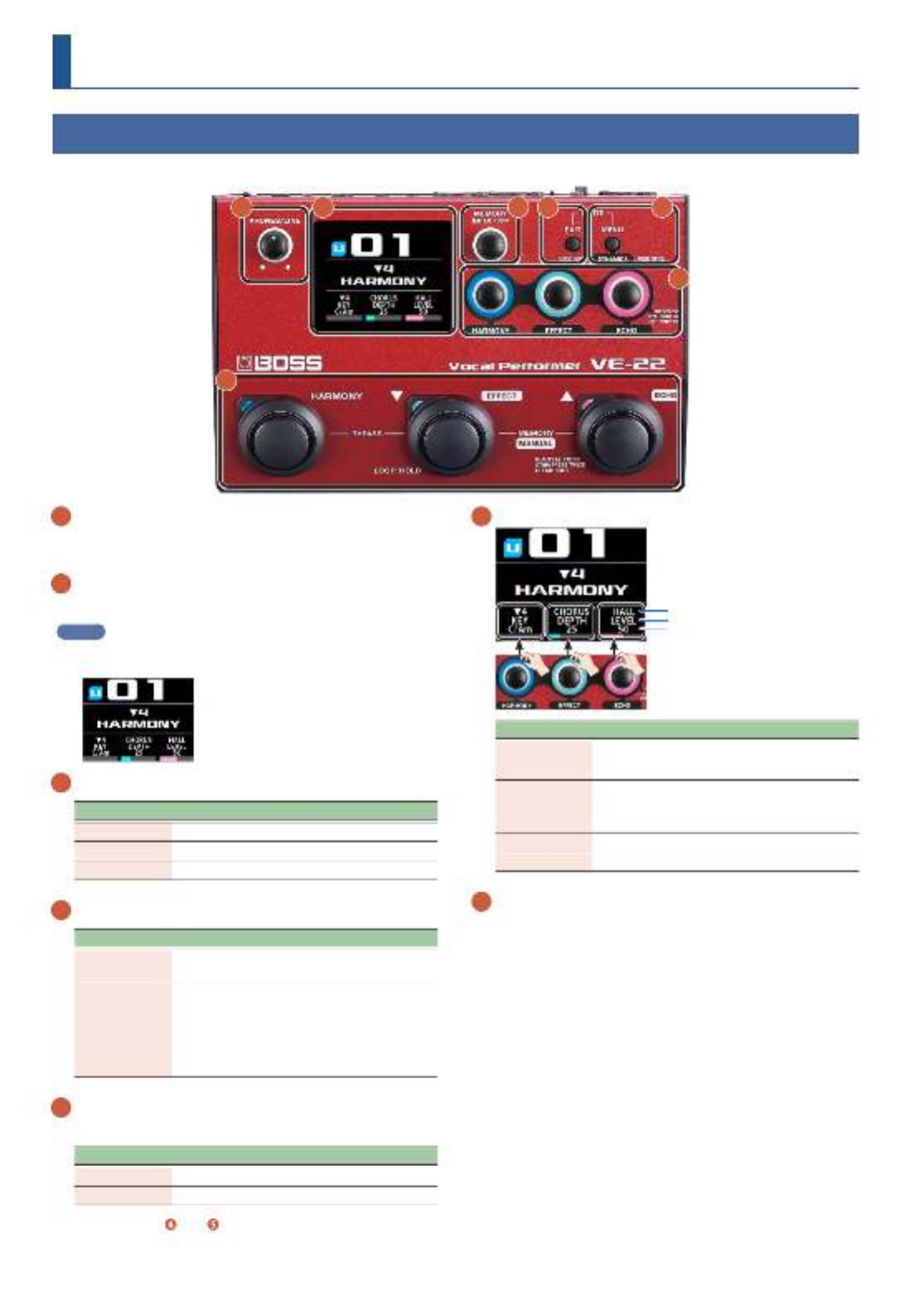

Getting ready

Top panel

[PHONES/LINE] knob

Sets the volume for the PHONES/LINE OUT.

* This doesn’t change the volume for the OUTPUT L/R.

Display

Shows various information for the VE-22.

MEMO

The screen that appears after you turn on the power is called the

“play screen”.

[MEMORY] knob

Operation Function

Turn Switches between memories or menus.

Press Conrms the operation.

Press and turn Turn while pressing to skip ahead 10 memories.

[EXIT] button

Operation Function

Press Returns to the previous screen or undoes an

operation.

Long-press

While on the play screen, long-press the button

to turn the lock function on. This disables the

[MEMORY], [HARMONY], [EFFECT] and [ECHO]

knobs as well as the [MENU] button. This prevents

accidental changes to the settings. Long-press

again to turn the lock function o.

[MENU] button

Congures the functions.

Operation Function

Press The MENU screen appears.

Press twice The DYNAMICS edit screen appears.

When you press and together, the MEMORY WRITE screen

appears (p. 11).

[HARMONY], [EFFECT] and [ECHO] knobs

Type name

Parameter name

Parameter value

Operation Function

Press Switches the eect on/o.

When this is on, the knob’s indicator lights up.

Turn

Edits the parameter values shown in the display.

Turn the knob while holding down the [MENU]

button to edit the value in increments of 10.

Press and turn Changes the type.

Press twice Switches to the edit screen.

Pedal switch

There are two modes for the pedal switches: memory mode and

manual mode, each with dierent functions.

You can press the [ ] and [ ] switches at the same time to switch É Ç

between modes (“Switching the pedal mode” (p. 7)).

Memory mode

The pedal switch functions are (from left to right) HARMONY on/

o, (memory decrement), (memory increment).É Ç

You can assign other functions to the [HARMONY] switch

(p. 13).

Manual mode

The pedal switch functions are (from left to right) HARMONY,

EFFECT and ECHO on/o.

You can assign other functions to the switches (p. 14).

2 3 4 5
