"#$%&'($)*!"+,-#..!/#&0'$.!

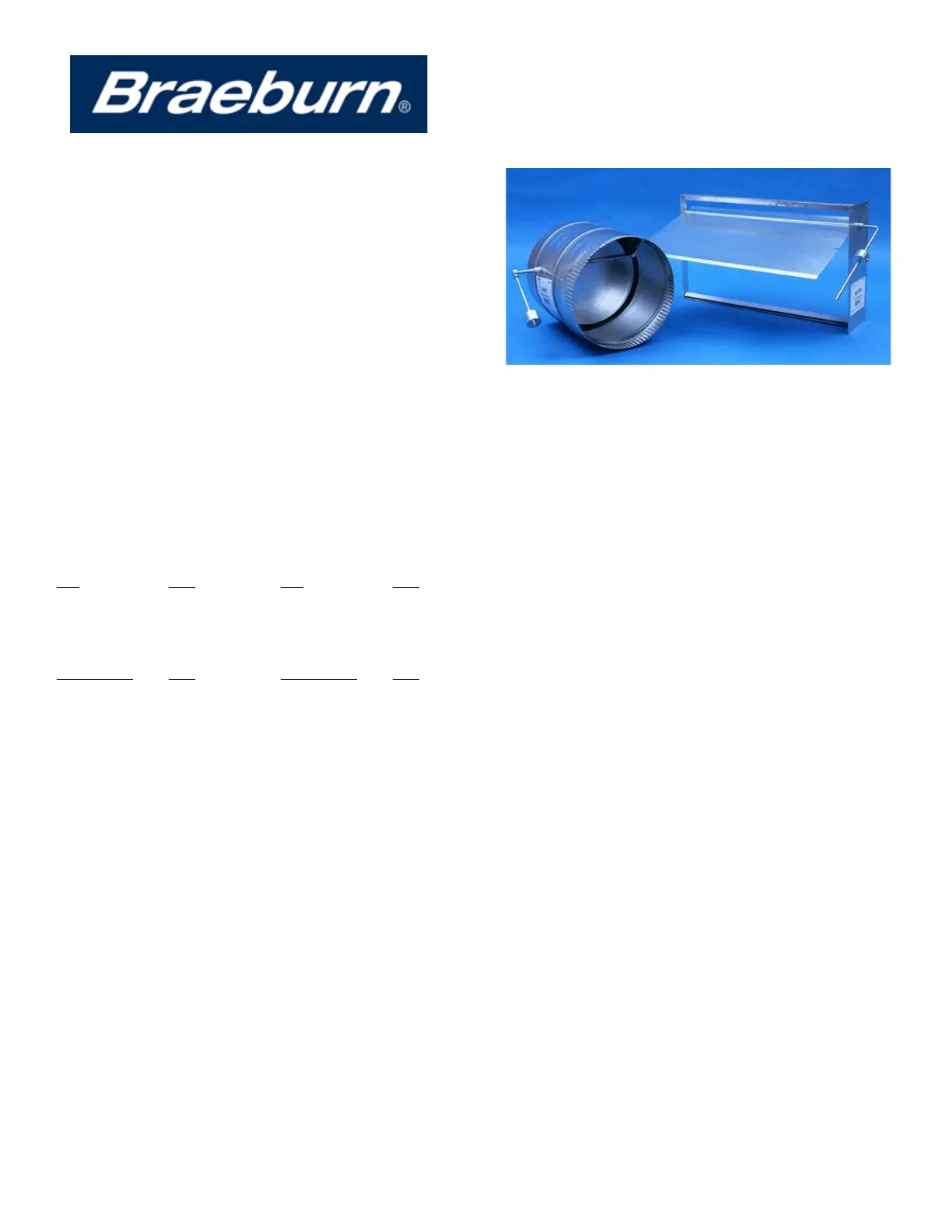

The Static Pressure Regulating Dampers are barometric relief

dampers used to by-pass excess air pressure on zoned systems. The

dampers automatically respond to the air pressure in duct as the

various zone dampers open and close.

As zone dampers close off air to a number of zones, the supply air

pressure in the duct system will increase. This increase in air pressure

can increase the noise level and reduce the flow of conditioned air

through the HVAC Unit. Using a by-pass damper solves this by

automatically compensating for the excess air pressure by opening

on the increased pressure and relieving the excess air. The damper

helps maintain a constant air pressure in the duct system. This

reduces noise that is caused by high air pressures and velocities, as

well as maintains a constant volume of air (CFM) through the duct

system. Maintaining a constant volume of air through the HVAC

System keeps the efficiency of the system at its maximum.

These By-pass Dampers are also available in square/rectangular

and round sizes. The chart below lists the available sizes of dampers

and their recommended CFM capacities.

Square and Rectangular Sizes

Size CFM Size CFM

12”x8” 800 20”x8” 1,600

12”x10” 1,000 20”x10” 2,000

12”x12” 1,400 20”x12” 2,400

Round Sizes

Size (Diameter) CFM Size (Diameter) CFM

7” 200 12” 1,000

8” 400 14” 1,600

9” 600 16” 2,400

10” 750 18” 3,000

Calculating By-Pass Air Requirements

Determining the need for by-pass air and the size of the damper

required is very simple. It can be very simply calculated by knowing

the total CFM capacity of the HVAC unit (T

CFM

) and subtracting the

CFM capacity of the smallest zone (S

CFM

) will equal the CFM of air

required to be by-passed (B

CFM

Total CFM Smallest Zone CFM By-Pass CFM

Once the by-pass amount of air is known, use the chart above to

select an appropriately sized by-pass damper. It is always

recommended to have a larger size by-pass than having one that is

too small. It is much easier to reduce by-pass air through the

damper or close it off than having to increase the size of the by-pass

duct and/or damper.

Location

Selecting a location to place the By-pass Damper is very important

for overall system operation. Ideally the best place for the damper

is as far away from the air handler as possible and before any zone

dampers. In an extended plenum application where zones come

of the side of the main trunk, the end of the extended plenum is the

ideal situation.

In most residential applications however the zone dampers are right

at the plenum of the air handler. In this application the only

location for the by-pass is at the plenum. In this application,

especially when the by-pass is ducted to the return, it is

recommended that a freeze protection be used as well as the

supply air sensors with the zoning panel to protect the equipment

from overheating or cooling due to the return by-pass.

Installation

This By-pass Damper is easily installed into any square or rectangular

duct by simply cutting a 2 to 3 inch slot on the side of the duct and

inserting the damper. The square/rectangular by-pass damper has

a 5” wide end plate to cover over the opening. There are six pre-

punched holes for self-tapping screws (provided) to be used to

secure the damper to the duct.

12'!$%345! 6+,0#..!5#&0'$.! #$'!#7.%!)4.(#77'5!)4,7)4'! %8!(2'!53*(9! 2 %: ' ;'$ !(2'!

67#5'! )4!#7$'#5+!'4*7%.'5!)4!#!<=>!7'4?(2!%8!53*(@!!12'!5#&0'$!).!A3 .(!7)B'!#4+!

(+0)*#7!7'4?(2!%8!$%345!$)?)5!53*(9!: )(2!#!*$)&0'5!'45 !)4!(2'!5)$'*()%4!%8!(2'!

#)$!87%:@!!!

Most by-pass installations are typically in horizontal ducts where the

damper control blade will close vertically. The by-pass can also be

installed in vertical ducts as well; however the counter balanced,

weighted arm must be adjusted to offset the weight of the blade.

See installation instructions for further information on this application.

This barometric by-pass damper has a weighted control arm that

counter balances the weight of the damper blade. The weight

adds pressure to the blade to control the amount of air by-passed.

The weight can be adjusted up or down on the arm depending

upon the amount of air to be by-passed. In addition to the

adjustment of the weight the arm can also be moved in order to

add leverage for the weight to push against the blade to add more

resistance.

To adjust the by-pass damper, first all zones dampers must be open

and the fan operating. When all dampers are open the by-pass

should be closed. In some instances the damper may be open

slightly, especially when the by-pass damper is installed as a true by-

pass between the supply and return ducts. This occurs frequently

when the damper is closest to the plenum.

After observing the damper position, begin closing the larger zone

dampers one by one, until only the smallest zone damper is open.

The by-pass damper will most likely be full open at this point. If not,

adjust the weight and the arm to provide the correct amount of

pressure, prior to the point of increasing the static too much where

there will be a reduction in the airflow and air noise becomes an

issue.

Static!Pressure!

Regulating!Dampers!
