Side 1/4
1

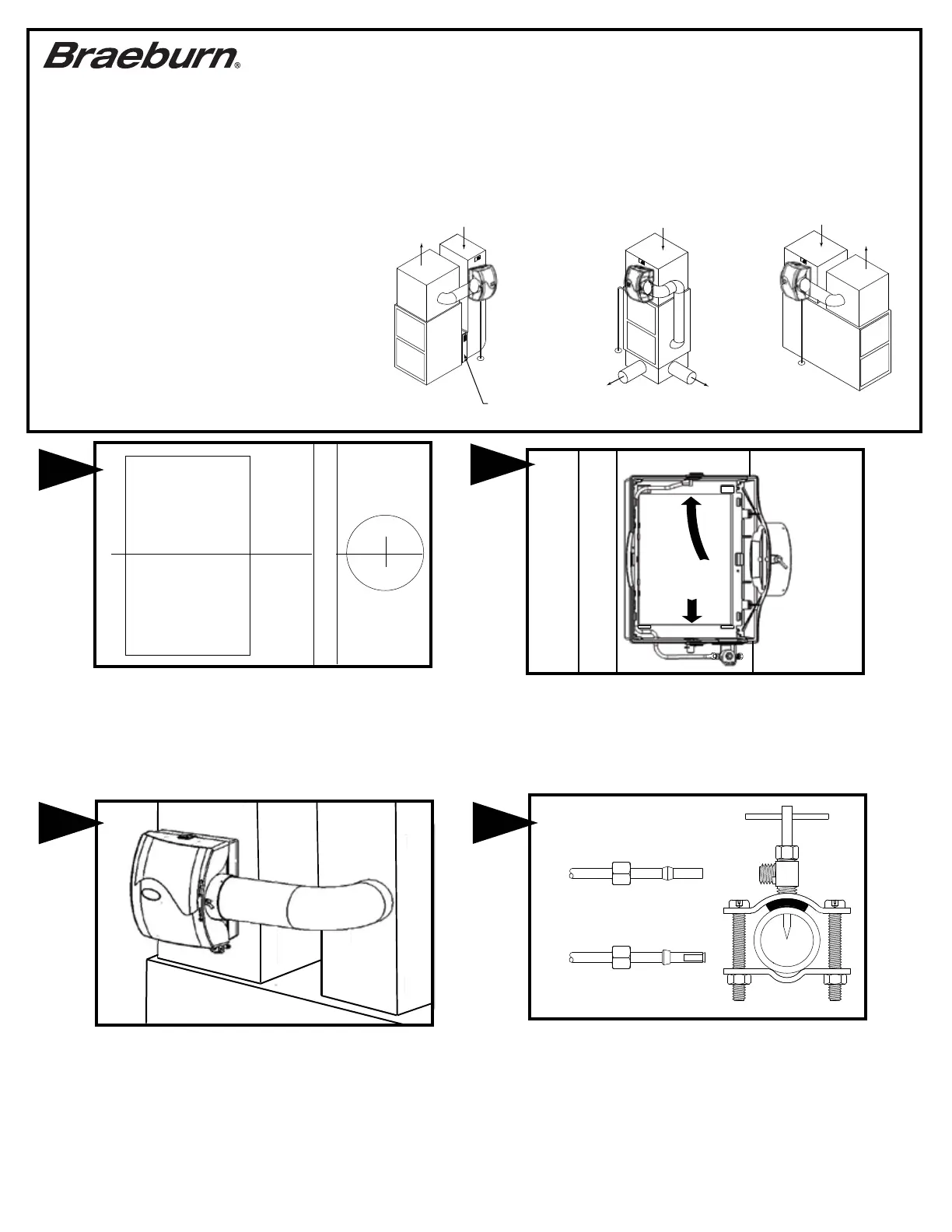

PRECAUTION: The installer should be an experienced service technician. Disconnect electrical power before
beginning installation. Do not install where temperatures fall below 32 degrees F or where plenum temperatures
exceed 200 degrees F. When wiring into a multi-speed blower circuit see wiring diagrams.
FOR INSTALLATION ON A VERTICAL
PLENUM SURFACE OF ANY
FORCED AIR FURNACE
INSTALLER: PLEASE LEAVE INSTALLATION INSTRUCTIONS WITH HOME OWNER
2
FLOW-THROUGH BYPASS HUMIDIFIER
17 GPD / 24V
3
COPPER
TUBING
PLASTIC
TUBING
Connect by-pass pipe to collar and humidifier cabinet. Using holes at
top and bottom of side panel discharge, pierce 2 self tapping screws
through by-pass pipe.
Mount the self tapping saddle valve on either a cold or a hot water
pipe. A side or top mount is best to avoid clogging from pipe
sediment. Connect 1/4” O.D. tubing to the saddle valve. Copper
tubing requires a brass compression nut and brass sleeve. Plastic
tubing requires a brass insert inside the tubing and a plastic sleeve
on the outside with a brass compression nut.
NOTE: DO NOT USE PLASTIC TUBING ON HOT WATER OR IN
CONTACT WITH ANY HOT PLENUM SURFACE OR DUCT.
INSTALLATION OF THIS SADDLE VALVE MUST MEET OR
EXCEED LOCAL CODES AND ORDINANCES.
4
Select location on vertical surface of warm or return air plenum for
mounting humidifier. Tape mounting template in place making sure the
template is level. Do not install humidifier or 6" bypass pipe where the
blanked off ends of a cooling coil will restrict air flow to the humidifier.
Extend horizontal centerline from template to the adjacent plenum. Scribe
6” circle 10” to 15” from side of humidifier, on cabinet centerline, using
connecting collar as guide.
Cut out center section of template and 6” hole. Humidifier is self
retaining. Slide top side in first, then slide chassis down. Level
chassis and install center screws. If by-pass pipe installs to
opposite side of chassis, bend clip on chassis, remove side
discharge, and reinstall discharge to opposite side of chassis.
Install remaining four corner screws.
HIGH BOY COUNTER-FLOW LOW BOY
RETURN AIR
RETURN AIR
RETURN AIR
WARM AIR
WARM AIR
WARM AIR
WARM AIR
AIR CLEANER
DRAIN
DRAIN
DRAIN
1
2
3
220600
220650
INSTALLATION: The humidifier may be mounted with the 6"
outlet to the right or left by inverting the cabinet and reversing
the positions of the distributor trough and drain pan. The
humidifier may be mounted on the warm or return air plenum
with equal efficiency.
See Typical Installations.
ADDITIONAL MATERIALS THAT MAY BE NECESSARY:
1. 1/4" diameter plastic supply tubing or 1/4" copper
supply tubing for hot water applications
2. 6" diameter galvanized by-pass pipe
3. Electrical wire and wire nuts
4. Current sensing relay (Braeburn Model 229050 suggested)
5. #8 self piercing sheet metal screws
