Parts List

Qty. Part No. Description

1** SA4236 24 x 36 Wood Top - CDQ2436

SA4241 30 x 36 Wood Top - CDQ3036

SA4237 24 x 42 Wood Top - CDQ2442

SA4242 30 x 42 Wood Top - CDQ3042

SA4238 24 x 60 Wood Top - CDQ2460

SA4243 30 x 60 Wood Top - CDQ3060

SA4239 24 x 72 Wood Top - CDQ2472

SA4244 30 x 72 Wood Top - CDQ3072

SA4240 24 x 84 Wood Top - CDQ2484

SA4245 30 x 84 Wood Top - CDQ3084

4 010-3511 Corner Tie

4 017-0686 Bottom Leg

Models with All Glides

2 017-0687 R/Front or L/Rear Leg

2 017-0688 L/Front or R/Rear Leg

Models with 2 Glides & 2 Casters

1 017-0687 R/Front or L/Rear Leg (Glide)

1 017-0688 L/Front or R/Rear Leg (Glide)

1 017-0883 R/Front or L/Rear Leg (Caster)

1 017-0884 L/Front or R/Rear Leg (Caster)

**Skirts and upper leg frame assemblies are attached to

the wood top prior to shipment.

Hardware List

Qty. Part No. Description

4 030-0852 5/16-18 x 1-1/4" Hex Flange Cap Screws

8 030-0396 3/8-16 x 1/2" Set Screws

4* 015-0084 3/8-16" Glides

*For Models with glides and casters

(2) 015-0084 & (2) 015-0089

Tools Required

Philips Screwdriver

Allen Wrench

Adjustable Wrench

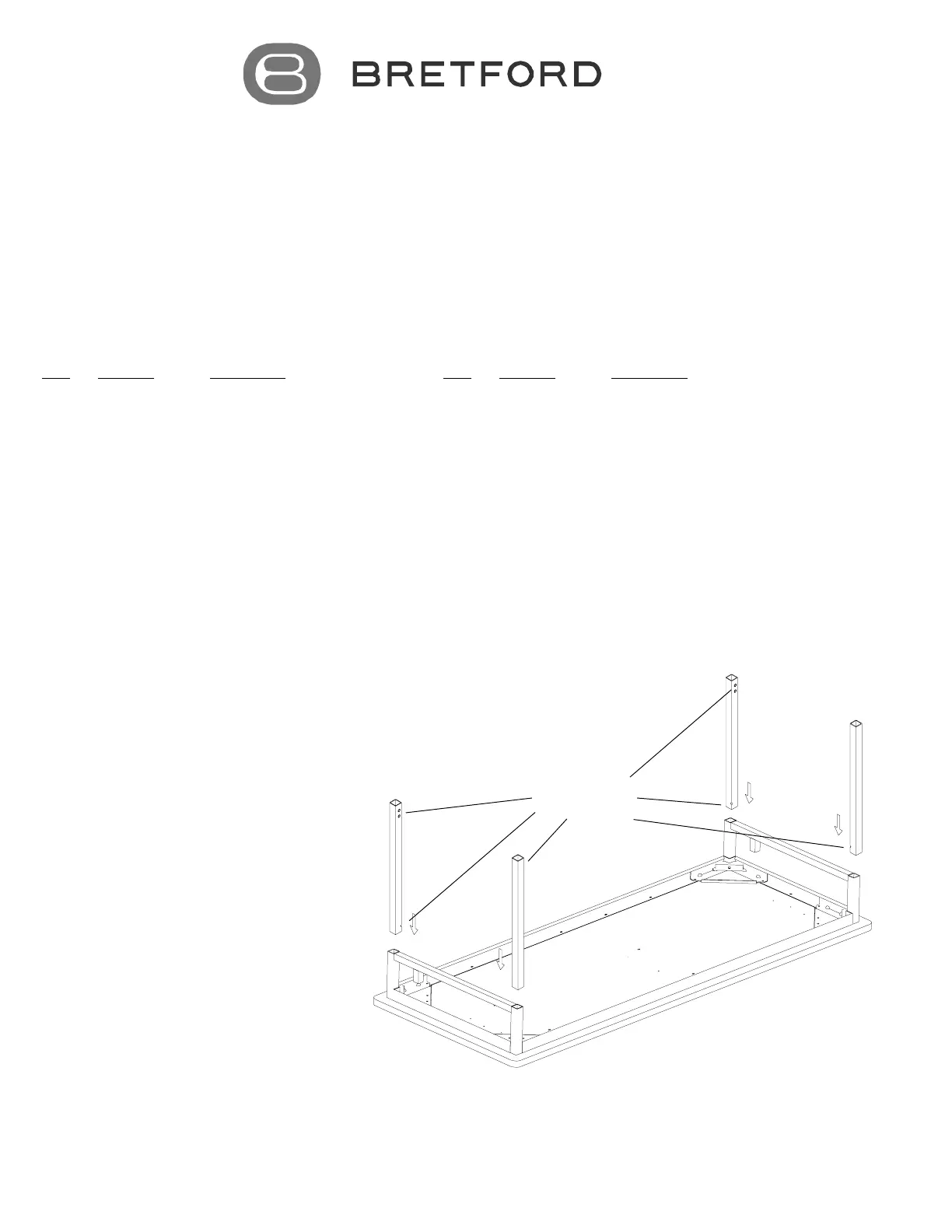

Lay wood top on a carpeted surface as shown. Insert the

legs into each corner with holes facing inward as shown.

STEP 1

4 Leg Classroom Desk with Glides/Casters

Assembly Instructions



CDQ2436 CDQ3036 CDQ2442 CDQ3042 CDQ2460

CDQ3060 CDQ2472 CDQ3072 CDQ2484 CDQ3084

All Leg Holes

Face Inward

SAFETY WARNING

Note: TWO PERSON

ASSEMBLY REQUIRED

Secure legs in place with corner ties

and cap screws as shown.

STEP 2

Corner tie

010-3511 Cap Screw

030-0852

Part # 031-5989

Rev. 05.30.06 CZ

Bretford Bretford Ltd.

11000 Seymour Avenue 2 Etongate

Franklin Park, IL 60131 110 Windsor Road

TEL: 847.678.2545 Slough, Berkshire SL1 2JA England

800.521.9614 TEL: 01753 216531

FAX: FAX:847.678.0852 01753 539478

800.343.1779

www.bretford.com

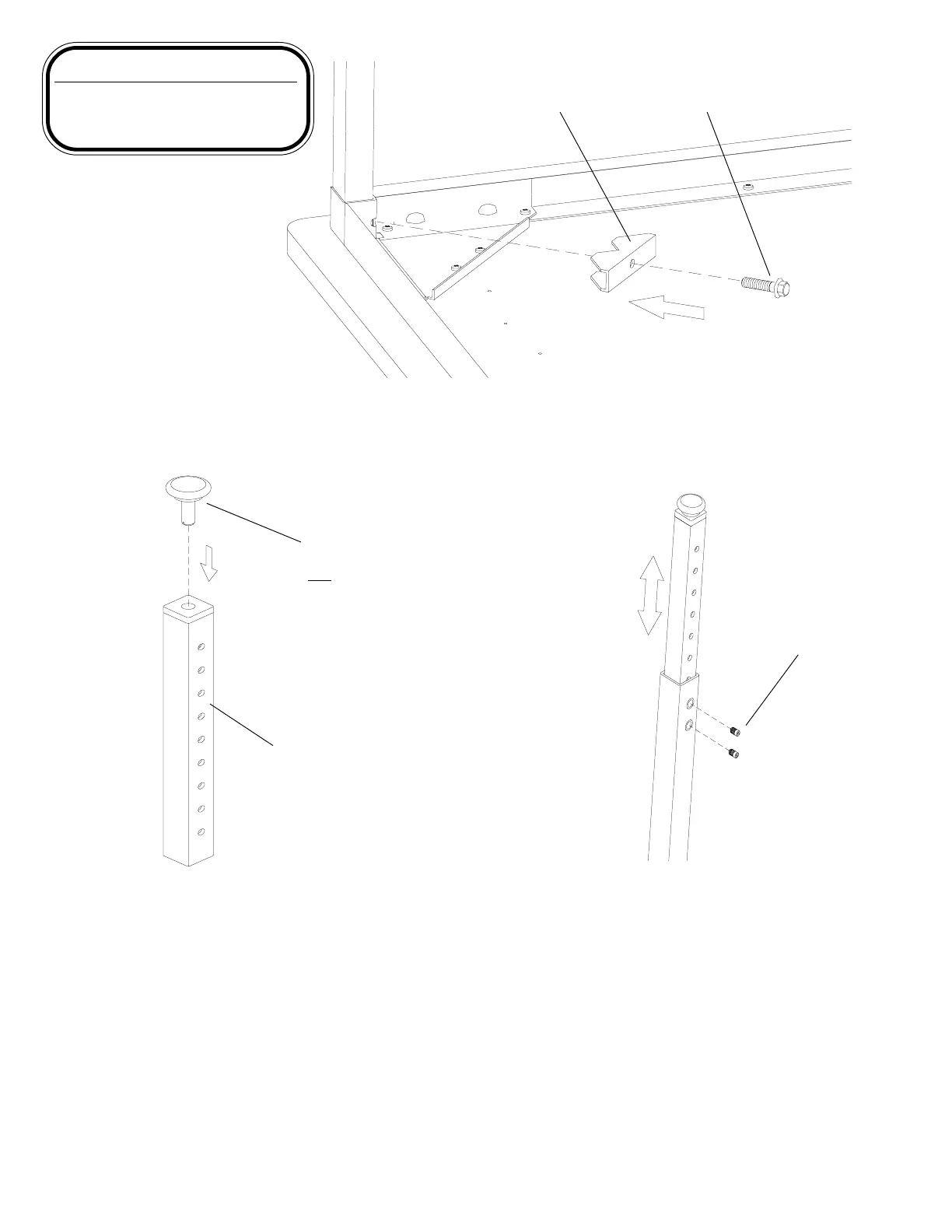

Screw glides and/or casters into bottom legs as

shown. Glides/casters should be fully installed

into legs so that the entire stem is inside of leg.

STEP 3

Position holes in legs so that they face each other. Insert

bottom legs into top legs. Set desired height and insert

set screws into legs and tighten with Allen wrench. Stand

the unit upright.

STEP 4

Set Screw

030-0396

Glide

015-0084

OR Caster 015-0089

(Depending on your model)

Bottom Leg

017-0686
