Assembly Instructions

QUATTRO TABLES

Parts List

Qty. Part No. Description

4 010-3511 Corner Ties

4 017-0686 Bottom Legs

4 017-1026 Top Legs

4 015-0084 3/8-16 Glides

2 010-3520 Bin Mounting Bracket

(For Computer Tables Only)

Hardware List

Qty. Part No. Description

8 030-0396 3/8-16 x 1/2" Set screw

2 030-0357 #10-32 Flanged Hex Serrated Nut

(For Computer Tables Only)

2 030-0402 #10-32 x 5/8" Black Combo Head Screw

(For Computers Tables Only)

4 030-0852 5/16-18 x 1-1/4" Hex Flange Cap Screw

Tools Required

Philips Screwdriver

Allen Wrench

Adjustable Wrench

Computer Table

Work Table

Round Work Table

Square Work Table

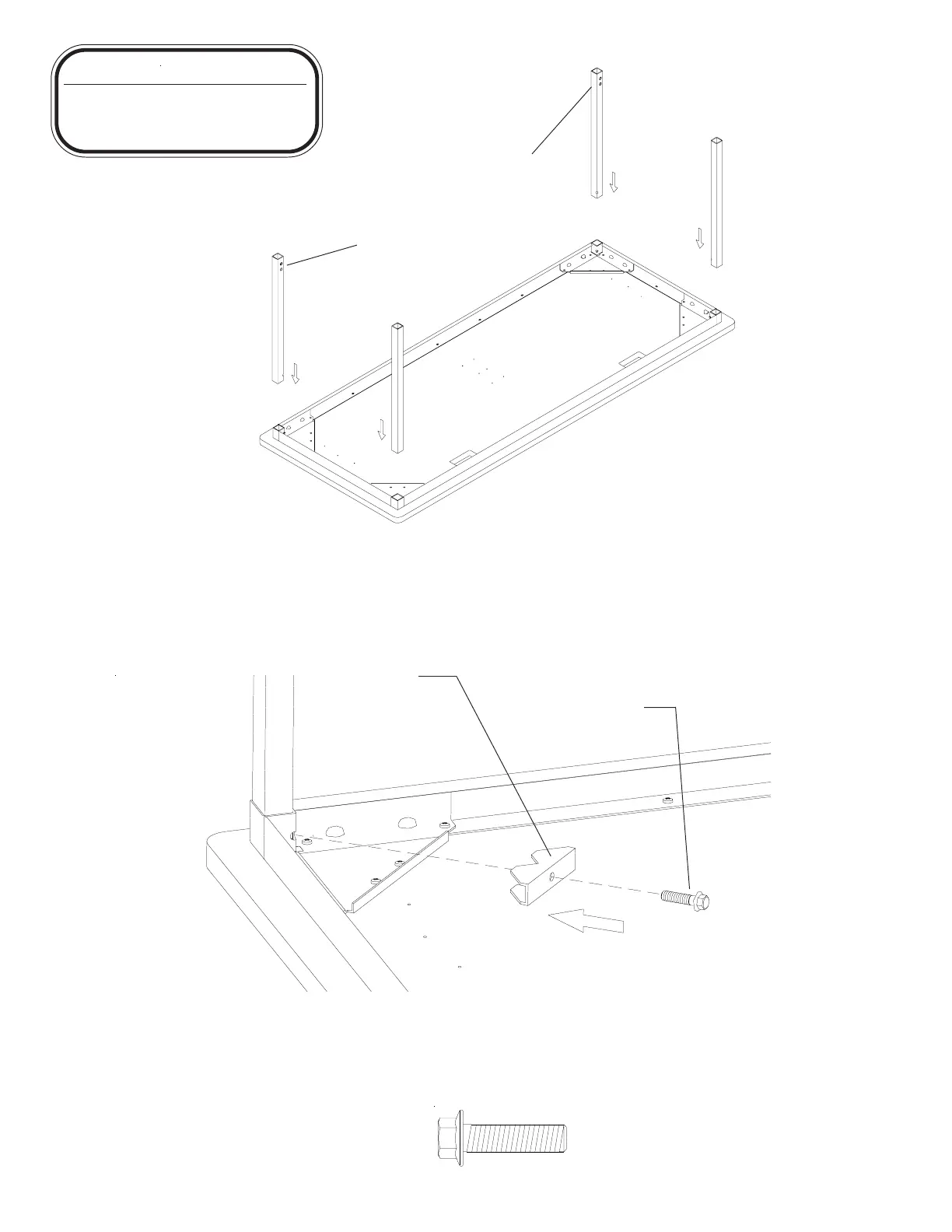

Lay wood top on a carpeted surface with holes facing upward. Insert

the legs into each corner with holes facing in as shown.

Step 1

SAFETY WARNING

Note: TWO PERSON

ASSEMBLY REQUIRED

Attach legs with 5/16-18 x 1-1/4" Hex Flange Cap screws

(030-0852) and corner ties (010-3511). Tighten all screws.

Step 2

Corner tie

010-3511

5/16-18 x 1-1/4"

030-0852

All Leg Holes Face Inward
