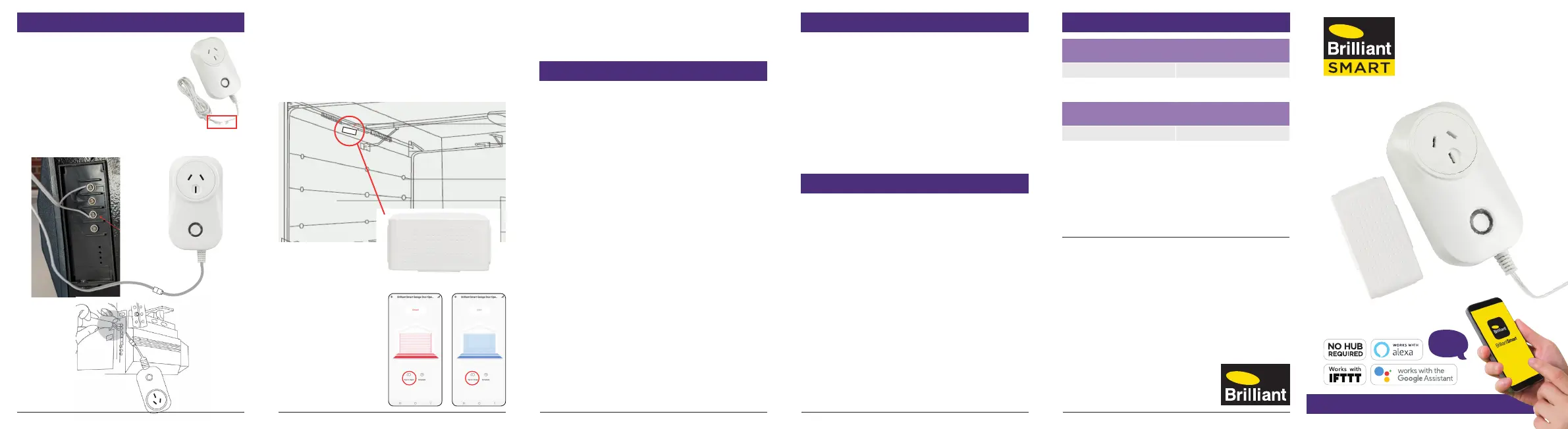

Side 1/2

Warning

1. Do not allow children to play with this device as

this is not a toy.

2. Power surge/power loss could possibly reset

Smart device. If this happens, follow the setup

instructions.

3. Pairing button is not an override or a control

button.

NB: BrilliantSmart app screens may differ due

to application updates & improvements.

Disposal

Please dispose of this packaging material

thoughtfully.

Please dispose of this product thoughtfully once it

has passed its useful life. When your smart device

comes to the end of its life or you choose to update

or upgrade it, please do not dispose of it with your

normal household waste. Please recycle where

facilities exist.

When disposing of this tting, check with your local

authority for suitable options.

Warranty

Brilliant Lighting warrants this product against

defects in manufacture and workmanship for a

period of 1 year from date of purchase. Warranty

does not include damage or loss arising from

incorrect installation, operation or maintenance of

this product, damage caused through modication,

or incorrect installation.

Our goods come with guarantees that cannot be

excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for

a major failure and compensation for any other

reasonably foreseeable loss or damage. You are also

entitled to have the goods repaired or replaced if

goods fail to be of acceptable quality and the failure

does not amount to a major failure.

Any claim under this warranty must be made within

1 year of the date of purchase of the product.

Refer to our website brilliantlighting.com.au

for terms and conditions and warranty claims.

This warranty is given by:

Brilliant Lighting (Aust) Pty. Ltd.

ABN 37 006 203 694

956 Stud Road Rowville, VIC 3178

Phone: 03 9765 2555

Email: warranty@brilliantlighting.com.au

MADE IN CHINA

Brilliant Lighting

956 Stud Road

Rowville Vic 3178 Australia

www.brilliantlighting.com.au

Australian Sales

T 03 9765 2555

T 1800 817 754 (interstate only)

F 03 9763 0277

E warranty @brilliantlighting.com.au

New Zealand Sales

T 09 974 9618

E sales@brilliantlighting.co.nz

Problem:

Smart device does not switch ON

Possible Cause Suggested Solution

No Mains Power Check connections, fuses

and switches

Problem:

Cannot link smart device with BrilliantSmart app

Possible Cause Suggested Solution

1. Modem signal weak Place device and modem

closer together

2. Router/modem/smart

phone rewall is enabled

Disable rewalls on

all devices

3. Internet connection

is down

Contact your provider

4. BrilliantSmart app not

installed correctly

Remove app and re-install

For any other problems connecting your smart device to

BrilliantSmart app please visit:

www.brilliantsmart.com.au/faqs

Troubleshooting

WiFi Garage

Door Controller

21456/05

2079 06/20

USER MANUAL

Voice

control

Clean the area on your garage door where the

sensor is to be installed – near the top of the

garage door. Remove the double-sided tape and

press into place.

Ensure the sensor is installed the correct way up.

The wording “This Side Up” on the sensor should

be at the top.

To connect to voice control or for full features

& instructions go to www.brilliantsmart.com.au

Tap to open or close

the garage door. Wait

approx 10-15 seconds

for the screen to

change status.

THIS SIDE UP

Please install

sensor as shown.

Installation

Before installation close the garage

door, then remove your garage door

motor from the power supply.

Connect the controller wires on

the Smart Controller to the manual

override on your existing garage

door motor. Place into the power

outlet, then plug the garage motor

into the controller socket.

7 8 9 10 11

Box Content

– Garage door controller x 1

– Sensor x 1

– Cable 1.5m x 1

– 3M Double sided tape x 1

– User Manual x 1

WE RECOMMEND THAT INSTALLATION BE

DONE BY A LICENSED ELECTRICIAN.

BEFORE INSTALLATION, PLEASE CHECK

THAT THE LOCATION OF THE SMART MOTOR

CONTROLLER IS WITHIN RANGE OF YOUR

HOME WIFI AND SIGNAL IS STRONG.

IT IS RECOMMENDED THAT YOU ENSURE THE

MOTOR CONTROLLER AND SENSOR ARE ALL IN

WORKING ORDER AND CAN BE CONNECTED/

PAIRED TO THE BRILLIANTSMART APP BEFORE

INSTALLATION.

Technical Specications

Model: 21456/05

Supply voltage: 240VAC

Support Max Power: 10A 2000W (use with

sectional door motor only)

Dimensions – Power Adaptor:

Length: 110mm Width: 62mm Height: 44mm

Dimension – Gyro Sensor:

Length: 78mm Width: 40mm Height:18mm

Weight: 169g

Warranty: 1 Year

Security: Mac Encryption; WEP/WAPI/TKIP/AES

WiFi Standard: IEEE802.11b/g/n

System Req’s: iOS 8.0 or higher, Android 4.1 or higher

Please check that your

existing door motor/controller

has manual override terminals.

This may be found behind

access panels on your existing

garage door motor/controller.

If you momentarily connect

these two terminals together

(with a wire) and it activates

the door then this product will

be compatible.

manual control

beam sensor

DC out

12V DC

50mA

max

manual override

terminals example

Motor Controller

power socket

Pairing Button

LED indicators

RED, GREEN,

BLUE

Movement

Gyro Sensor

If the model is compatible then please proceed.

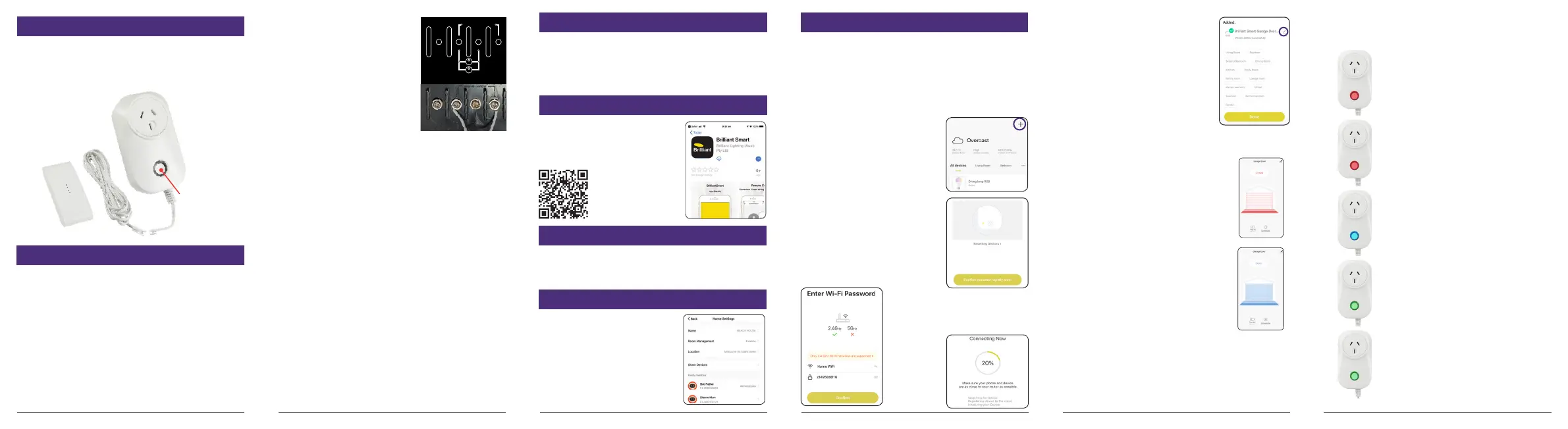

Add your Smart Device to your App

1. Plug in the Smart controller. The LED indicator light

ashes green then red and blinks quickly. If the

LED indicator light is not blinking then you need to

reset the device to pairing mode by pressing and

holding the pairing button for 5 seconds.

When it is RED ashing rapidly it is ready to pair

with the BrilliantSmart app.

2. Open the BrilliantSmart App,

tap ‘Add Device’ (if empty

room) or ‘+’ to add your

Smart Garage Controller.

3. Select ‘Connector WiFi’ in

the list of devices. If sensor

LED indicator is blinking

rapidly then press ‘Conrm

indicator rapidly blink’.

4. Enter your home WiFi

password – connection will

now begin.

The light ashes GREEN

while pairing and BLUE when

connecting to the sensor.

Connect to your WiFi

Ensure your mobile phone is connected to your

2.4GHz WiFi network.

Your mobile phone and your smart device needs

to be within good signal strength range of your

WiFi router.

Download the BrilliantSmart App

Please download the free

BrilliantSmart app from the

App store or Google Play store,

or scan the QR code below.

Open the BrilliantSmart app.

For new users, register a new account or if existing

user, login with your user name and password.

Congure your BrilliantSmart App

Setting up your Home

You can setup multiple homes

or locations. Click ‘Add Home’

button. Or Click on ‘Home’ top

left if you are adding or

modifying details then ‘Home

Management’ to setup your

home(s), add or rename rooms

and share devices.

5. Once connected you’ll

get a menu ‘Adding

device succeeded’ and

the light turns solid

GREEN.

You can click on the pen

to change the device

name then press ‘Done’.

The sensor will have connected

automatically to the controller.

BEFORE INSTALLATION check

the sensor is working. Open the

BrilliantSmart app and select the

Garage door opener.

Move the sensor 90 degrees and

after approx 10-15 seconds check if

the door changes to open.

Move the sensor again 90 degrees

and after approx 10–15 seconds check

if the door changes to closed.

Now it is paired and the sensor is

working correctly you can proceed to

installation.

If the sensor is not working properly

or you cannot connect the controller

to the Brilliantsmart app, please go

to www.brilliantsmart.com.au

for troubleshooting and for full

instructions.

RED – blinking rapidly

(2 times per second)

WiFi not congured.

Controller is ready to pair to

WiFi and BrilliantSmart app

RED – blinking rapidly

(once every 2 seconds)

WiFi not congured.

Controller is in AP mode

ready to pair

BLUE – blinking rapidly

Sensor has not been

connected to Controller

GREEN – solid

The garage door Controller

is connected to WiFi and

the BrilliantSmart app –

ready for use

GREEN – blinking

WiFi congured, but

internet may be ofine

– check your router.

Please note, LED indicator light only – not a button.

It cannot be used to open or close your garage door.

1 2 3 4 5 6

Produkt Specifikationer

Mærke:	Brilliant
Kategori:	Smart hjem
Model:	21456/05
Bredde:	62 mm
Dybde:	44 mm
Højde:	109 mm
Produktfarve:	Hvid
Pakkevægt:	270 g
Pakkedybde:	70 mm
Pakkebredde:	115 mm
Pakkehøjde:	150 mm
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Driftstemperatur (T-T):	5 - 35 °C
Husmateriale:	Plast
Frekvens for vekselstrømsadapter:	50 Hz
Forbindelsesteknologi:	Trådløs
Strømkilde type:	Vekselstrøm
Understøttede mobile operativsystemer:	Android, iOS
Indgangsspænding:	240 V
Trådløs teknologi:	Wi-Fi
Frekvens:	- MHz
Maksimal vægtkapacitet:	- kg
