Side 1/2

WiFi Sensor

WiFi Universal

Door Controller

21457/05

2081 05/20

USER MANUAL

Voice

control

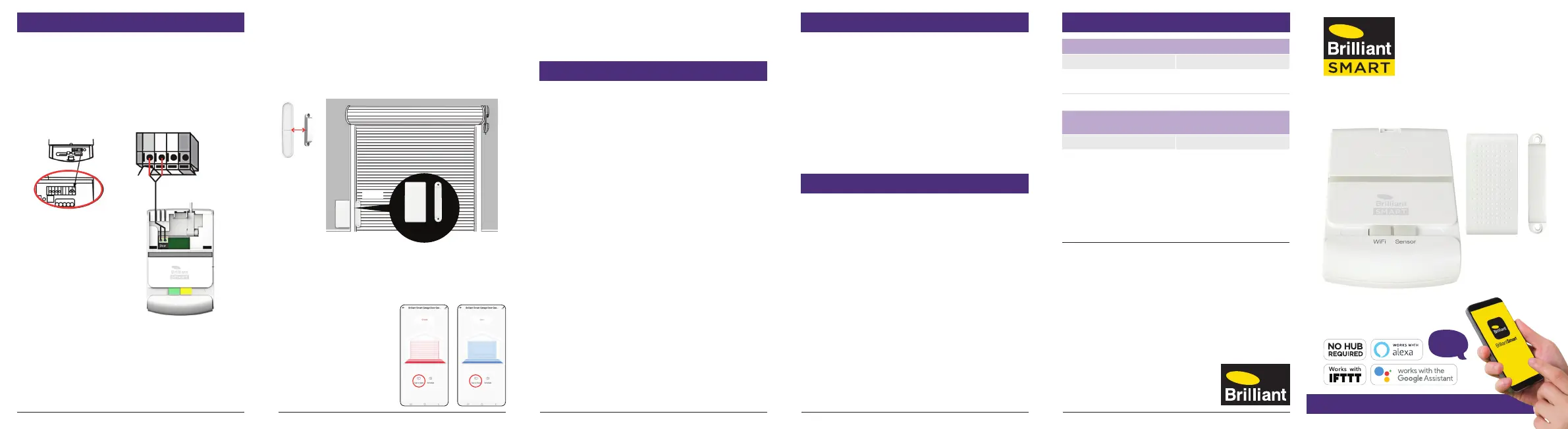

Using rawl plug and screws or double-sided tape

provided, mount the sensor bracket to the garage

wall. Click the sensor onto the bracket. Align the

sensor magnet (no less than 4cm apart) with the

sensor and attach to the garage door using screws

or double-sided tape provided.

Using the BrilliantSmart

app – tap to open or close

the garage door. Wait

approx 10–15 seconds

for the screen to change

status.

Installation

Before installation close the garage door, then

remove your garage motor from the power supply.

Connect the controller wires on the Smart

Controller to the manual override on your existing

garage door motor. Once installed, power on your

garage door.

Garage

Wall

Garage

Door

Use the supplied metal

brackets to secure the

controller in place.

SENSOR

MAGNET

THE GROOVES ON THE

SENSOR AND MAGNET

MUST BE FACING

INSTALL NO LESS THAN

4CM APART

Warning

1. Do not allow children to play with this device as

this is not a toy.

2. Power surge/power loss could possibly reset

Smart device. If this happens, follow the setup

instructions.

3. Pairing button is not an override or a control

button.

NB: BrilliantSmart app screens may differ due

to application updates & improvements.

Disposal

Please dispose of this packaging material

thoughtfully.

Please dispose of this product thoughtfully once it

has passed its useful life. When your smart device

comes to the end of its life or you choose to update

or upgrade it, please do not dispose of it with your

normal household waste. Please recycle where

facilities exist.

When disposing of this tting, check with your local

authority for suitable options.

Warranty

Brilliant Lighting warrants this product against

defects in manufacture and workmanship for a

period of 1 year from date of purchase. Warranty

does not include damage or loss arising from

incorrect installation, operation or maintenance of

this product, damage caused through modication,

or incorrect installation.

Our goods come with guarantees that cannot be

excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for

a major failure and compensation for any other

reasonably foreseeable loss or damage. You are also

entitled to have the goods repaired or replaced if

goods fail to be of acceptable quality and the failure

does not amount to a major failure.

Any claim under this warranty must be made within

1 year of the date of purchase of the product.

Refer to our website brilliantlighting.com.au

for terms and conditions and warranty claims.

This warranty is given by:

Brilliant Lighting (Aust) Pty. Ltd.

ABN 37 006 203 694

956 Stud Road Rowville, VIC 3178

Phone: 03 9765 2555

Email: warranty@brilliantlighting.com.au

MADE IN CHINA

Brilliant Lighting

956 Stud Road

Rowville Vic 3178 Australia

www.brilliantlighting.com.au

Australian Sales

T 03 9765 2555

T 1800 817 754 (interstate only)

F 03 9763 0277

E warranty @brilliantlighting.com.au

New Zealand Sales

T 09 974 9618

E sales@brilliantlighting.co.nz

Problem: Smart device does not switch ON

Possible Cause Suggested Solution

No Mains Power Check connections, fuses

and switches

Door sensor doesn’t work Replace CR2450 battery

Problem:

Cannot link smart device with BrilliantSmart app

Possible Cause Suggested Solution

1. Modem signal weak Place device and modem

closer together

2. Router/modem/smart

phone rewall is enabled

Disable rewalls on

all devices

3. Internet connection

is down

Contact your provider

4. BrilliantSmart app not

installed correctly

Remove app and re-install

For any other problems connecting your smart device to

BrilliantSmart app please visit:

www.brilliantsmart.com.au/faqs

Troubleshooting

To connect to voice control or for full features

& instructions go to www.brilliantsmart.com.au

Location of sensor & sensor magnet

The sensor should be placed on the wall of your

garage and the magnet placed on the garage

door. The sensor and magnet must be installed so

they are no more than 4cm apart with the grooves

facing in towards each other.

7 8 9 10 11

Box Content

– Door Controller x 1

– Door Sensor x 1

– Door Sensor magnet x 1

– Power adapter with cord x 1

– User Manual x 1

– Sensor bracket x 1

– Controller mounting brackets x 2

– Cable 6.8m x 1

– Cable ties x 2

– Rawl plugs x 6

– 3M Double-sided tape

– Self-tap screw & washer x 8

– Screw, washer & nut set x 6

Technical Specications

Model: 21457

Supply voltage: 240VAC 5VDC power adaptor

Weight of product: 340g

Warranty: 1 Year

Security: Mac Encryption; WEP/WAPI/TKIP/AES

WiFi Standard: IEEE802.11b/g/n

System Req’s: iOS 8.0 or higher, Android 4.1 or higher

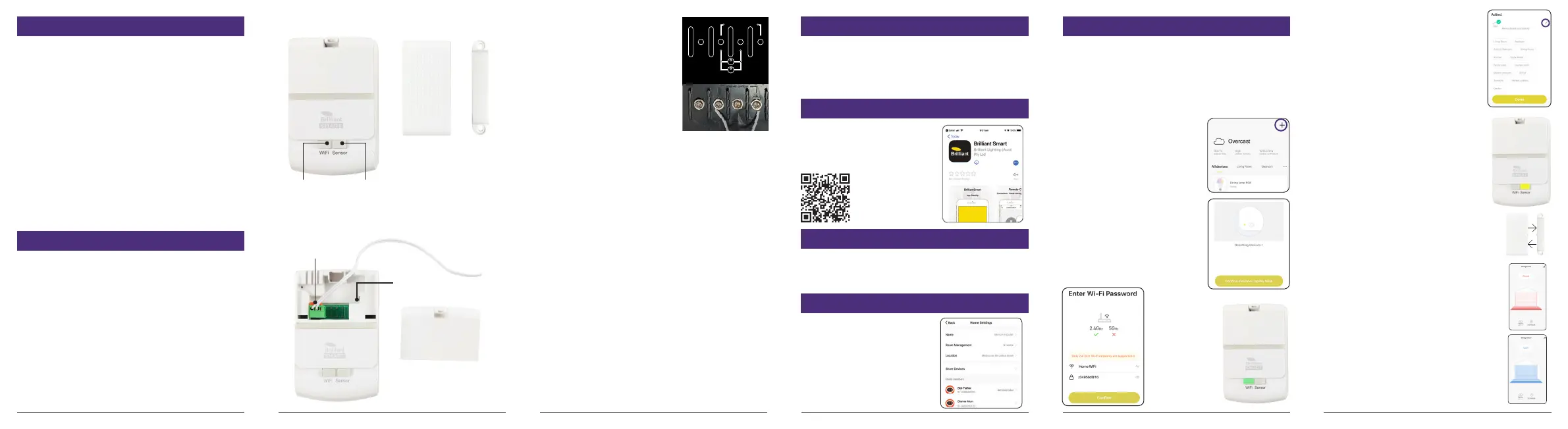

Add your Smart Device to your App

1. Plug the Smart door controller into a power outlet

and turn on. The WiFi indicator light should be

RED and ashing rapidly. If the WiFi indicator

light is not blinking then you need to reset the

device to pairing mode by pressing and holding

the WiFi indicator light button until it ashes RED.

If it is ashing rapidly, it’s ready to pair with the

BrilliantSmart app.

2. Open the BrilliantSmart App,

tap ‘Add Device’ (if empty

room) or ‘+’ to add your

Smart Universal Controller.

3. Select ‘Door/Window (WiFi)’

in the list of devices. If sensor

LED indicator is blinking

rapidly then press ‘Conrm

indicator rapidly blink’.

4. Enter your home WiFi

password – connection will

now begin.

Connect to your WiFi

Ensure your mobile phone is connected to your

2.4GHz WiFi network.

Your mobile phone and your smart device needs

to be within good signal strength range of your

WiFi router.

Download the BrilliantSmart App

Please download the free

BrilliantSmart app from the

App store or Google Play store,

or scan the QR code below.

Open the BrilliantSmart app.

For new users, register a new account or if existing

user, login with your user name and password.

Congure your BrilliantSmart App

Setting up your Home

You can setup multiple homes

or locations. Click ‘Add Home’

button. Or Click on ‘Home’ top

left if you are adding or

modifying details then ‘Home

Management’ to setup your

home(s), add or rename rooms

and share devices.

WE RECOMMEND THAT INSTALLATION BE

DONE BY A LICENSED ELECTRICIAN.

BEFORE INSTALLATION, PLEASE CHECK

THAT THE LOCATION OF THE SMART MOTOR

CONTROLLER IS WITHIN RANGE OF YOUR

HOME WIFI AND SIGNAL IS STRONG.

IT IS RECOMMENDED THAT YOU ENSURE THE

MOTOR CONTROLLER AND SENSOR ARE ALL IN

WORKING ORDER AND CAN BE CONNECTED/

PAIRED TO THE BRILLIANTSMART APP BEFORE

INSTALLATION.

PLEASE ENSURE THE PLASTIC BATTERY TAB IS

REMOVED BEFORE USE ON THE SENSOR.

Please check that your

existing door motor/controller

has manual override terminals.

This may be found behind

access panels on your existing

garage door motor/controller.

If you momentarily connect

these two terminals together

(with a wire) and it activates

the door then this product

will be compatible.

manual control

beam sensor

DC out

12V DC

50mA

max

manual override

terminals example

If the model is compatible then please proceed.

Door Controller

Door

Sensor

Magnet

WiFi

indicator

light

Sensor

indicator

light

Power adaptor

connector

Controller cover

Door

connector

5. Once connected you’ll get

a menu ‘Adding device

succeeded’ and the light turns

solid GREEN. You can click on

the pen to change the device

name then press ‘Done’.

BEFORE INSTALLATION pair

the door controller with the door

sensor & magnet. Press and hold

the sensor button on the door

controller until the indicator

light ashes YELLOW.

Move the door sensor and magnet

together. The sensor indicator light

on the door controller should turn

solid YELLOW – sensor is now

paired with the door controller.

Open the BrilliantSmart app and

select the Universal Door Controller.

Move the sensor and magnet apart and

after approx 10-15 secs see if the door

changes to open.

Move the sensor and magnet together

and after approx 10-15 secs see if the

door changes to closed.

Now they are paired and the sensor

and magnet are working correctly,

you can proceed to installation.

If the controller or sensor are not

working properly, or you cannot

connect the controller to the

Brilliantsmart app, please go to

www.brilliantsmart.com.au for

troubleshooting and for full instructions.

The WiFi

indicator light

turns to solid

GREEN when

pairing is

completed.

WiFi Sensor

Universal Door Controller

1 2 3 4 5 6
