Side 1/4
1
07/26/2023 Rev. F
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
CAUTION
Read all instructions prior to installation.
L’omission de lire les présentes instructions avant l’installation peut
fabricant se dégage de toute responsabilité à l’égard d’un bris du produit
causé par une mauvaise installation.
AVERTISSEMENT
!
Veuillez lire toutes les instructions avant l’installation.
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
ADVERTENCIA
Lea todas las instrucciones antes de hacer la instalación.
Image is for reference only.
La imagen es sólo para referencia.
L’image est fournie à titre indicatif seulement.
1-800-355-6478
www.brizo.com/customer-support/contact-us
?
8GA-ADD-240 & 8GA-ADD-208
AUTO DRAIN INSTRUCTIONS
INSTRUCCIONES DEL DRENAJE
AUTOMÁTICO 8GA-ADD-240 Y
8GA-ADD-208
INSTRUCTIONS CONCERNANT
LE RENVOI AUTOMATIQUE –
8GA-ADD-240 ET 8GA-ADD-208
113694
Register Online
Regístrese en línea
S’enregistrer en ligne
www.brizo.com/customer-support/product-registration
Model Number: _________________________
Número del modelo
Numéro de modèle
Date of Purchase: ____________________
Fecha de compra
Date d’achat
To reference replacement parts and access additional technical
documents and product info, visit www.brizo.com
Para referencia sobre las piezas de repuesto y acceder a
documentos técnicos adicionales e información del producto,
visite www.brizo.com
Pour obtenir la référence des pièces de rechange ainsi que pour
avoir accès à d’autres documents techniques et renseignements
sur le produit, allez à www.brizo.com
!
Disconnect the power to the generator before removing the generator cover
and connecting the Auto Drain.
WARNING
!
Coupez l’alimentation électrique du générateur avant de retirer le couvercle
de celui-ci et de raccorder le renvoi automatique.
AVERTISSEMENT
!
Desconecte el suministro eléctrico del generador antes de quitar la tapa del
generador y conectar el drenaje automático.
AVISO
2
113694 Rev. F
1
Installation
This auto drain valve can be used on all 8GE-TSG series steam generators.
1. Connecting the Auto Drain to the drainage system
a) When installing the Auto Drain valve, make sure the directional arrow on the valve points away from the steam unit.
b) Using ½” pipe and a union (not supplied), connect the drain outlet to a drainage system. The pipe must be pitched down and away from
the steam generator; the water will drain by gravity.
IMPORTANT: Any upward pitch of the drain would collect sediment, prevent proper draining and cause damage to the steam generator.
NOTE: Do NOT connect the auto drain pipe to the steam line, Safety Relief Valve line, or to the generator pan.
IMPORTANT: When connecting the drain outlet to the drainage system, be sure to follow National and Local Plumbing codes.
c)PipetheAutoDrainoutlettoemptyintoaoordrain.Theoutletshouldbeconnectedtoanindirectwastelineandmusthaveaminimum
airgapoftwicethediameteroftheAutoDrainpipe.TheairgapismeasuredfromthetoprimoftheoordraintotheendoftheAuto
Drainpipe.Theoordrainmustbeproperlyventedandtrapped.
NOTE: Valve MUST be in CLOSED position before use. Move lever up to release into the closed position (See Figure 1).
2. Operation of the Auto Drain
The Auto Drain valve is normally a closed valve which opens each time the steam generator drains. The valve is held closed throughout the
steambath cycle and remains closed after the steambath until the steam generator cools for approximately 8 hours. During the Auto Drain cycle
thedrainvalvewillremainopenfor3minutestotal.After2½minutesthewatersolenoidvalvewillopenandushthetank.
3. Wiring
Make sure the power is disconnected to the generator. Have an electrician connect the two black leads from the valve to the terminal block
located on the circuit board of the steam generator. Check the connection at the terminal block to make sure the wires are not shorted before
turning the power back on.

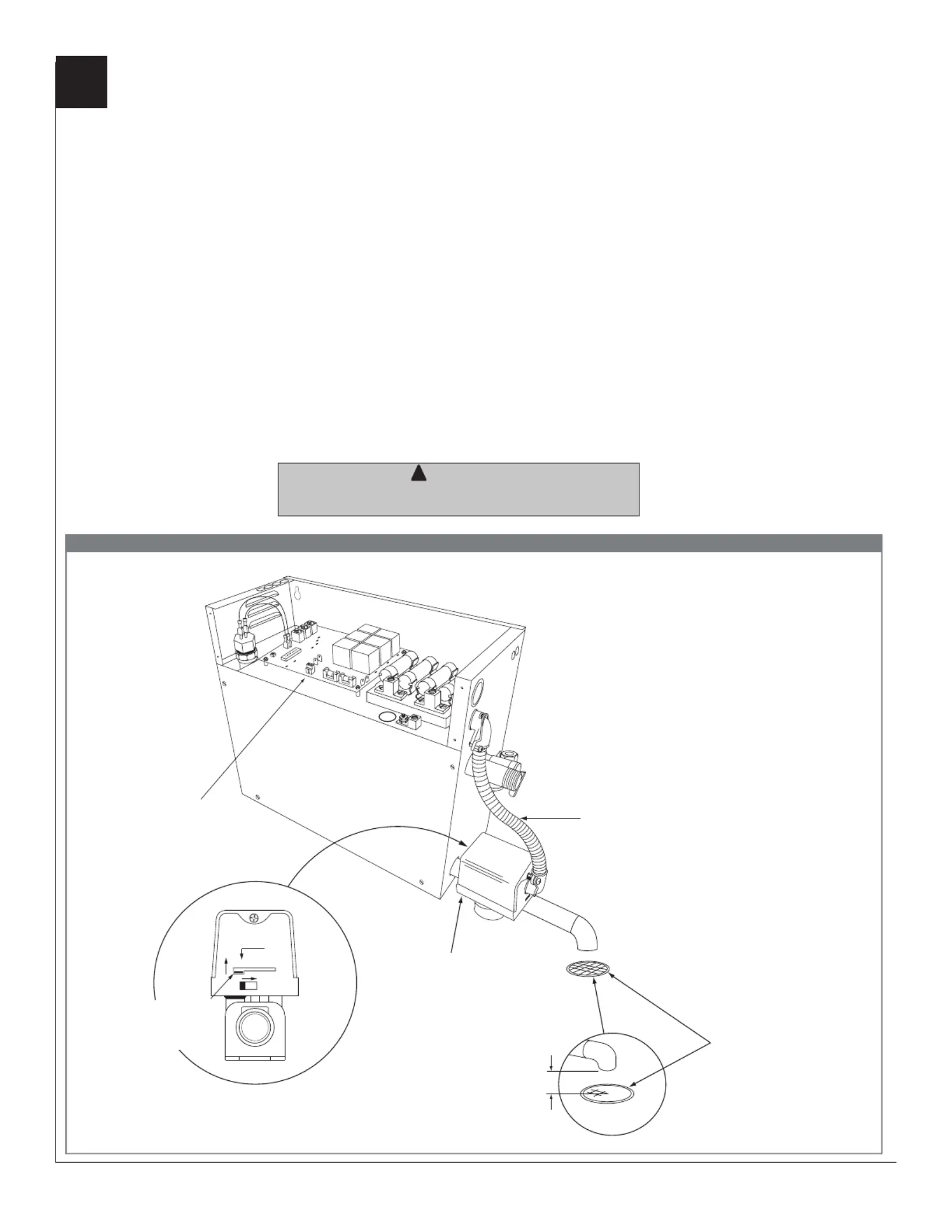

Figure 1
Lever shown
ACTU ORAT
RELEASE
OPEN
Optional Auto Drain Connection
Conexión del drenaje automático opcional
Connexion du renvoi automatique facultatif
Flexible Conduit for Auto Drain
Conductoexibleparaeldrenajeautomático
Conduitexibledurenvoiautomatique
Optional Auto Drain Installed
Drenaje automático opcional instalado
Renvoi automatique facultatif installé
Floor Drain: Minimum air gap is
twicethee󰀨ectivediameterofthe
discharge pipe.
Drenaje en el piso: El espacio de
aire mínimo es el doble del diámetro
efectivo de la tubería de descarga.
Avaloir de sol : La coupure anti-
retour minimale doit être égale à
deuxfoislediamètree󰀨ectifdutuyau
d’évacuation.
Lever shown when valve is in open position.
Se muestra la palanca cuando la válvula
está en posición abierta.
Position du levier lorsque la vanne est
ouverte.
Air Gap
Espacio de aire
Coupure anti-retour
Using an electrician for this step is recommended to avoid
personal injury.
!
CAUTION
