Side 1/8

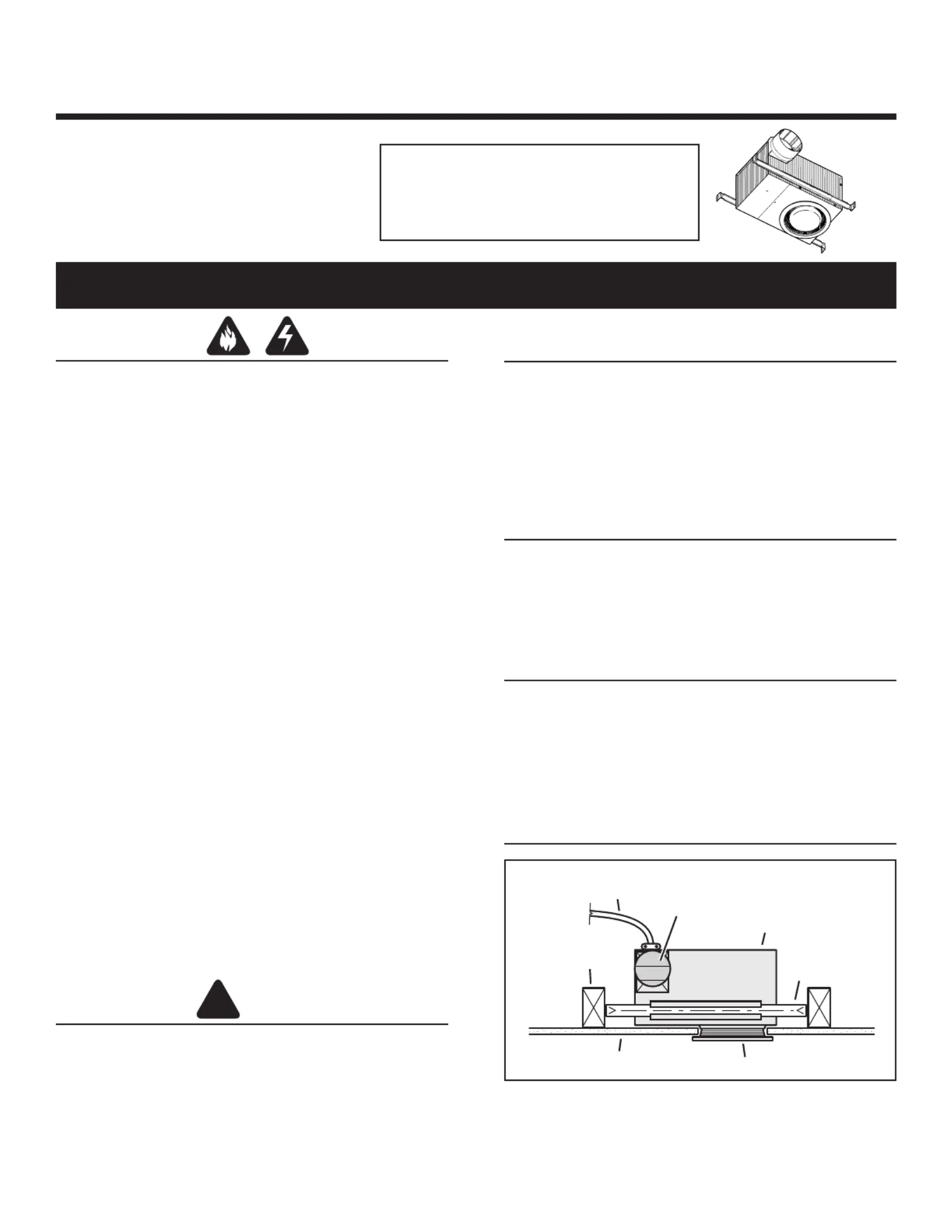

Page 1

MODELS 744L • 744RL • 744RNL

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-

JURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address

or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equip-

ment to prevent backdrafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA),

and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authori-

ties.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Never place a switch where it can be reached from a tub or

shower.

8. A dimmer switch may be used to operate the light in this unit.

Refer to the list of compatible dimmer switches on broan.com.

9. Install this unit in a flat ceiling only.

10. For use in non fire rated installations only.

11. Not for use in environmental air handling spaces.

12. If this unit is to be installed over a tub or shower, it must be

marked as appropriate for the application and be connected

to a GFCI (Ground Fault Circuit Interrupter) - protected branch

circuit.

13. Do not install in a ceiling thermally insulated to a value greater

than R60.

14. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. To avoid motor bearing damage and noisy and/or unbalanced

impellers, use the cardboard protector (provided) to keep

drywall spray, construction dust, etc. off power unit.

3. Please read specification label on product for further

information and requirements.

RECESSED

LED FAN / LIGHT

READ AND SAVE THESE INSTRUCTIONS

To clean trim ring / baffle: Vacuum with a soft brush attachment

or remove trim ring / baffle and clean with a soft cloth and mild

soap or detergent. Dry thoroughly before reinstalling.

To clean inside of housing: Remove trim ring / baffle and

vacuum inside of housing with a soft brush attachment.

OPERATION

The fan and light can be operated using various combinations of

on/off switches and controls:

• Fan and light controlled with single on/off switch

• Fan and light controlled with separate on/off switches

• Fan controlled with timer control

• Selectable fan CFM - 50 or 80

See “Connect Wiring” section for various wiring options.

CLEANING

MAINTENANCE

Motor is permanently lubricated. Do not oil or disassemble motor.

For Warranty Statement, Service Parts, Technical

Support, or to Register your product, please visit our

website or call:

In the United States - Broan.com 800-637-1453 or

NuTone.com 888-336-6151. In Canada - Broan.ca or

NuTone.ca 877-896-1119

Installer: Leave this manual with

the homeowner.

HOUSING

MOUNTING

BR KET AC

CEILING

JOIST

POWER

CABLE

TRIM RING / FFLE BA

FINISHED CEILING

4" UND RO

DAMPER/DUCT

CONNEC R & TO

4” ROUND

DUCTWORK

PLAN THE INSTALLATION

The unit can be installed anywhere between ceiling joists using

mounting brackets provided.

* Install in a flat ceiling only.

Typical Installation

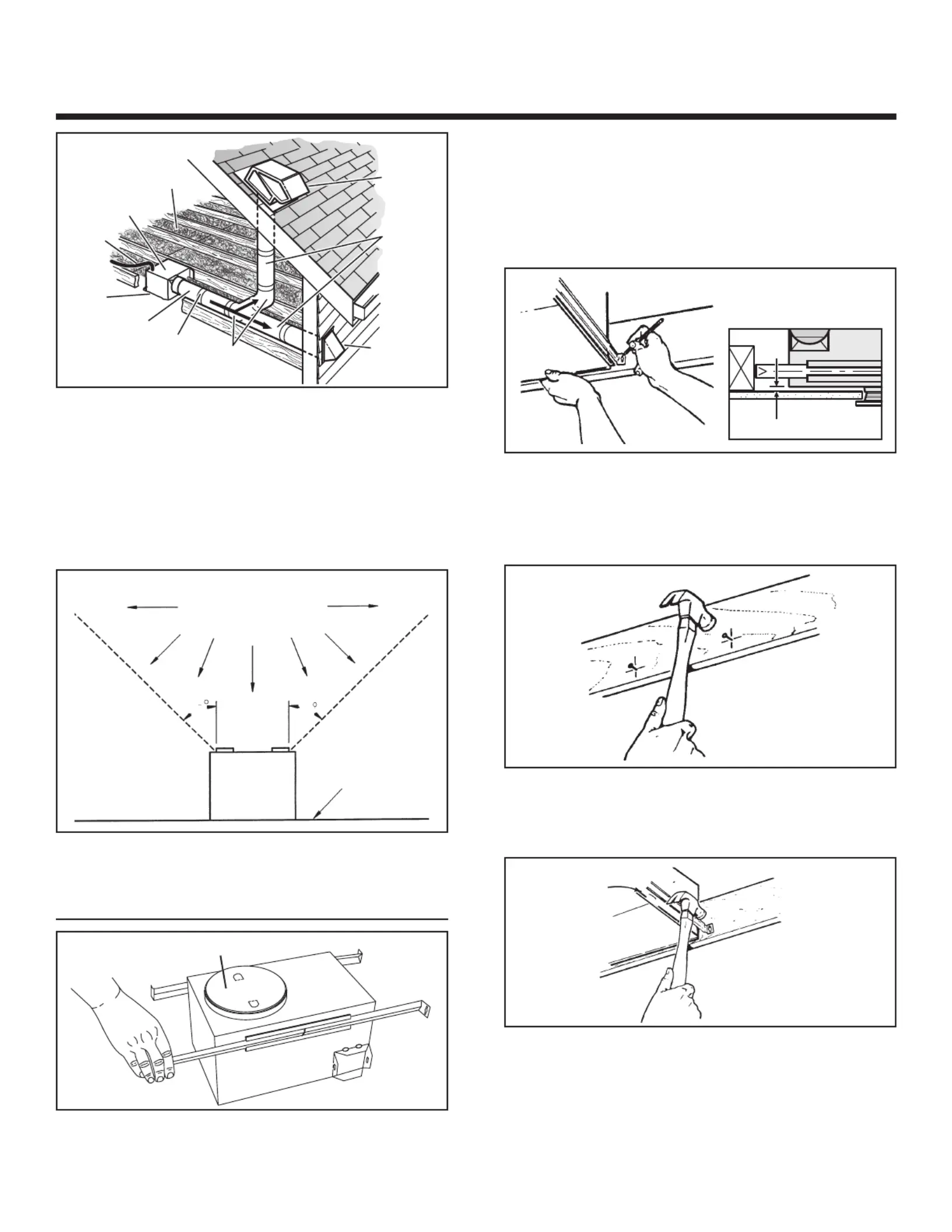

Page 2

MODELS 744L • 744RL • 744RNL

The ducting from this fan to the outside of the building has a strong

effect on the air flow, noise and energy use of the fan. Use the

shortest, straightest duct routing possible for best performance,

and avoid installing the fan with smaller ducts than recommended.

Insulation around the ducts can reduce energy loss and inhibit

mold growth. Fans installed with existing ducts may not achieve

their rated airflow.

Plan to supply the unit with proper line voltage and appropriate

power cable.

INSTALLATION

2. Mark mounting location.

Position unit between joists and extend mounting brackets.

IMPORTANT: Position brackets so there will be an 1/8” gap

between bottom of housing and ceiling material. Mark the

top of keyhole slot on all four mounting brackets.

The unit must not be installed above or inside the cooking area shown.

Do not install in a cooking area.

COOKING AREA

Do not install above

or inside this area

Cooking

Equipment

Floor

1/8" GAP

1. Install mounting brackets.

Slide the adjustable mounting brackets into the bracket channels

on the housing.

CARDBOARD PROTECTOR

*Purchase

separately.

INSULATION*

(Place around and

over Fan Housing.)

ROOF CAP*

(with built-in

damper)

FAN

HOUSING

POWER

CABLE*

4-IN. ROUND

DUCT*

4-IN.

ROUND

ELBOWS*

Seal gaps

around

Housing.

Seal duct

joints with

tape.

Keep duct

runs short.

WALL CAP*

(with built-in

damper)

Bend the tabs on the cardboard protector and insert protector into

opening in housing.

NOTE: The cardboard protector shields the inside of the housing

from drywall spray and construction dust. Do not remove it until

after construction is completed.

3. Pound in nails.

Remove unit temporarily, and pound nails partially into joists at

all four marked locations.

4. Hang and secure housing.

Hang unit from nails. Check to make sure that there will be a 1/8”

gap between bottom of housing and ceiling material. Pound nails

tight. For wide joist centers: A #8 x 3/8 self-tapping screw can be

used to join extended brackets together and create a rigid mount.

To ensure a noise-free mount, crimp the bracket channels tightly

around mounting brackets.
