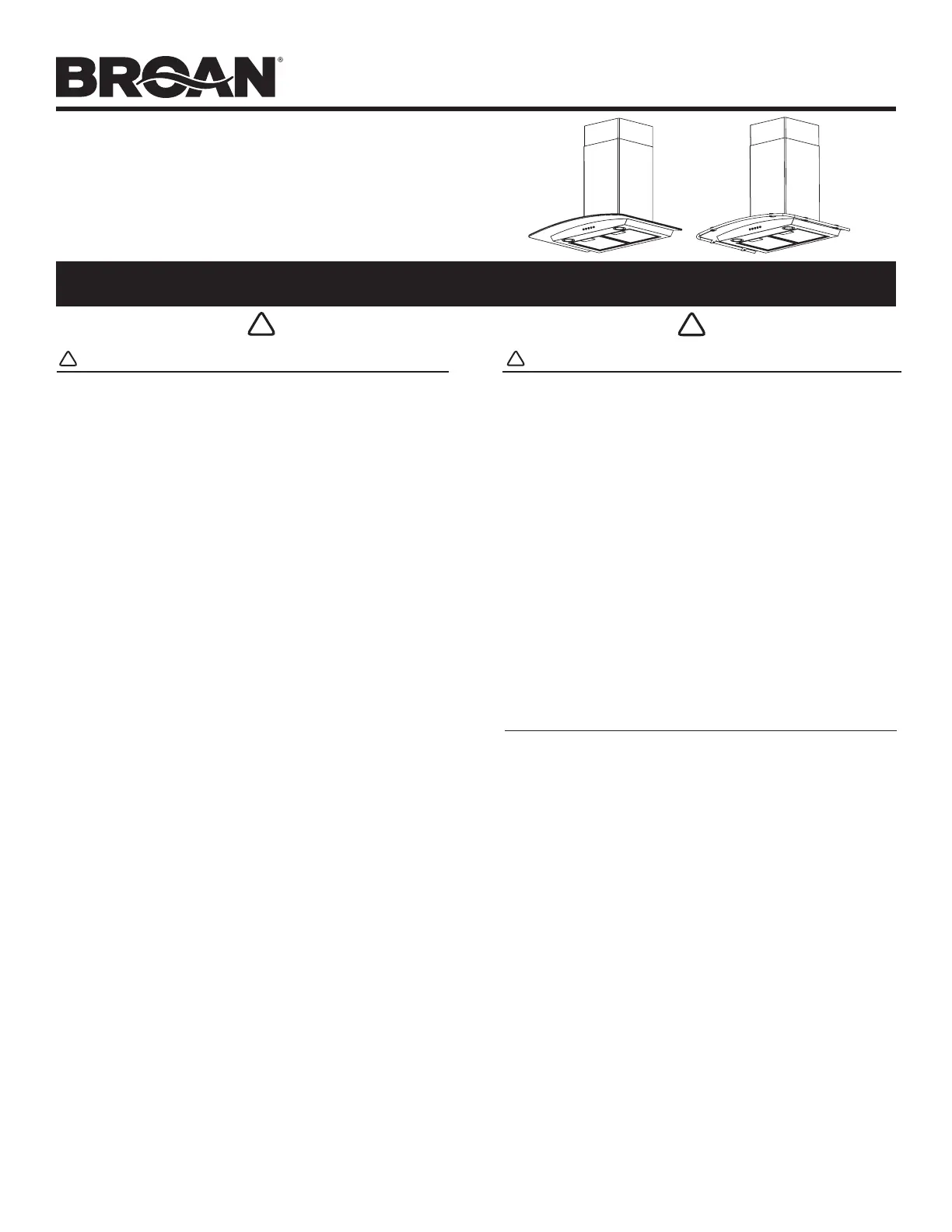

MODELS B5630SS • B5636SS • B5730SS • B5736SS

Page 1

CHIMNEY

RANGE HOOD

I .ntended for domestIc cookIng only

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSON(S) OBSERVE THE

FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the

address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock service disconnecting means to prevent

power from being switch on accidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service

panel.

3. Installation work and electrical wiring must be done by

qualified personnel in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equipment

to prevent backdrafting. Follow the heating equipment

manufacturer’s guidelines and safety standards such as

those published by the National Fire Protection Association

(NFPA), the American Society for Heating, Refrigeration

and Air Conditioning Engineers (ASHRAE) and the local

code authorities.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any other solid-state speed control

device.

8. To reduce the risk of fire, use only steel ductwork.

9. This unit must be gounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE

FIRE:

a) Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers that may

ignite. Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or when

cooking flaming foods (i.e. Crêpes Suzette, Cherries Jubilee,

Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be

allowed to accumulate on fan or filters.

d) Use proper pan size. Always use cookware appropriate for

the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSON(S)

IN THE EVENT OF A RANGE TOP GREASE FIRE,

OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or

metal tray, then turn off the burner. BE CAREFUL TO PREVENT

BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,

EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN – You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels –

This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you

know how to operate it.

B. The fire is small and contained in the area where it

started.

C. The fire department has been called.

D. You can fight the fire with your back to an exit.

* Based on “Kitchen Fire Safety Tips” published by NFPA.

WARNING

CAUTION

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. To avoid motor bearing damage and noisy and/or

unbalanced impeller, keep drywall spray, construction dust,

etc. off power unit.

3. Do not use over cooking equipment greater than 60,000

BTU/hr. as the blower motor will shut down intermittantly.

4. Your hood motor has a thermal overload which will

automatically shut off the motor if it becomes overheated.

The motor will restart when it will cool down. If the motor

continues to shut off and restart, have the hood serviced.

5. The bottom of the hood MUST NOT BE LESS than 30” and

at a maximum of 36” above cooktop for best capture of

cooking impurities.

6. Two installers are recommended because of the size of

this hood.

7. To reduce risk of fire and to properly exhaust air, be sure

to duct air outside. Do not exhaust air into spaces within

walls or ceilings or into attics, crawl spaces, or garages.

8. Be careful when installing the decorative flue and hood, they

may have sharp edges.

9. Please read specification label on product for further

information and requirements.

INSTALLER: LEAVE THIS GUIDE TO THE HOMEOWNER.

HOMEOWNER: OPERATION AND MAINTENANCE INFORMATION ON PAGE 8.

To register this product visit:

www.broan.com

HB0066

HB0067

MODELS B5630SS • B5636SS • B5730SS • B5736SS

Page 2

INSTALL THE DUCTWORK

(Ducted Hoods Only)

1. Decide where

the ductwork

will run

between the

hood and the

outside.

2. A straight, short

duct run will

allow the hood

to perform most

efficiently.

3. Long duct

runs, elbows

and transitions

will reduce the

performance of

the hood. Use as few of them as possible. Larger ducting

may be required for best performance with longer duct runs.

4. Install wall cap or roof cap. Connect round metal ductwork

to cap and work back towards the hood location. Use duct

tape to seal the joints between ductwork sections.

MEASURE THE INSTALLATION

The minimum hood distance above cooktop MUST NOT BE

LESS than 30”.

A maximum of 36” above cooktop is highly recommended for

best capture of cooking impurities.

Distances over 36” are at the installer and users discretion;

providing that the ceiling height permits.

PREPARE THE HOOD

6”

ROUND DUCT

ROOF CAP

ROUND

ELBOW

30” 36TO ” AB EOV

COOKING SUR CEFA

WALL CAP

HOOD

DECORATIVE

FLUE

HOOD

1/ 2” TO CENTER

OF BRACKET HOLES

ROUND ELBOW

HOOD MOUNTING

BRACKET

30” 36TO ” AB EOV

COOKING SURFACE *

3¼”

DECORATIVE FLUE

6” ROUND DUCT

ROOF CAP

WALL CAP

Unpack hood and check contents. You should receive:

1 - Hood

1 - Glass Canopy (Models B5630SS & B5636SS)

1 - Metal Canopy (Models B5730SS & B5736SS)

1 - Decorative Flue Assembly

1 - Damper / Duct Connector

1 - Lower Flue Mounting Bracket

1 - Upper Flue Mounting Bracket

1 - Hood Mounting Bracket

2 - Aluminum Grease Filters (installed in hood)

1 - Parts Bag containing:

8 - Mounting Screws (#8 x 3/8” Pan Head)

7 - Mounting Screws (#8 x 1-1/2” Flat Head)

4 - Mounting Screws (M4 x 1.0 Flat Head)

7 - Drywall Anchors

2 - Washers

4 - Decorative Washers

1 - Installation Manual

7 MOUNTING

SCREWS

(#8 X 1-1/2”

Flat Head)

7 DRYWALL

ANCHORS

8 MOUNTING

SCREWS

(#8 x 3/8”

Pan Head)

DECORATIVE FLUE

2 WASHERS

UPPER

FLUE MOUNTING

BRACKET

HOOD

MOUNTING

BRACKET

LOWER

FLUE MOUNTING

BRACKET

DAMPER / DUCT

CONNECTOR

4 MOUNTING

SCREWS

(M4 X 1.0”

Flat Head)

4 DECORATIVE

WASHERS
