MODEL RDH

Page 1

For Use in 1, 2 or 3 Hour Rated Floor-Ceiling and

Roof-Ceiling Designs.

Horizontal Mount Only.

For use with the following Broan ventilation fan models:

• 80RDF, 110RDF, HD50RDF

The following components are included with this

accessory kit:

(1) Radiation Damper and Fan Housing Assembly

(1) Metal Duct Connector

(4) Support Angles

(1) Housing Mask

Identify the following ventilation fan (purchased

separately) components and discard:

• Plastic Fan Grille Assembly

• Plastic Duct Connector Assembly

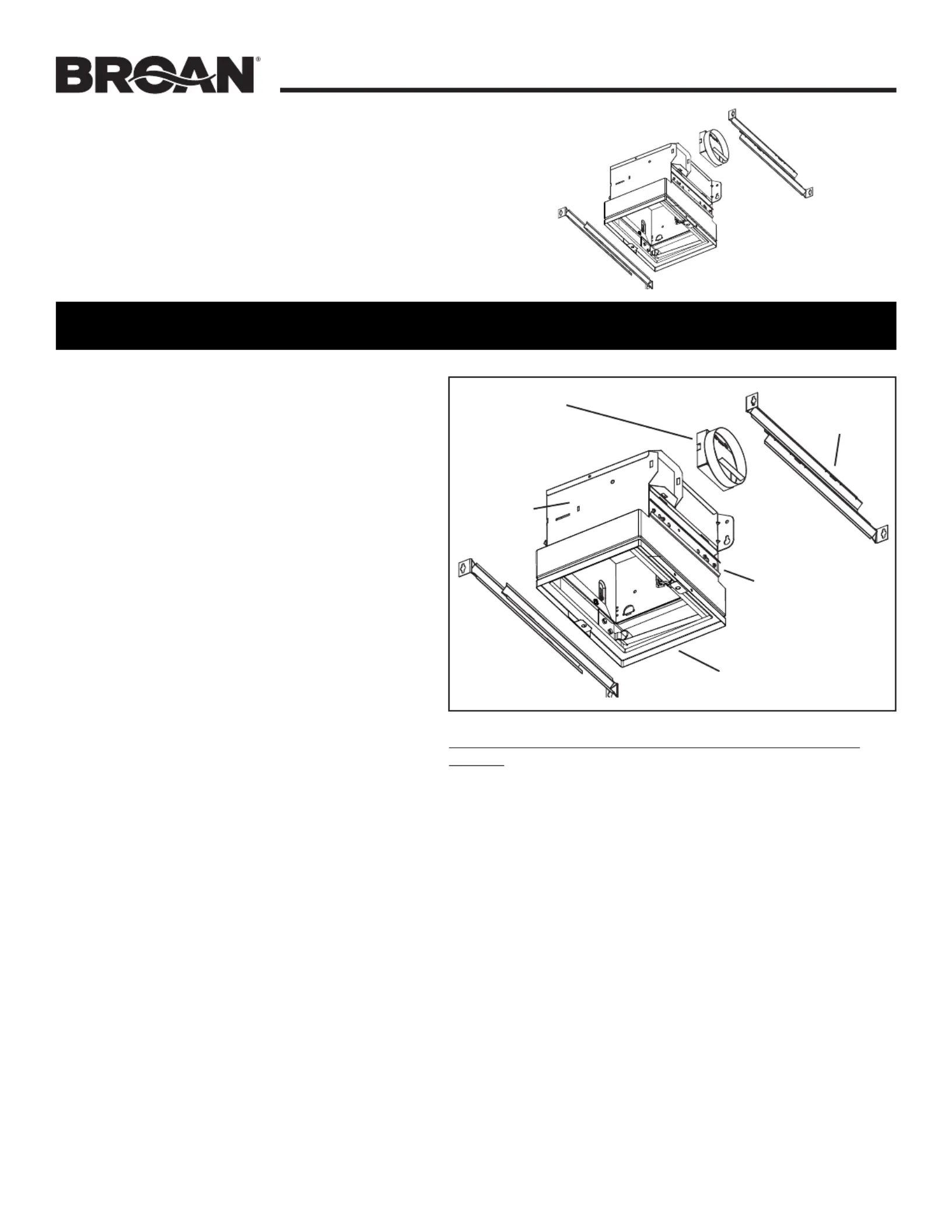

ROUGH-IN KIT WITH

RADIATION DAMPER

READ AND SAVE THESE INSTRUCTIONS

METAL DUCT

CONNECTOR

HOUSING

SLIDE

CHANNEL

SUPPORT

ANGLE

RADIATION

DAMPER

ASSEMBLY

Assemble support angles and duct connector to ventilation fan

housing:

1. Snap metal duct connector onto housing. Make sure that tabs on

the duct connector lock into the slots on the housing. Damper flap

hinge should be positioned toward top of housing.

2. Slide channels can be adjusted up or down to accommodate

different ceiling thicknesses.

3. Insert (2) support angles into each slide channel.

MODEL RDH

Page 2

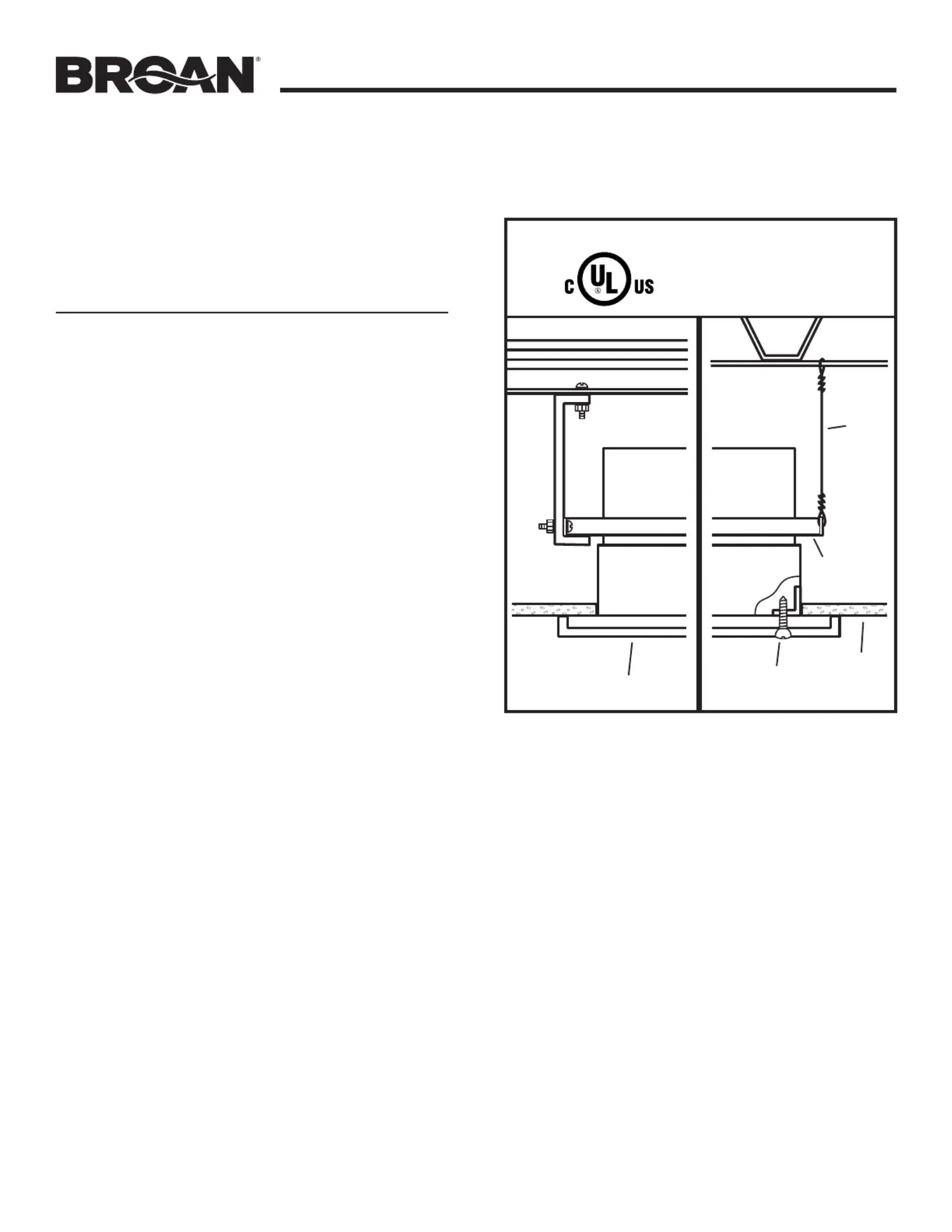

NON-COMBUSTIBLE

FLOOR / CEILING

INSTALLATION

1. Plan installation so that ceiling penetration is located

within ceiling tiles or panels without necessitating cuts

in any ceiling suspension main runners or cross tees.

Ifrequired, a maximum of one runner or cross tee

may be cut to accommodate desired damper location.

Cutends must be supported by a minimum 12 gauge

(3mm) steel, vertical hanger wire.

2. Mount fan/damper assembly to the deck or ceiling

structure above or adjacent to the assembly. If the

assembly is hung from the structure above, a minimum

12 gauge (3mm) steel, hanger wire must be used. There

must be a minimum of two wires on each of two opposite

sides. If the assembly is directly mounted to the adjacent

structure, use #8 (M4) sheet metal screws or 1/4”

(6mm) diameter bolts with nuts (hardware not provided)

to mechanically fasten it to the structure. Position fan/

damper assembly so that the inlet face of the radiation

damper is flush with the finished surface of the ceiling.

Ceiling opening must be no larger than the inlet opening

of the damper.

3. New Construction

A housing mask has been provided to keep construction

dust, drywall spray, paint, etc. from damaging the

radiation damper or blower assembly.

a) Bend up the small tab of the mask.

b) Tuck the opposite side of the mask under one of the

damper’s grille mounting ears and push mask up into

damper housing.

Remove mask before installing grille or operating fan.

4. Attach the metal grille over the inlet face of the radiation

damper using (2) #8-18 x 0.812” sheet metal screws

(provided).

CLASSIFIED

SEE DETAILS ON UL

CLASSIFICATION

MARKING ON

PRODUCT

FAN

GRILLE

WIRE

DAMPER

GRILLE

SCREW

CEILING

MOUNTING

BRACKET
