OPTION - To mount housing anywhere between ceiling framing:

Use optional Hanger Bar Kit (sold separately from local distributors

or website). Follow mounting instructions included with kit.

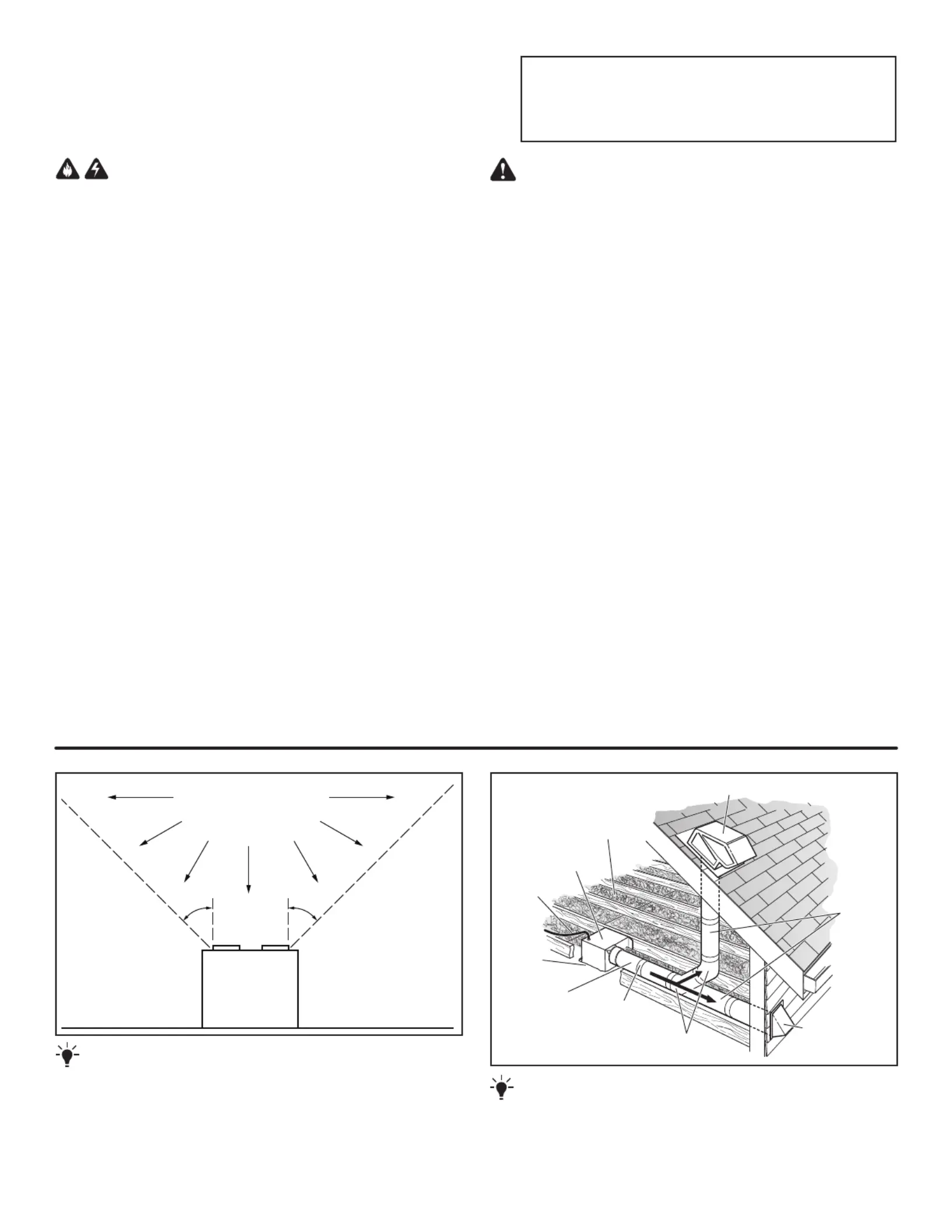

ROOF CAP* (with built-in damper)

WALL CAP*

(with built-in

damper)

4-IN. ROUND

ELBOWS*

FAN

HOUSING

Seal gaps

around

housing.

Seal duct joints

with tape.

INSULATION

(Place around and

over fan housing.)

POWER

CABLE *

* Purchase separately.

Keep duct

runs short.

4-IN. ROUND

DUCT*

IMPORTANT -

The ducting from this fan to the outside of the building

has a strong effect on the air ﬂ ow, noise and energy use of the fan. Use

the shortest, straightest duct routing possible for best performance, and

avoid installing the fan with smaller ducts than recommended. Insulation

around the ducts can reduce energy loss and inhibit mold growth. Fans

installed with existing ducts may not achieve their rated airﬂ ow.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If

you have questions, contact the manufacturer at the address or

telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel

and lock the service disconnecting means to prevent power from

being switched on accidentally. When the service disconnecting

means cannot be locked, securely fasten a prominent warning

device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualiﬁ ed

person(s) in accordance with all applicable codes and standards,

including ﬁ re-rated construction codes and standards.

4. Sufﬁ cient air is needed for proper combustion and exhausting of

gases through the ﬂ ue (chimney) of fuel burning equipment to

prevent backdrafting. Follow the heating equipment manufacturer’s

guideline and safety standards such as those published by the

National Fire Protection Association (NFPA), and the American

Society for Heating, Refrigeration and Air Conditioning Engineers

(ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Acceptable for use over a tub or shower when connected to a GFCI

(Ground Fault Circuit Interrupter) - protected branch circuit (ceiling

installation only).

8. This unit must be grounded.

READ AND SAVE THESE INSTRUCTIONS

Cooking

Equipment

Floor

COOKING AREA

Do not install above or

inside this area.

NOT FOR USE IN

A COOKING AREA.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

2. This product can be installed in a wall if mounted 8-ft. or more

above the ﬂ oor.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power

unit.

4. Please read speciﬁ cation label on product for further information

and requirements.

CLEANING & MAINTENANCE

For quiet and efﬁ cient operation, long life, and attractive appearance

- lower or remove grille and vacuum interior of unit with the dusting

brush attachment.

The motor is permanently lubricated and never needs oiling. If the

motor bearings are making excessive or unusual noises, replace the

blower assembly (includes motor and impeller).

OPERATION

Use an on/off switch to operate the fan.

Refer to Broan’s catalog for a complete line of accessories/controls

to effectively adapt these fans to your requirements.

Roomside / Flex™ Series Fan

For Warranty Statement, Service Parts, Technical Support, or to

In the United States - Broan-NuTone.com 800-558-1711.

In Canada - Broan-NuTone.ca 800-567-3855.

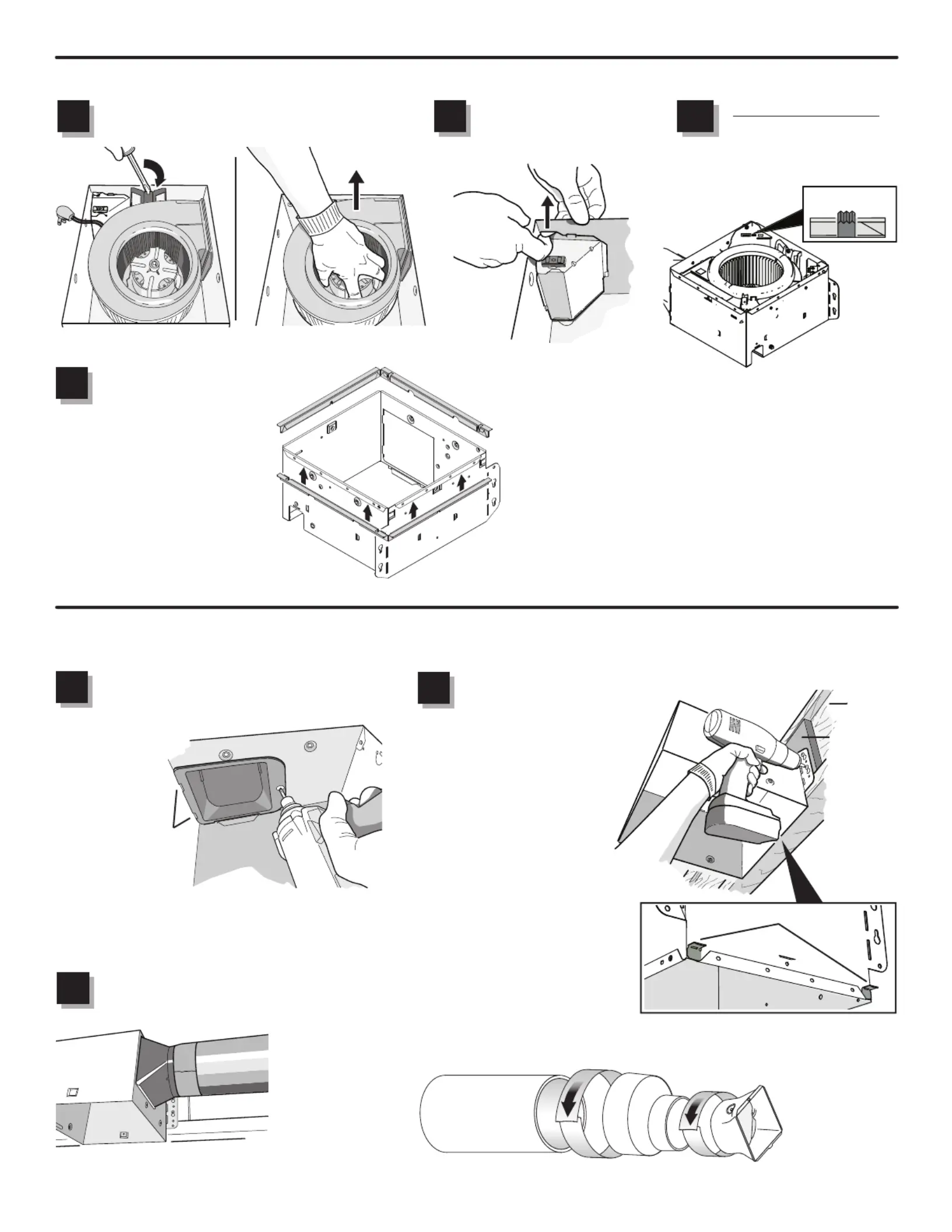

Attach damper/duct connector to

fan housing.

Mount housing to ceiling structure.

TABS

Push connector

through opening

from inside of

housing.

Engage tabs

and secure with

screw from

parts bag.

Make sure bottom of housing

will be ﬂ ush with ﬁ nished

ceiling.

For proper location using 1/2”

ceiling material: Bend out

housing tabs (on outside of

housing) to ﬁ t against bottom

of joist.

Secure housing through

mounting ears with appropriate

fasteners. If mounting housing

to I-joist, use wood blocking as

shown.

A 4 to 6-inch

duct expander

is provided with

select models.

NEW INSTALLATION

ALL INSTALLATIONS

Remove all packing material, unplug

and remove blower from fan housing.

Remove wiring panel

from fan housing (if

already installed).

For Retro t Installation -

Skip to Page 3.

Some models only:

Select 50, 80 or 110

CFM based on your room

size and desired

air  ow.

50 80 110

Some models only:

A pair of  anges

may be attached to

housing if desired

or required.

HOUSING TABS

I-JOIST

WOOD

BLOCKING

Snap both ﬂ ange pieces

under rolled-over edge of

housing (all four sides).

Connect 4-in.

round duct.
