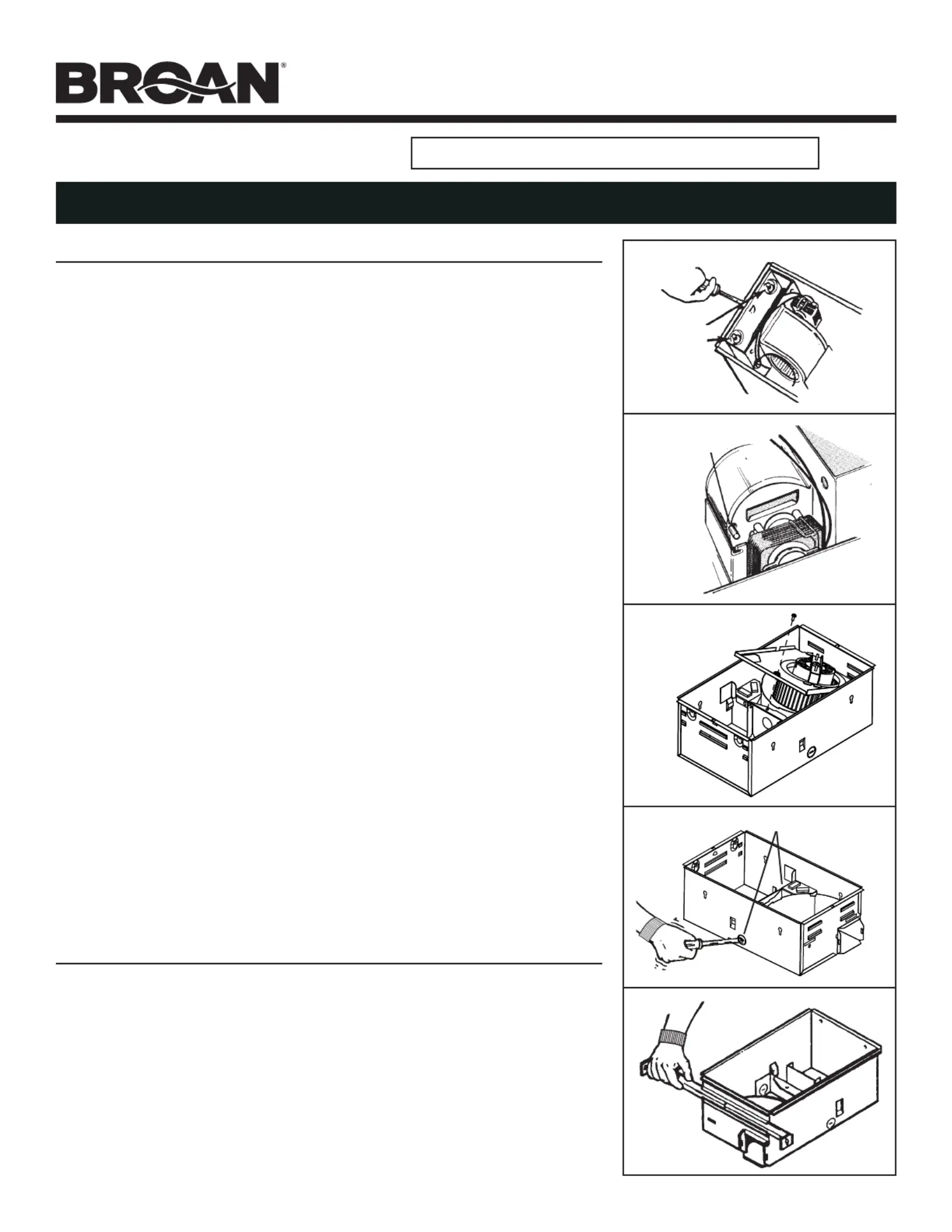

MODELS BHFLED80 • BHF80

Page 1

HEATER / FAN / LIGHT

READ AND SAVE THESE INSTRUCTIONS

FIG. 1

FIG. 2

FIG. 3

FIG. 4

FIG. 5

RETAINING

SCREWS

HINGE PIN

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING THIS HEATER.

To reduce the risk of ﬁre, electric shock, or injury to persons, observe the following:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the

manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting

means to prevent power from being switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualiﬁed person(s) in accordance with all

applicable codes and standards, including ﬁre-rated construction codes and standards.

4. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

5. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep

combustible materials, such as furniture, pillows, bedding, papers, clothing, curtains, etc. at least

3 feet (0.9 m) from the front of the heater.

6. Extreme caution is necessary when any heater is used by or near children or invalids and whenever

the heater is left operating and unattended.

7. Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater

inspected by a reputable electrician before reusing.

8. Do not use outdoors.

9. To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect

panel (or operate internal disconnect switch, if provided).

10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause

an electric shock or ﬁre, or damage the heater.

11. To prevent a possible ﬁre, do not block air intakes or exhaust in any manner.

12. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or

ﬂammable vapors or liquids are used or stored.

13. Use this heater only as described in this manual. Any other use not recommended by the

manufacturer may cause ﬁre, electric shock, or injury to persons.

14. This product must be grounded.

15. Do not install heater in a tub or shower enclosure.

16. This product is designed for ceiling installation only. This product is designed for installation in

ceilings up to a12/12 pitch. Ductwork must point up. DO NOT MOUNT THIS PRODUCT IN A WALL.

17. Install heater at least 6 inches from ﬂoor or any adjacent wall.

18. Do not connect heater to dimmer switch or speed control.

19. Provide a separate 20 AMP circuit. Use 12 GA. power cable of type which meets code.

20. For greatest efﬁciency, install heater so heat is directed toward tub or shower area. Avoid directing

toward walls or windows.

SAVE THESE INSTRUCTIONS

PREPARATION

1. Make sure the heater assembly is unplugged from the RED receptacle.

2. Loosen the two retaining screws on the inside of the heater discharge opening. Place a screwdriver

tip between the outer wall of the discharge opening and the fan housing. Gently pry outward until

the exhaust discharge slips off the support lip on the outer housing. (FIG. 1)

3. Unhook hinge pins and lift heater assembly out of housing. (FIG. 2)

CAUTION: REMOVE THE SHIPPING RING FROM THE HEATER BLOWER INLET BEFORE OPERATING

THE HEATER.

4. Unplug the fan assembly from the BLACK receptacle.

5. Remove the mounting screw and carefully lift the fan assembly out of the housing. (FIG. 3)

6. Refer to the wiring diagram on the next page. Remove appropriate knockout(s) by inserting a

screwdriver blade into slots and bending it back and forth to break tabs. (FIG. 4)

7. Insert the adjustable mounting brackets into the bracket channels on the housing. (FIG. 5)

For Warranty Statement, Service Parts, Technical Support, or to Register your product,

please visit our website www.broan-nutone.com or call 800-558-1711.

KNOCKOUTS

MODELS BHFLED80 • BHF80

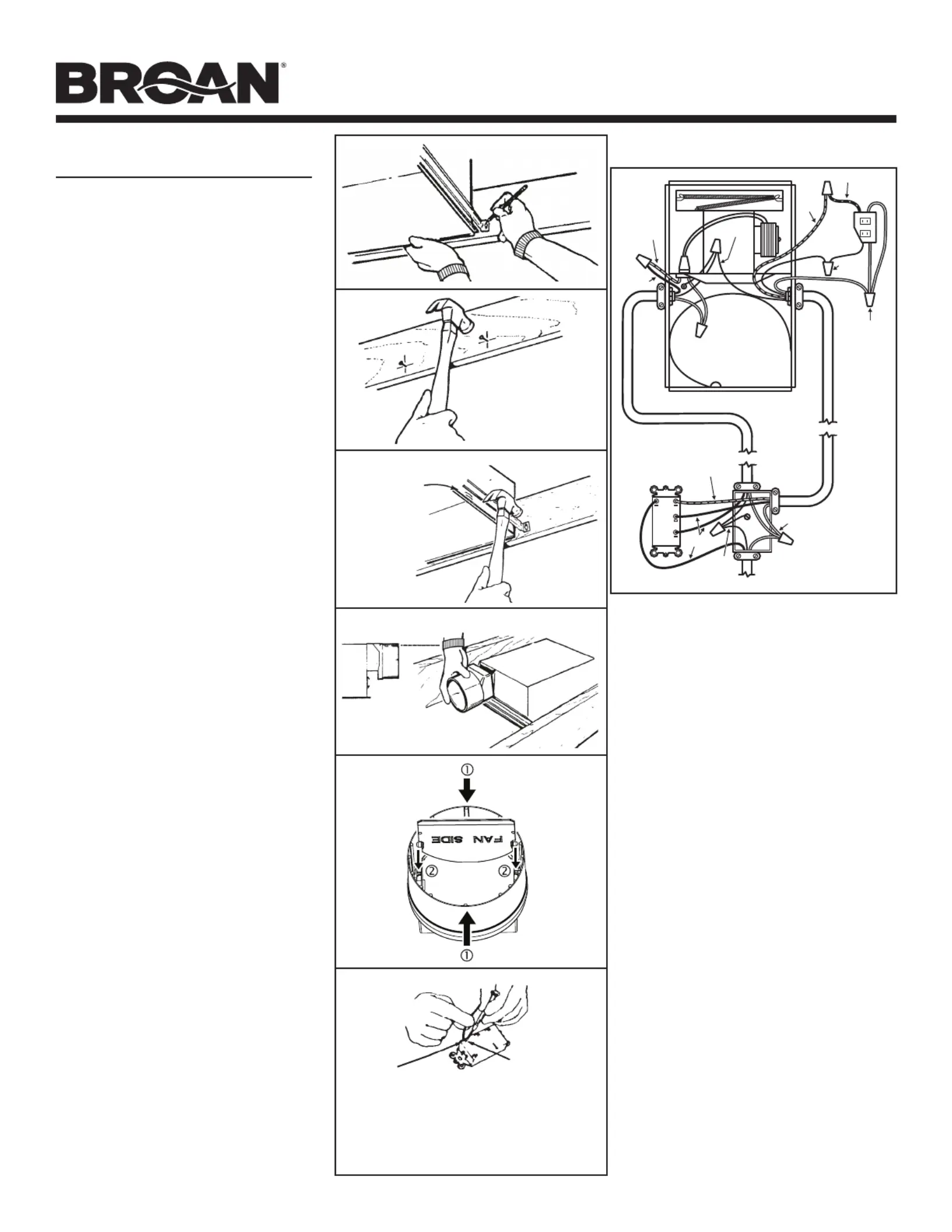

Page 2

RED

WHITE

BLACK

120 VAC LINE IN

LIGHT

VENT

HEAT

GROUND

RED

BLACK

GROUND

RED

BLUE

WHITE

BLACK

INSTALLATION

WARNING: To reduce the risk of fire, do not store

or use gasoline or other flammable vapors and

liquids in the vicinity of the heater.

CAUTION: High temperature, risk of fire, keep

electrical cords, drapery, furnishings, and

other combustibles at least 3 feet (0.9 m) from

the front of the heater and away from the side

and rear.

8. For best results, choose a location which allows

fan to be vented outside with the shortest

possible duct run and the fewest number of

elbows.

9. Position unit between joists and extend

mounting brackets. Position brackets such

that the bottom edge of housing will be ﬂush

with ﬁnished ceiling. Mark the top of keyhole

slot on all four mounting brackets. (FIG. 6)

10. Remove unit temporarily, and drive nails

partially into joists at all four marked locations.

(FIG. 7)

11. Hang unit from nails and use embossed

measuring guides to check if unit will be ﬂush

with ﬁnished ceiling. Drive nails tight. For wide

joist centers: A #8 x 3/8 self-tapping screw can

be used to join extended brackets together and

create a rigid mount. To ensure a noise-free

mount, crimp the bracket channels tightly

around mounting brackets. (FIG. 8)

12. Snap the damper/duct connector onto housing.

Make sure that tabs on the connector lock in

housing slots. (Top of damper/duct connector

will be ﬂush with top of housing.) (FIG. 9)

NOTE: Make sure damper ﬂap is in place inside

of duct connector. If it is not: Squeeze top 

and bottom of connector to snap ﬂap back 

into place. (FIG. 10)

Installation work and electrical wiring must be

done by a qualied person(s) in accordance

with all applicable codes and standards,

including re-rated construction codes and

standards.

13. Wire unit according to Figure 11.

14. Replace heater assembly removed in STEP 3

and plug it into RED receptacle. Direct wires

away from blower inlet.

15. Replace fan assembly removed in STEP 5 and

plug it into BLACK receptacle.

FIG. 6

FIG. 7

FIG. 8

EMBOSSED

MEASURING

GUIDES

FIG. 9

FLUSH

FIG. 10

FIG. 11

NOTE

WIRE

OPENING

RELEASE SLOT

If the switch* has not been wired properly and wires need

to be moved:

1. Each wire opening has a release slot.

2. Push a small nail or screwdriver into release slot while gently

removing wire.

3. DO NOT pull any wire out of the switch without using the

release slot. The switch may be damaged.

*switch not included
