Side 1/8

Page 1

MODEL QT130E

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-

JURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address

or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equip-

ment to prevent backdrafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA),

and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authori-

ties.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Acceptable for use over a tub or shower when connected to

a GFCI (Ground Fault Circuit Interrupter) - protected branch

circuit (ceiling installation only).

8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazard-

ous or explosive materials and vapors.

2. This product is designed for installation in ceilings up to a

12/12 pitch (45 degree angle). Duct connector must point up.

DO NOT MOUNT THIS PRODUCT IN A WALL.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power

unit.

4. Please read specification label on product for further informa-

tion and requirements.

MODEL QT130E

VENTILATION FAN

READ AND SAVE THESE INSTRUCTIONS

WARRANTY

Installer: Leave this manual with

the homeowner.

OPERATION

Use an on/off switch or speed control to operate this ventilator.

See “Connect Wiring” for details.

BROAN-NUTONE THREE YEAR LIMITED WARRANTY

Broan-NuTone warrants to the original consumer purchaser of its products

that such products will be free from defects in materials or workmanship

for a period of three years from the date of original purchase. THERE ARE

NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE.

During this three-year period, Broan-NuTone will, at its option, repair or

replace, without charge, any product or part which is found to be defective

under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP

STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS, FUSES,

FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSO-

RIES FOR DUCTING. This warranty does not cover (a) normal maintenance

and service or (b) any products or parts which have been subject to mis-

use, negligence, accident, improper maintenance or repair (other than by

Broan-NuTone), faulty installation or installation contrary to recommended

installation instructions.

The duration of an implied warranty is limited to the three-year period as

specified for the express warranty. Some states do not allow limitation on how

long an implied warranty lasts, so the above limitation may not apply to you.

BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-

NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EX-

CLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL

NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL

DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT

USE OR PERFORMANCE. Some states do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation

may not apply to you.

This warranty gives you specific legal rights, and you may also have other

rights, which vary from state to state. This warranty supersedes all prior

warranties.

To qualify for warranty service, you must (a) notify Broan-NuTone at the

address or telephone number stated below, (b) give the model number and

part identification and (c) describe the nature of any defect in the product or

part. At the time of requesting warranty service, you must present evidence

of the original purchase date.

Broan-NuTone LLC, 926 W. State Street, Hartford, Wisconsin 53027

www.broan.com 800-558-1711

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appear-

ance - lower or remove grille and vacuum interior of unit with the

dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the

motor bearings are making excessive or unusual noises, replace

the blower assembly (includes motor and impeller).

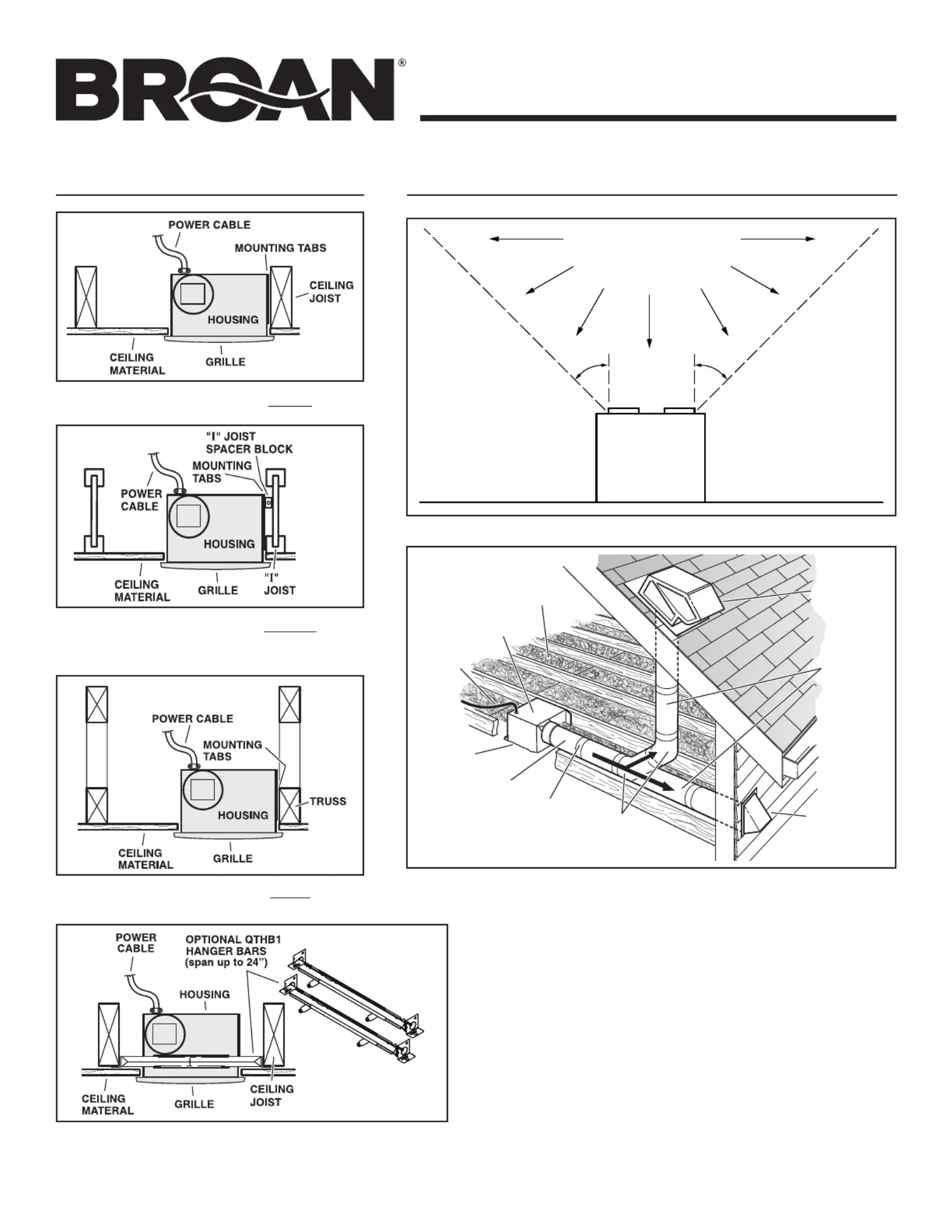

Page 2

MODEL QT130E

PLAN THE INSTALLATION

Cooking

Equipment

Floor

COOKING AREA

Do not install above or

inside this area.

NOT FOR USE IN

A COOKING AREA.

TYPICAL

INSTALLATIONS

Housing mounted to I-joists.

Use I-joist spacer block (provided).

Housing mounted to joists.

Housing mounted to truss.

To mount housing anywhere between joists, i-joists or trusses, use

optional hanger bar kit QTHB1 (sold separately). Follow mounting

instructions included with kit.

ROOF CAP*

(with built-in

damper)

WALL CAP*

(with built-in

damper)

6-IN. or 4-IN.

ROUND

ELBOWS*

6-IN. or 4-IN. ROUND

DUCT*

FAN

HOUSING

Seal gaps

around

housing.

Seal duct

joints with

tape.

Keep duct

runs short.

INSULATION

(Place around and

over fan housing.)

POWER

CABLE*

*Purchase

separately.
