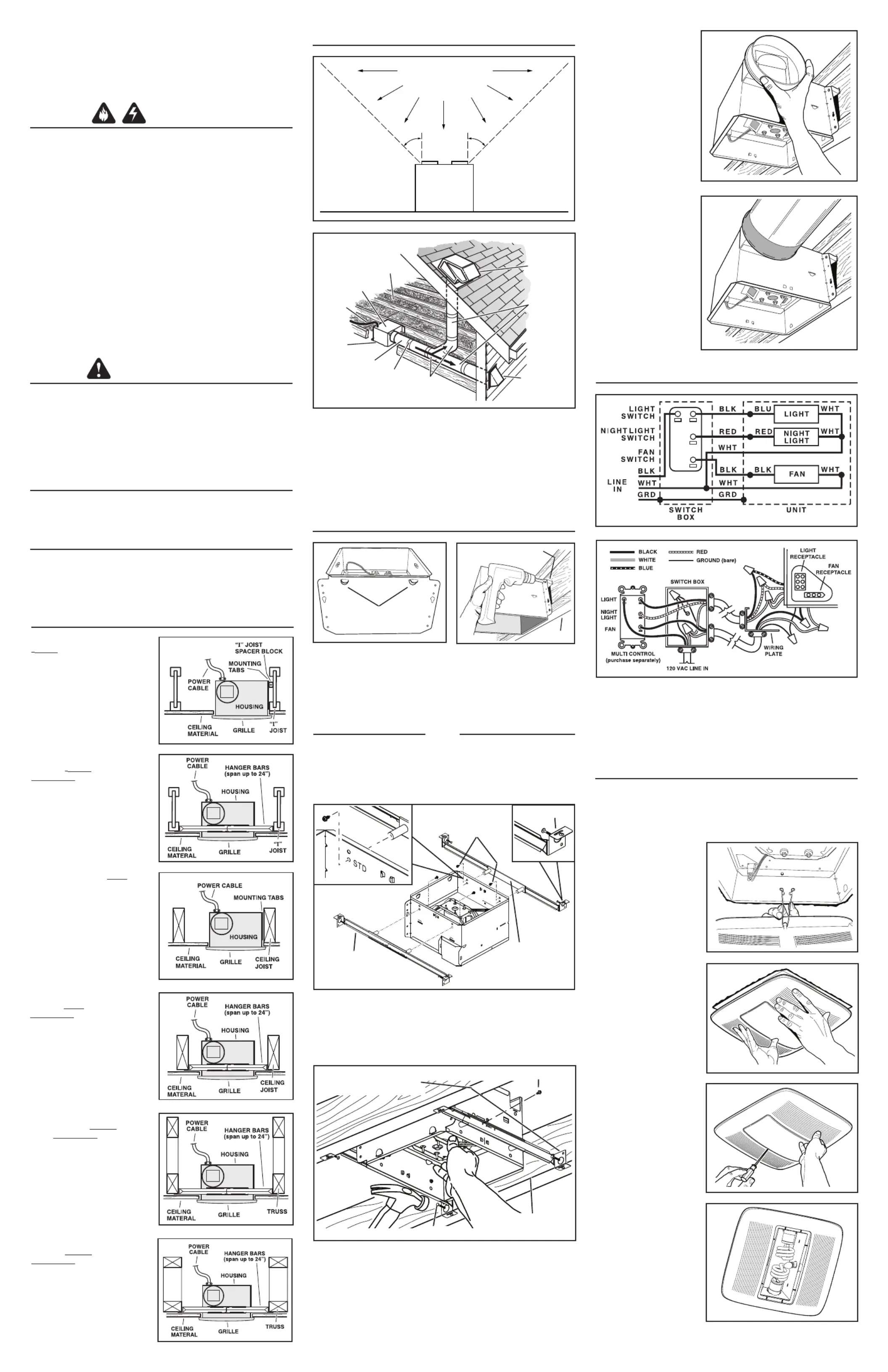

QTXE Series

Fan / Fluorescent

Light / Night Light

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PER-

SONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you

have questions, contact the manufacturer at the address or telephone

number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel

and lock the service disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting means cannot

be locked, securely fasten a prominent warning device, such as a tag, to

the service panel.

3. Installation work and electrical wiring must be done by a qualified per-

son(s) in accordance with all applicable codes and standards, including

fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases

through the flue (chimney) of fuel burning equipment to prevent back-

drafting. Follow the heating equipment manufacturer’s guideline and

safety standards such as those published by the National Fire Protection

Association (NFPA), and the American Society for Heating, Refrigeration

and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Acceptable for use over a tub or shower when connected to a GFCI (Ground

Fault Circuit Interrupter) - protected branch circuit.

8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive

materials and vapors.

2. This product is designed for installation in ceilings up to a 12/12 pitch (45

degree angle). Duct connector must point up. DO NOT MOUNT THIS PROD-

UCT IN A WALL.

3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep

drywall spray, construction dust, etc. off power unit.

4. Please read specification label on product for further information and

requirements.

PLAN THE INSTALLATION

INSTALL HOUSING & DUCT

1a. Mount housing to joist or I-joist.

Use a pliers to bend housing out to 90TABS

. Hold housing in place so that

the housing tabs contact the bottom of the joist. The housing mounts with

four (4) screws or nails. Screw or nail housing to joist through lowest holes

in each mounting flange, then through highest holes. NOTE: Mounting to

I-JOIST (shown) requires use of SPACERS (included) between the highest

hole of each mounting flange and the I-joist.

TABS

SPACER

(use for mounting to I-Joist)

I-JOIST

*Purchase

separately.

INSULATION*

(Place around and

over Fan Housing.)

ROOF CAP*

(with built-in

damper)

FAN

HOUSING

POWER

CABLE*

6-IN. ROUND

DUCT*

6-IN.

ROUND

ELBOWS*

Seal gaps

around

Housing.

Seal duct

joints with

tape.

Keep duct

runs short.

WALL CAP*

(with built-in

damper)

1b. Mount housing anywhere between trusses, joists, or I-joists using hanger bars.

Sliding hanger bars are provided to allow for accurate positioning of housing

anywhere between framing. They can be used on all types of framing (I-joist,

standard joist, and truss construction) and span up to 24”.

HANGER

BAR (4)

SCREWS (4)

MOUNTING

CHANNEL (2)

TAB

Cooking

Equipment

Floor

COOKING AREA

Do not install above or

inside this area.

NOT FOR USE IN

A COOKING AREA.

Attach the to the housing using the screws MOUNTING CHANNELS

supplied. Make sure face “up” as shown. Use the set of channel TABS

mounting holes (marked “STD”) to mount the housing flush with the

bottom of the drywall. Use the other set of holes (not marked) to mount

the housing flush with the top of the drywall.

99045938A

1. Connect electrical wiring.

Run 120 VAC house wiring to installation location. Use proper UL ap-

proved connector to secure house wiring to wiring plate. Connect wires

as shown in wiring diagrams.

CONNECT WIRING

2. Attach damper/duct

connector.

Snap damper / duct

connector onto hous-

ing. Make sure con-

nector is flush with top

of housing and damper

flap falls closed.

3. Install 6-inch round

ductwork.

Connect 6-inch round

ductwork to damper /

duct connector. Run

ductwork to a roof cap

or wall cap. Tape all

ductwork connections

to make them secure

and air tight.

INSTALL GRILLE

1. Finish ceiling.

Install ceiling material. Cut out around housing.

2. Plug in wiring.

Plug wiring into the proper receptacles.

3. Attach grille to

housing.

Squeeze grille springs

and insert them into

slots on each side of

housing.

4. Push grille against

ceiling.

Extend hanger bars to the width of the framing.

Hold ventilator in place with the hanger bar tabs wrapping around the bottom

edge of the framing.

Nail ventilator to framing or fasten with screws (not provided) through

holes near nails.

* To ensure a noise-free mount: Secure hanger bars together with screws or

use a pliers to crimp mounting channels tightly around hanger bars.

SCREW (2)

HOLE FOR OPTIONAL

SCREW MOUNTING (4)

NAIL (4)

BOTTOM EDGE

OF FRAMING

Service Parts: go to broan.com or nutone.com

and type the Model in the “Model Search” field

at the top of the page. Broan, 926 W. State

Street, Hartford, WI 53027 800-637-1453

5. Remove light

lens.

Carefully insert a

small flat-blade

screwdriver

between grille and

lens. Pry lens out.

6. Install light bulbs.

Fluorescent bulbs

supplied. Purchase

a 4W incandescent

night-light bulb. In-

sert bulbs into their

sockets. Replace

lens.

TYPICAL INSTALLATIONS

Housing mounted to

I-joists.

Housing mounted any-

where between trusses

using hanger bars.

Housing mounted anywhere

between I-joists using

hanger bars.

Housing mounted to joists.

Housing mounted anywhere

between joists using

hanger bars.

Housing mounted anywhere

between trusses using

hanger bars.

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or

remove grille and vacuum interior of unit with the dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the motor

bearings are making excessive or unusual noises, replace the motor/blower

wheel assembly.

OPERATION

Use an on/off switch or speed control to operate this ventilator. See “Connect

Wiring” for details. Use of speed controls other than the Broan Models 78V

and 78W may cause a motor humming noise.

The ducting from this fan to the outside of the building has a strong effect

on the air flow, noise and energy use of the fan. Use the shortest, straightest

duct routing possible for best performance, and avoid installing the fan with

smaller ducts than recommended. Insulation around the ducts can reduce

energy loss and inhibit mold growth. Fans installed with existing ducts may

not achieve their rated airflow.

Use a roof cap or wall cap that has a built-in damper to reduce backdrafts.

Plan to supply the unit with proper line voltage and appropriate power cable.
