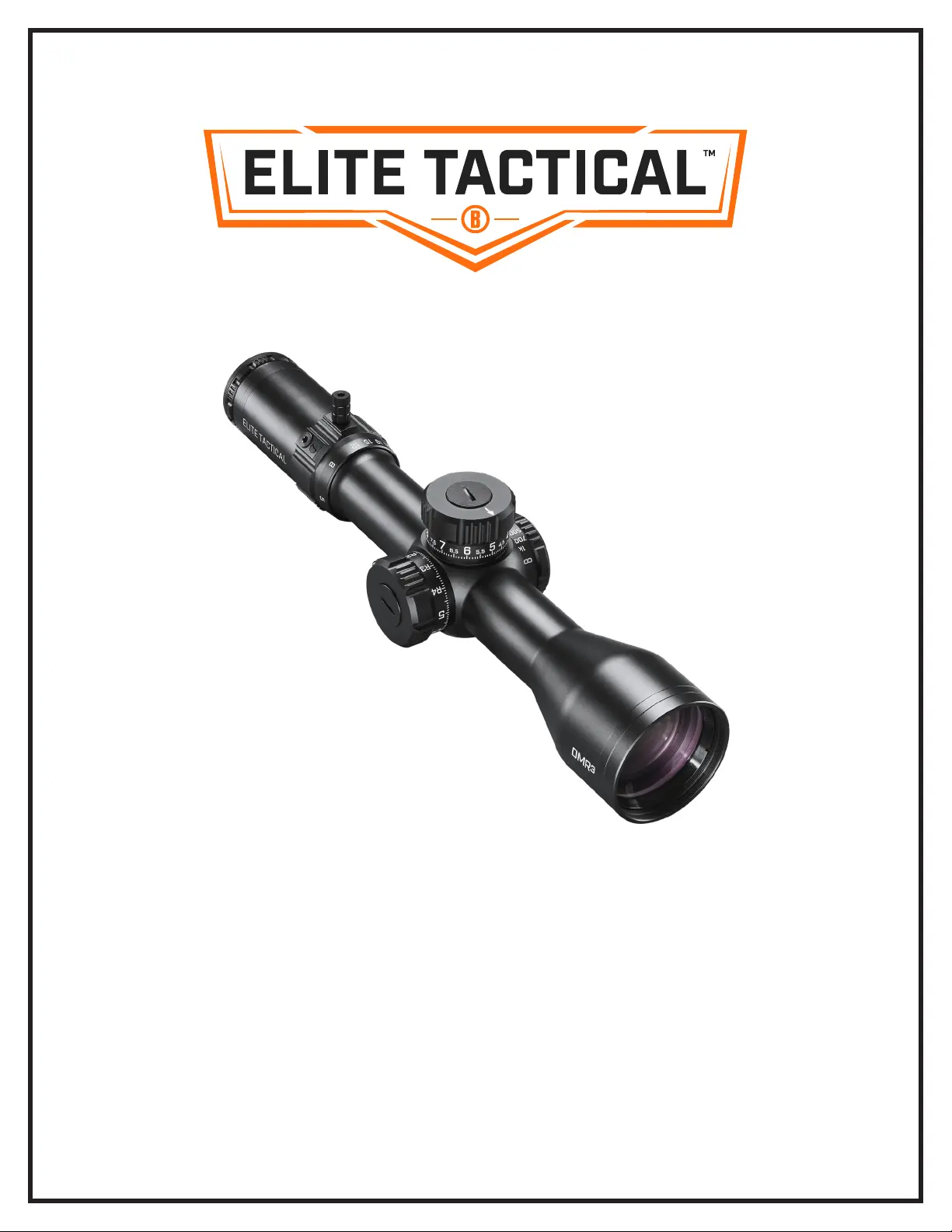

Model# ETDMR3G4 8-21

RIFLESCOPE OWNER’S GUIDE

DMR

Congratulations on your purchase of the Elite Tactical™ DMR3 Riflescope. Please read this owner’s

manual thoroughly to get the best use out of your riflescope.

WARNING: NEVER LOOK AT THE SUN THROUGH THE RIFLESCOPE OR ANY OTHER OPTICAL INSTRUMENT

AS THIS MAY CAUSE PERMANENT EYE DAMAGE.

Elite Tactical DMR3 RIFLESCOPE FEATURES

Elite Tactical™ is constantly at the forefront of quality and innovation. The Elite Tactical DMR3

riflescopes are no exception. Fully-Multi Coated Optics, E.D. Prime glass, argon purging, and

waterproof construction offer crisp, bright images in every environment.

All exterior lens surfaces have our EXO Barrier™ coating (in addition to full multi-coatings). EXO

Barrier, quite simply, is the best protective lens coating technology Bushnell has ever developed. At

the end of the coating process, EXO Barrier molecularly bonds to the lens and fills the microscopic

pores in the glass. The result is an ultra-slick coating that repels water, oil, fog, dust, and debris; rain,

snow, fingerprints, and dirt will not stick. In addition, EXO Barrier is built to last: the bonded coating

will not fade with the passage of time or normal wear and tear.

All Elite Tactical DMR3 riflescope models feature:

• CLARITY - The best resolution and contrast in all lighting conditions.

• FIRST FOCAL PLANE - Maintains reticle scale at any magnification.

• HIGH LIGHT TRANSMISSION - Light transmission is increased 2% over DMR II Pro by enhancing

the Ultra Wide Band Coating system to enable optimum brightness and true color in every

lighting condition. Reticle elements are etched glass due to the complex pattern and recoil

resistance requirements.

• DURABILITY - Machined from billet aluminum, the primary structural components are rock-solid.

• REPEATABILITY - Click Value and Tracking are very precise, consistent, and reliable.

The Elite Tactical DMR3 scope covered in this manual includes a 34mm tube, G4P reticle, side focus

parallax adjustment, and adjustable or removable PCR ThrowHammer knob locking windage turret,

and non-locking elevation turret with RevLimiter zero-stop.

KEY ELEMENTS OF A SCOPE

• Objective Lens: This lens has three functions. First, it permits light to pass into the scope.

Second, it determines resolution. Generally, a larger lens allows more light to enter the scope

and resolve details better than a smaller one. Finally, it forms an image for the other lenses to

magnify to a usable size. The image formed by this lens is upside down.

• Erector System: The erector system serves three functions. Its primary function is to erect the

image (that is, flips the image right-side-up) and align it to the reticle. During this process, the

primary magnification of the image takes place. The third function is a mechanical one. The

erector lenses are housed in a tube constrained by a spherical joint at one end, while the other

end of the tube is allowed to respond to windage or elevation turret adjustments.

• Reticle: In simple terms, the aiming device around which the scope is built. This element

replaces the iron sight system of non-scoped rifles.

• Ocular or Eye Lens: This element provides the secondary and final magnification of the image

and allows for reticle focusing independent of the target image focus.
