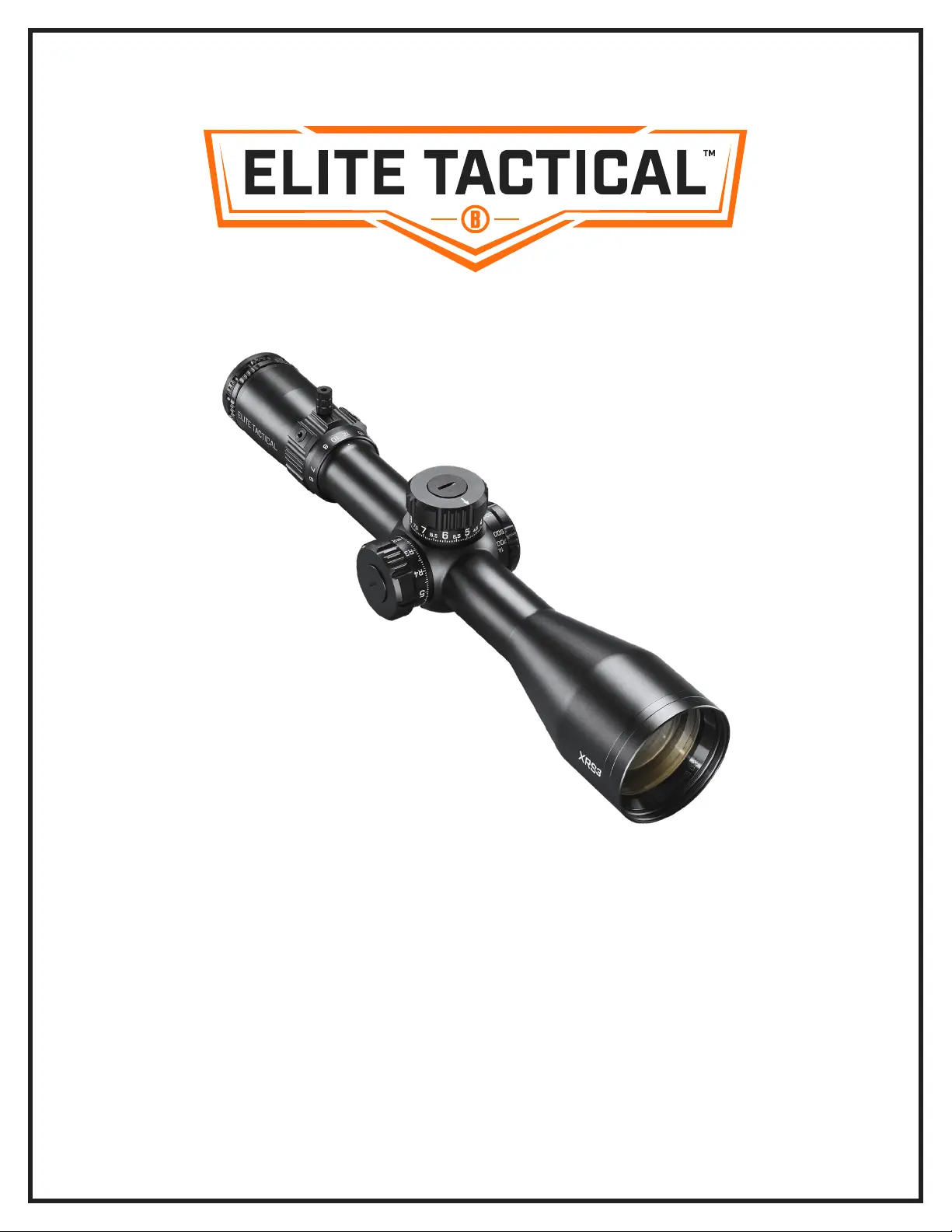

Model# ETXRS3G4, ETXRSEQL 4-22
RIFLESCOPE OWNER’S GUIDE
XRS
3
2
Congratulations on your purchase of the Elite Tactical™ XRS3 Riflescope. Please read this owner’s manual
thoroughly to get the best use out of your riflescope.
WARNING: NEVER LOOK AT THE SUN THROUGH THE RIFLESCOPE, OR ANY OTHER OPTICAL
INSTRUMENT, THIS MAY CAUSE PERMANENT EYE DAMAGE.
Elite Tactical XRS3 RIFLESCOPE FEATURES
Elite Tactical™ is constantly at the forefront of quality and innovation. The Elite Tactical XRS3 riflescopes are no exception.
Fully-Multi Coated Optics, ED Prime glass, argon purging, and waterproof construction offer crisp, bright images in every
environment.
All exterior lens surfaces have our EXO Barrier™ coating (in addition to full multi-coatings). EXO Barrier, quite simply,
is the best protective lens coating technology Bushnell has ever developed. Added at the end of the coating process,
EXO Barrier molecularly bonds to the lens and fills the microscopic pores in the glass. The result is an ultra-slick coating
that repels water, oil, fog, dust, and debris; rain, snow, fingerprints, and dirt will not stick. EXO Barrier is built to last: the
bonded coating will not fade with the passage of time or normal wear and tear.
All Elite Tactical XRS3 riflescope models feature:
• CLARITY - The best resolution and contrast in all lighting conditions.
• FIRST FOCAL PLANE - Maintains reticle scale at any magnification.
• HIGH LIGHT TRANSMISSION - Light transmission is increased 2% over XRS II by enhancing the Ultra Wide
Band Coating system to enable optimum brightness and true color in every lighting condition. Reticle elements
are etched glass due to the complex pattern and recoil resistance requirements.
• DURABILITY - Machined from billet aluminum, the primary structural components are rock-solid.
• REPEATABILITY - Click Value and Tracking are very precise, consistent, and reliable.
The Elite Tactical XRS3 scope covered in this manual include a 34mm tube, G4P
or EQL
reticle, side focus parallax
adjustment, and adjustable or removable PCR ThrowHammer knob, locking windage turret, and non-locking elevation
turret with RevLimiter zero-stop.
KEY ELEMENTS OF A SCOPE
• Objective Lens: This lens has three functions. First, it permits light to pass into the scope. Second, it determines
resolution. Generally, larger lens allow more light to enter the scope and resolve details better than smaller ones.
Finally, it forms an image for the other lenses to magnify to a usable size. The image formed by this lens is upside
down.
• Erector System: The erector system serves three functions. Its primary function is to erect the image (that is, flips
the image right-side-up) and align it to the reticle. During this process, primary magnification of the image takes
place. The third function is a mechanical one. The erector lenses are housed in a tube constrained by a spherical
joint at one end, while the other end of the tube is allowed to respond to windage or elevation turret
adjustments.
• Reticle: In simple terms, the aiming device around which the scope is built. This element replaces the iron sight
system of non-scoped rifles.
• Ocular or Eye Lens: This element provides the secondary and final magnification of the image, and allows for
reticle focusing independent of the target image focus.
