Side 1/2

1. Low-Pass frequency selector. By using this

selector you can choose the Low-Pass crossover

point (50/80/100/120Hz)

2. High-Pass frequency selector. By using this

selector you can choose the High-Pass crossover

point (80/100/120/140Hz)

3. Level Controls. Since the volume of each output

varies upon speaker efﬁciency variation and main

ampliﬁer output variation, make adjustments using

these controls.

4. .Phase switch Allows you to change the phase of

your subwoofers from 0° to 180° to help compen-

sate for timing differences between speakers.

5. .Mode switch Allows you to change the subwoof-

er output between stereo and mono, thus facilita-

ting single subwoofer installations.

6. .Input jacks Input from sound source RCA jacks.

7. High level input. Input from sound source’s spea-

ker leads.

8. Low Pass output jacks. Connect RCA cables to

the subwoofer ampliﬁer.

9. .High Pass output jacks Connect RCA cables to

the Mid-High ampliﬁer.

10. .Power connector port B+ : Connect to the (+)

positive terminal of the car battery. Place a fuse

close to the car battery to protect the vehicle.

GND: Connect to a metal part of the car, or nega-

tive (-) terminal of the car battery.

REM: Connect to the remote activating wire of the

radio, or Power antenna wire.

Input

L R

Sub-Woofer

OutL R

High-Pass

OutL R

50 Hz

100 Hz

80 Hz

Mode

Sub-Woofer

Output Level

Min Max

High-Pass

Output Level

Min Max

StereoMono

Phase

ReverseNormal

120 Hz

140 Hz

100 Hz

120 Hz

80 Hz

Power

GND RB+

7 1 2

6 8 9 10

CX2CX2

2-Way 18dB/Oct Electronic Crossover

High Level Input

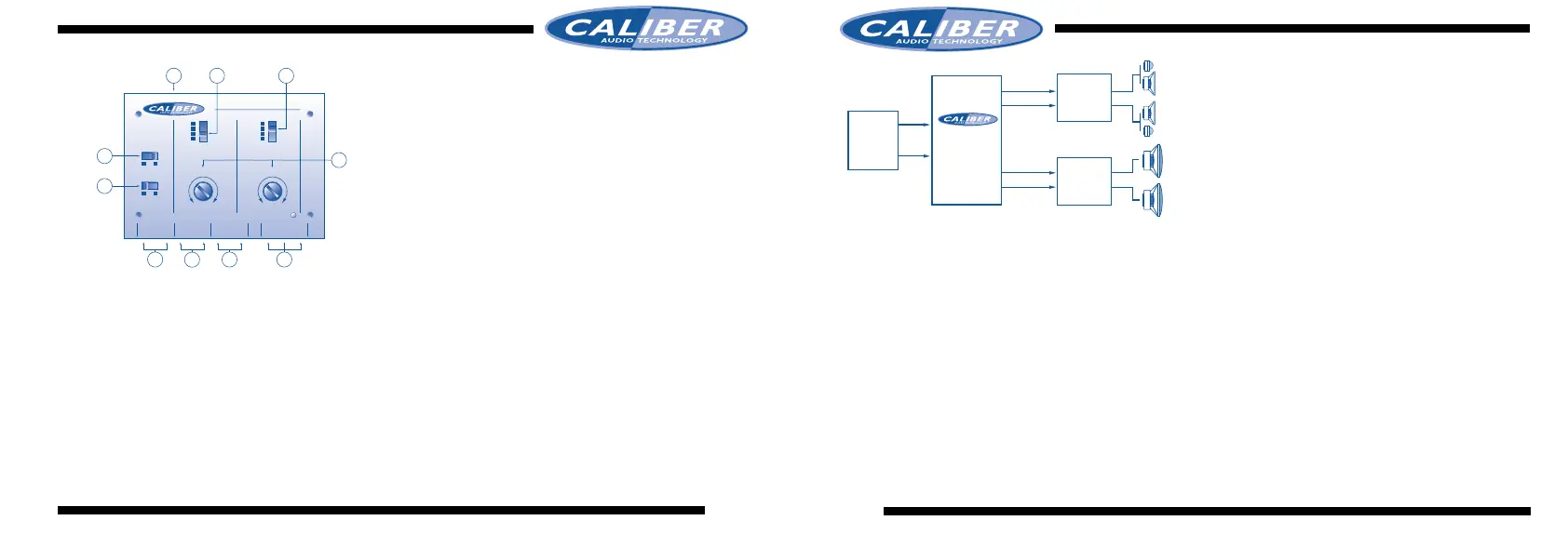

This diagram shows you a typical conﬁguration. Two

power ampliﬁers are required. The Low-Pass output

drives the subwoofers ampliﬁer and the High-Pass out-

put drives a second ampliﬁer for your midrange-/twee-

ter system. They could also be full range speakers

except now they are relieved of their deep bass duty

which is carried entirely by the subwoofers.

Full frequency performance is accomplished by the two

groups working together without any overlaps or gaps.

One speaker pair picks up as the other is falling off.The

cut-off frequency for each can be set independently with

the multi-position switches. In most cases they should be

set close to the same frequency to avoid unintentional

peaks or valleys in the system response. This common

cut-off frequency is called the “crossover frequency”.

Connections

Make connections according to the diagram and note

the following:

1. Make all connections securely and avoid stretching

any wires or cables that could pull loose later on.

Never make or break any connection with the power

to your ampliﬁer turned on.

2. Make sure the ground connection attaches to bare

metal that is part of the car’s chassis and not a insu-

lated piece of trim. If you experience excessive noise

during operation, its cause will probably trace back

to a poor ground connection.

3. Make all connections to the CX2 before mounting.

4. Disconnect the car battery to prevent short circuits

while making power connections. Insulate all con-

nections to prevent short circuits.

5. Plug the radio’s pre-out RCA plugs into the CX2’s

input jacks, or connect the radio’s speaker outputs

to the High level input on the Molex connectors and

plug into item 7. Do not use both RCA-input and

High Level input at the same time.

Low-Pass

Audio

Signal

Source

Right

Left

High-Pass

CX2

Power

Ampliﬁer

Power

Ampliﬁer

B. If the noise is a “clicking” or “popping” that goes

at a rate following engine speed, it is likely to be

coming from the car’s ignition. Make sure that the

car has resistor plug wires and that the breaker

points capacitor is in good condition.

C. If the noise occurs when blinkers, brake-lights,

wipers, etc. are used, make sure that the power

wires for all the audio components run straight

to the battery, not to the car’s fuse box. For safe-

ty reasons you should install a separate fuse box

for all the components of your Car Audio System

as close to the battery as possible. Speaker and

input wires should not run next to wires that go

to lights and other equipment, and you must also

keep them away from the wires of the power

supply to your Audio system.

Speciﬁcations:

Caliber CX2

2-way electronic 18dB/Oct crossover

Crossover frequency

High-Pass . . . . . . . . . . . . . . . . 80/100/120/140Hz

Low-Pass . . . . . . . . . . . . . . . . . 50/80/100/120Hz

Low & High output level control

RCA or High Level Input

Subwoofer phase shift switch (0°/180°)

Subwoofer Mono/Stereo switch

Frequency response . . . . . . . . . . 10Hz - 30 KHz

S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . 100dB

Crossover slope . . . . . . . . . . . . . . . 18dB/Octave

T.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.02%

Output gain . . . . . . . . . . . . . . . . . . . . +6dB (1:4)

Dimensions (WxDxH) . . . . . 180 x 110 x 31mm

Mounting your CX2 Crossover:

The CX2 crossover can be mounted in any position

using the 4 self-tapping screws provided.

• Vertical mounting provides the best access to the

controls.

• Mount the CX2 crossover so that it is protected

from vibration, possible water leakage and dust.

What to do if there are problems?

Before removing the crossover, look for the problem in

the list below.

1. No output:

A. Make sure that the RCA connectors are plugged

ﬁrmly together.

B. Check the ampliﬁer manuals to check for pro-

blems in the ampliﬁers.

C.Check the power fuse. Both the B+ and the

Remote terminals must have +12V in order for

the CX2 to turn on.You can use a small 12V light

bulb to check for +12V from these terminals to

chassis ground.

D. Make sure that the signal source (radio/casset-

te/CD-deck) is connected and supplying output.

You can ﬁnd out if the crossover is working by

plugging one end of a set of RCA patch cords

into the crossover inputs, and brieﬂy tapping the

center pin of each plug on the other end with a

ﬁnger.This should make a noise in the speakers.

Caution:This may be loud.

2. Only one channel works:

A. Change the position of the input RCA’s. Connect

the radio’s right output to the crossover’s left

input, and the left output to the right input. If the

channel that is out changes speakers, the pro-

blem is in your radio/cassette/CD-deck or the

connecting cable.

3. Noise in the output:

A. If the noise is a “wining sound” that goes up and

down with the engine speed, make sure that all

components including the ampliﬁer are grounded

at the same chassis point, and that this point is

free of paint and rust. Check for ground “loops”,

more than on ground path for any component.

Also try putting L-C noise ﬁlters in the power

wires that go to the Radio/Cassette/CD-deck.
