Side 1/20

ENGLISH

SPECIFICATIONS

GENERAL

Power Supply DC 11 -14,4V

Polarity Negative Ground

Speaker impedance 4 ohms

Power Output 4 x 75W

DVD/ CD PLAYER

Usable disc DVD+/-R, DVD+/-RW, CD, CD-R,

CD-RW, USB, SD

Sampling frequency

No of quantization bits

Frequency 20-20,000Hz

Number of channels 2 stereo

S/N Ratio 90dB

RADIO SECTION

Frequency Range 87.5-108 Mhz

Usable Sensitivity Better than 15dB at S/N 30 dB

Stereo Separation 25 dB at 1KHz

S/N Ratio 50 dB

AM / MW

Frequency Range 522-1620 Khz

Usable Sensitivity Better than 40dB

S/N Ratio 40 dB

REMARK :

Specifications subject to change without notice.

>>I

REL

>>I

BAND

MODE

MUTE

RPT

STOP

RDM

ZONE

SUBW

IXBASS

PTY

CLEAR

II >

DISP-MENU

AS-FS

OSD-SET UP

AV IN-OUT

18 1121414113

MCD 785 4x 75W

12 6 20 5 15

16 9 2

78101719

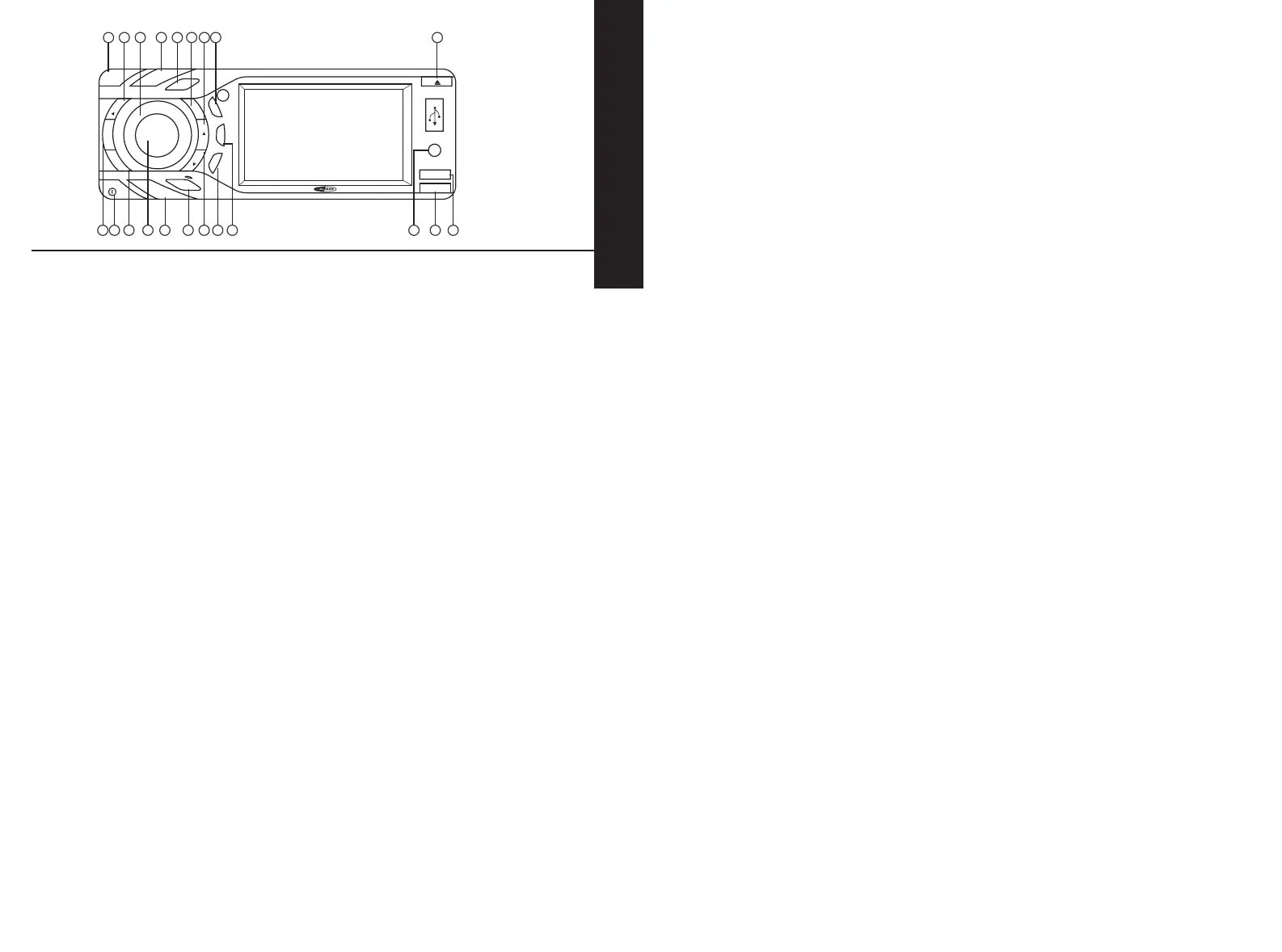

1. MUTE / POWER

2. EJECT

3. PANEL RELEASE

4. AUDIO MENU BUTTON / CD, DVD OK. BUTTON

5. MODE

6. ENCODER VOLUME

7. 3,5MM A/V IN JACK

8. SUBWOOFER / TUNER AF

9. 2 ZONE / TUNER TA

10. 1X-BASS / TUNER PTY

11.TUNER PS AS / CD SET-UP / DVD OSD SET-UP

12.TUNER M1 MEMORY 1 / CD PAUSE PLAY / DVD PAUSE PLAY

13.TUNER M2 MEMORY 2 / CD STOP / DVD STOP

14.TUNER M3 MEMORY 3 / CD REPEAT OFF, REPEAT TRACK, REPEAT

DISC / DVD REPEAT OFF, REPEAT CHAPTER, REPEAT TITLE

15.TUNER M4 MEMORY 4 / CD RANDOM FOLDER / DVD SHORT

PRESS M4 --> DVD MENU

16.TUNER M5 MEMORY 5

17.TUNER M6 MEMORY 6 / DVD AUDIO

18. DISPLAY MENU

19.TUNER BAND

20.TUNER SEEK UP TUNE UP / CD FILE/TRACK UP FAST FORWARD /

DVD NEXT FAST FORWARD

21.TUNER SEEK DOWN,TUNE DOWN / CD FILE/TRACK DOWN

FAST BACKWARD / DVD BACK FAST BACKWARD

WIRING DIAGRAM-AUDIO/VIDEO CONNECTIONS

ENGLISH

1. Insert mounting bracket into the

dashboard, and bend the mounting

tabs out with a screwdriver. (Make

sure that lock lever is flush with

the mounting bracket. Not

projecting outward)

2. Secure the rear of the unit After

fixing mounting bolt and power

connector, fix the rear of the unit

to the car body by rubber cushion.

3. Insert trimplate

DISC PLAY

PRECAUTIONS

• Use only in a 12-volt DC negative-ground electrical system.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

• When replacing the fuse, be sure to use one with an identical amperage rating.

• Using a fuse with a higher amperage rating may cause serious damage to the unit.

• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.

• Make sure that pins or other objects do not get inside the unit; they may cause malfunctions, or create safety

hazards such as electrical shock or laser beam exposure.

• If you have parked the car for a long time in hot or cold weather, wait until the

temperature in the car become normal before operating the unit.

•Keep the volume at a level at which you can hear outside warning sounds (horns

sirens, etc.).

CD NOTES

• Playing a defective or dusty CD can cause dropouts in sound.

• Hold CDs as illustrated.

• DO NOT touch the unlabeled side.

• DO NOT attach any seal, label or data protection sheet to either side of a disc.

• DO NOT expose a CD to direct sunlight or excessive heat.

• Wipe a dirty CD from the center outward with a cleaning cloth.

•Never use solvents such as benzine or alcohol.

• This unit cannot play 3-inch ( 8cm ) CDs.

• NEVER insert a 3-inch CD contained in the adapter or an irregularly shaped CD.

• The unit may not be able to eject it, resulting in a malfunction.

BEFORE OPERATION

• DO NOT raise the volume level too much, as this will block outside sounds, making

driving dangerous.

• Stop the car before performing any complicated operation.

CAUTION

DO NOT open covers and do not repair by yourself. Consult the dealer or an experienced technician for help.

INSTALLATION PROCEDURES

First complete the electrical connections, and then check them for correctness.

ANTI-THEFT SYSTEM

This unit is equipped with a detachable

panel.

Removing this panel makes the radio

totally inoperable.

REMOVING THE PANEL

1. Switch off the power of the unit.

2. Remove the detachable panel (REL

button).

3. Gently press the button of the case

and open the cover. Place the panel

into the case and take it with you

when you leave the car.

INSTALL DETACHABLE PANEL

1.Fix right part of face plate in the right

part of panel slot of the unit.

2.Press down the left side of the face

plate until it clicks into the panel slot

of the unit.

REMOVE THE UNIT

Switch of the power of the unit.

1. Remove the panel and the trim plate.

2. Insert both T-Keys into hole in front of

the set until they lock.

3. Pull out the unit.

Produkt Specifikationer

Mærke:	Caliber
Kategori:	Bilradio
Model:	MCD 785
Skærmtype:	LCD
Skærm diagonal:	3.5 "
Kompatible hukommelseskort:	MMC, SD
Equalizer:	Ja
Understøttede billedformater:	JPG
Integreret ur:	Ja
Fjernbetjening inkluderet:	Ja
Frekvensområde:	20 - 20000 Hz
Lyd-output kanaler:	4.0 kanaler
Udgangseffekt:	300 W
Indbygget kortlæser:	Ja
LED-baggrundsbelysning:	Ja
Maksimal effekt pr. kanal:	75 W
Klar til iPod:	Ingen
Equalizerbånd, antal:	4
MP3-afspilning:	Ja
CD-R-afspilning:	Ja
CD-RW-afspilning:	Ja
Skærmlys:	Ja
Signal/støjforhold:	90 dB
FM båndbredde:	87.5 - 108 MHz
Vigtig belysningsfarve:	Blå
AM båndbredde:	522 - 1620 kHz
Automatisk digital indstilling:	Ja
ISO-tilslutning:	Ja
Afspilning af DVD-lyd:	Ja
Fader:	Ja
Filtype:	MP3, WMA
